MHY Series 2 Fingers High Accuracy Parallel Air Gripper

Share to:

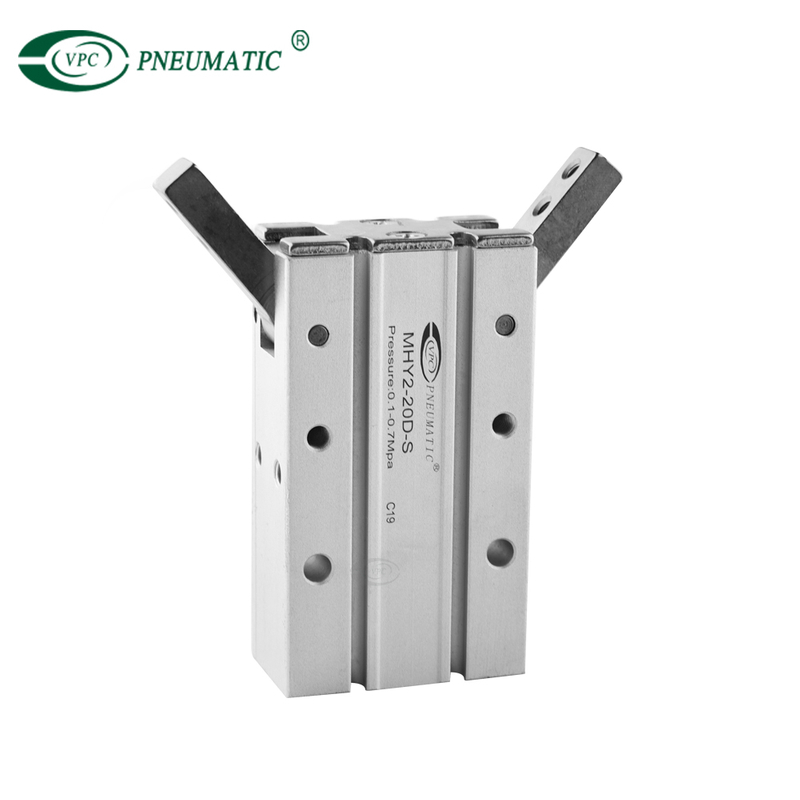

MHY2 Series Pneumatic Gripper
Piston-cam designed ,with large holding force .
With four sides mounting design, small size , suitable for the light weight auto machinery.
180-degree moving finger, easy to grip the irregular products.

  • MHY2-20D-S
  • VPC
  • 8412310090

Product Description

20190319182306

Bore(mm)

6

10

16

20

25

32

40

Working Medium

Filtered compressed Air

Motion Pattern

Double Action Type, Single Acting Type,

Max. Operating Pressure

Double-acting Type

0.15~0.7Mpa

0.2~0.7Mpa

0.1~0.7Mpa

Single-acting Type

0.3~0.7Mpa

0.35~0.7Mpa

0.25~0.7Mpa

Repeat accuracy(mm)

±0.01

±0.02

Max operating frequency(c.p.m)

180

60

Operating Temperature

-10~60°C

Lubrication

No-lube

Cylinder built-in magnet ring

With(standard)

Joint Pipe Bore

M3×0.5

M5×0.8
