Home / Products / Directional Valve / Quick Exhaust Valve/Shuttle valve / VKP Series Big Size Quick Exhausting Valve
VKP Series Big Size Quick Exhausting Valve VKP Series Big Size Quick Exhausting Valve

loading

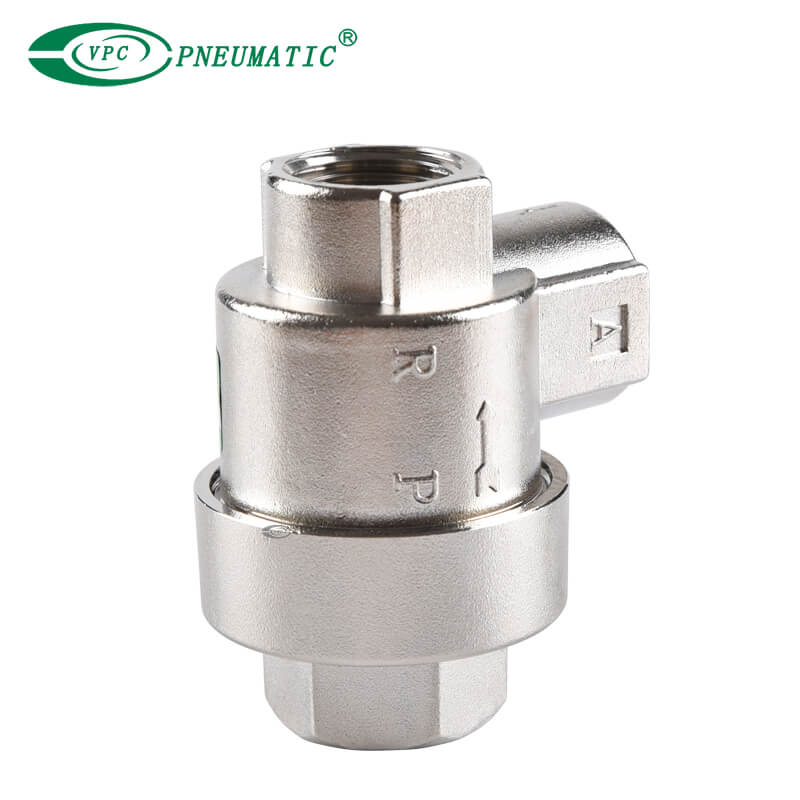

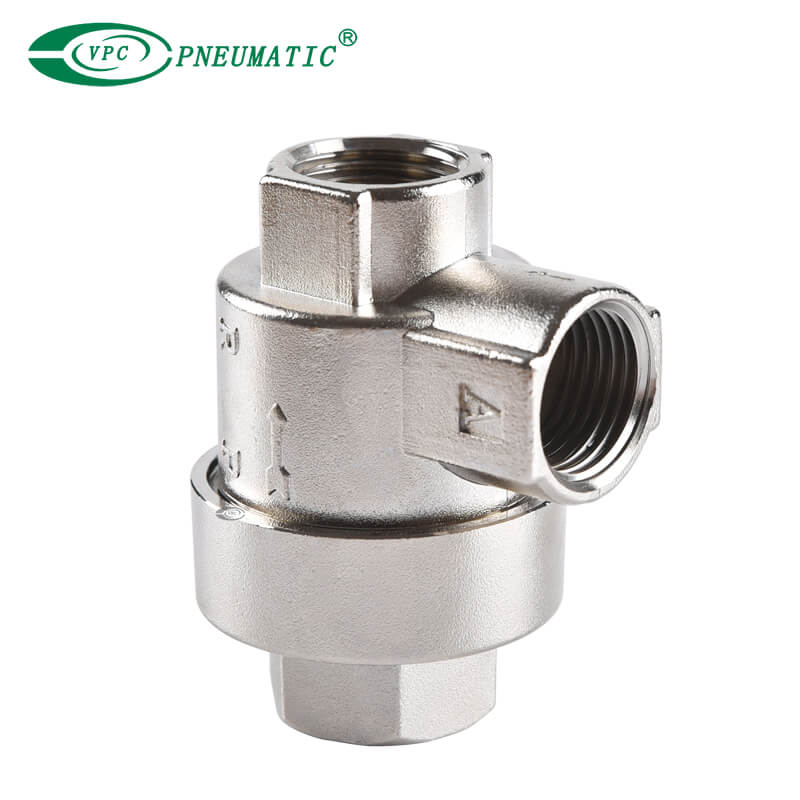

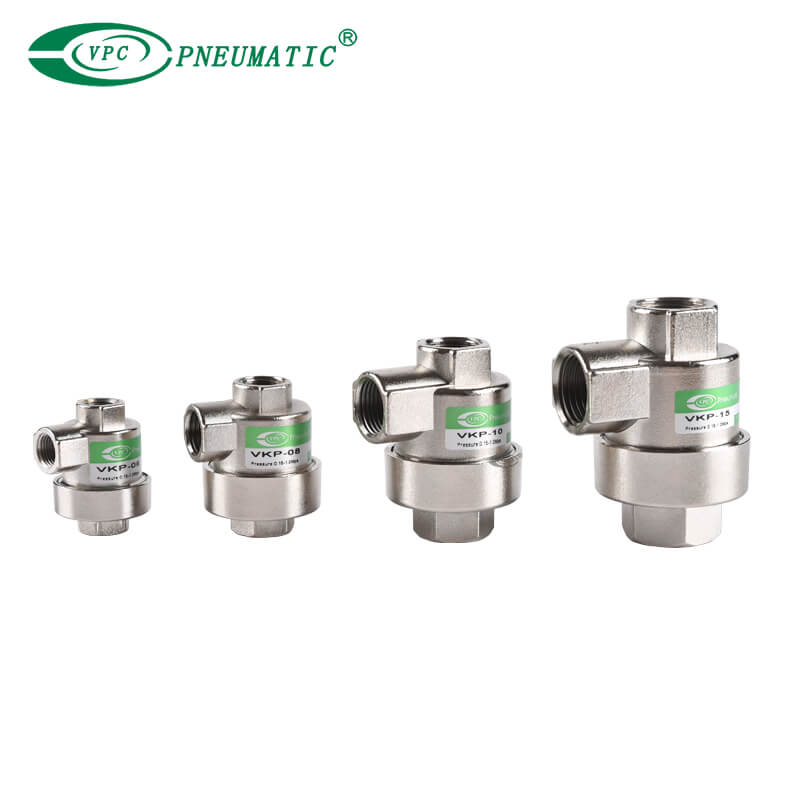

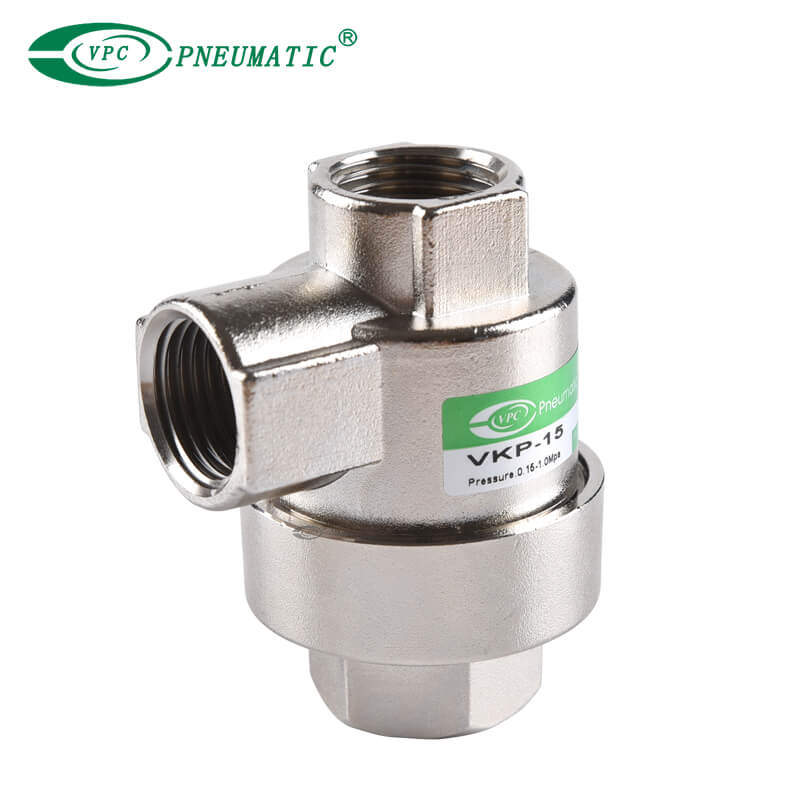

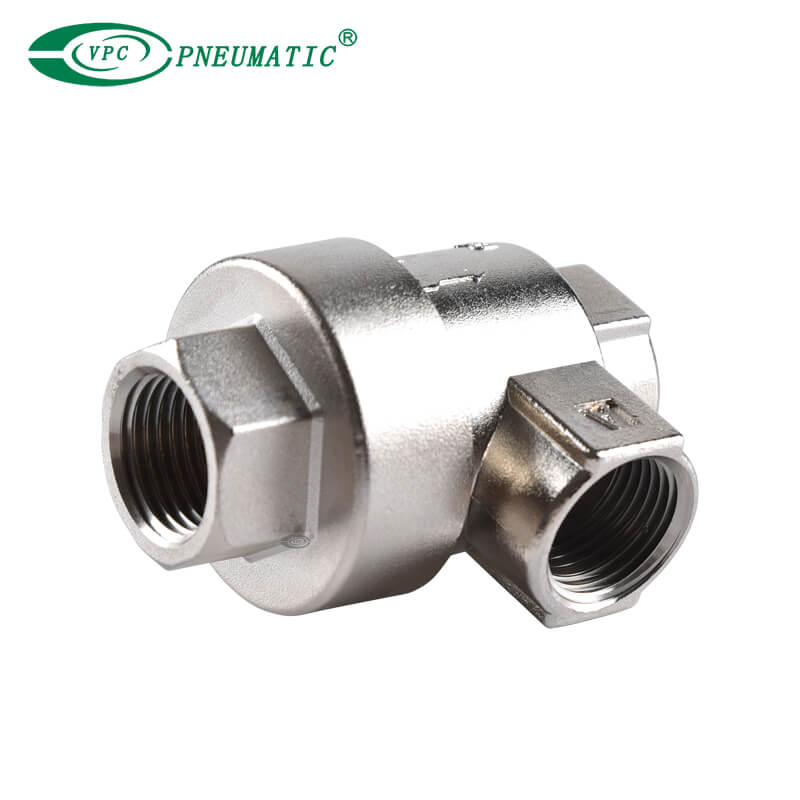

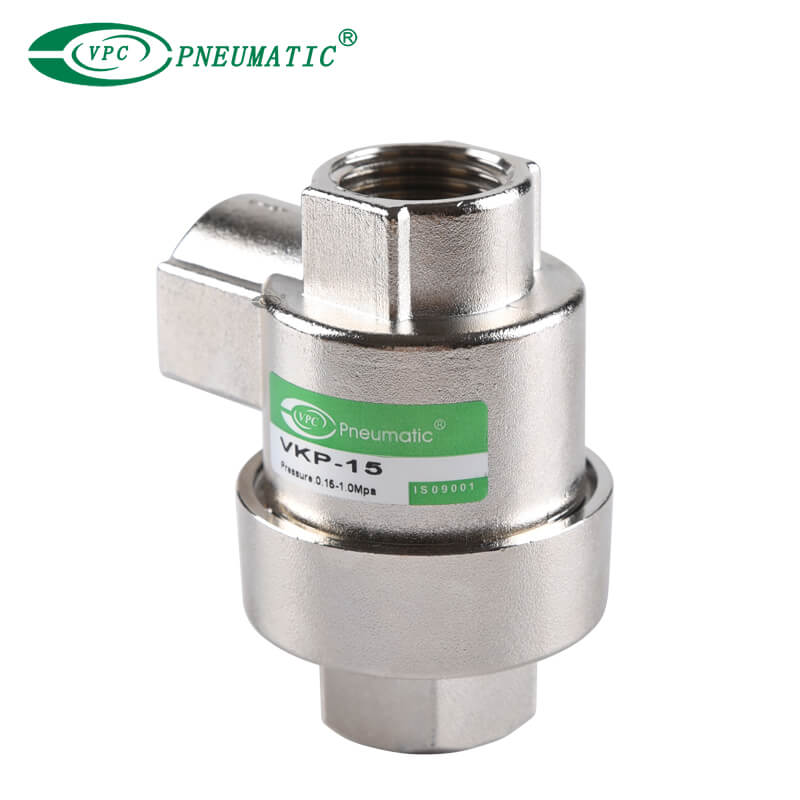

VKP Series Big Size Quick Exhausting Valve

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
VKP Series Quick Exhausting valve is generally installed in the pipeline between the cylinderand change valve and lose to the cylinder to enable the cylinder to directly discharge the air without the necessity to go through the change valve and so as effect on raising the movement speed.

  • VKP-08

  • VPC Pneumatic

  • 8412909000

Working medium:
Clean air
Working pressure:
0.15 to 1.0Mpa
Working temperature:
-5 to 60℃
Body Material:
Aluminum
Quality Warranty:
1 year
Availability:
Inquire Add to Basket

Product Description

VKP 参数

Product Specifications

ModelVKP-06VKP-08VKP-10VKP-15
Working MediumClean air(40μm Filteration)
Acting typeExternal lead
Working Pressure0.15 to 1.0Mpa
MAX. Pressure1.2Mpa
Working Temperature0 to 60℃
Joint SizeG1/8"G1/4"G3/8"G3/4"

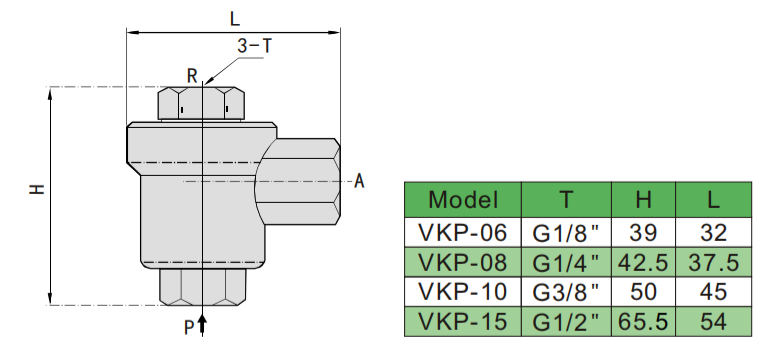

Main Dimensions

VKP参数-1
