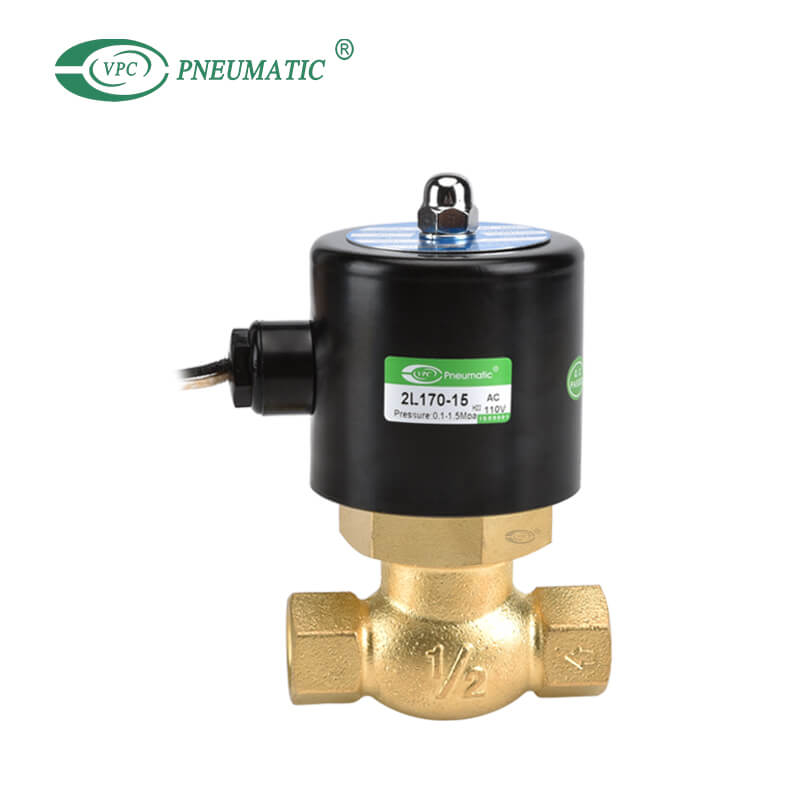

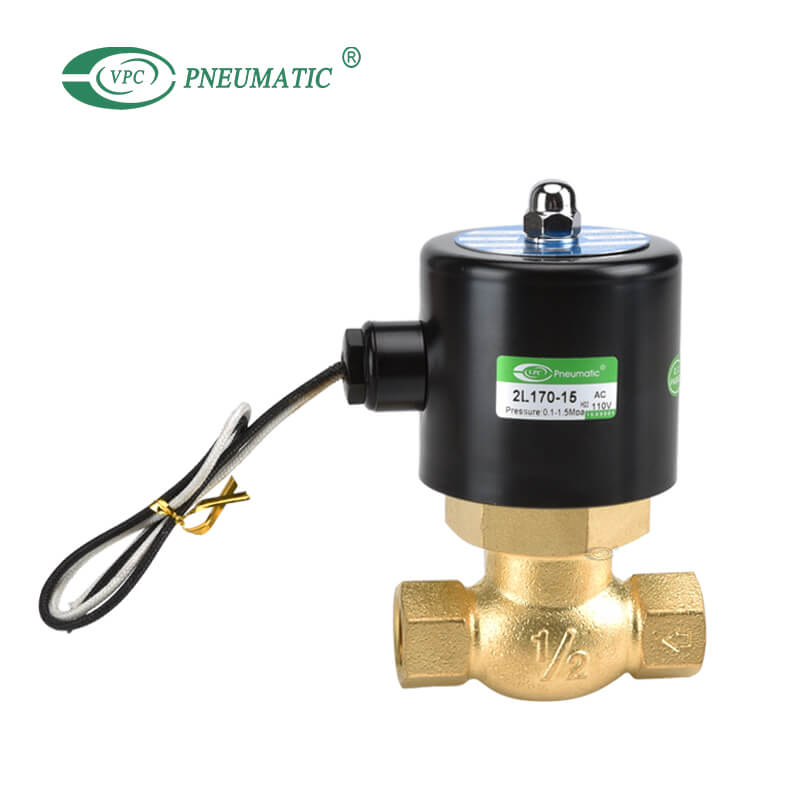

2L170-10
VPC Pneumatic
8481804090
Working medium: | |
---|---|
Type: | |
Working temperature: | |
Working pressure: | |
Body Material: | |
Availability: | |
Product Description
Product Specifications

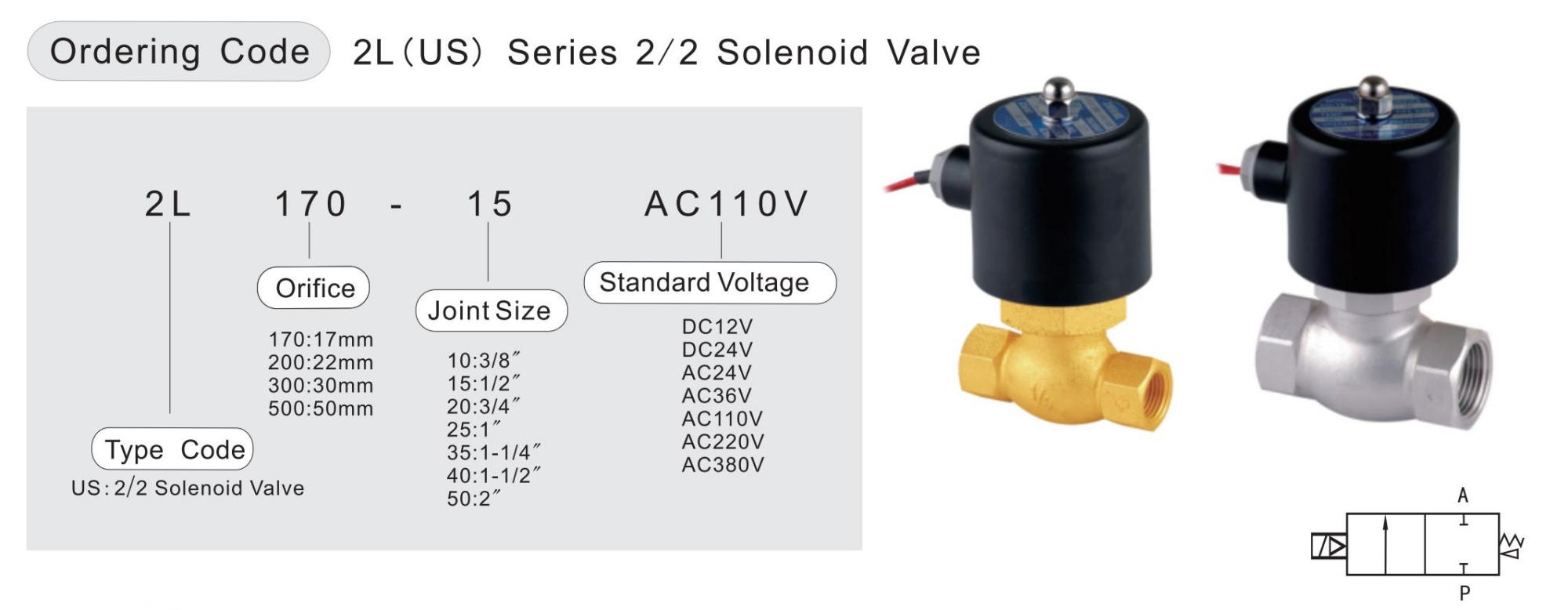

Model | 2L170-10 | 2L170-15 | 2L170-20 | 2L200-25 | 2L300-35 | 2L300-40 | 2L500-50 |
Working Medium | Air,Water,Oil | ||||||
Acting Type | Pilot Type | ||||||
Control Style | Normal Close | ||||||
Orifice | 17mm | 22mm | 30mm | 50mm | |||
CV Value | 4.8 | 12 | 20 | 48 | |||
Joint Size | G3/8'' | G1/2'' | G3/4'' | G1'' | G1-1/4'' | G1-1/2'' | G2'' |
Medium Viscidity | ≤20CST | ||||||
Working Pressure | 0.1-1.5Mpa | ||||||
MAX.Pressure | 2.25Mpa | ||||||
Working Temperature | -5°C-180°C | ||||||
Voltage Range | ±10% | ||||||
Valve Body | Brass | ||||||
Seal material | PTFE |
Main Dimensions
