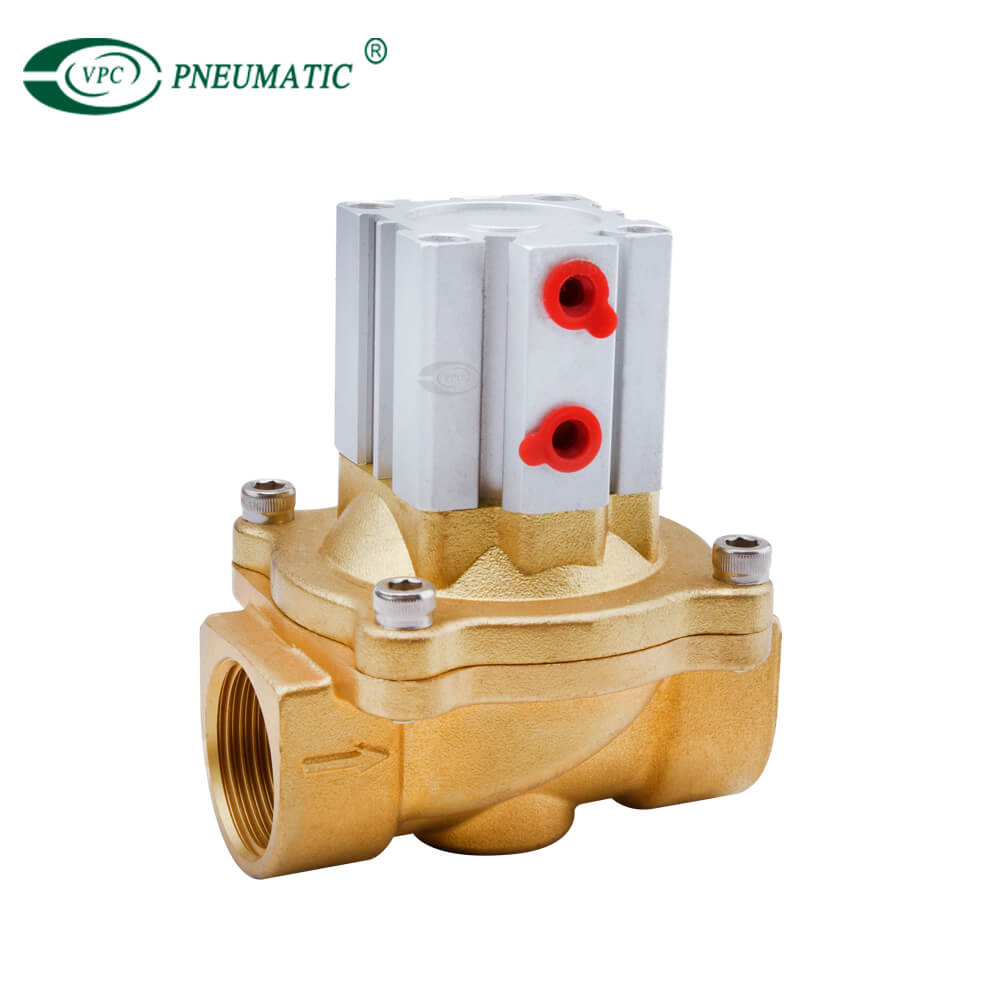

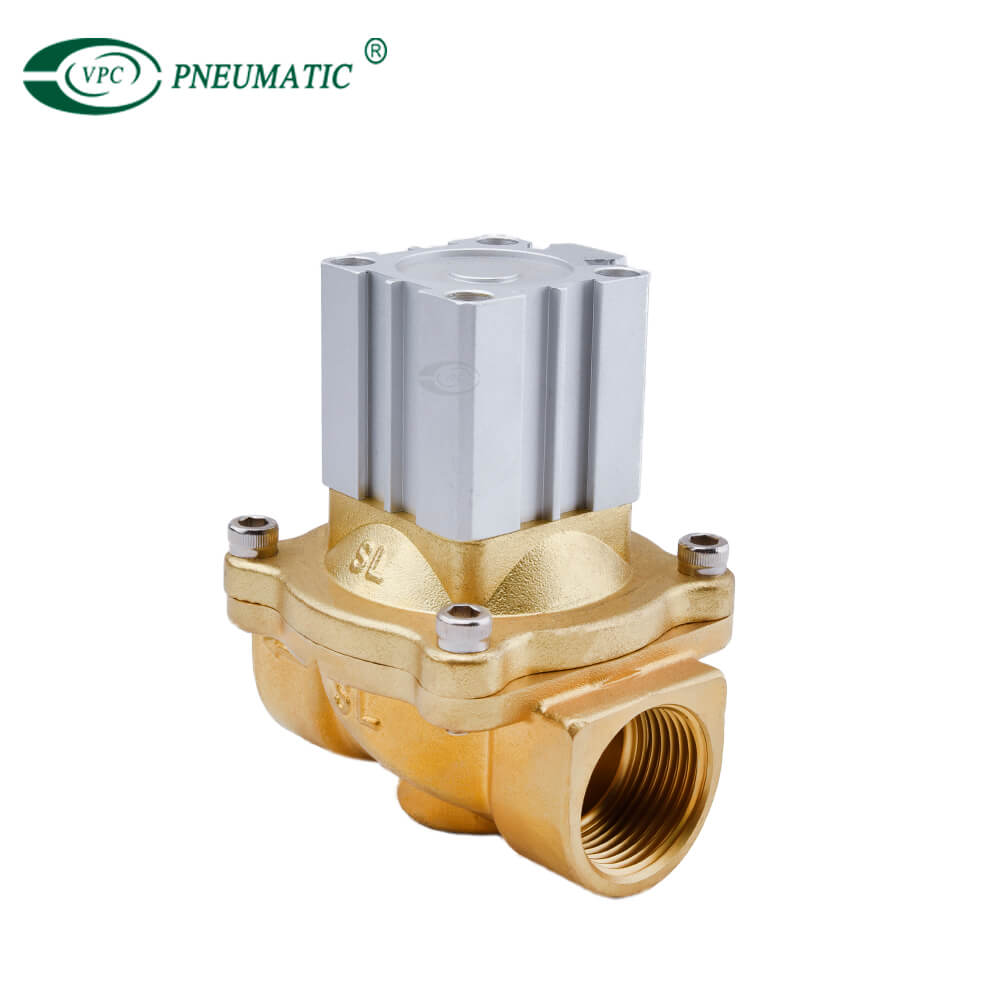

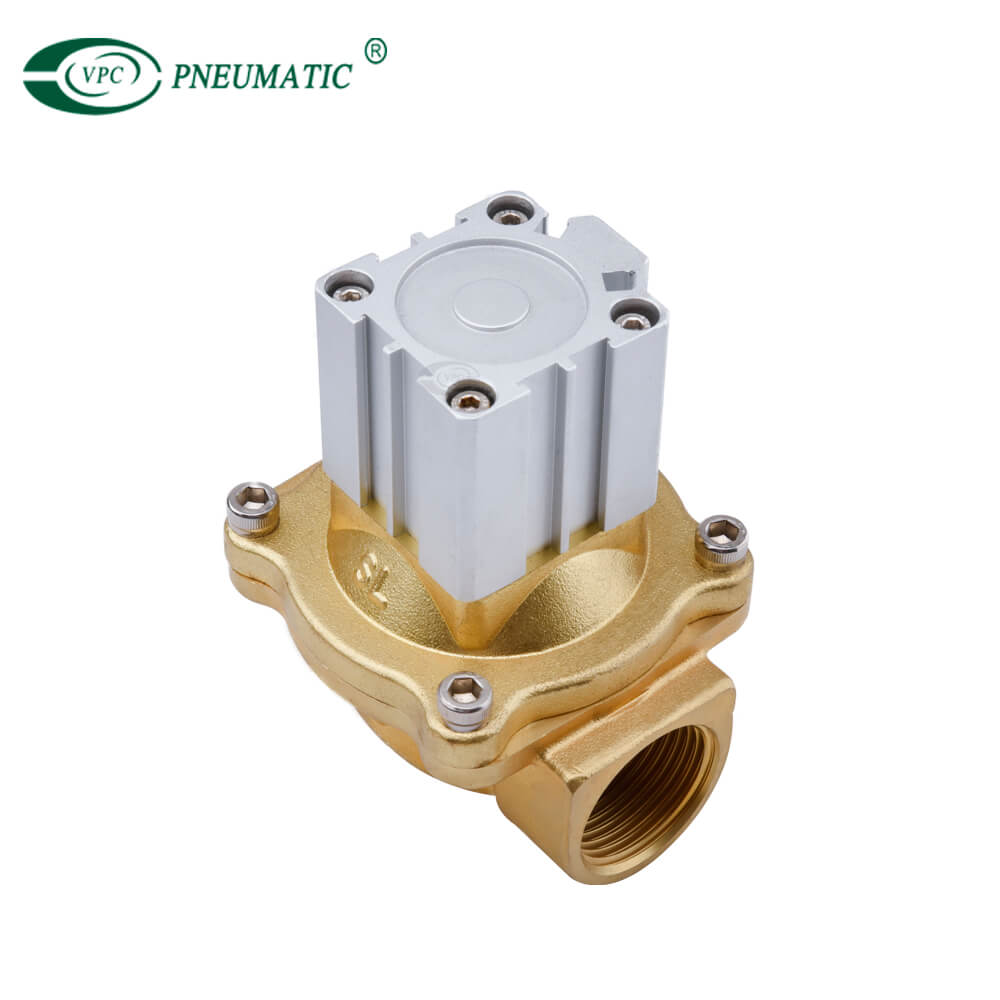

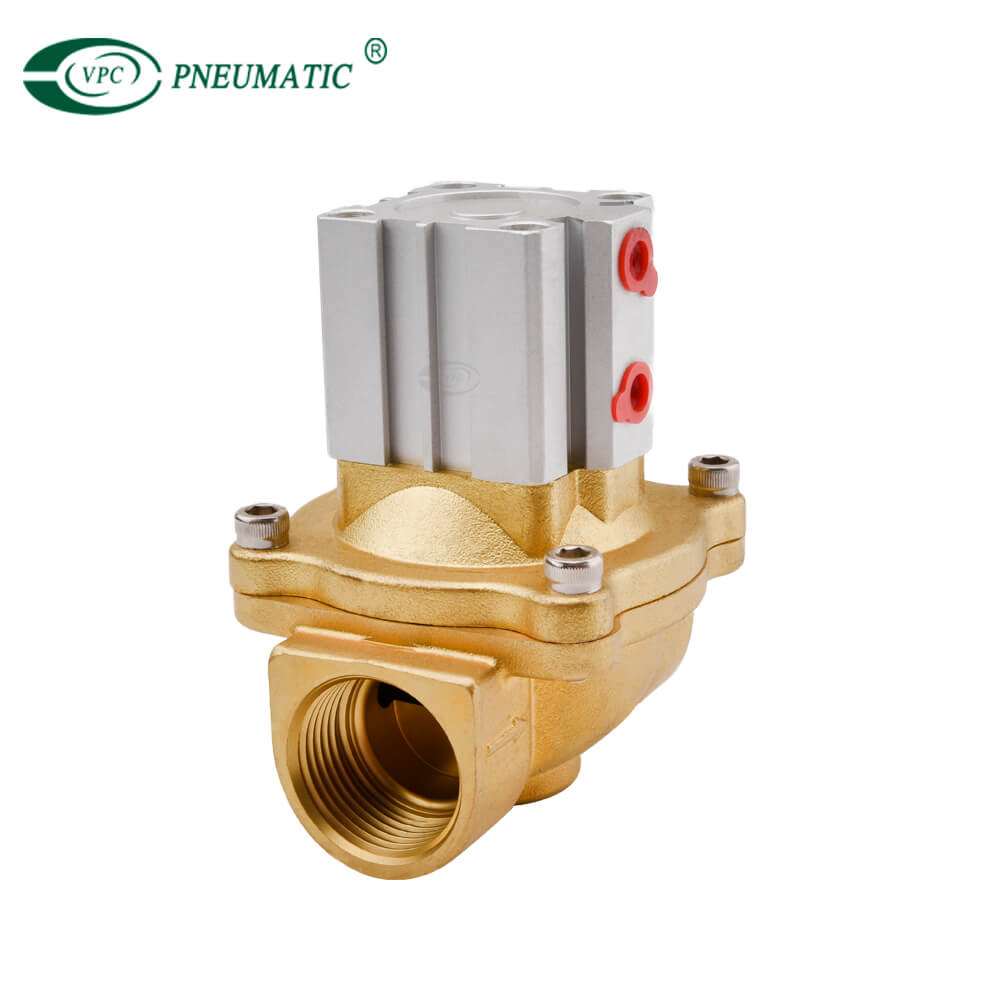

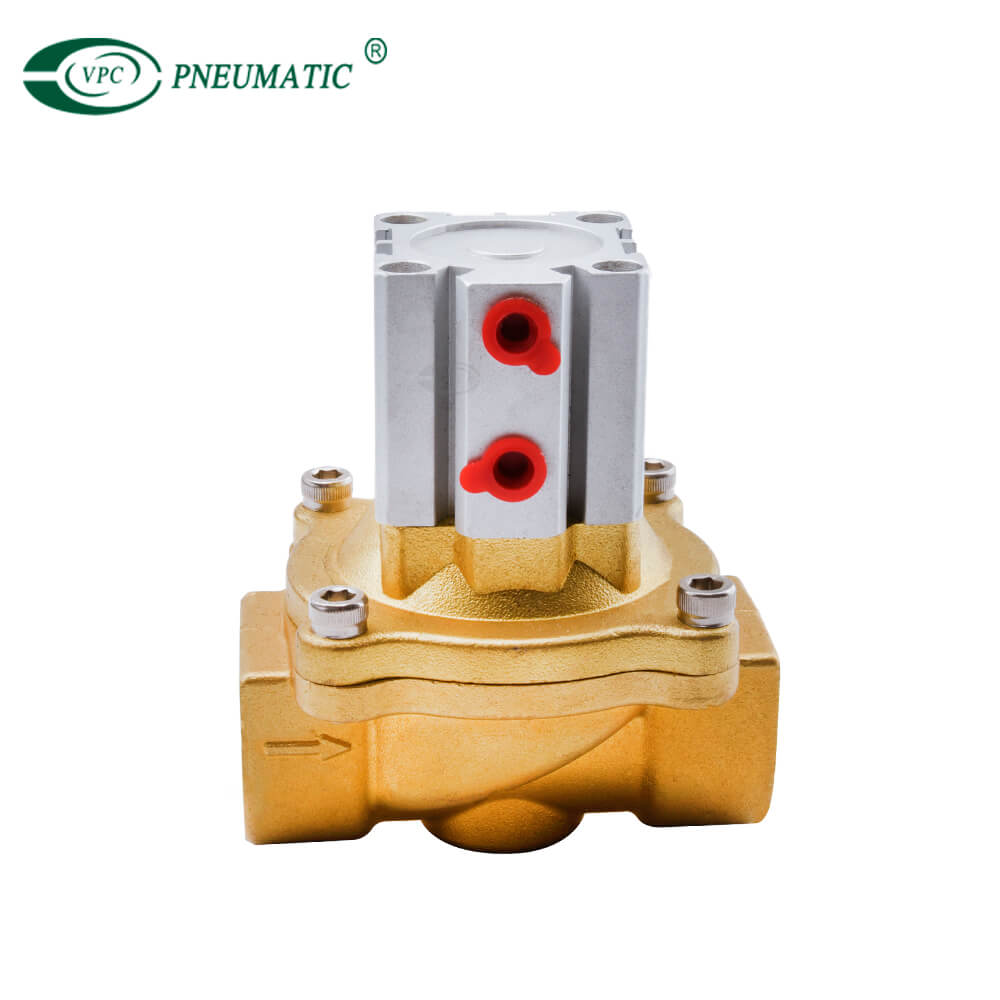

2Q160-15
VPC Pneumatic
8481804090
Working medium: | |
---|---|
Type: | |
Working temperature: | |
Working pressure: | |
Body Material: | |
Acting type: | |
Availability: | |
Product Description
Product Specifications
Model | 2Q160-15 | 2Q200-20 | 2Q250-25 | 2Q350-35 | 2Q400-40 | 2Q500-50 |
Working Medium | Air,Water,Oil,Gas | |||||
Acting Type | Direct Acting Type | |||||
Orifice | 16mm | 20mm | 25mm | 35mm | 40mm | 50mm |
CV Value | 4.8m³/h | 12m³/h | 7.6m³/h | 24m³/h | 29m³/h | 48m³/h |
Joint Size | G1/2" | G3/4" | G1" | G1-1/4" | G1-1/2" | G2" |
Medium Viscidity | ≤50CST | |||||
Working Pressure | 0~0.7Mpa | |||||
MAX.Pressure | 1.05Mpa | |||||
Control Pressure Range | 0.3~0.6Mpa | |||||
Working Temperature | -5℃~100℃ | |||||
Valve Body | Brass | |||||
Seal Material | PTFE | |||||
Control Joint Size | 2-M5 | 2-G1/8" | 2-G1/4" |

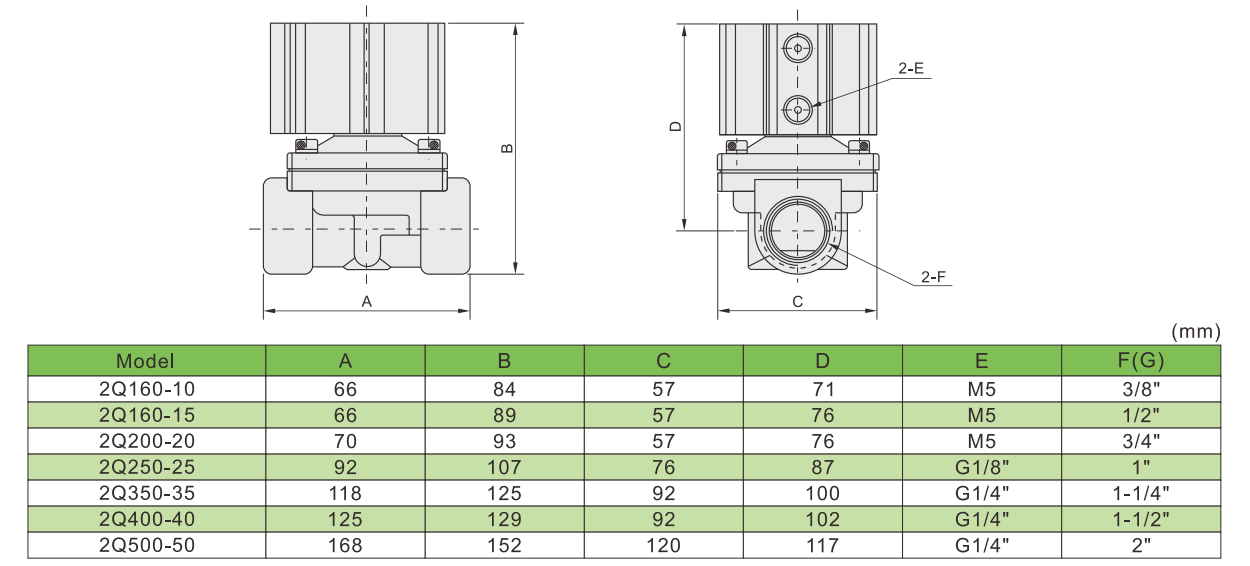

Main Dimensions
