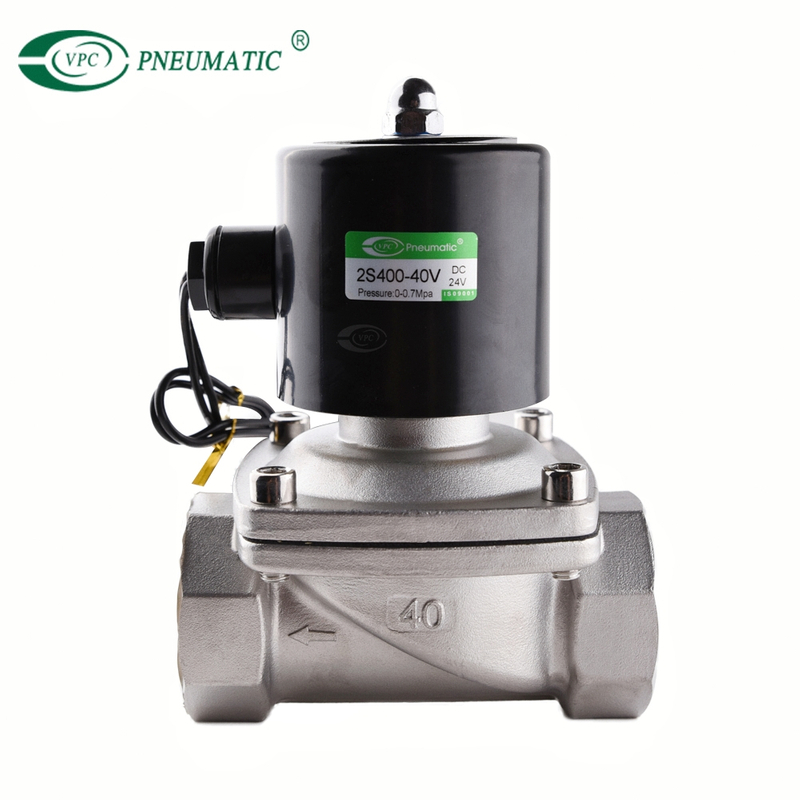

2S400-4V
VPC Pneumatic
8481804090
Working medium: | |
---|---|
Type: | |
Working temperature: | |
Working pressure: | |
Body Material: | |
Availability: | |
Product Description
Product Specifications
Model | 2S025-06 | 2S025-08 | 2S040-10 | 2S160-10 | 2S165-15 | 2S200-20 | 2S250-25 | 2S350-35 | 2S400-40 |
Working Medium | Air、Water、Oil、Gas | ||||||||
Acting Type | Direct Acting Type | ||||||||
Control Style | Normal Close | ||||||||
Orifice | 2.5mm | 4mm | 16mm | 20mm | 25mm | 35mm | 40mm | ||
CV Value | 0.23 | 0.6 | 4.8 | 7.6 | 12 | 24 | 29 | ||
Joint Size | G1/8'' | G1/4'' | G3/8'' | G3/8'' | G1/2'' | G3/4'' | G1'' | G11/4“ | G11/2“ |
Medium Viscidity | ≤20CST | ||||||||
Working Pressure | 0~0.7Mpa | Air、Gas:0~0.7Mpa; Water、Oil:0~0.5Mpa | |||||||
MAX.Pressure | 1.05Mpa | ||||||||
Working Temperature | -5°C-80°C | ||||||||
Voltage Range | ±10% | ||||||||
Valve Body | Stainless Steel | ||||||||
Seal material | NBR、EPDM、 Fluororubber |
Note:The dimension of 2S Series solenoid valve please refer to 2W series
