| Working medium: | |
|---|---|
| Type: | |
| Working temperature: | |
| Working pressure: | |
| Body Material: | |
Product Description
Product Specifications
Model | 2SP160-10 | 2SP160-15 | 2SP200-20 | 2SP250-25 | 2SP350-35 | 2SP400-40 | 2SP500-50 |
Working Medium | Air、Water、Oil、Gas | ||||||
Acting Type | Direc Acting Type | ||||||
Control Style | Normal Close/Normal Open | ||||||
Orifice | 16mm | 20mm | 25mm | 35mm | 40mm | 50mm | |
CV Value | 4.8 | 7.6 | 12 | 24 | 29 | 48 | |
Joint Size | G3/8" | G1/2" | G3/4" | G1" | G11/4" | G11/2" | G2" |
Working Pressure | Air:0~0.7Mpa ; Water:0~0.5Mpa ; Oil:0~0.5Mpa; Gas:0~0.7Mpa | ||||||
Max.Pressure | 1.05Mpa | ||||||
Working Temperature | -5~80℃（The temperature can reach -5~150℃ if change the seal） | ||||||
Valve Body | Plastic | ||||||
Seal material | NBR、VITON | ||||||

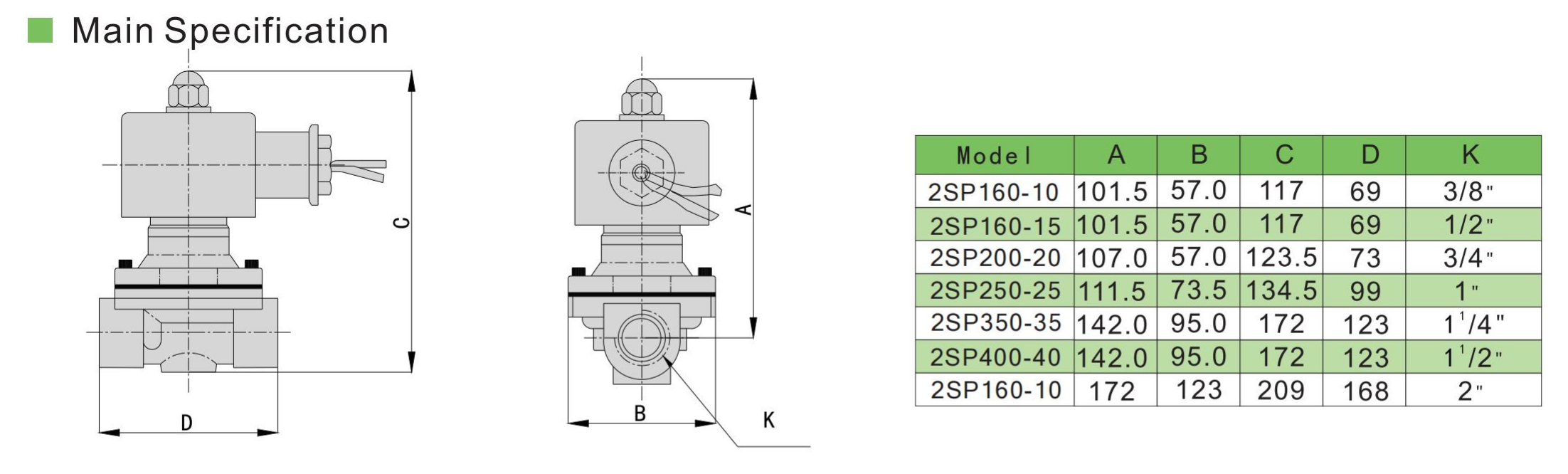

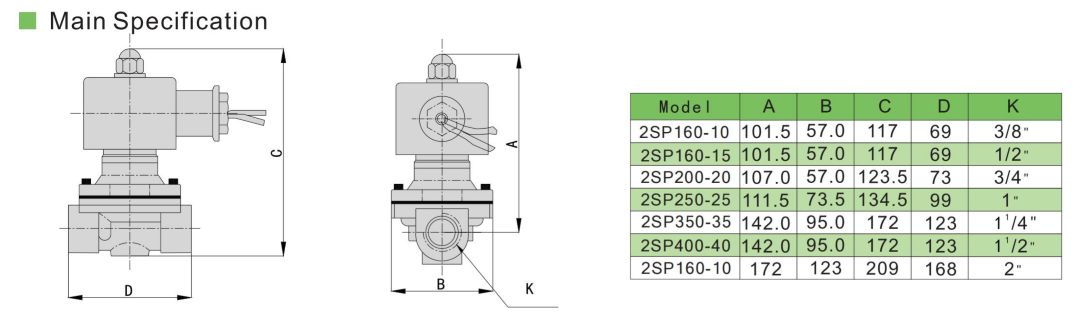

Main Dimensions
