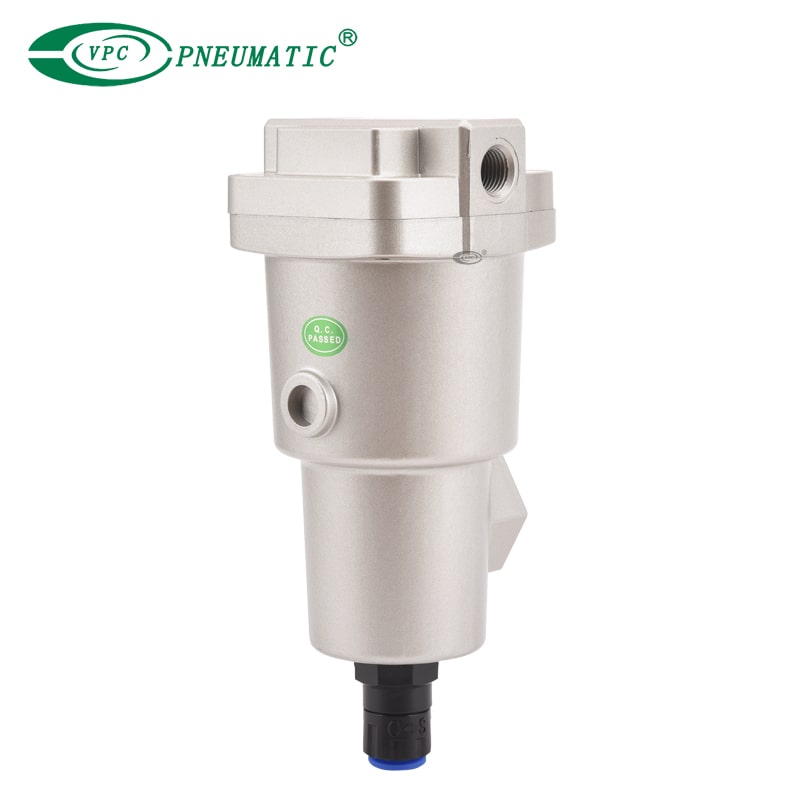

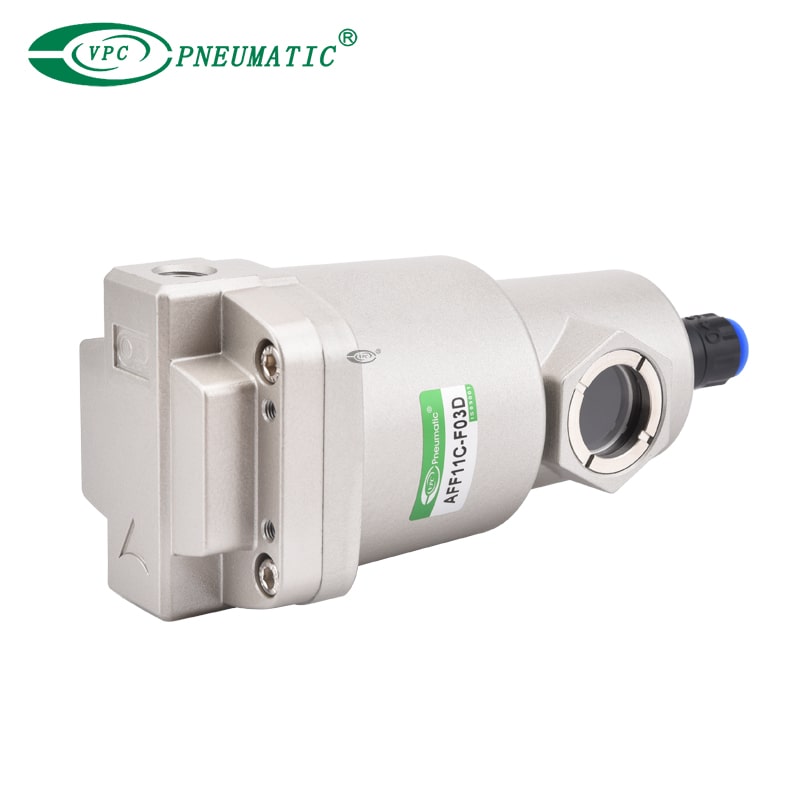

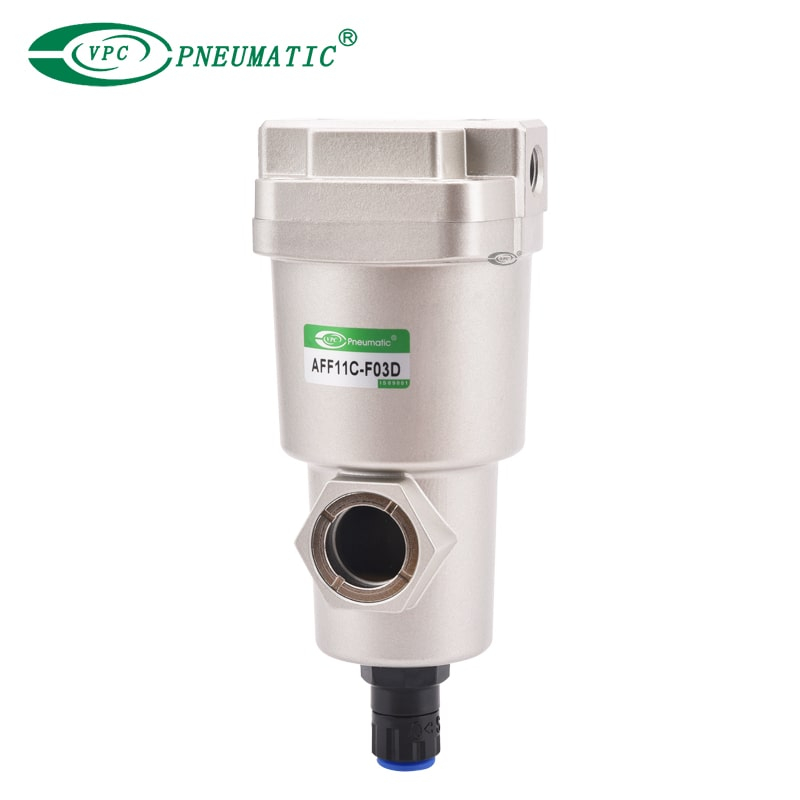

AFF Series Main Line Filter

AFF series main line filter is the first stage in an air purification scheme. This coarse (3 μm) filter removes foreign matter and droplets to protect downstream dryers and extend the life of more precise filters. Units are easily serviced, and dirty elements can be disposed of while handling only the filter bowl.

Model:
AFF22B-10/AFF22B-10D
Brand:
VPC Pneumatic

Working medium:	Compressed air
Filtration rating:	3 µm (Filtration efficiency: 99%)
Max. working pressure:	1.0Mpa
Working temperature:	5 to 60℃
Availability:



Inquire Add to Basket

Product Description

■ Product Feature

Particulate filtration, coarse droplet removal.

1. The AFF filter water separator can remove impurities such as oil, water and foreign matter from compressed air. It can improve the performance of a downstream dryer, extend the replacement period of precision filter elements and prevent equipment failure.

2. Modular connection capable AFF2C~22C/AFF37B,75B/AFF75A~220A.

3. Optional element life indicator.

4. Available port sizes: 1/8" to 2" (Rc, NPT or G)

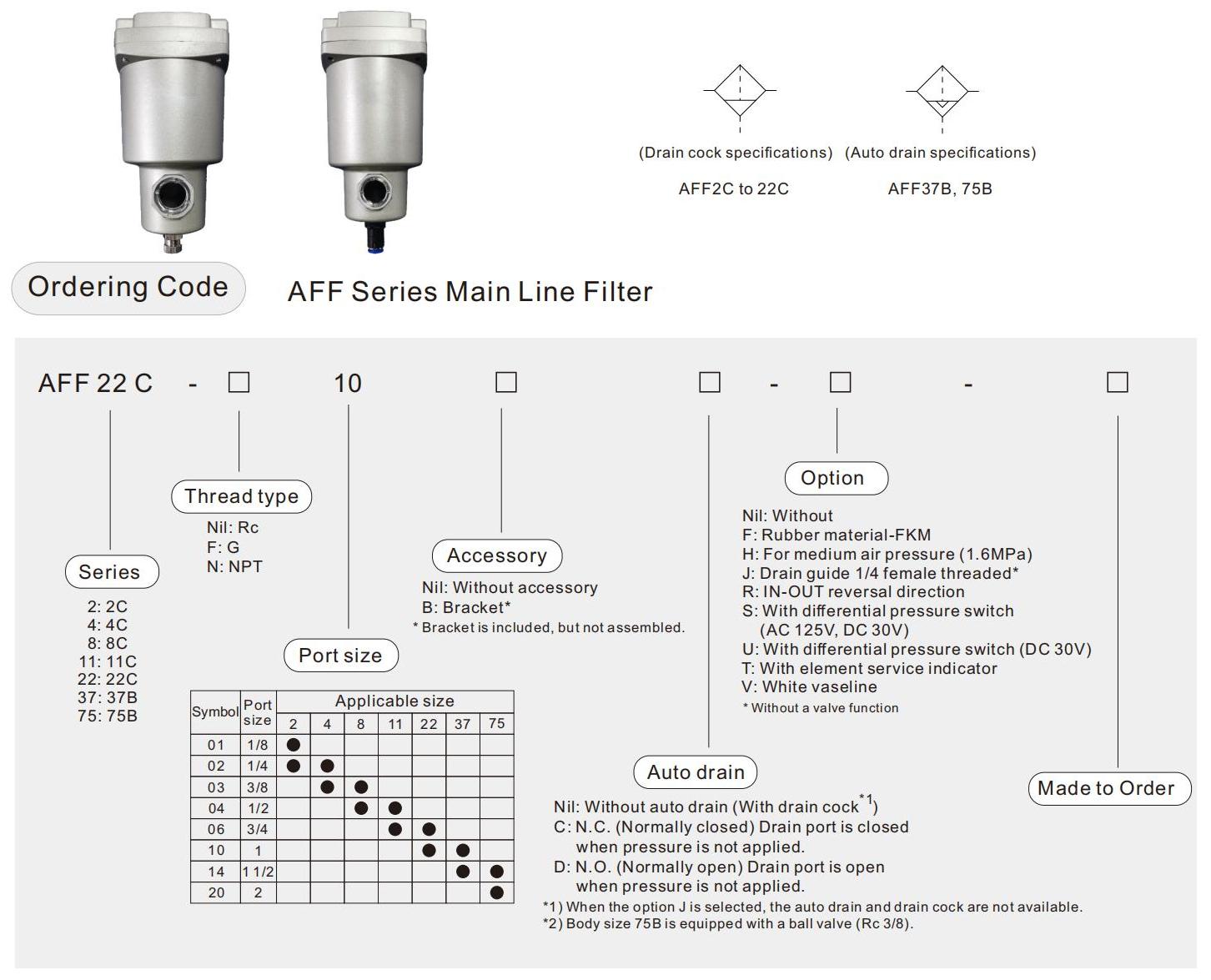

■ Symbol

water separator filter

Product Specifications

Working medium	Compressed air
Max. working pressure^*1	1.0MPa
Min. working pressure^*2	0.05MPa
Proof pressure	1.5MPa
Working temperature	5 to 60℃
Filtration rating	3 µm (Filtration efficiency: 99%)
Element replacement period	2 years^*1 or when pressure drop reached 0.1MPa

*1) The maximum operating pressure of the AFF75A to AFF220A is 0.97 MPa, and the element replacement period is when the pressure drop reaches 0.1 MPa or after 1 year operation.

*2) With auto drain: 0.1 MPa (N.O. type) or 0.15 MPa (N.C. type)

Can remove impurities such as oil, water and foreign matter in compressed air and can improve the function of a dryer in the downstream, extend the replacement period of precision filter element, and prevent trouble with the equipment.

Model		Specification				Accessory part No.(Option)			Spare parts
Manual operation	Auto drain	Compressor power (approx.)	Flow rate	Port size	Weight	Bracket assembly	Pressure gauge (2pcs.)	Companion flange (2pcs.)	Element assembly
AFF2C-01-□	AFF2C-01D-□	2.2KW	300L/min	1/8	0.38kg	AM-BM101	——	——	AFF-EL2B
AFF2C-02-□	AFF2C-02D-□			1/4
AFF4C-02-□	AFF4C-02D-□	3.7KW	750L/min	1/4	0.55kg	AM-BM102			AFF-EL4B
AFF4C-03-□	AFF4C-03D-□			3/8
AFF8C-03-□	AFF8C-03D-□	7.5KW	1500L/min	3/8	0.9kg	AM-BM103			AFF-EL8B
AFF8C-04-□	AFF8C-04D-□			1/2
AFF11C-04-□	AFF11C-04D-□	11KW	2200L/min	1/2	1.4kg	AM-BM104			AFF-EL11B
AFF11C-06-□	AFF11C-06D-□			3/4
AFF22C-06-□	AFF22C-06D-□	22KW	3700L/min	3/4	2.1kg	AM-BM105			AFF-EL22B
AFF22C-10-□	AFF22C-10D-□			1
AFF37B-10-□	AFF37B-10D-□	37KW	6000L/min	1	4.2kg	BM56			AFF-EL37B
AFF37B-14-□	AFF37B-14D-□			1 1/2
AFF75B-14-□	AFF75B-14D-□	75KW	12000L/min	1 1/2	10.5kg	BM57			AFF-EL75B
AFF75B-20-□	AFF75B-20D-□			2

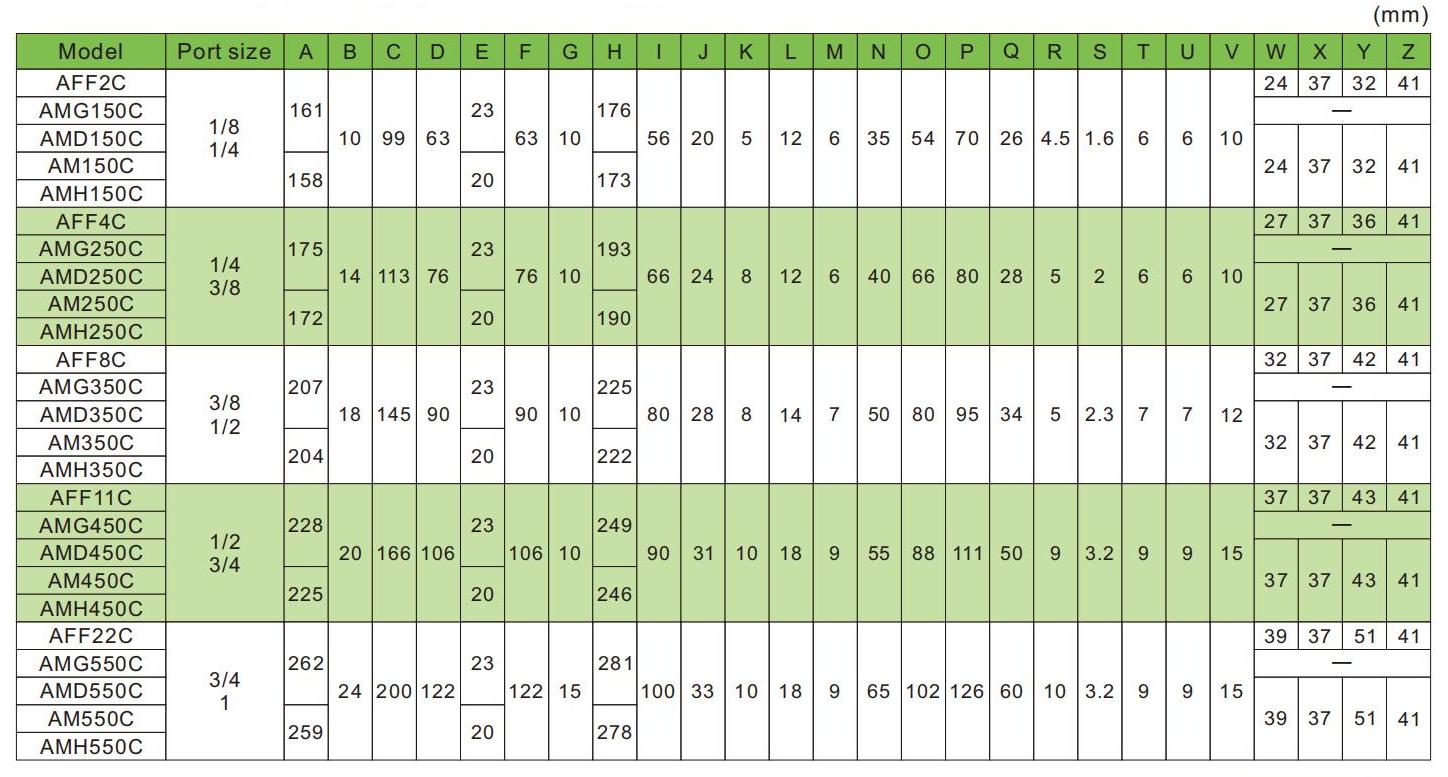

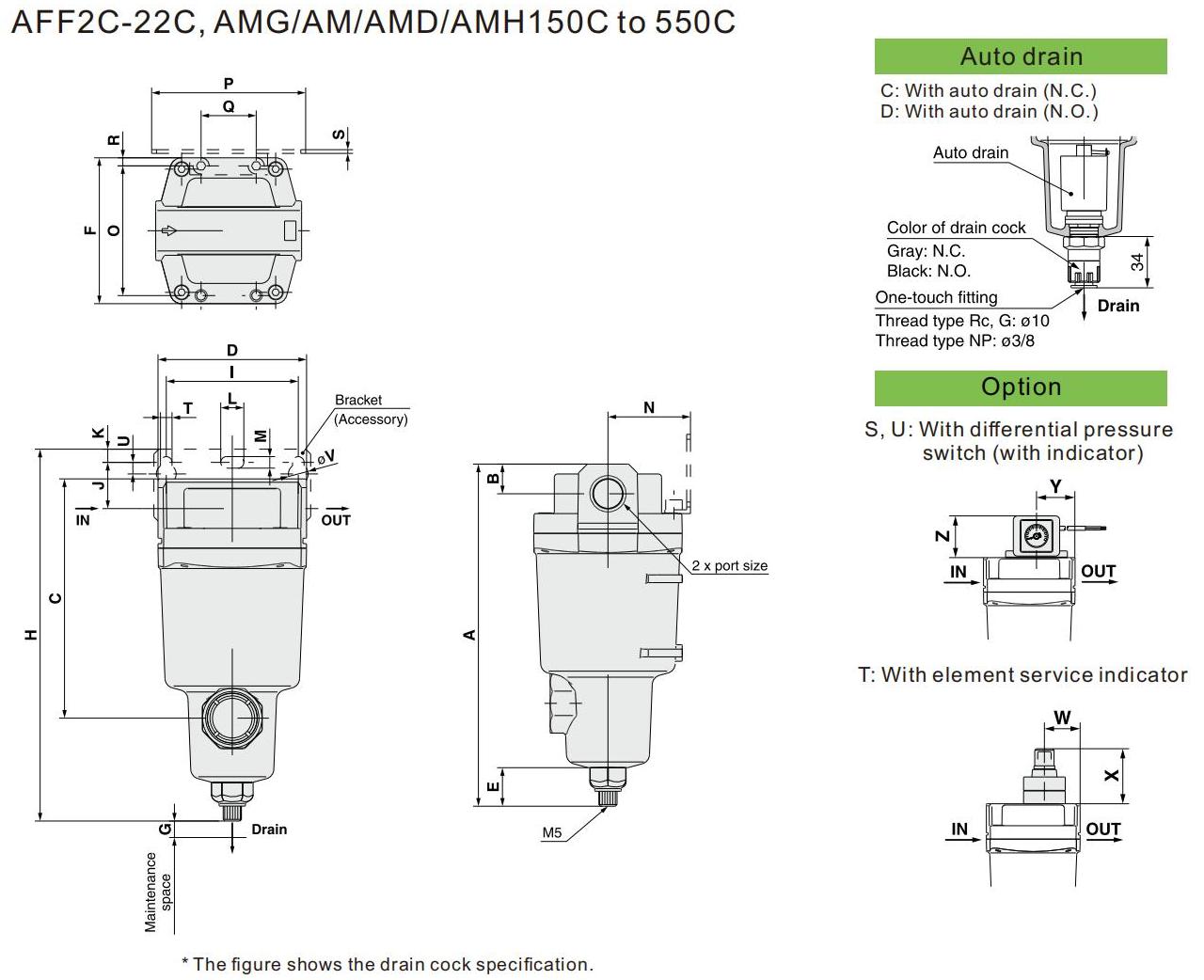

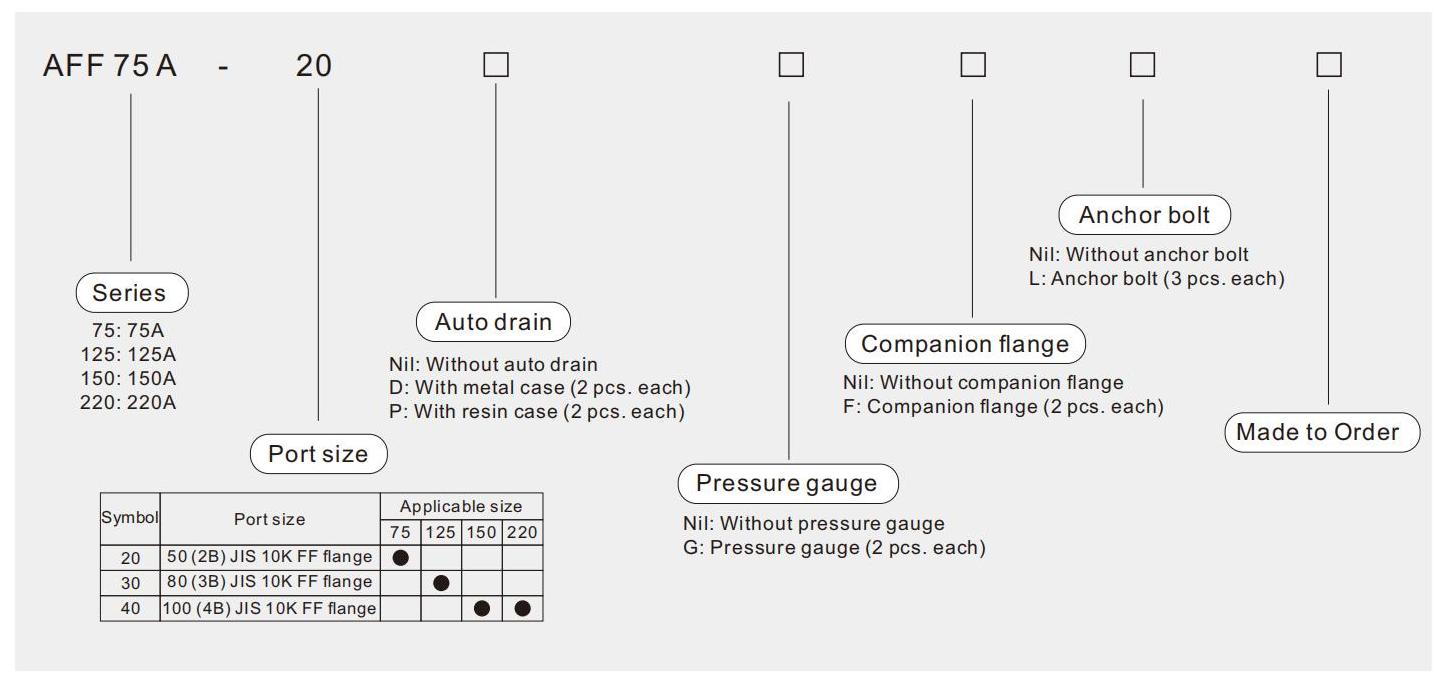

AFF75A-20-□	AFF75A-20D-□	75KW	12400L/min	2B Flange	50kg	——	G46-15-02	50(2B)JIS 10K FF	EC700-003N
AFF125A-30-□	AFF125A-30D-□	110 to 125KW	23700L/min	3B Flange	52kg			80(3B)JIS 10K FF	EC700-003N
AFF150A-40-□	AFF150A-40D-□	150KW	30000L/min	4B Flange	72kg			100(4B)JIS 10K FF	EC800-003N
AFF220A-40-□	AFF220A-40D-□	180 to 220KW	45000L/min	4B Flange	87kg			100(4B)JIS 10K FF	EC900-003N
