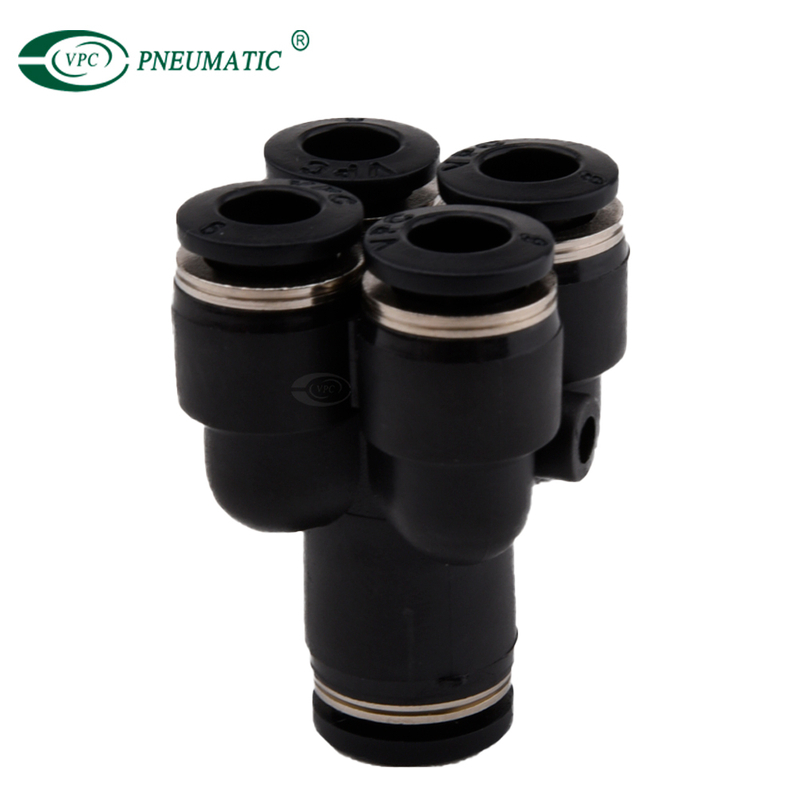

HQ2UD 5 Way Double Y Type Fitting HQ2UD 5 Way Double Y Type Fitting

loading

HQ2UD 5 Way Double Y Type Fitting

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  1. Easy to connect/disconnect tube by one touch.
  2. Elliptical sleeve makes it possible to apply and remove the tub e easily in confined space.

  • HQ2UD 06-08

  • VPC Pneumatic

  • 39174000

Applicable tube:
Nylon
Polyurethane
Body color:
Black,Blue,White
Availability:
Inquire Add to Basket

Product Description

KQ pneumatic fitting


Product Specifications


PXG

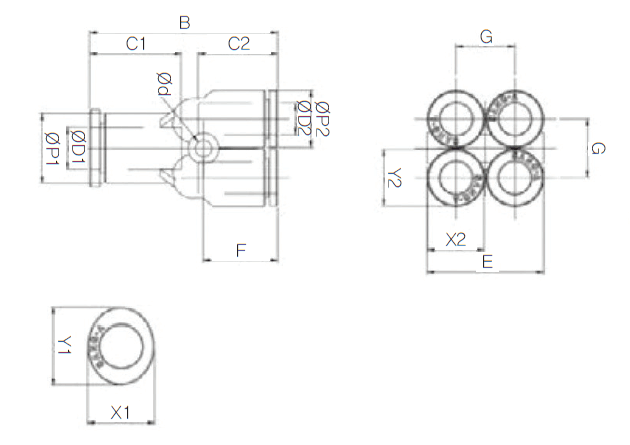

Model ØD1 ØD2 ØP1 ØP2 B C1 C2 E F G Ød X1 Y1 X2 Y2 Orifice
(ømm)
HQ2UD 04-06 6 4 11.2 9 32.5 15.5 14.5 18.2 13.1 9.2 3.2 11 13 8.6 8.6 2.3
HQ2UD 06-08 8 6 13.2 11.2 36.6 17.8 15.5 22.6 14.5 11.5 3.2 13 15 11 11 3.7


PDF Download

download KQ Series One Touch-in Fitting.pdf
