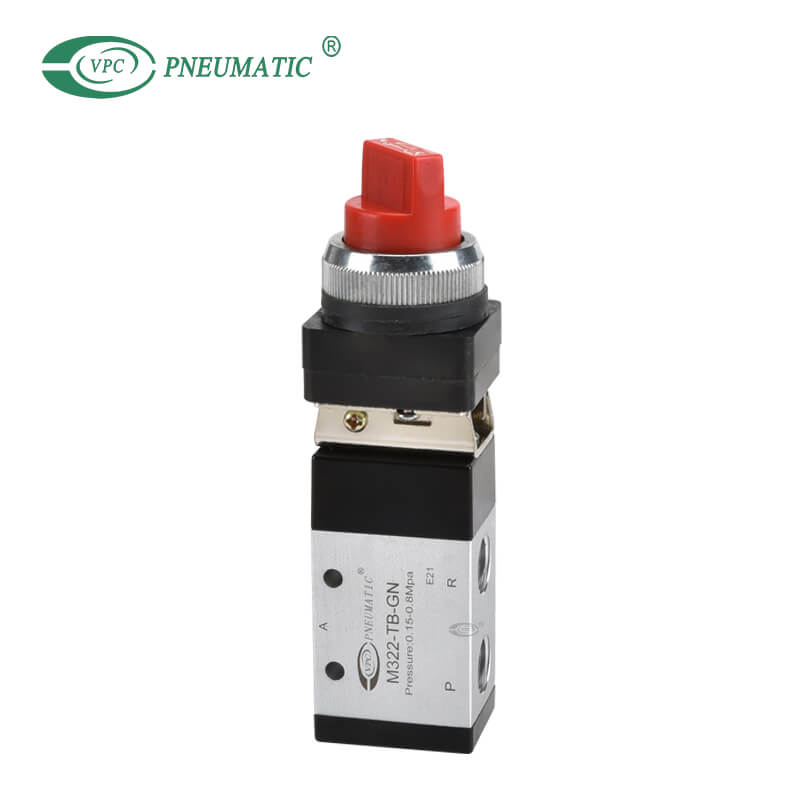

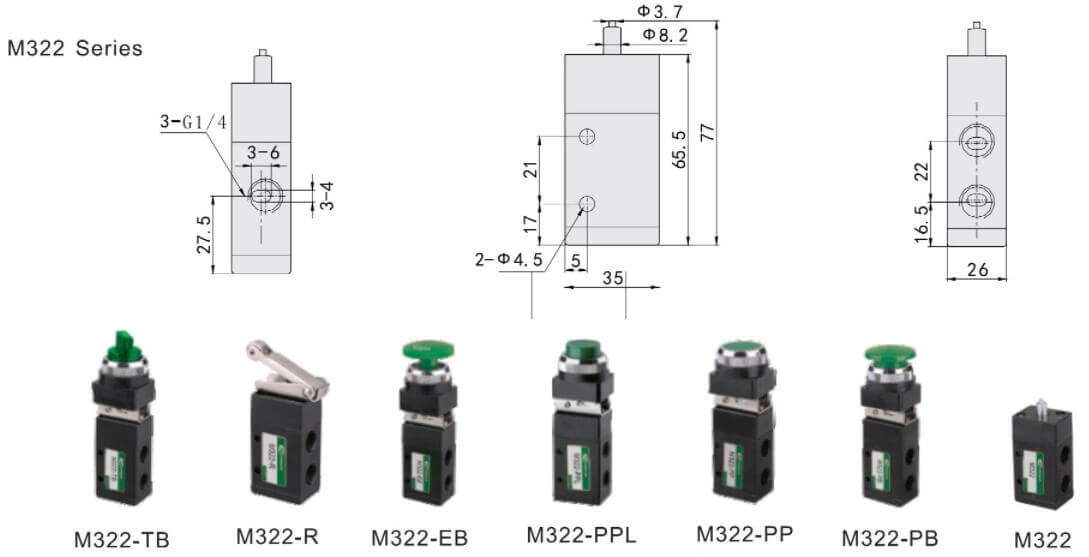

M322 Series Mechanical Valve, 2 Position 3 Port, Selector Button

■ Product Feature

1. Exhaust outlet locates over the body, which is convenient to install muffler to decrease noise and pollution.

2. The external force required by direction-change of series of M(x)B and M(x)R  is provided by external mechanism, which can be used for position test or stroke switch limit switch.

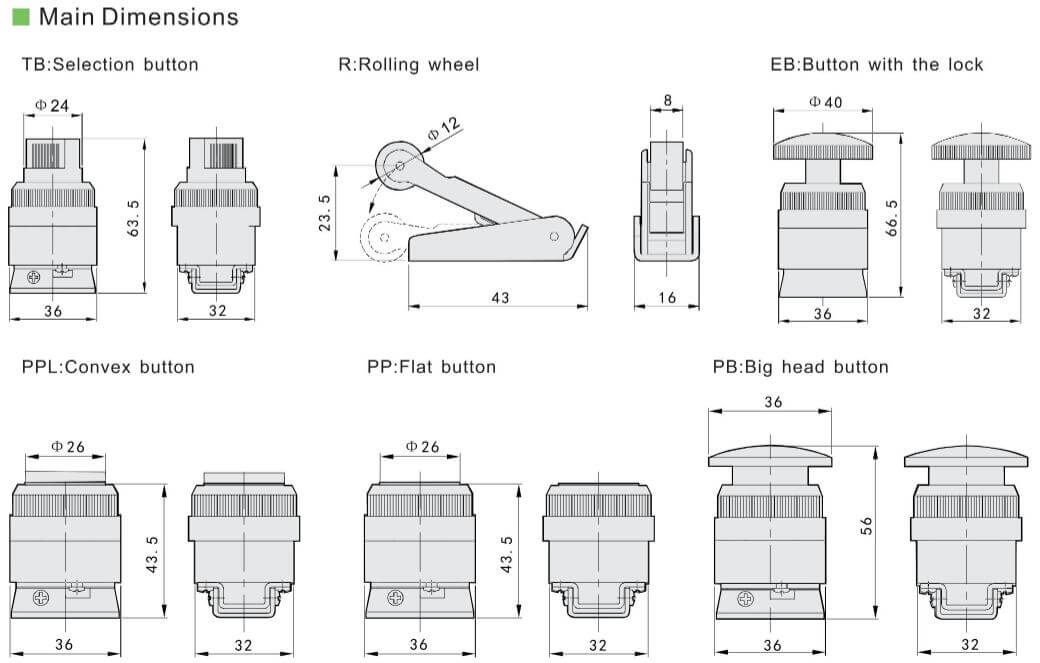

3. M(x)PP, M(x)PPL, M(x)PB, M(x)EB  and M(x)TB are operated manuall, owning control joints with several structure forms and suitable for application under different conditions.

4. It is in sliding column structure that the control force is not infuenced by working pressure (that is, there is no back pressure effect); internal circle is sealed with good tightness and the direction-change is sensitive.

5. No need to add oil for lubrication.

6. Multi-mounting makes it convenient to install and apply.

■ Symbol

1. What is a pneumatic push button valve?

Pneumatic push-button valves are used to signal other pneumatic devices within a system manually; they are available with a variety of push-button operators including mushroom, flat, protruding, roller wheel and selector type buttons available in red, green or black.

2. How does a push button valve work?

They're also known as push-button valves and are designed for installation in tight spots. Normally open valves close when the button is pushed and spring open when the button is released. Normally closed valves open when the button is pushed and spring closed when the button is released.

3. What is a 3 2 push-button valve?

What is a 3/2 way valve? 3/2-way valve have three connection ports and two positions that can be driven via a solenoid valve. They are used to control a single-action cylinder, for driving pneumatic actuators, used as a blow-off valve, as pressure release valve and in vacuum applications.

If you need this product or have any questions, please contact VPC Pneumatic.
