MGPL50X75
VPC Pneumatic
8412310090
Material: | |
---|---|
Quality Warranty: | |
Working pressure: | |
Acting type: | |
Working medium: | |
Availability: | |
Product Description

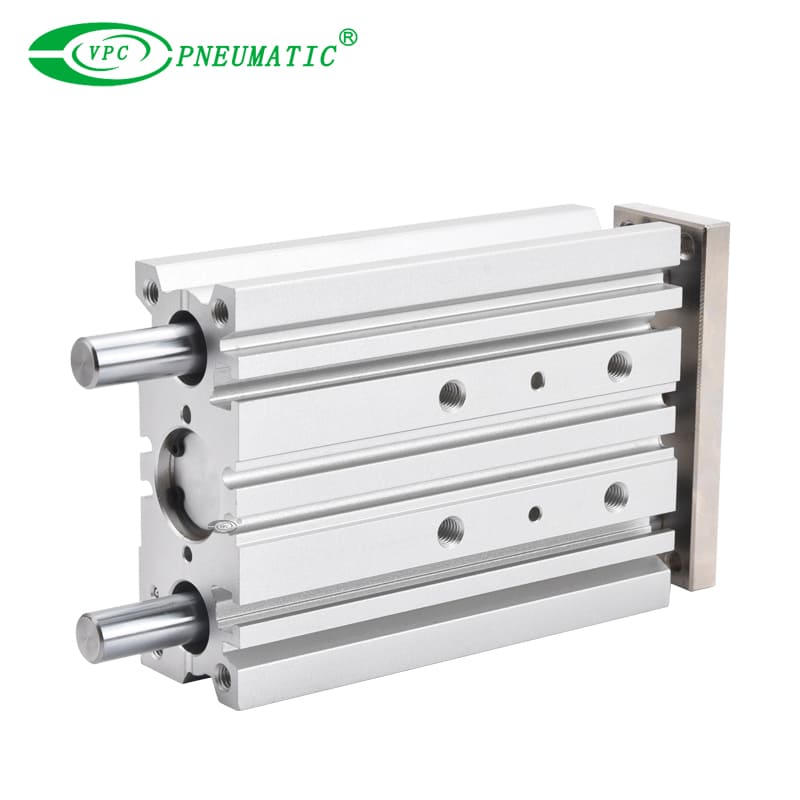

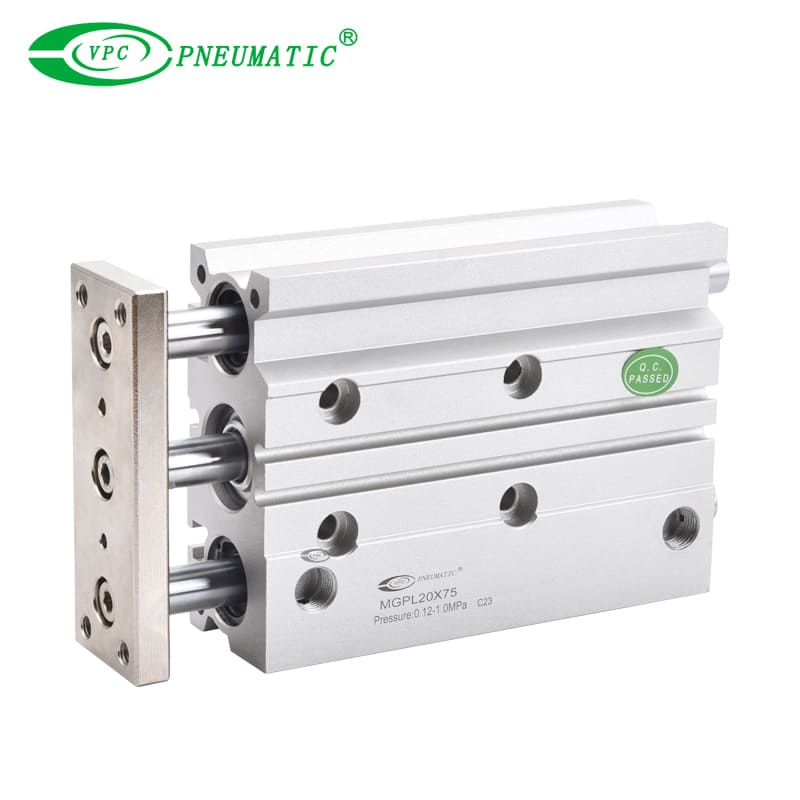

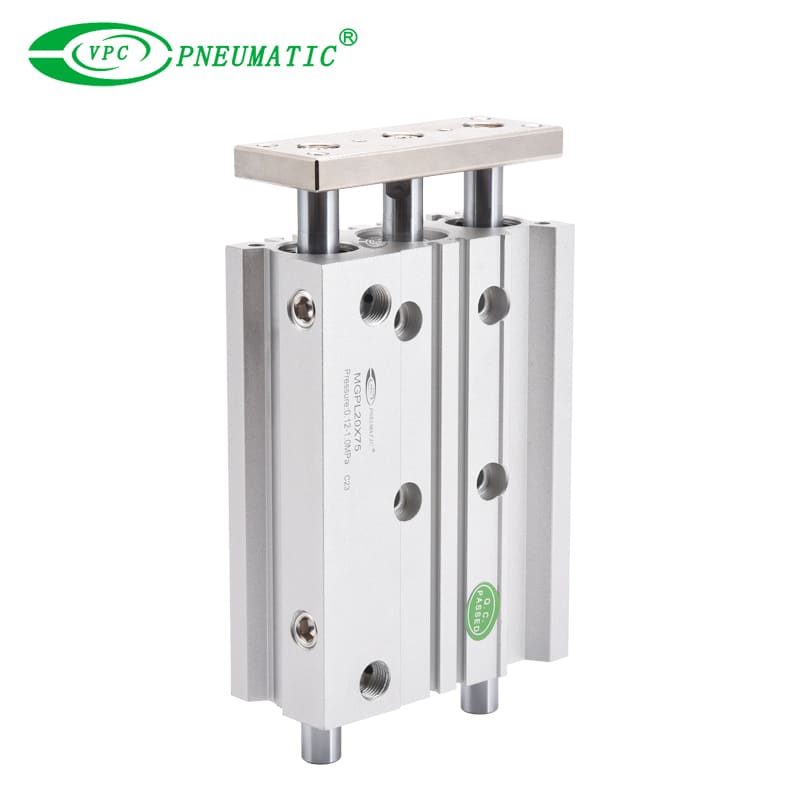

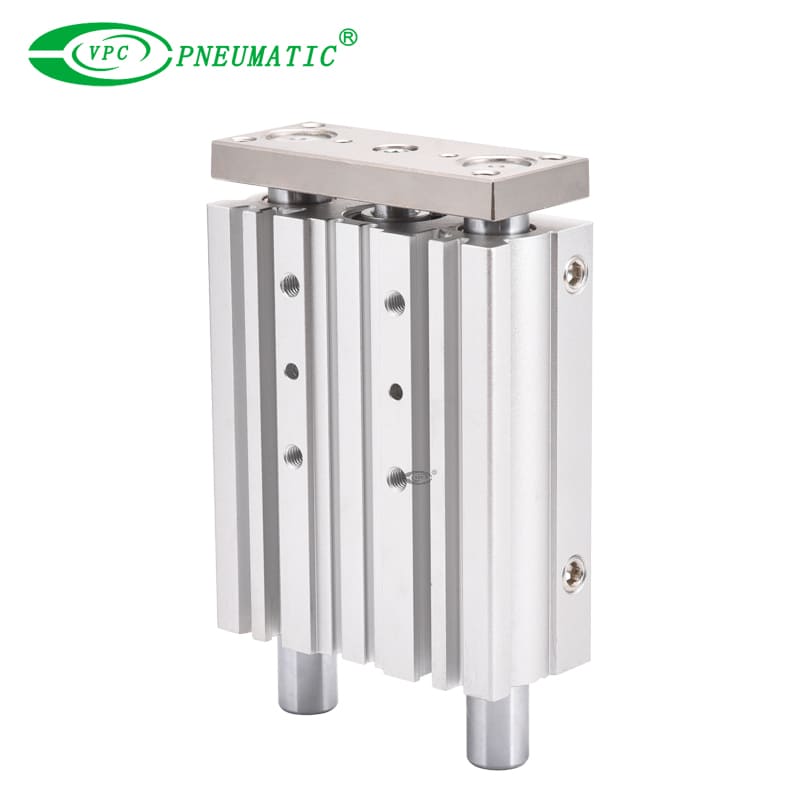

The MGPL is a compact body actuator integrated with internal guide shafts to isolate the load bearing from the movement of the actuator's rod and seals. The high precision ball bushing allows for smooth operation that ensures stable travel resistance, suitable for pushing and lifting applications.
Product Specifications
Bore(mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | |
Working medium | Clean air (40μm Filteration) | ||||||||||
Acting type | Double acting | ||||||||||
Proof pressure | 1.5MPa | ||||||||||
Max. Working pressure | 1.0MPa | ||||||||||
Min. Working pressure | 0.12MPa | 0.1MPa | |||||||||
Working temperature | -10 to 60℃(No freezing) | ||||||||||
Speed range | 50 to 500mm/s | 50 to 400mm/s | |||||||||
Cushion type | Rubber bumper on both ends | ||||||||||
Lubrication | Not required(Non-lube) | ||||||||||
Tolerance of stroke | +1.5mm 0 mm | ||||||||||
Non-rotating accuacy | Slide bearing | ±0.08° | ±0.07° | ±0.06° | ±0.05° | ±0.08° | |||||
Ball bushing bearing | ±0.01° | ±0.09° | ±0.08° | ±0.06° | ±0.05° | ||||||
Port size | M5X0.8 | G1/8 | G1/4 | G3/8 |
Main Dimensions
*1) Refer to Section EE details for the shape of Φ12 to Φ25 with stroke of 50 or less.
*2) The use of a slot (width XA, length XB, depth 3) allows for a relaxed pin pitch tolerance, with the pin hole (ΦXAH9, depth 6) as the reference, without
affecting mounting accuracy.
*3) For bore size Φ12 and Φ16, only M5×0.8 port is available.
*4) For bore size Φ20 or more, choice of Rc, NPT, G port is available.
*1) The use of a slot (width XA, length XB, depth XC) allows for a relaxed pin pitch tolerance, with the pin hole (ΦXAH9, depth XL) as the reference, without
affecting mounting accuracy.
*2) Choice of Rc, NPT, G port is available.
*1) The use of a slot (width X6, length 7, depth 5) allows for a relaxed pin pitch tolerance, with the pin hole (Φ6H9, depth 10) as the reference, without
affecting mounting accuracy.
*2) Choice of Rc, NPT, G port is available.
