MHS3 Series Parallel Type Air Gripper (3-Finger)

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

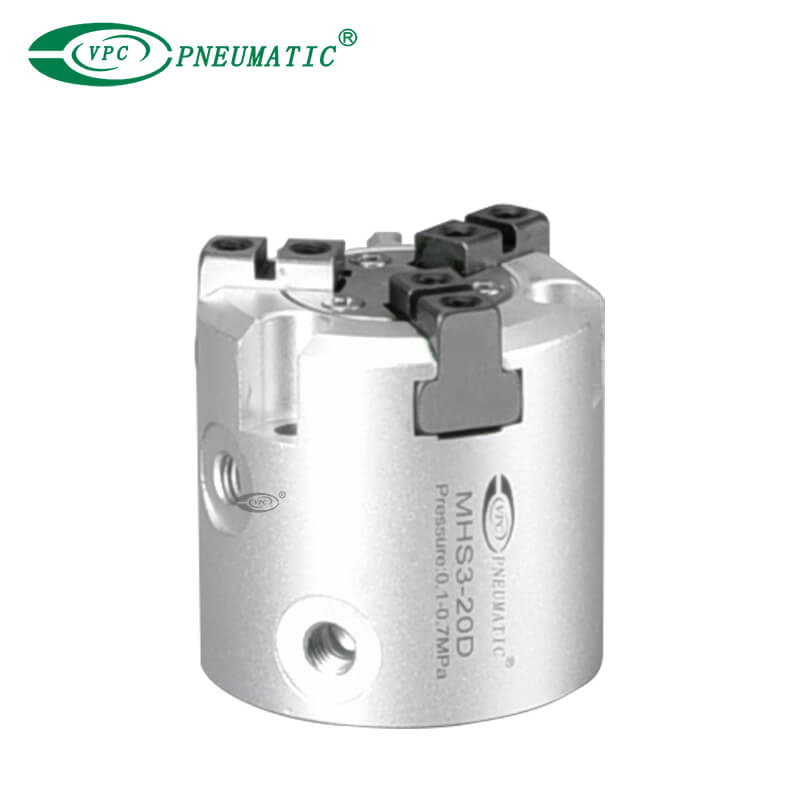

The MHS3 Series, 3-finger grippers are optimal for gripping spherical, cylindrical or round work pieces and loading or unloading of work pieces from the chuck of a machine tool. Its wedge cam design minimizes its overall size while retaining a high holding force making it suitable for end-of-arm (end effector) or space constrained pick and place applications.

  • MHS3-20D

  • VPC Pneumatic

Working medium:
Clean air
Acting type:
Double acting, wedge cam
Working temperature:
-10 to 60℃
Working pressure:
0.2 to 0.6Mpa
0.1 to 0.6Mpa
Repeatability :
±0.01 mm
Lubrication:
Option for NSF-H1, food grade lubricant
Availability:
Inquire Add to Basket

Product Specifications

ModelMHS3-16DMHS3-20DMHS3-25DMHS3-32DMHS3-40DMHS3-50DMHS3-63DMHS3-80DMHS3-100DMHS3-125D
Bore (mm)1620253240506380100125
Working mediumClean air
Working pressure0.2 to 0.6 MPa0.1 to 0.6 MPa
Working temperature-10 to 60 ℃
Repeatability±0.01 mm
Max. operating frequency120 c.p.m.60 c.p.m.30 c.p.m.
LubricationNot required
ActionDouble acting
Effective gripping force at 0.5 MPa*External grip14 N25 N42 N74 N118 N187 N335 N500 N750 N1270 N
Internal grip16 N28 N47 N82 N130 N204 N359 N525 N750 N1320 N
Opening/Closing stroke
4 mm4 mm6 mm8 mm8 mm12 mm16 mm20 mm24 mm32 mm

* Values for ø16 to ø25 are with gripping point L = 20 mm, for ø32 to ø63 with gripping point L = 30 mm.
