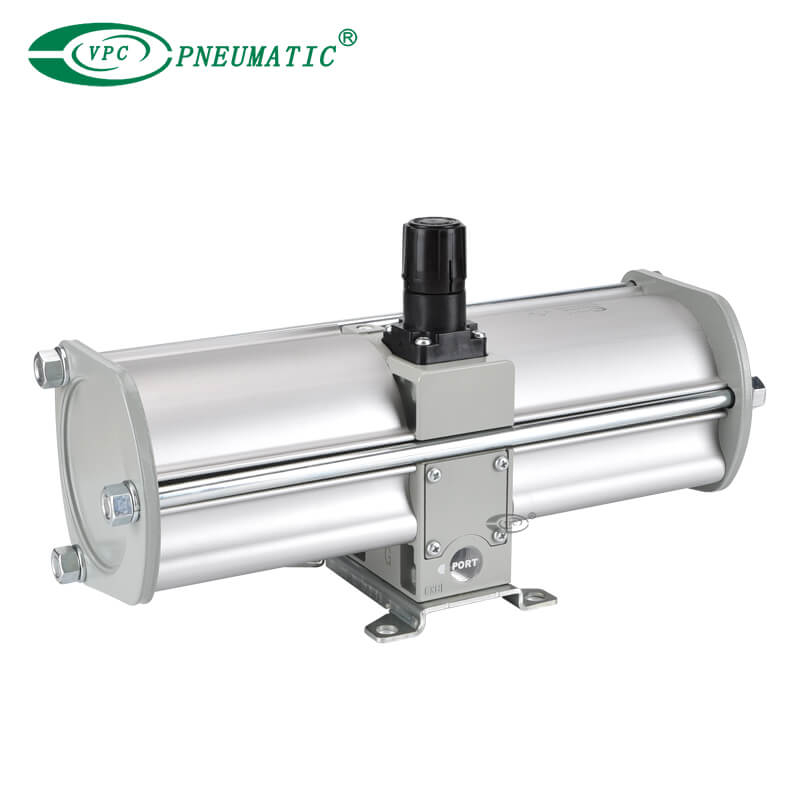

VBA10A
VPC Pneumatic
8414909090
Booster Regulator Body Material:: | |
---|---|
Working pressure: | |
Tank capacity: | |
Tank Material: | |
Availability: | |
Product Description
1. Easy adjustment of output pressure.
2. Boosts local line pressure without requiring additional power.

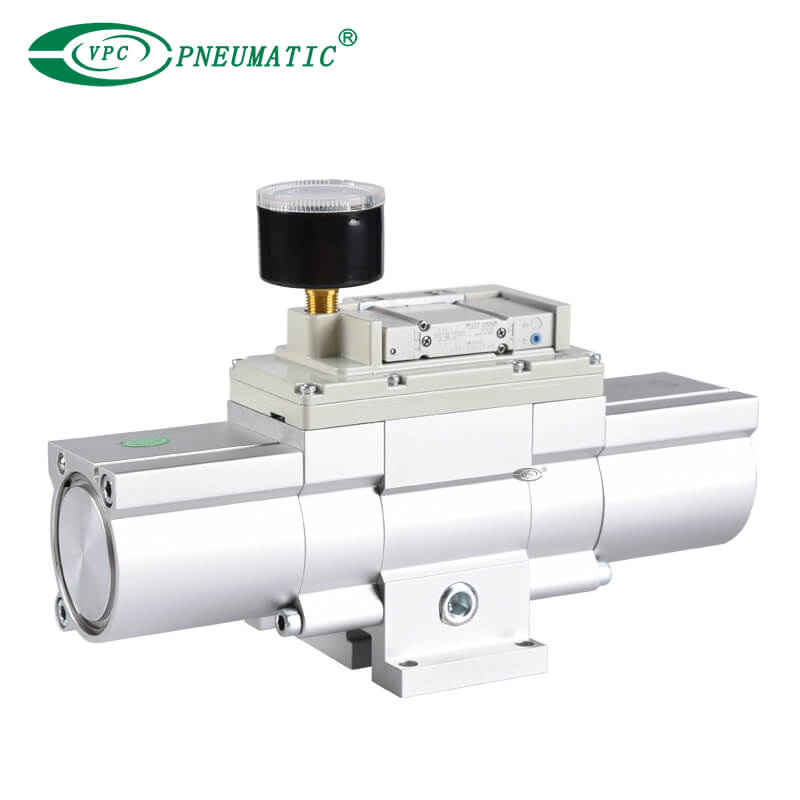

3. Possible to get a maximum of double pressure by connecting air with a factory line. (VBA11A: maximum 4 times)
4. Space-saving type that directly connects air tanks and booster regulators.
Product Specifications
Model | VBA10A-02 | VBA20A-03 | VBA40A-04 | VBA22A-03 | VBA42A-04 | VBA43A-04 | VBA11A-02 |
Working medium | Compressed air | ||||||
Pressure increase ratio | Twice | 2 to 4 times*4) | |||||
Pressure adjustment mechanism | Knob-operated with relief mechanism*2) | Air-operated | Knob-operated with relief mechanism*2) | ||||
Max.flow rate*3) [L/min (ANR)] | 230 | 1000 | 1900 | 1000 | 1900 | 1600 | 70 |
Set pressure range (Mpa) | 0.2 to 2.0 | 0.2 to 1.0 | 0.2 to 1.6 | 0.4 to 2.0 | |||
Supply pressure range (Mpa) | 0.1 to 1.0 | ||||||
Proof pressure(Mpa) | 3 | 1.5 | 2.4 | 3 | |||
Port size (RC)(IN/OUT: 2 locations) | 1/4 | 3/8 | 1/2 | 3/8 | 1/2 | 1/4 | |
Pressure gauge port size (Rc) (IN/OUT: 2 locations) | 1/8 | ||||||
Tank connection port(with plug)*5) | 1/4 | 3/8 | 1/2 | 3/8 | 1/2 | 1/4 | |
Ambient and fluid temperature (℃) | 2 to 50(NO freezing) | ||||||
Installation | Horizontal | ||||||
Lubrication | Grease(Non-lube) | ||||||
Weight (kg) | 0.84 | 3.9 | 8.6 | 3.9 | 8.6 | 8.6 | 0.89 |
*1) Be sure to secure an air supply capacity of the minimum operating pressure (0.1 MPa) or more.
*2) If the OUT pressure is higher than the set pressure by the knob, excess pressure is exhausted from the back of the knob.
*3) Flow rate at IN= OUT= 0.5 MPa. The pressure varies depending on the operating conditions. Refer to “Flow Rate Characteristics” .
*4) Set the pressure increase ratio to 2 or more.
*5) The tank connection port cannot be used for applications other than the connection with VBAT.
Solid line: Operating range
Operate so that the flow rate follows the solid line even when the outlet side air has been consumed.
Ex.) For the VBA10A: When the inlet pressure is 0.5 MPa and the set pressure is 1.0 MPa, operate at an outlet air flflow rate of 180 L/min (ANR) or less.
Dotted line: Outside of the set pressure range
P1: Inlet pressure P2: Outlet pressure
* When operated at a flow rate that falls within the unstable area (P2 < P1 conditions) as shown in the graphs above, the booster regulator may not operate normally and may therefore fail to increase the pressure.
Pulsation is decreased with a tank. If the outlet capacity is undersized, pulsation may occur.
Conditions
Inlet pressure: 0.5 MPa
Outlet set pressure: 1 MPa
Flow rate: Between 0 and max. flow rate
Performance of air tank
● Alleviates the pulsation generated on the outlet side.
● When air consumption exceeds air supply during intermittent operation, required air will be accumulated in the tank for use.
● This does not apply for continuous operation.
● Operation at a flow rate that falls within the unstable area under temporary P1 ≥ P2 conditions can be prevented when the outlet side air has been consumed.
Replacement Parts/Kit No
Place an order with the following applicable kit number.
Model | VBA10A | VBA20A | VBA40A | VBA22A | VBA42A | VBA43A | VBA11A |
Kit No. | KT-VBA10A-1 | KT-VBA20A-1 | KT-VBA40A-1 | KT-VBA22A-1 | KT-VBA42A-1 | KT-VBA43A-1 | KT-VBA11A-20 |
The kit includes the parts from ① to ⑦ and a grease pack.
No. | Model | VBA10A | VBA20A | VBA40A | VBA22A | VBA42A | VBA43A | VBA11A |
Quantity | ||||||||
1 | Piston seal | 2 | 2 large 1 small | 2 | 1 each large and small | |||
2 | Governor assembly | 1 | ||||||
3 | Check valve | 4 | 2 | |||||
4 | Gasket | 2 | ||||||
5 | Rod seal | 1 | ||||||
6 | Mounting screw | - | 8 | 12 | 8 | 12 | - | |
7 | Cover C assembly | - | 1 | |||||
- | Gasket pack | 1 | 2 | 1 | 2 | 1 |
Main Dimensions
* For detailed dimensions, specififications and lead times, please contact VPC.
