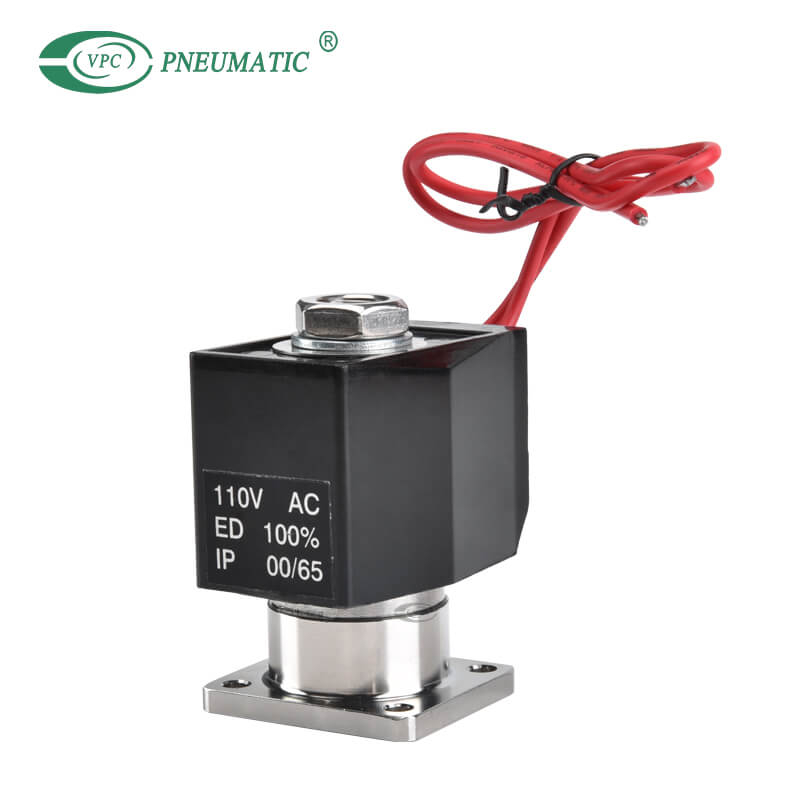

GAB series are highly durable direct acting solenoid valves that can be used from dry air at the atmospheric dew point of -60°C to inert gases such as nitrogen gas.
GAB312
VPC Pneumatic
8412909000
Valve type: | |
---|---|
Mounting orientation: | |
Material: | |
Quality warranty: | |
Availability: | |
Product Description
1. The body material (copper alloy, stainless steel) and sealing material (nitrile rubber, fluoro rubber, EPDM) can be selected.
2. With coil rectification and countermeasures for wear of sliding section, it is highly durable even with dry air and inert gas.
3. Compatible with various applications through a wide variety of orifice size and coil option combinations.

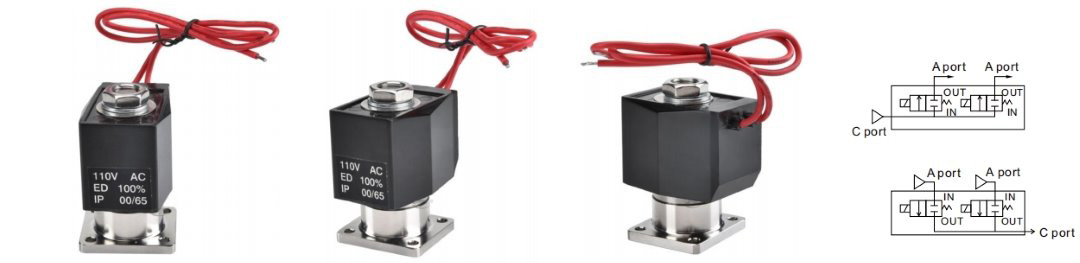

4. 2-port (NC, NO), 3-port, manifold: Select the ideal component according to the circuit in use.
5. The body material (copper alloy, stainless steel) and sealing material (nitrile rubber, fluoro rubber, EPDM) can be selected.
* Orders for only the masking plate and sub-plate are also available. Contact VPC for details.
* For 11 or more manifold station No., contact VPC.

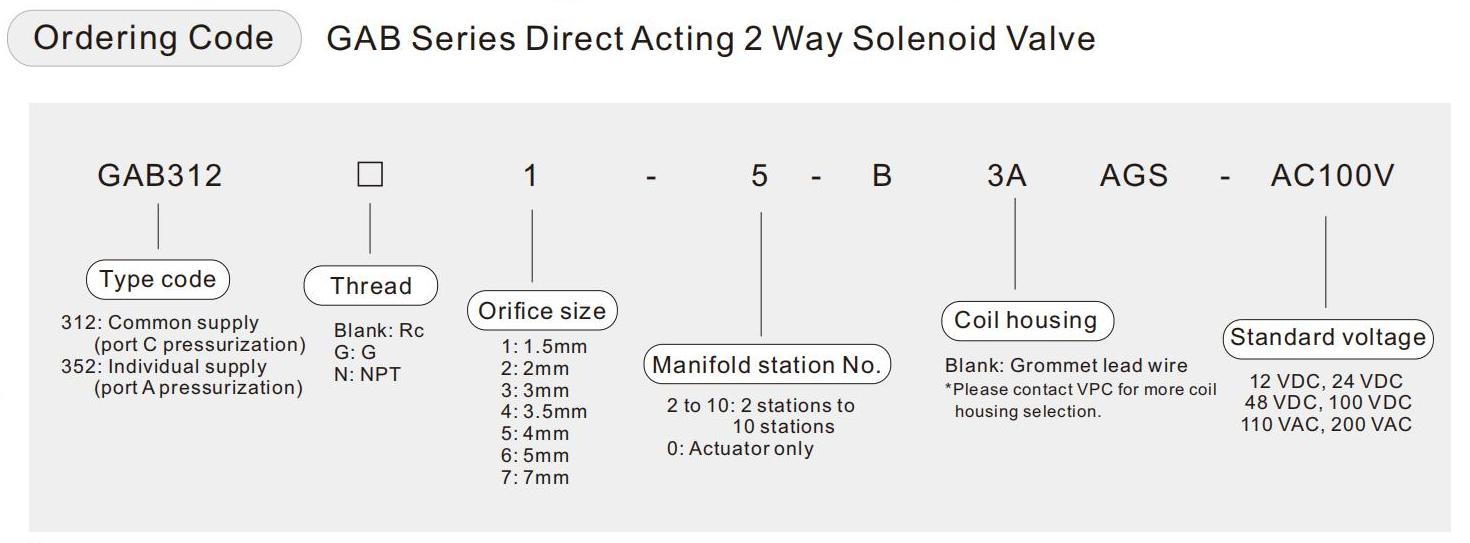

Product Specifications
Type | Standard specifications | Optional specifications | |
Working medim | Air/Low vacuum /Water/Kerosene/Oil | Hot water | Steam |
Control type | Normal close | ||
Working pressure differential | 0 to 5MPa | ||
Max. working pressure | 5MPa | 1MPa | |
Proof pressure | 10MPa | ||
Fluid temperature (No freezing) | -10 °C to 60 °C | -10 °C to 90 °C | -10 °C to 184 °C |
Working temperature | -20°C to 60 °C | -20°C to 100 °C | |
Thermal class | Class 130 (B) | Class 180 (H) | |
Atmosphere | Place free of corrosive gas and explosive gas | ||
Valve structure | Direct acting poppet structure | ||
Valve seat leakage | 0.2 cm3/min (ANR) or less (air) | 300 cm3/min (ANR) or less (air) | |
Mounting | Unrestricted | ||
Body/Seal material | Stainless steel/Nitrile rubber | Stainless steel/EPM rubber | Stainless steel/PTFE |
* Refer to Max. Working pressure differential in individual specifications.

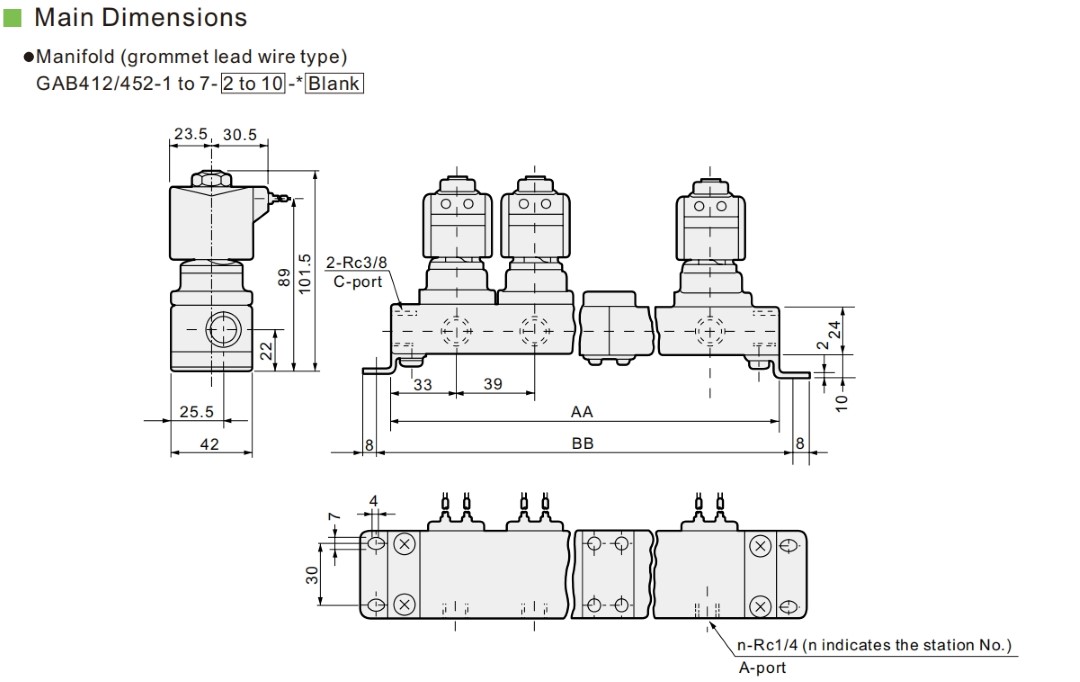

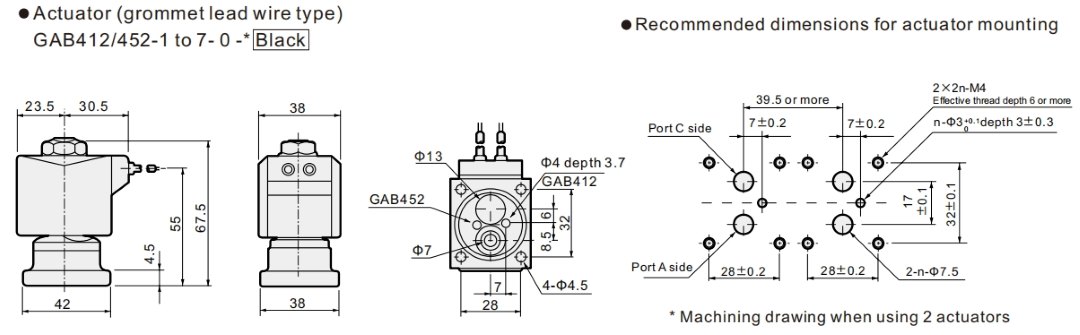

Main Dimensions
Station No. | AA | BB | Manifold configuration | Station No. | AA | BB | Manifold configuration |
2 | 106 | 122 | 2 stations x 1 | 7 | 329 | 345 | 5 stations + 2 stations |
3 | 145 | 161 | 3 stations x 1 | 8 | 368 | 384 | 5 stations + 3 stations |
4 | 212 | 228 | 2 stations x 2 | 9 | 435 | 451 | 3 stations x 3 |
5 | 223 | 239 | 5 stations x 1 | 10 | 446 | 462 | 5 stations x 2 |
6 | 290 | 306 | 3 stations x 2 | Contact VPC for 11 stations or more |
*1: Manifold configuration combines 2-station, 3-station and 5-station units.
*2: The dimensions are the same for port sizes of G and NPT threads.
Product FAQ
Q1. What is a 2 Way 2 position solenoid valve?
Solenoid valve most common types are 2-way and 3-way valves which can be N/O (normally open) or N/C (normally closed). For example, a 2/2 valve has two ports (in/out) and two states (open/closed). 3 Way 2 position valve has three ports and two states.Allows multiple different configurations of flow paths while connecting only two ports in any single location.
Q2. Which material is used for solenoid valve?
Solenoid valves are often available with various housing materials. Typical materials are Nylon (Polyamide – PA), PVC (PolyVinylChloride), Brass, Nickel plated brass and Stainless Steel (304 and 316). The material choice depends strongly on the chemical properties and the temperature of the medium.
Q3. What is direct acting solenoid valve?
Direct acting solenoid valves, also known as zero rated solenoid valves, are electro-mechanical valves that are used to control the flow of liquids or gases.
Q4. What is difference between direct acting and pilot operated solenoid valve?
The main difference between direct acting and pilot solenoids is that direct-acting solenoid valves have a direct connection with the opening and closing armature, whereas pilot-operated valves employ the use of the process fluid to assist in piloting the operation of the valve.
Q5. Why do solenoid valves fail?
Solenoid coil failure can be caused by a number of factors. Applying an incorrect voltage to the coil will cause it to fail and may cause the coil to burn out. Electrical surges or spikes may also damage the coil. Burnt out coils cannot be repaired and will need to be replaced.
To learn more about Solenoid Valve, please contact VPC!
