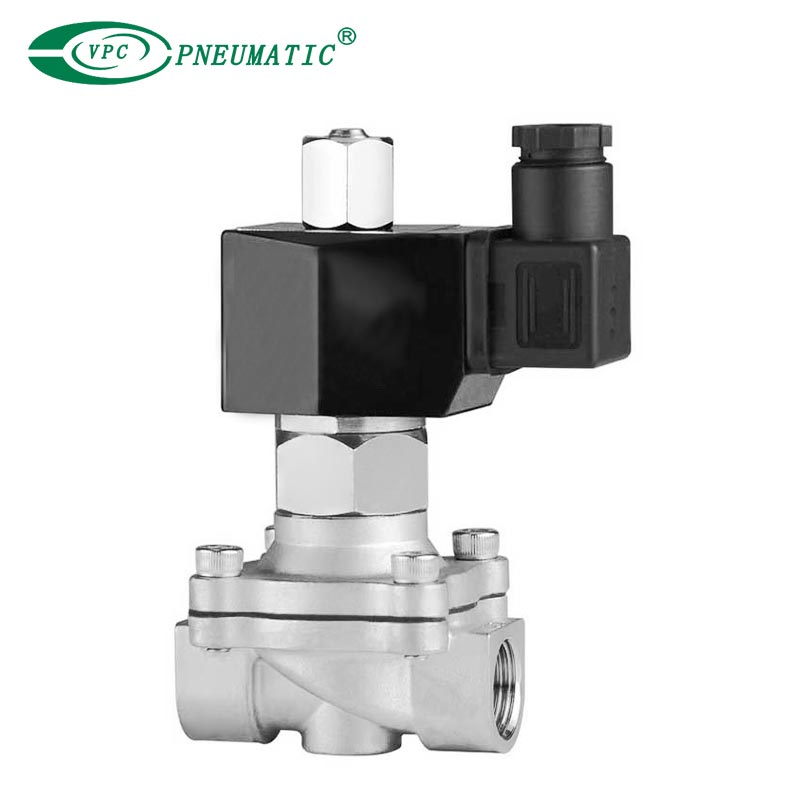

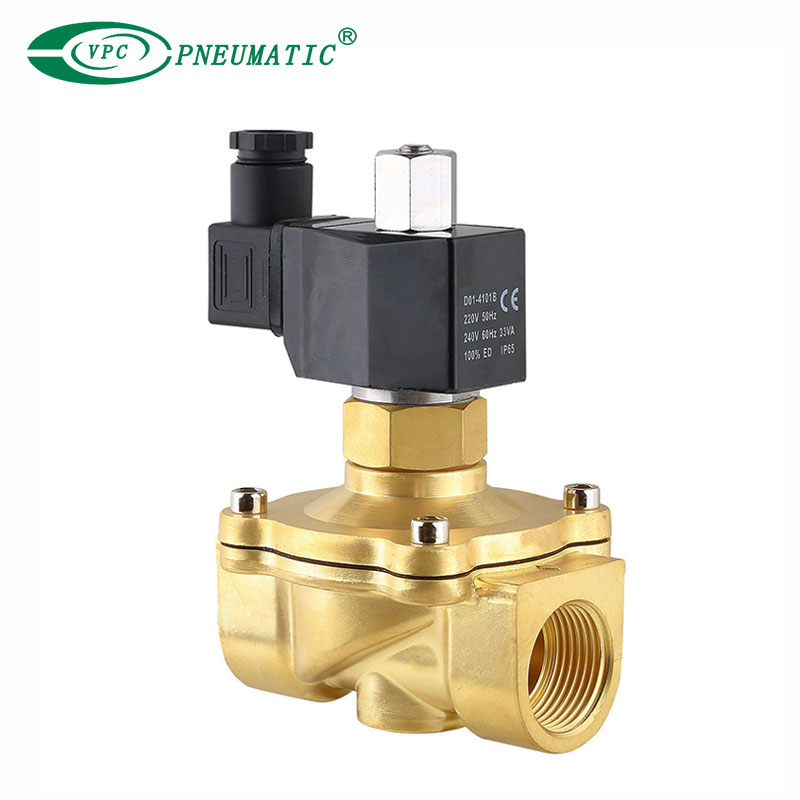

ZS Series 2/2 Way Normal Open Solenoid Valve

Share to:
  1. Normal close/Normal open,available body:brass,SS304,SS316
  2. Multiple seals are available for different medium
  3. To reduce the power consumpiton of 80% energy-saving
  4. Wide size rnage from 1/8" to 2",with both thread and flange connection
  5. Diaphragm pilot solenoid valve,with lower working pressure(10mm is special)
  • ZS15-16L
  • VPC Pneumatic
  • 8481804090
Working medium:
Type:
Working temperature:
Ambient temperature:
Body Material:
Availability:

Product Description

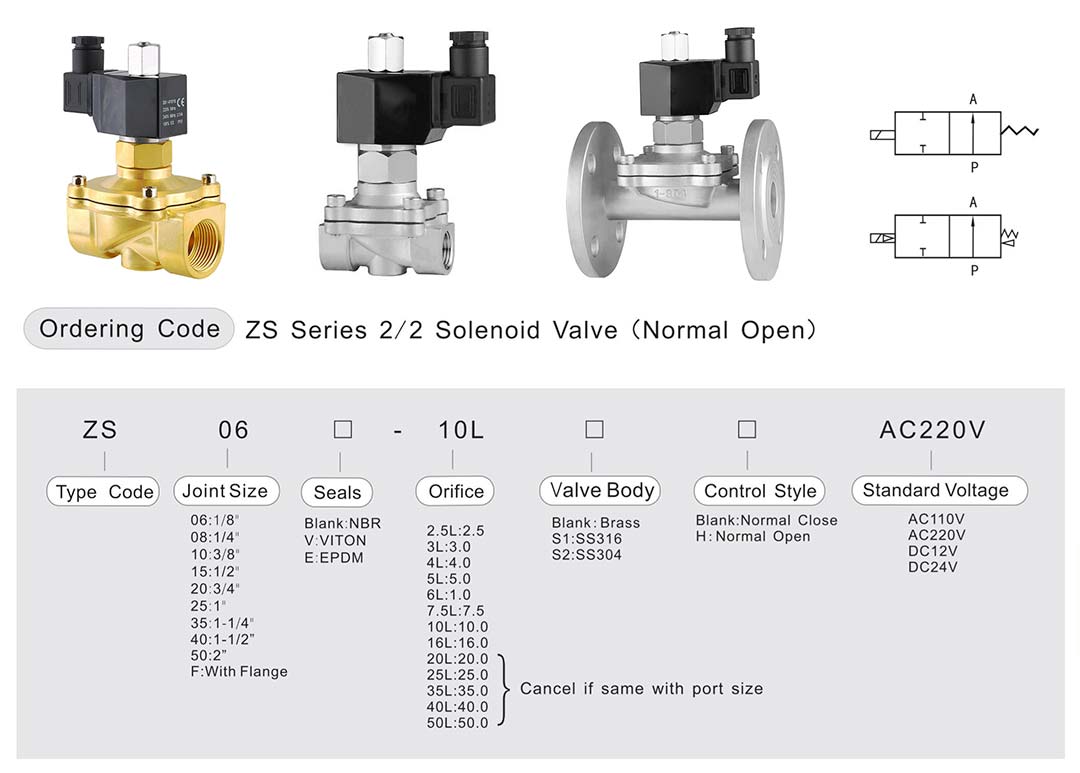

ZS 参数-1NO

Product Specifications

Working MediumAir,Gas,Water,Oil
TypeNormal close
Ambient temperature0 to 65℃
Working temperature0 to 130℃
Seal materialNBR,EPDM,VITON
Body materialBrass,SS316


Mounting

Direction of flow as the arrow,install in any position,but the best position is solenoid coil upright,horizontal direction in stallation for enhancing the service life.


Main Dimensions

ZS 参数-2NO
