How to Evaluate a Metal-Seal Low Friction Pneumatic Cylinder Before Buying or Replacing One

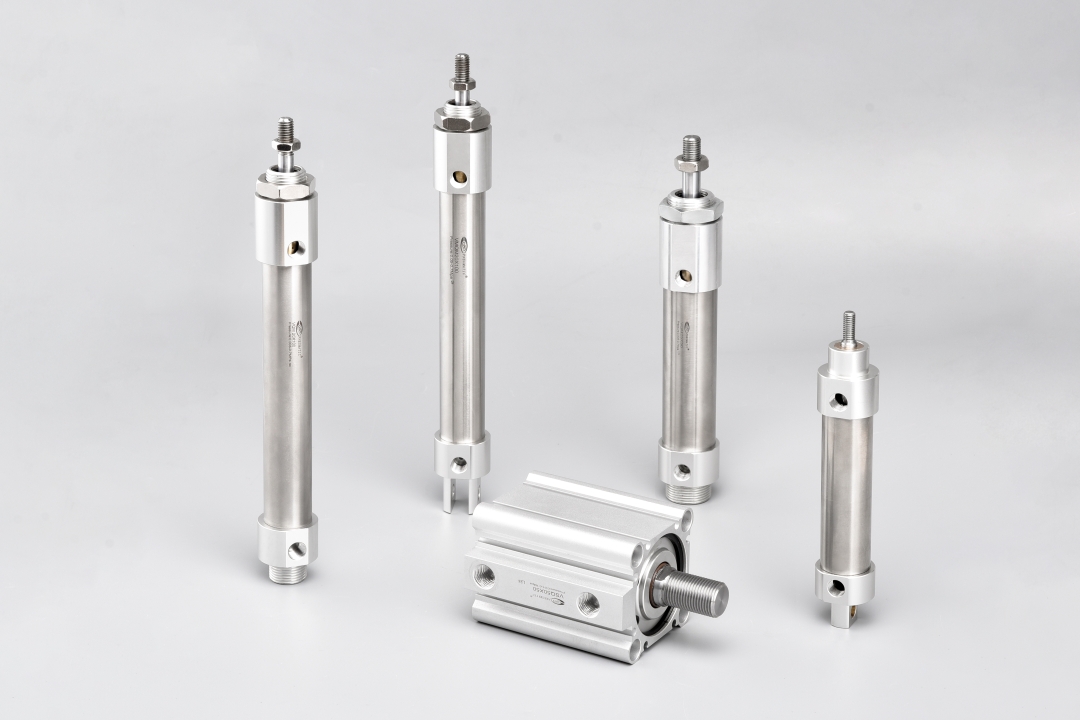

A metal-seal low friction pneumatic cylinder is worth considering when a machine needs smooth low-speed movement, stable force control, or repeatable contact pressure. It is not the right answer for every cylinder position. Before buying or replacing an SMC MQQ, MQM, or MQP style cylinder, the buyer should verify the seal structure, minimum operating pressure, speed range, air quality, lateral load, mounting dimensions, and the actual machine task. Port size and stroke alone are not enough to approve a replacement.

Quick Decision Table

1. What Buyer Problem Does It Actually Solve?

Most buyers do not search for a low friction cylinder because they want a definition. They search because a machine is hard to tune. A normal cylinder may move unevenly at low speed, require too much pressure to start, create inconsistent contact force, or behave differently after standing still for a long time. In winding, inspection, polishing, electronic assembly, and soft-contact mechanisms, those small changes can become scrap, unstable process quality, or difficult machine setup.

The value of a low friction pneumatic cylinder is therefore not simply "less friction". The value is more controllable motion at low pressure and more predictable force when the rest of the circuit is designed correctly. If the circuit, air quality, and load direction are wrong, a low friction cylinder can still stick, leak, wear early, or fail to deliver the expected process improvement.

2. Metal Seal, Rubber Seal, and Rolling Diaphragm Are Not the Same

• A standard pneumatic cylinder usually relies on rubber sealing elements. That structure is practical and cost-effective for many push, pull, lift, clamp, and transfer motions. The tradeoff is that seal friction can be too high or too variable for precise low-speed or low-force tasks.

• A metal-seal low friction cylinder is designed to reduce sliding resistance and support applications where ordinary cylinders are difficult to control. SMC describes its MQQ and MQP products as metal-seal low friction cylinders, and its official materials position this type of actuator for low pressure, low speed, uniform speed, low friction, and force control applications.

• A rolling diaphragm cylinder is a different structure. It can be useful in applications that require very low friction and low leakage, but it has different design limits, stroke behavior, mounting considerations, and cost logic. When a buyer asks VPC for a low friction cylinder, the first clarification should be whether the application needs a metal-seal pneumatic cylinder or a diaphragm-type actuator. VPC's low friction cylinder direction here is metal seal, not diaphragm.

3. When Should an OEM Specify a Metal-Seal Low Friction Cylinder?

• Use it when the motion problem is real. A low friction cylinder is most valuable when the machine needs smooth start-up, stable low-speed travel, or repeatable output force under controlled pressure. If the cylinder only opens a guard, pushes a simple stop, or performs a rough transfer motion, a standard cylinder may be more economical and easier to maintain.

• Use it for force-sensitive contact. In electronic component handling, inspection fixtures, light pressing, polishing, and surface contact applications, too much breakaway force can damage the product or make force adjustment unstable. A metal-seal low friction cylinder helps reduce this control barrier, especially when paired with a suitable precision regulator or electro-pneumatic regulator.

• Use it for web, film, and winding tension. In roll-to-roll equipment, coil winding, film handling, printing, and similar mechanisms, the goal is not simply cylinder speed. The machine needs stable contact or tension over time. The cylinder, regulator, valve, tubing, and air preparation must be treated as one circuit.

• Use it when replacement cost is lower than process instability. Some buyers hesitate because low friction cylinders are not the cheapest actuator. That is the wrong comparison. The better question is whether unstable low-speed motion causes downtime, scrap, rework, customer complaints, or too much setup time.

4. When Is It Not the Best Choice?

A low friction pneumatic cylinder is not a magic repair for a poor pneumatic circuit. If compressed air contains water, oil mist, dust, or inconsistent pressure, the cylinder may not perform as expected. SMC's technical materials recommend clean, dry air, fine filtration, and care with lubrication for metal-seal low friction cylinders. VPC's VQM product page also states no lubrication and recommends 5 um or finer filtration and mist separation for stable operation.

It is also not the best answer when a strong lateral load is applied to the rod without proper guidance. Low friction does not remove the need to control side load. If the application has offset force, the buyer should review whether a lateral-load-resistant type, external guide, floating joint, or different actuator structure is needed.

Finally, it should not be sold as a direct substitute for an electric actuator. A pneumatic low friction cylinder can improve low-speed and force behavior, but it does not provide closed-loop position control by itself. If the real requirement is micron-level positioning or programmable motion profile control, the buyer should review whether an electric actuator, servo press, or hybrid design is more appropriate.

5. What Specifications Matter Before Replacement?

6. Why Air Preparation and Circuit Design Matter

Low friction performance is circuit-dependent. A buyer can choose the right cylinder and still get poor results if the air line is dirty, the regulator is unstable, the valve is too restrictive, or the tubing volume is not suitable for the response needed. For a force-control application, the cylinder is only one part of the control loop.

For metal-seal low friction air cylinders, VPC should ask about the full circuit before quoting: operating pressure, regulator type, valve type, tube length, load direction, cycle frequency, expected speed, and whether the machine uses a precision pressure regulator or an electro-pneumatic regulator. If the buyer cannot provide these details, VPC can still provide preliminary recommendations, but the final selection must be confirmed by a VPC engineer.

7. Can It Replace SMC MQQ, MQM, or MQP?

The safer wording is functional alternative after verification. A matching bore or similar appearance does not prove direct replacement. For replacement projects, the buyer should send the existing model code, product photo, drawing if available, bore, stroke, mounting method, pressure range, actual load, and the machine function. If the cylinder controls contact force, the buyer should also provide target force range and regulator information.

VPC should not claim 100 percent compatibility without checking dimensions and use conditions. The more credible position is practical: VPC can help review whether a metal-seal low friction cylinder can serve as an alternative in the buyer's application, and identify which data still needs confirmation before sample approval.

8. How VPC Should Be Evaluated as a Supplier

For low friction air cylinder projects, a supplier should not only quote a unit price. The supplier should help the buyer clarify whether the problem is friction, side load, air quality, regulator stability, or a mismatch between the actuator and the machine task. This is where VPC should appear naturally.

VPC offers metal-seal low friction pneumatic cylinder options for applications involving low pressure actuation, low-speed motion, force control, and tension control. VPC's public VQM page lists metal seal construction, minimum operating pressure, working pressure, temperature range, speed range, filtration recommendation, and no lubrication requirement. For VQQ, VQP, exact bore/stroke range, sample policy, lead time, MOQ, private label support, certification documents, and test reports, use until VPC confirms the public data.

FAQ

1. Is a metal-seal low friction cylinder the same as a rolling diaphragm cylinder?

No. A metal-seal cylinder and a rolling diaphragm cylinder use different structures. VPC's low friction cylinder direction in this article is metal seal, not rolling diaphragm.

2. Does a low friction cylinder need lubrication?

For metal-seal low friction cylinders, extra lubrication is generally not the starting recommendation. VPC's VQM public page states no lubrication and recommends suitable filtration and mist separation. Always check the selected model's datasheet.

3. Why does my low friction cylinder still move unevenly?

Common causes include dirty air, water in the line, excessive side load, unstable regulator output, unsuitable valve flow, long tubing, or the wrong cylinder type for the task.

4. Can VPC provide an SMC MQQ alternative?

VPC can evaluate a functional alternative after checking the existing model, dimensions, stroke, load direction, pressure, speed, and application. Do not approve replacement only by port size or bore.

5. What should I send before requesting a quotation?

Send the existing model, photo or drawing, bore, stroke, working pressure, required speed, load direction, application equipment, annual quantity, target delivery date, and whether the project needs sample approval, private label, or replacement verification.
