CP96S(D) Series ISO 15552 Standard Double Acting Single Rod Cylinder

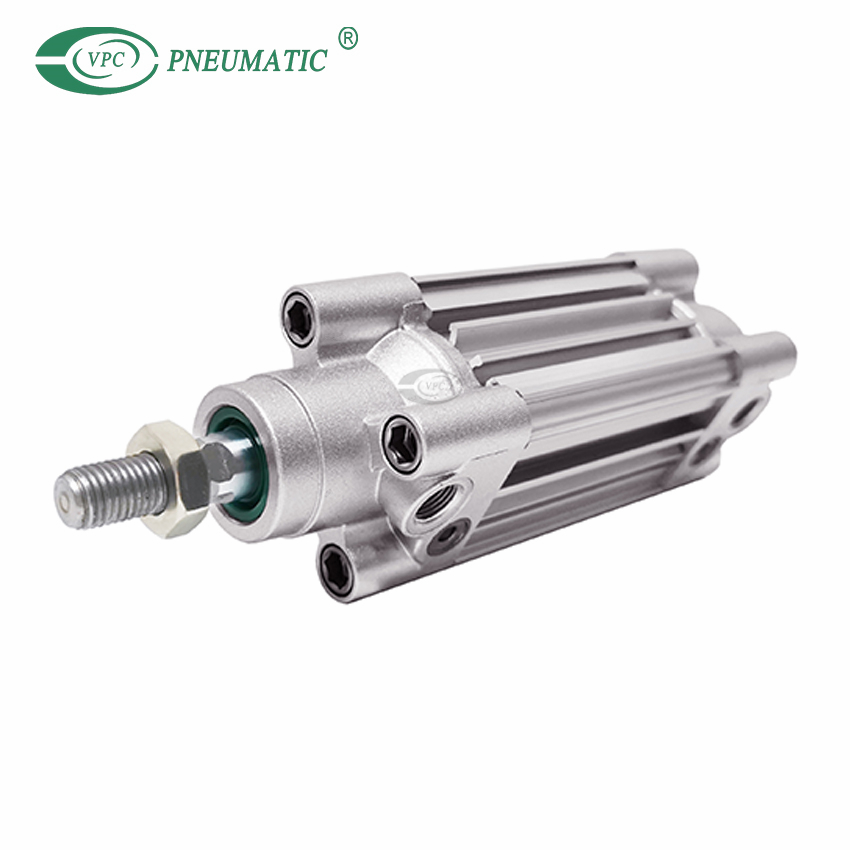

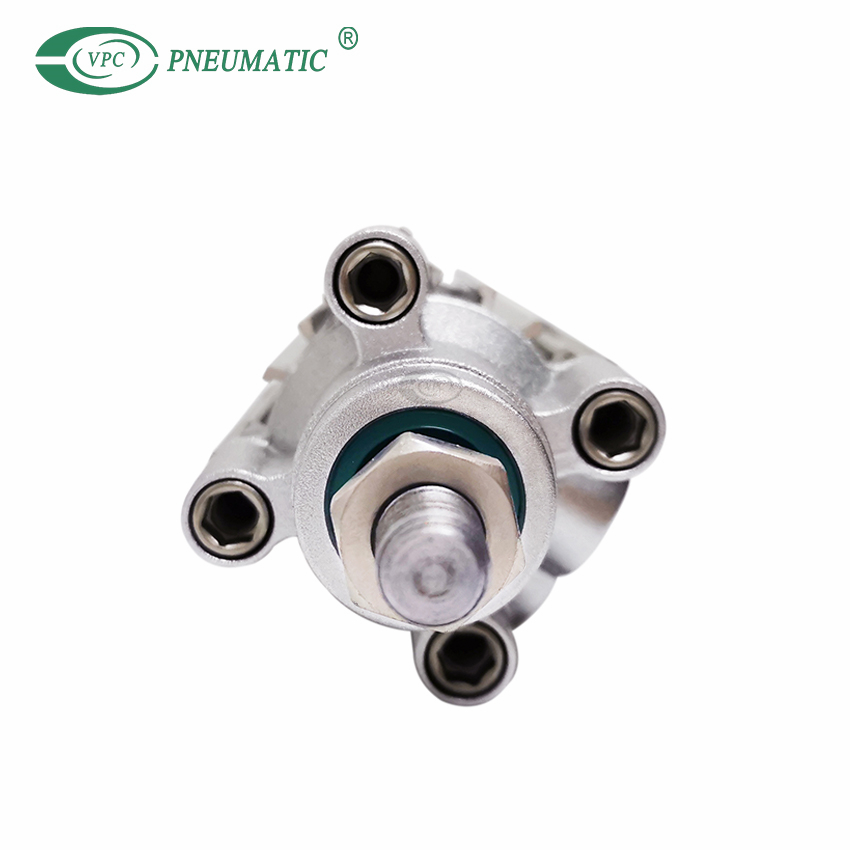

  • CP96, profile tube design ISO cylinder with enclosed tie rods, is available in 6 bore sizes from ø32 to ø125mm.  The series is available with a single or double rod in 6 bore sizes from ø32 to ø125mm.
  • The air cushion and bumper cushion combination greatly reduces noise at the end of stroke. High accuracy covers and tie rod nuts improve mounting accuracy and extend the cylinder life.
  • Increasing the precision of the bushing and piston rod, as well as reducing tolerances, has decreased the deflection of the piston rod.
  • Standard strokes range from 25 to 800mm.
Acting type:
Working medium:
proof pressure:
Working temperature:
Max stroke:
  • CP96
  • VPC Pneumatic
  • 8412310090

Product Description

CP96_03

Product Specifications

Bore size(mm)3240506380100125
working mediumAir
Acting type Double acting
Proof pressure1.5Mpa
Max.operating pressure1.0Mpa
Min.operating pressure0.05Mpa
Ambient and fluid temperaturewithout auto switch:-20 to 70℃(No freezing)
with auto switch:-10 to 60℃(No freezing)
LubricationNot required (Non-lube)
Operating piston speed50 to 1000mm/s50 to 700mm/s
Allowable stroke tolerance
Up to 250 st:+1.0,251 to 1000 st:+1.4,1001 to 1500 st:+1.8,1501 to 2000 st:+2.2
                        0                              0                                0                                0
CushionAir cushion
Port sizeG1/8G1/4G1/4G3/8G3/8G1/2G1/2
MountingBasic,Axial foot,Rod flange,Head flange,Single clevis,Double clevis,Center trunnion


Main ​Dimensions

CP96_02CP96_07CP96_08CP96_09
