In a conventional pneumatic system, a pneumatic cylinder normally requires a certain level of air pressure before it can begin moving reliably.
However, some precision automation applications require much more than simple extension and retraction. The cylinder may need to operate at very low pressure, low speed, and extremely small output force while maintaining smooth motion.

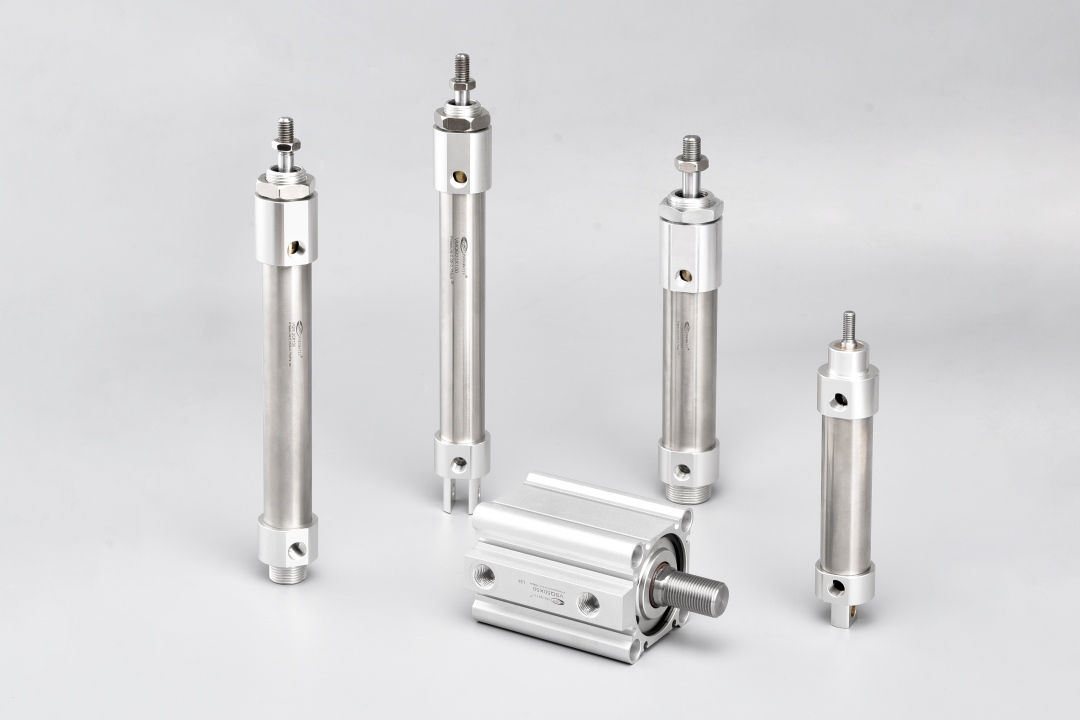

This is where a low-friction pneumatic cylinder becomes particularly useful.
In our test, a micro-pressure ITV electro-pneumatic regulator is used to precisely control the supply pressure while driving a low-friction cylinder through repeated extension and retraction.
Even under very low-pressure conditions, the air cylinder can still initiate movement and operate smoothly, demonstrating the advantages of a low-friction design in sensitive pneumatic control applications.
Watch the low-friction pneumatic cylinder running at ultra-low pressure:
1. Why do standard pneumatic cylinders struggle at low pressure?
Before a pneumatic cylinder can move, the generated force must overcome friction from several internal components, including:
Piston seals
Rod seals
Guide components
Other sliding surfaces
The force required to initiate movement is usually higher than the force required to maintain movement. This is mainly because static friction is typically higher than dynamic friction.
At very low supply pressure, the following process may occur:
Pressure increases → force remains insufficient to overcome static friction → pressure continues to build → the piston suddenly starts moving → friction decreases → the piston moves abruptly.
This phenomenon is commonly associated with stick-slip motion. For applications requiring slow movement, small output force, or gentle contact, stick-slip can significantly reduce motion stability and control accuracy.
2. Why can a low-friction cylinder operate at lower pressure?
The purpose of a low-friction cylinder is not simply to make the actuator lighter. Its main objective is to reduce sliding resistance and breakaway friction inside the cylinder.
Depending on the pneumatic cylinder design, this may be achieved through optimized sealing structures, low-friction seals, special guide arrangements, or metal-seal technology. By reducing internal friction, several important improvements can be achieved.
Less pressure is required to overcome the initial resistance of the piston. This allows the cylinder to begin moving at a lower pressure than many conventional pneumatic cylinders.
Reducing the difference between static and dynamic friction helps minimize stick-slip behavior. As a result, the piston can move more smoothly at low speed.
When mechanical resistance inside the cylinder is reduced, small changes in air pressure can produce more noticeable changes in piston force and movement. This makes low-friction cylinders particularly suitable for applications requiring sensitive pneumatic force control.
3. Why combine a micro-pressure pegulator with a low-friction cylinder?
The test shown in the video is not simply demonstrating the cylinder itself. It demonstrates the combination of a ITV electro-pneumatic regulator and a low-friction pneumatic cylinder.
The ITV electro-pneumatic regulator continuously adjusts air pressure according to an electrical input signal. The low friction air cylinder then converts these small pressure changes into mechanical movement.
With a conventional air cylinder, very small pressure variations may not immediately produce movement because part of the available force is consumed in overcoming internal friction. With a low-friction cylinder, these small pressure changes can be translated into movement more effectively.
In this type of system:
The ITV electro-pneumatic regulator determines how precisely the pressure can be controlled, while the low-friction cylinder determines how effectively those small pressure changes are converted into smooth mechanical motion.
This combination is especially useful in applications requiring gentle, continuous, and highly responsive pneumatic force control.
4. Typical applications of low-friction pneumatic cylinders
Low-friction cylinders are not intended to replace standard pneumatic cylinders in every application. They are mainly used where conventional cylinders have difficulty achieving stable operation at low pressure, low speed, or low output force.
Typical applications include:
Precision tension control
Film, paper, and web handling equipment
Contact force control
Precision pressing systems
Electronics and semiconductor equipment
Testing and inspection equipment
Balancing mechanisms
Floating mechanisms
Light-load, low-speed motion
Gentle-contact automation systems
These applications benefit from reduced breakaway resistance and smoother motion at low operating pressures.
5. Low friction does not mean “the lower the pressure, the better”
The minimum pressure at which a pneumatic cylinder can operate reliably is not determined by the cylinder alone. Actual performance can also be affected by:
Pneumatic cylinder bore size
External load
Mounting orientation
Side load
Alignment
Stroke length
Tubing and flow resistance
Speed-control settings
Air supply stability
For example, excessive side loading or poor mechanical alignment can significantly increase resistance even when a low-friction cylinder is used.
Therefore, cylinder selection should not be based only on the minimum operating pressure. Load, required speed, stroke, control accuracy, installation conditions, and force requirements should all be considered together.
Conclusion
The main advantage of a low-friction pneumatic cylinder is not simply higher speed. Its value lies in enabling reliable movement in operating ranges where conventional pneumatic cylinders may struggle — particularly under low pressure, low speed, and low-force conditions.
The ultra-low-pressure operation shown in the video demonstrates exactly this characteristic.
When combined with an ITV electro-pneumatic regulator, a low-friction cylinder can provide a more sensitive and stable pneumatic control solution for applications such as precision tension control, gentle contact, balancing, and micro-force control. For pneumatic systems requiring smooth motion and precise force response, reducing internal friction can be just as important as accurately controlling the air pressure.
