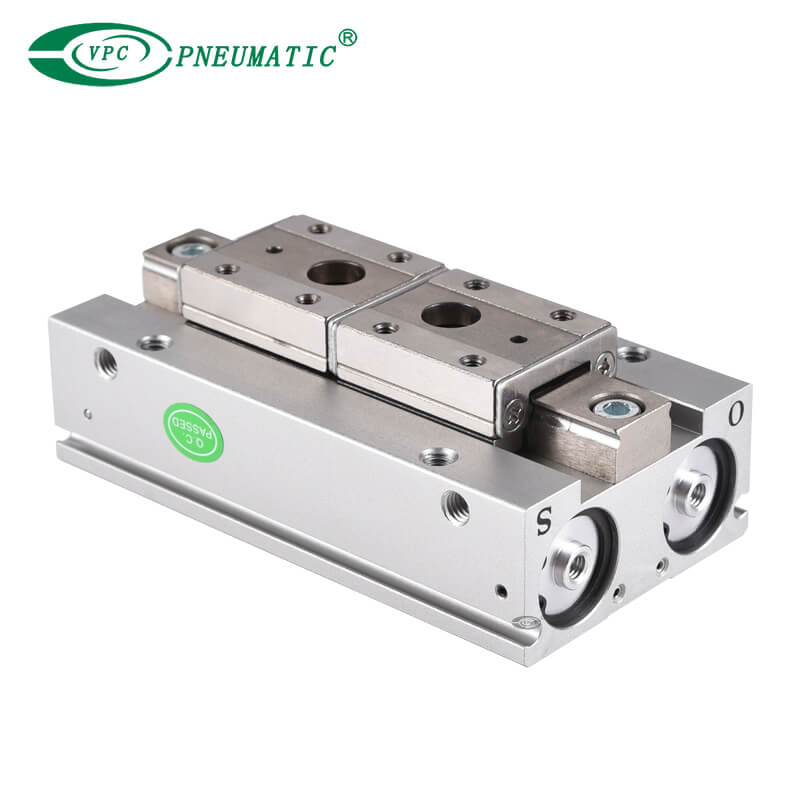

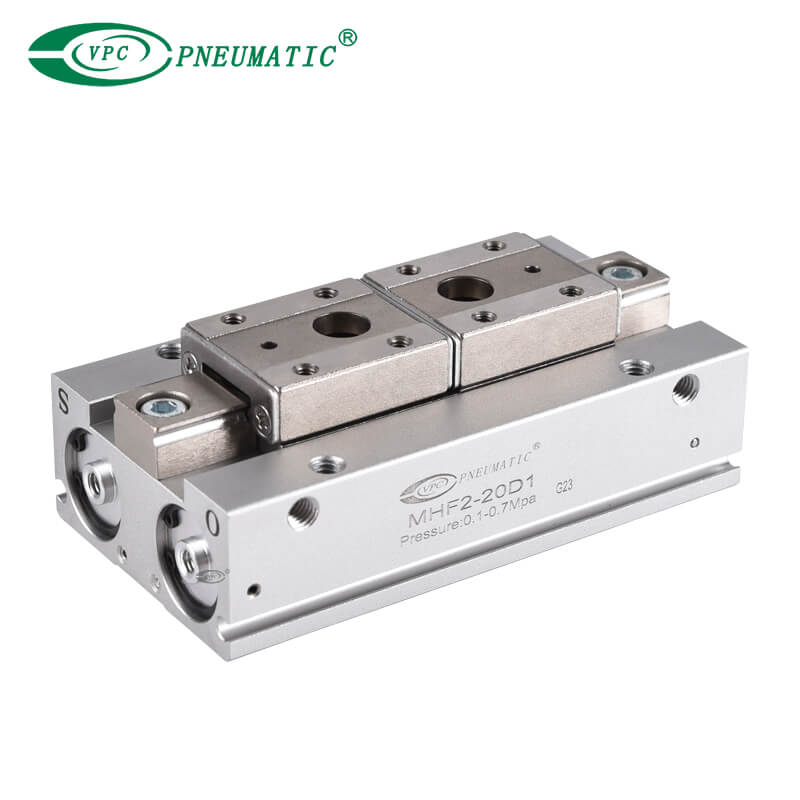

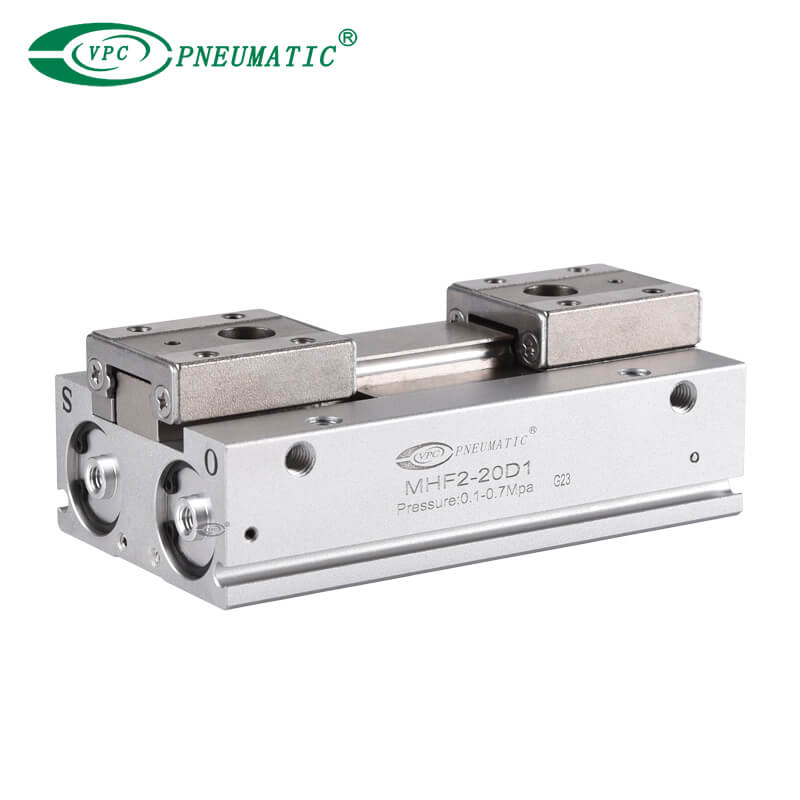

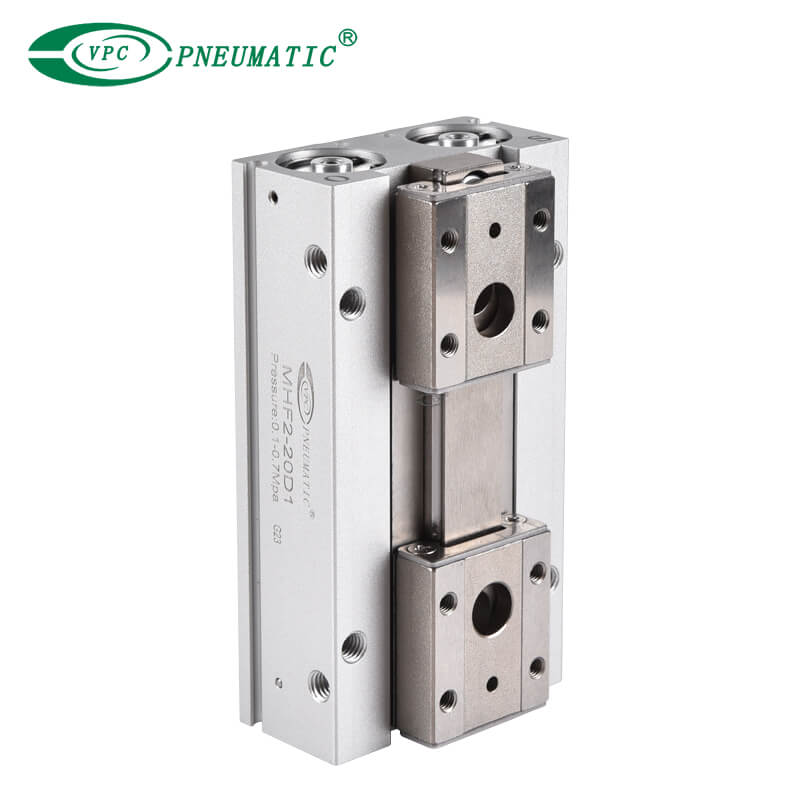

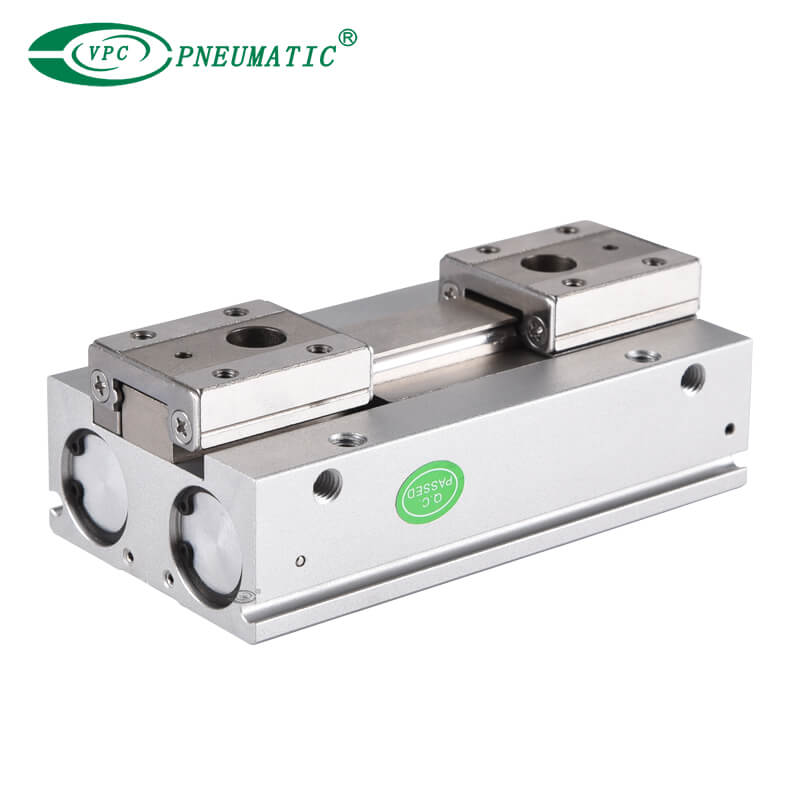

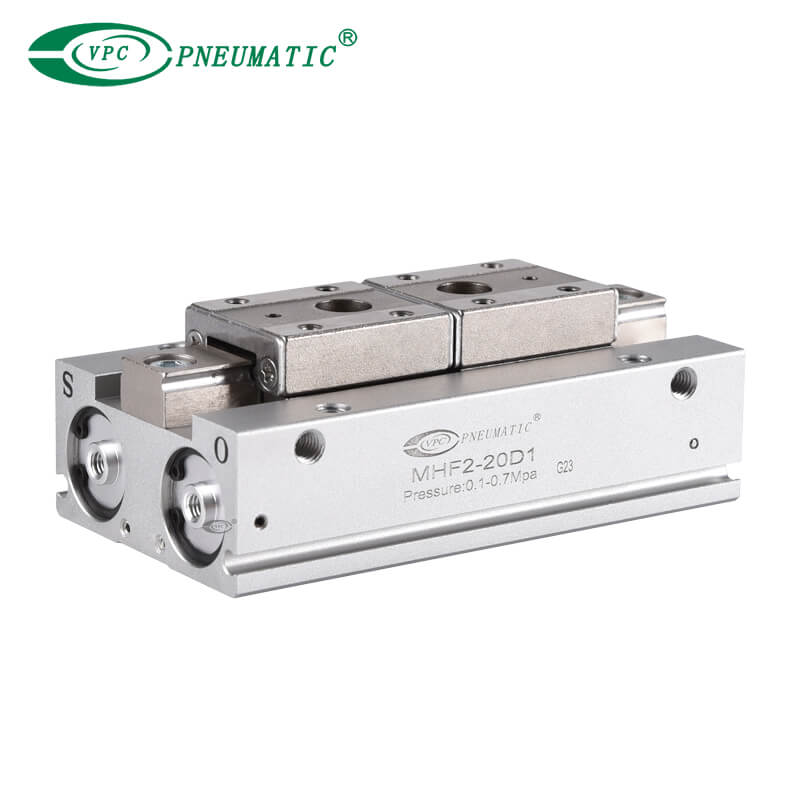

MHF Series Low Profile Air Gripper Cylinder

■ Product Feature

1. MHF air grippers, including the MHF2 Series, feature a compact design and strong gripping force, thanks to a double piston mechanism.

2. The MHF2 Series grippers are designed to reduce height, with some models being about a third of the height of standard grippers, aiding in space efficiency.

3. These grippers aim to minimize bending moments and are available in short, middle, and long stroke variations to suit a range of application requirements.

4. The low profile design of the MHF2 Series enhances space efficiency, reduces bending moments, and contributes to improved accuracy with smooth operation.

5. The MHF2 Series grippers offer excellent gripping force levels for various gripping states, making them suitable for applications requiring precision and reliability.

※1. This is the value when no offset load is applied to the finger.

When an offset load is applied to the finger, the max. value is ±0.15 mm due to the influence of

backlash of the rack and pinion.

※2. Detailed drawings and parameters of ACQ series cylinders can be obtained by contacting VPC.
