MGP Series Compact Guide Cylinder: specification, installation, selection

Views: 6     Author: Site Editor     Publish Time: 2025-06-05      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

◆ VPC Official Spanish Language Website

The MGP series compact guided cylinder integrates the cylinder body and the guide rod. The built-in guide shaft effectively isolates the load support from the movement of the piston rod and the sealing part, which can effectively reduce the wear of the piston rod and the seal, and improve the durability and stability of the cylinder. It is widely used in automated material handling such as pushing, clamping, lifting, and precise positioning.

As the basic model, MGP series compact guide cylinder has the following features:

  • Three guide bearing types available

  • Optional magnetic reed switch, air cushion, end lock

  • Different cylinder diameters (12-100mm) and strokes (10-400mm) are available

  • Can be used as clamping cylinder, lifting cylinder, and pushing cylinder

  • 4 mounting methods



1. MGP series compact guide cylinder specification

Bore(mm) 12 16 20 25 32 40 50 63 80 100
Acting type Double acting
Bearing type MGPM: Slide bearing
MGPL: Ball bushing
Proof pressure 1.5MPa
Max. Working pressure 1.0MPa
Min. Working pressure 0.12MPa 0.1MPa
Working temperature -10 to 60℃(No freezing)
Speed range 50 to 500mm/s 50 to 400mm/s
Port size M5X0.8 G1/8 G1/4 G3/8



2. Sliding bearings VS Ball bearings

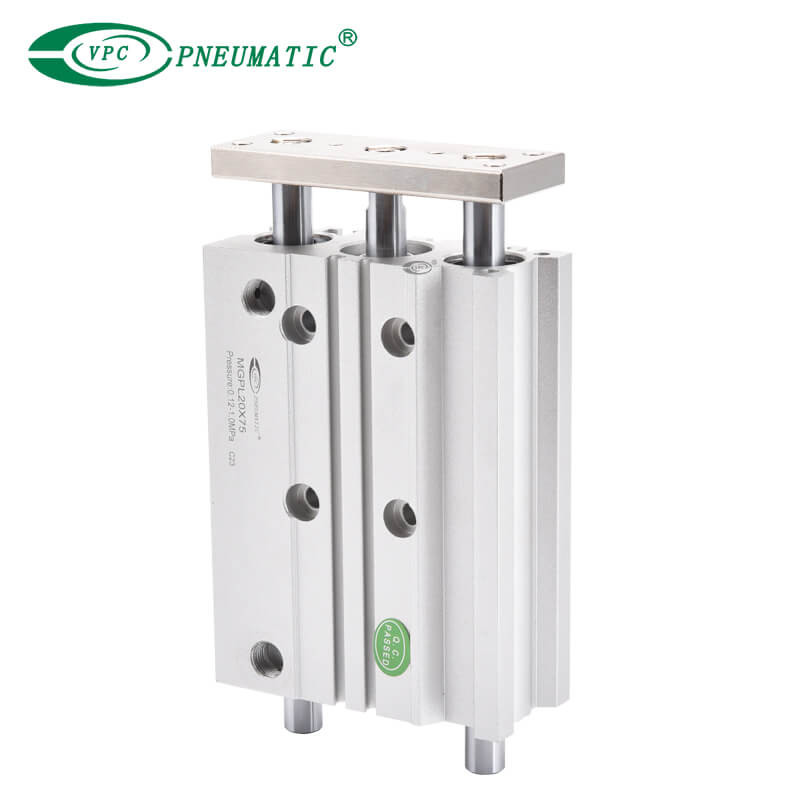

Type MGPM Compact Guide Cylinder : Slide bearing MGPL Compact Guide Cylinder: Ball bushing
Working Principle

Guide rods are in direct contact with

 the bushings for sliding friction.

Guide rods are separated from the bearings by ball bearings,

and by rolling friction.

Features ① High lateral load capacity
② Strong impact resistance
③ Adaptable to harsh environments
① High guiding accuracy
② Low friction resistance
③ Suitable for long-term high-frequency operation
Non-rotating accuracy ±0.08° (12 & 16 mm) ±0.01° (12 & 16 mm)
±0.07° (20 & 25 mm) ±0.09° (20 & 25 mm)
±0.06° (32 & 40 mm) ±0.08° (32 & 40 mm)
±0.05° (50 & 63 mm) ±0.06° (50 & 63 mm)
±0.04° (80 & 100 mm) ±0.05° (80 & 100 mm)
Max. radial load 1500N 1000N
Speed Adaptation Suitable for low speed or stationary applications Suitable for high speed or high precision applications
Environmental resistance Suitable for working environments with a lot of dust, high impact or humidity.

Requires good sealing and lubrication, suitable for a clean,

 high-precision environment.

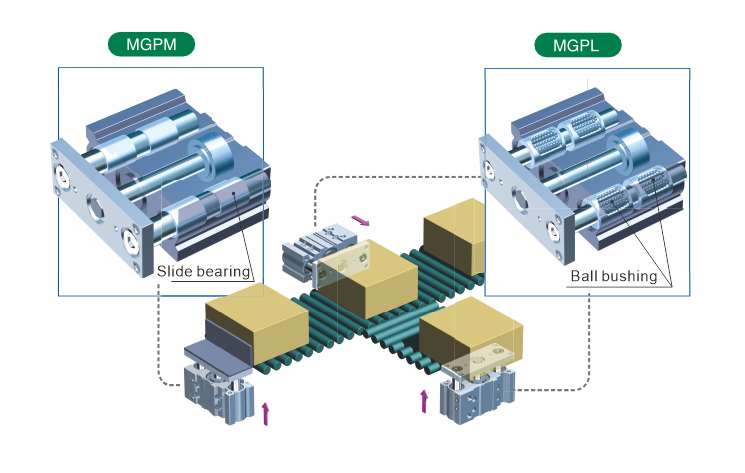

MGPM Ball Bearing Compact Guided Cylinder


3. How to install and maintain MGP cylinders?

① Installation method

The cylinder body and baffle are equipped with mounting holes. There are 4 mounting methods: top mounting, side mounting, bottom mounting and T-slot side mounting.

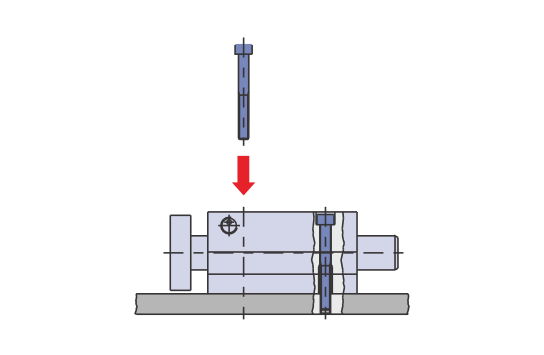

MGP compact cylinder inatall

Top mounting

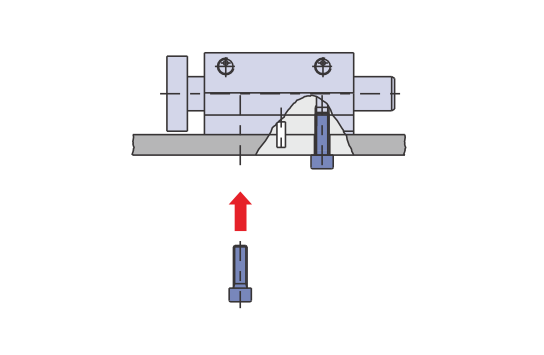

MGPM guide cylinder inatall

Side mounting

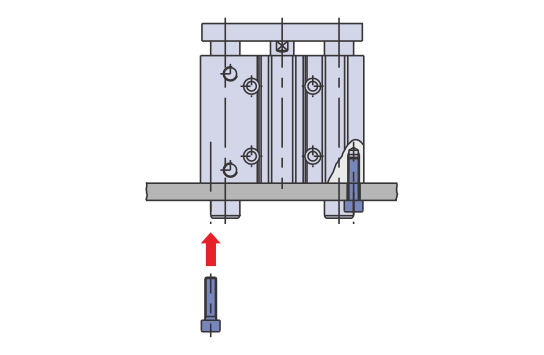

MGP compact guide cylinder mount

Bottom mounting

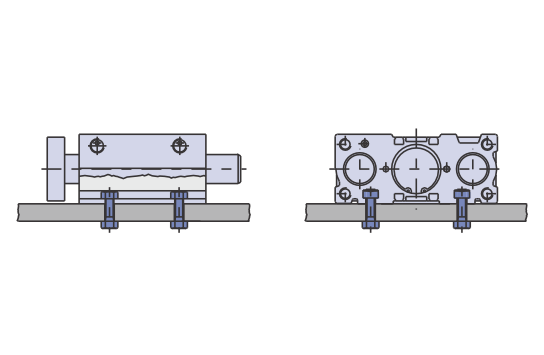

MGP Three Shaft Cylinder install

T-slot side mounting


② Maintenance

  • Regularly check the piston rod and guide surfaces, piston rod seals and cylinder outer surface. Damage or rust on these parts may increase friction and lead to dangerous situations.

  • Replace the seals when the air leakage exceeds the allowable value.

          Internal leakage: 10 cm3/min (ANR)

          External leakage: 5 cm3/min (ANR)

  • Regularly clean the dust on the outer surfaces of the actuator and mounting bracket.

  • Regularly check the lubrication.


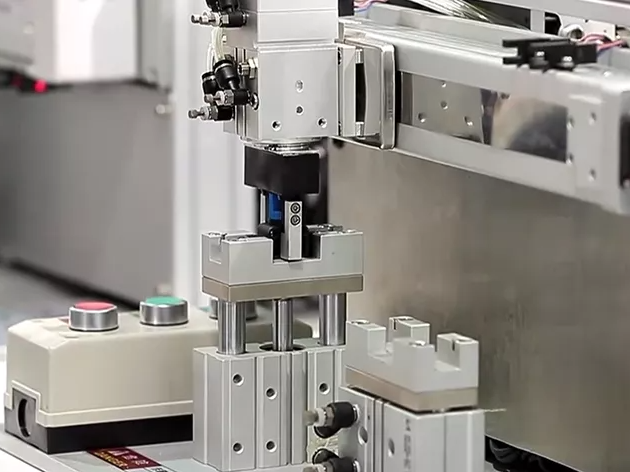

4. Model selection and application

Application scenario type Specific scenarios Models
High-precision positioning assembly Camera module positioning, optical component assembly, PCB circuit board pins MGPL
High frequency reciprocating motion Beat line> 60 times/min, high-speed automatic sorting MGPL
Stamping, heavy load operation Fixture clamping, punching workpiece blanking, robot docking MGPM
Dusty or particulate environment Woodworking machinery, grinding equipment, metal dust environment MGPM
No lubrication Food machinery, clean room MGPM
Small space, slow movement Semiconductor wafer handling, chip placement displacement MGPL

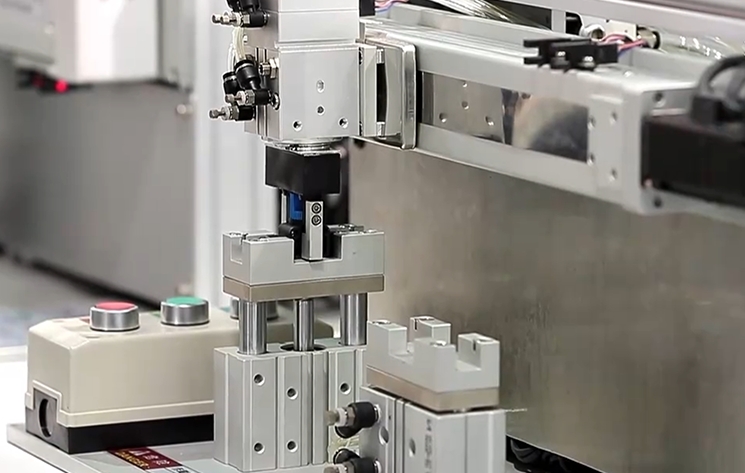

vpc pneumatic manufacture


FAQ:


1. What is the difference between MGP cylinders and other compact cylinders?

The MGP series cylinder has a built-in guide shaft, high side load capacity and non-rotation function, suitable for complex loads and high precision requirements; while ordinary compact cylinders have no guide rods or weak guide functions, suitable for linear push or position limitation.


2. Can MGPL replace MGPM for overloading?

No. Ball bearings have a low load capacity and overloading can cause the track to deform.


3. How does bearing type affect cylinder performance?

The bearing type directly determines the friction performance, load-bearing capacity, motion accuracy, life and applicable environment of the cylinder.


4. What is MLGP compact cylinder?

MLGP thin type locking cylinders with guide rods have a locking mechanism that securely locks the piston rod even when the air source is disconnected or the air pressure is depleted, preventing the cylinder position from changing or the load from slipping, ensuring safe and stable operation.

  • Stopping possible at any stroke position

  • Prevents falling and accidental movement

  • Various locking positions

  • Manual release function

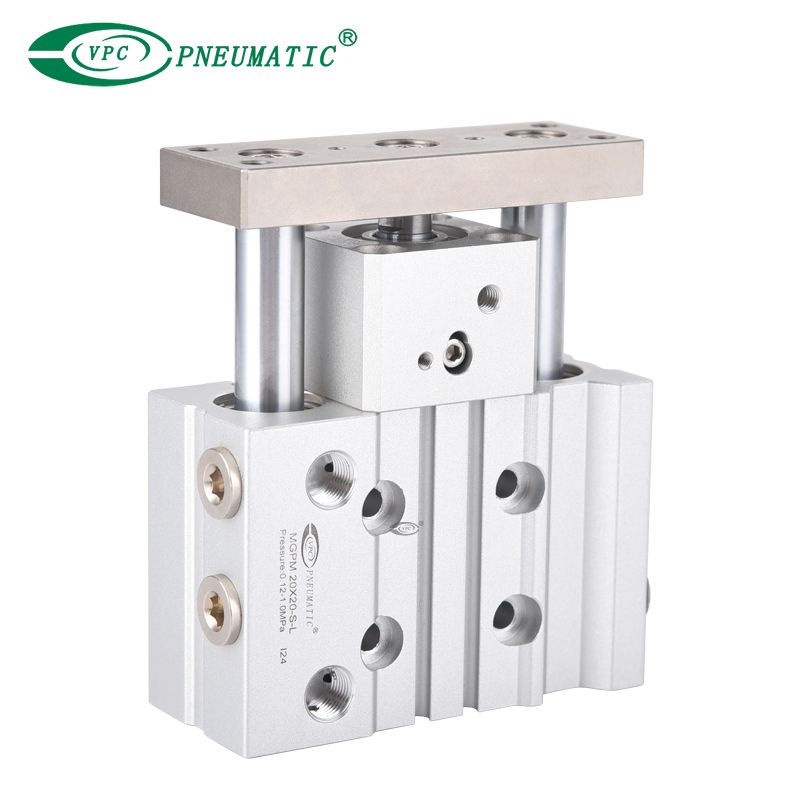

MLGP compact cylinder with lock

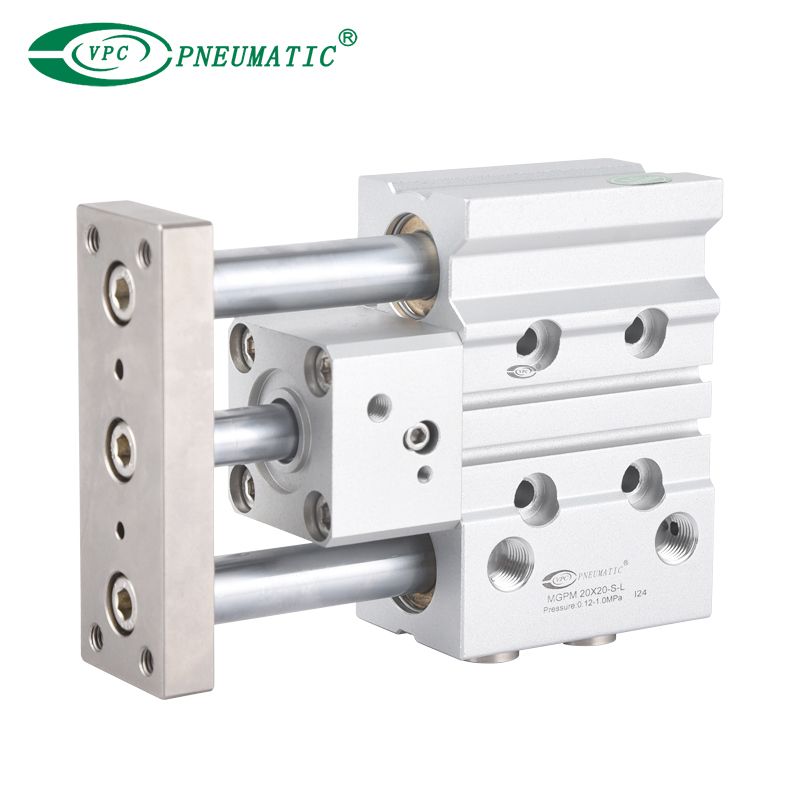

MLGP compact guide cylinder with lock


5.What are the precautions when installing MGP cylinders?

Guide rod through hole reservation: When bottom mounting, the guide rod through hole must be reserved on the mounting surface to ensure that the guide rod is not blocked when it is extended.

Alignment requirements: The cylinder and the load should be well aligned to avoid excessive lateral force and damage to the guide rod and seal.

Tighten firmly: Use screws of appropriate specifications and tighten according to the recommended torque to prevent loosening or vibration.

Travel space: Ensure that there is enough space for the guide rod to extend and retract to avoid collision or jamming.



The above are the specific parameters, installation methods, applications and selection of MGP series compact guide cylinders, as well as answers to related questions. If you have other questions, such as how to order MGP/MGPM/MGPL compact guide cylinders, VPC can provide you with samples and sales team answers. Welcome to consult VPC Pneumatic.
