Product Description

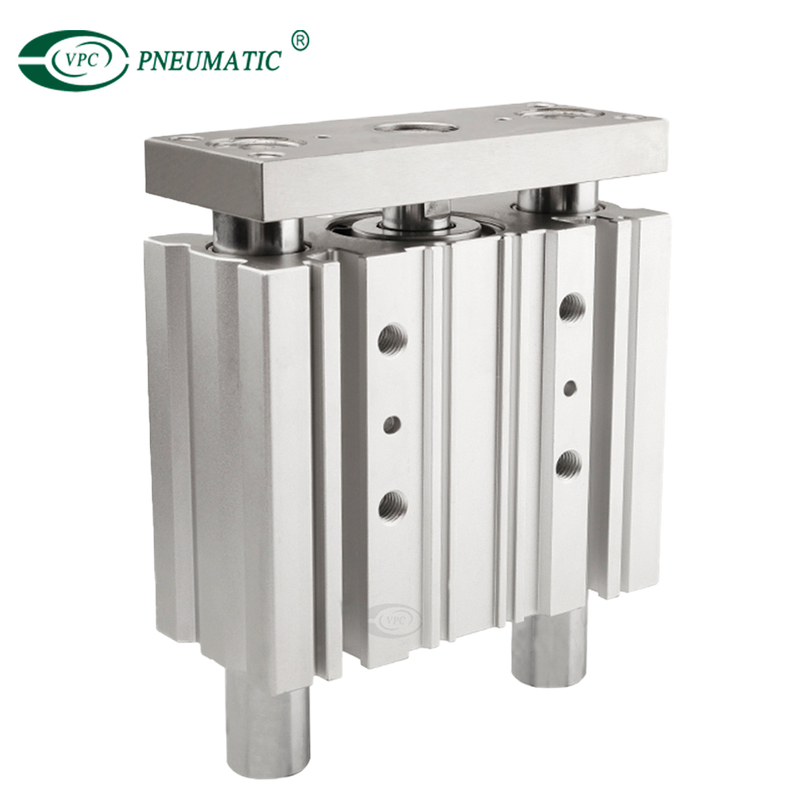

MGP compact guide cylinder is designed for high-side load applications found in material handling, lifting and stopping. The cylinder utilizes an ultra-compact design by incorporating the cylinder body as part of the guide body. As the stroke length increases, so does the bearing length, thus enhancing the cylinder's load-bearing capacity.
Product Specifications
| Bore(mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | |
| Working medium | Clean air(40μm Filteration) | ||||||||||
| Acting type | Double acting | ||||||||||
| Proof pressure | 1.5MPa | ||||||||||
| Max. Working pressure | 1.0MPa | ||||||||||
| Min. Working pressure | 0.12MPa | 0.1MPa | |||||||||
| Working temperature | -10 to 60℃(No freezing) | ||||||||||
| Speed range | 50 to 500mm/s | 50 to 400mm/s | |||||||||
| Cushion type | Rubber bumper on both ends | ||||||||||
| Lubrication | Not required(Non-lube) | ||||||||||
| Tolerance of stroke | +1.5mm 0 mm | ||||||||||
| Non-rotating accuacy | Slide bearing | ±0.08° | ±0.07° | ±0.06° | ±0.05° | ±0.08° | |||||
| Ball bushing bearing | ±0.01° | ±0.09° | ±0.08° | ±0.06° | ±0.05° | ||||||
| Port size | M5X0.8 | G1/8 | G1/4 | G3/8 | |||||||
Main Dimensions
*1) Refer to Section EE details for the shape of Φ12 to Φ25 with stroke of 50 or less.
*2) The use of a slot (width XA, length XB, depth 3) allows for a relaxed pin pitch tolerance, with the pin hole (ΦXAH9, depth 6) as the reference, without
affecting mounting accuracy.
*3) For bore size Φ12 and Φ16, only M5×0.8 port is available.
*4) For bore size Φ20 or more, choice of Rc, NPT, G port is available.
*1) The use of a slot (width XA, length XB, depth XC) allows for a relaxed pin pitch tolerance, with the pin hole (ΦXAH9, depth XL) as the reference, without
affecting mounting accuracy.
*2) Choice of Rc, NPT, G port is available.
*1) The use of a slot (width X6, length 7, depth 5) allows for a relaxed pin pitch tolerance, with the pin hole (Φ6H9, depth 10) as the reference, without
affecting mounting accuracy.
*2) Choice of Rc, NPT, G port is available.
