VPC ITV vs. SMC ITV Electro-Pneumatic Regulator

◆  VPC Official Spanish Language Website

1. What is an ITV electro-pneumatic regulator?

The ITV electro pneumatic regulator is a precision pressure regulating device that continuously adjusts air pressure via an electrical signal (0-10V or 4-20mA). A single electronic pneumatic regulator can switch between multiple pressures.

Developed by VPC, the ITV series electronic pneumatic regulator is compatible with mainstream communication protocols such as RS-485 and Modbus. It utilizes advanced intelligent control algorithms to achieve fast, precise, and programmable pressure regulation, helping businesses improve equipment automation and reduce operating costs.

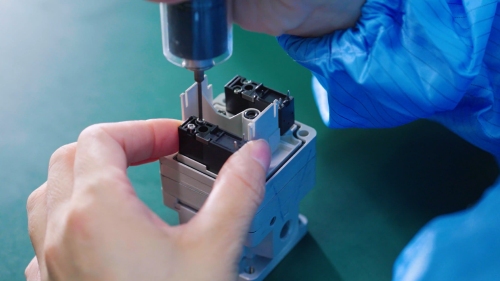

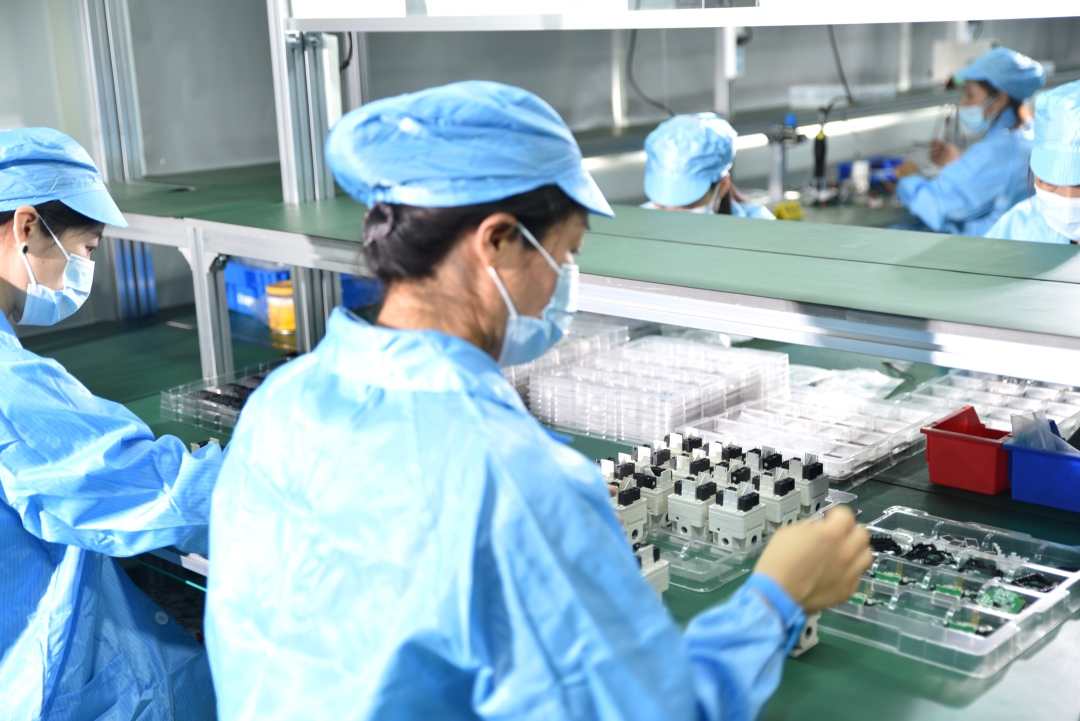

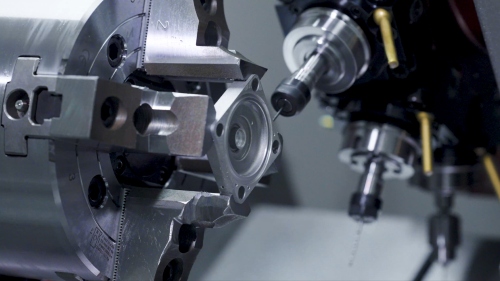

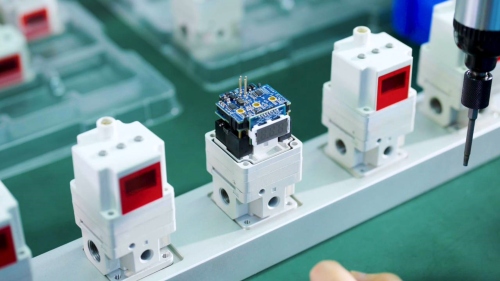

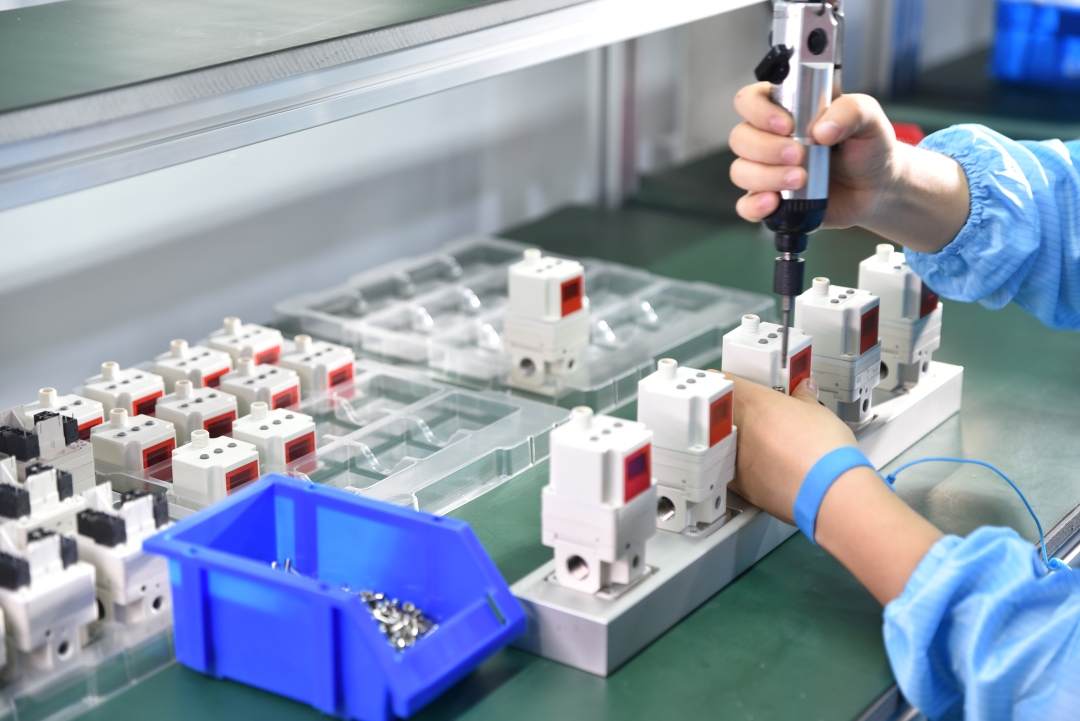

VPC Factory: Production line for ITV electro-pneumatic regulators

Core Values

• Performance Benchmarking: Core technical specifications are fully aligned with SMC, allowing direct replacement without modifying existing system designs.

• Cost Reduction: Procurement costs drop by 20%-30% compared to imported products.

• Industry Customization: Offers integrated modular and assembly modular solutions to meet the specific needs of various industries.

• In-Stock Availability: Based on in-house R&D and manufacturing capabilities, enabling rapid delivery. No minimum order quantity required, one piece is also available.

2. Performance comparison: VPC ITV vs. SMC ITV

The VPC ITV electro pneumatic regulator is fully compatible with SMC ITV series products in terms of pressure control range, signal interface, dimensions, and installation methods. This allows customers to quickly replace it without major equipment modifications, reducing costs and increasing efficiency.

Unique advantages of VPC ITV

① Wide voltage adaptability: The wider adaptation range of supply voltage is 10-28V.

② Multi-unit selection: Multiple pressure units available for user selection on the screen (psi, MPa, kPa,kgf/cm2, bar).

③ Overvoltage protection: The power supply voltage overvoltage protection function(8V-28V).

Parameters		VPC-ITV	SMC-ITV
Pressure range		0.005-0.9 MPa	0.005-0.9 MPa
Input signal		0-10 V/4-20 mA	0-10 V/4-20 mA
Response time		≤100 ms	≤100 ms
Repeatability		Within ±0.2% F.S.	Within ±0.2% F.S.
Hysteresis		Within 0.5% F.S.	Within 0.5% F.S.
Operating temperature		0-50°C	0-50°C
Sensitivity		Within ±0.2% F.S.	Within ±0.2% F.S.
Linearity		Within ±1% F.S.	Within ±1% F.S.
Dimensions		Completely compatible	Standard Size
Connection method		DIN plug/lead wire	DIN Plug/Lead Wire
Weight	ITV1000	240 g	250 g
	ITV2000	330 g	350 g
	ITV3000	620 g	645 g

VPC ITV Electro pneumatic regulators are your cost-effective replacement of choice.

【Get a Quote and Selection Guide Now】

【Download Product Technical Manual】

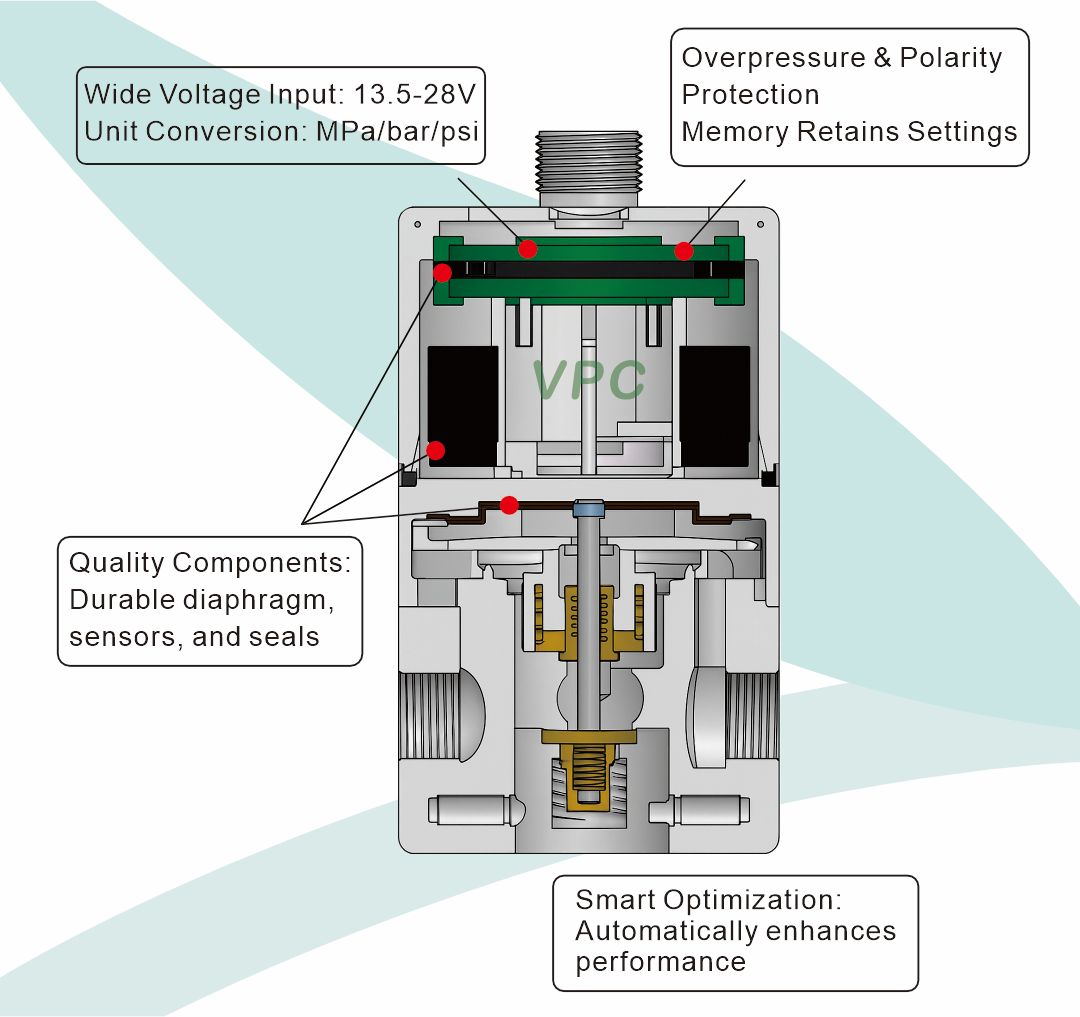

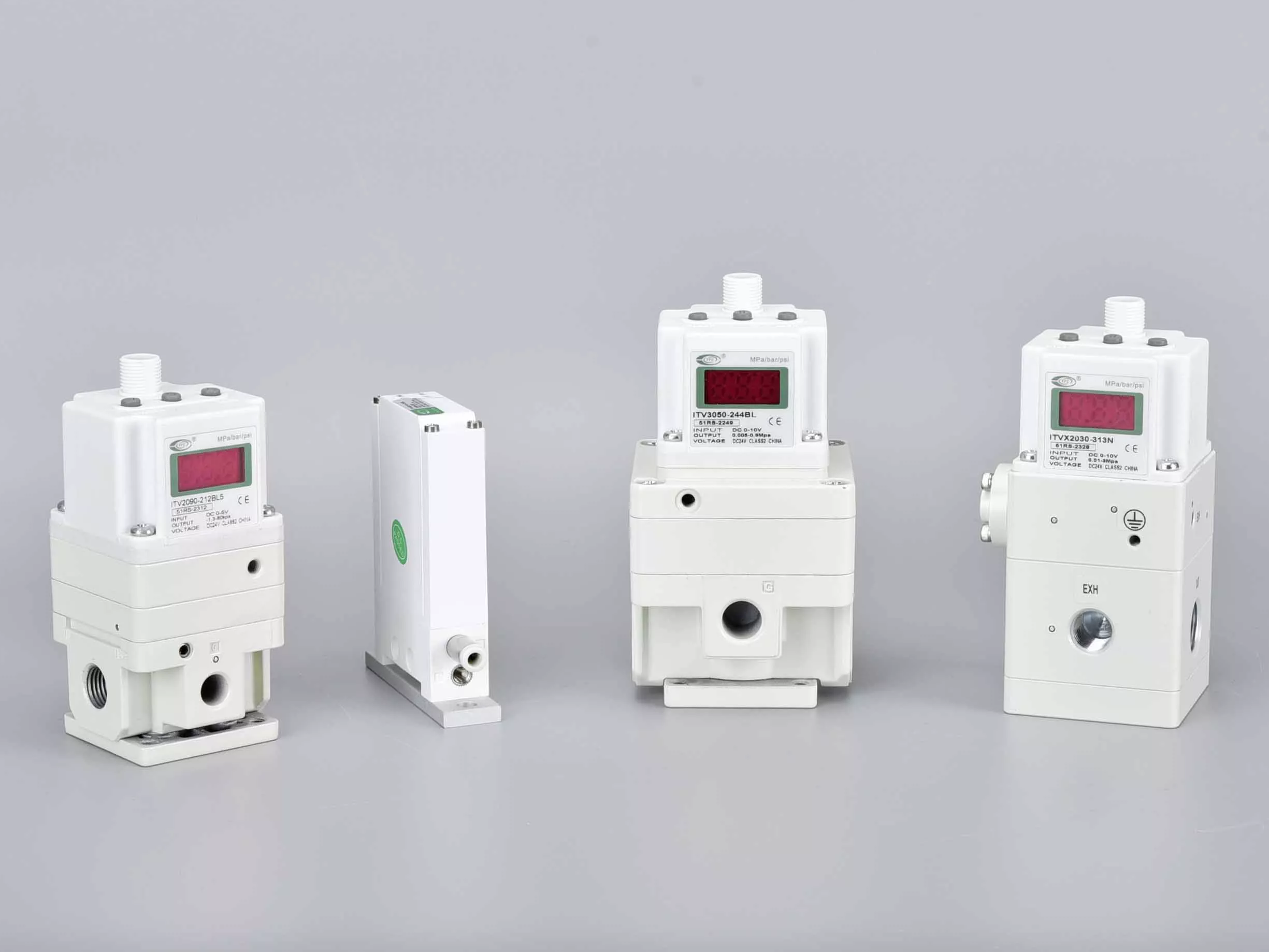

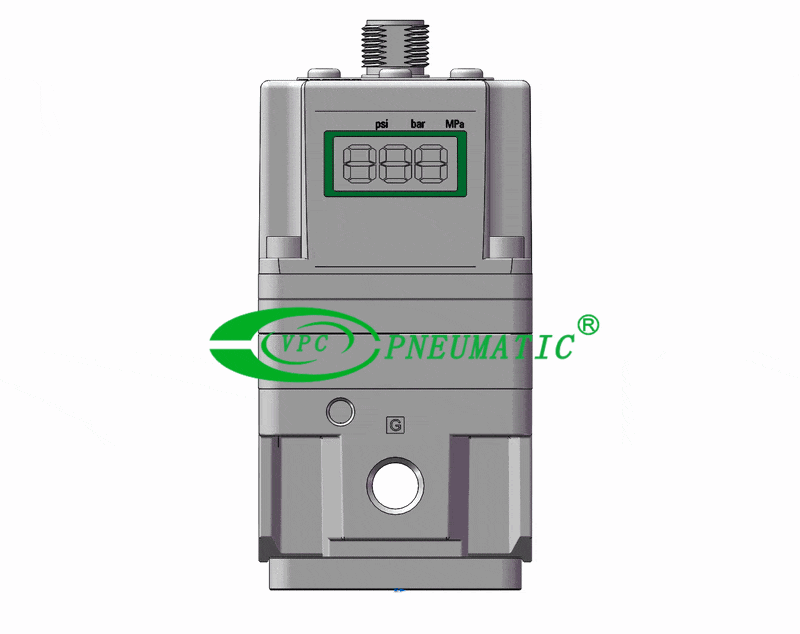

3. Appearance and structural design advantages

① Compact body and multiple port options

• A variety of thread sizes (PT/RC, G, NPT) is available to accommodate various air flow paths.

• The compact and lightweight body can be directly installed in existing mounting holes without any additional modification.

② High-quality aluminum alloy housing

• The housing is made of high-strength aluminum alloy with an advanced coating process, ensuring outstanding corrosion and wear resistance for reliable performance in demanding industrial environments.

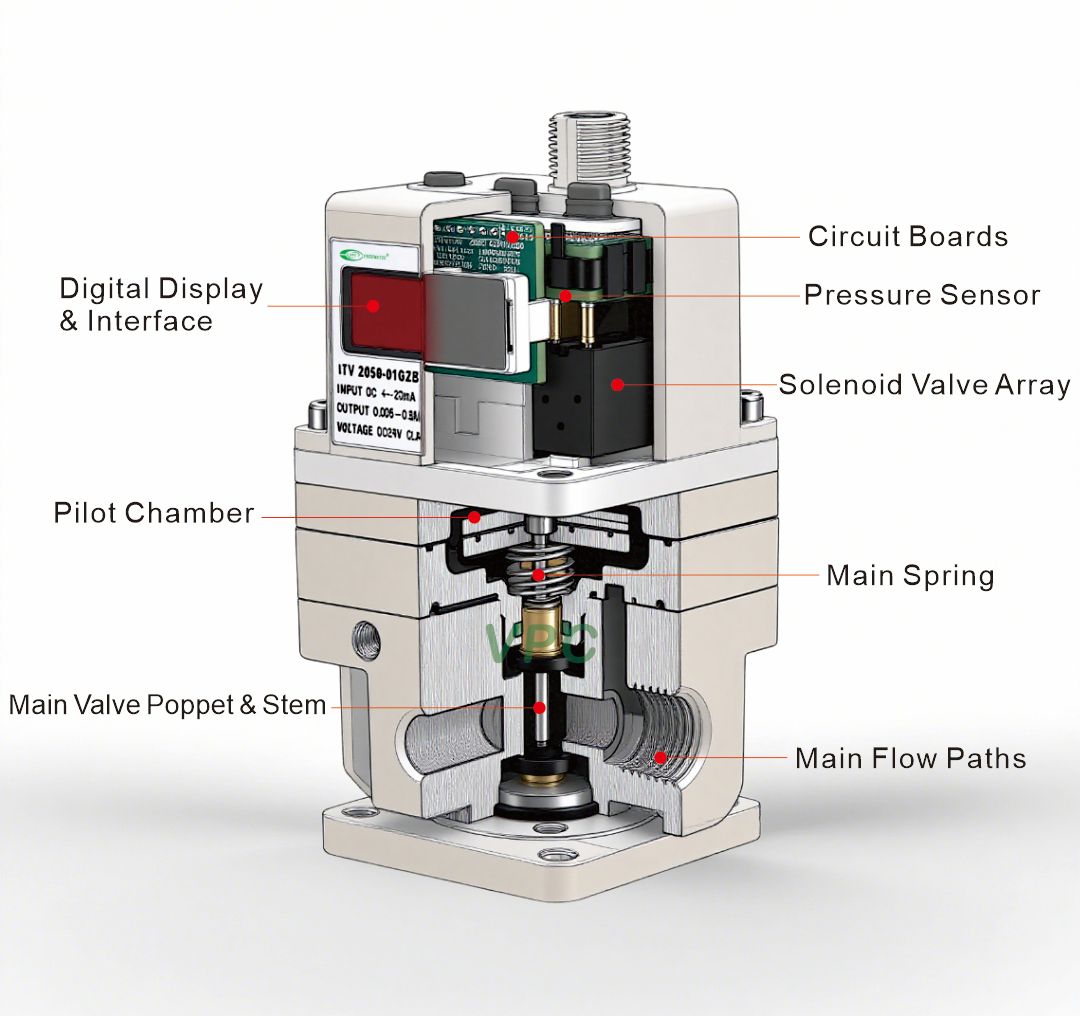

③ Precision internal components

• The internal valve core is made of imported materials, ensuring wear resistance and excellent airtightness.

• The electronic drive module is independently developed, offering fast response and low energy consumption.

• A built-in high-sensitivity pressure sensor enables closed-loop feedback control.

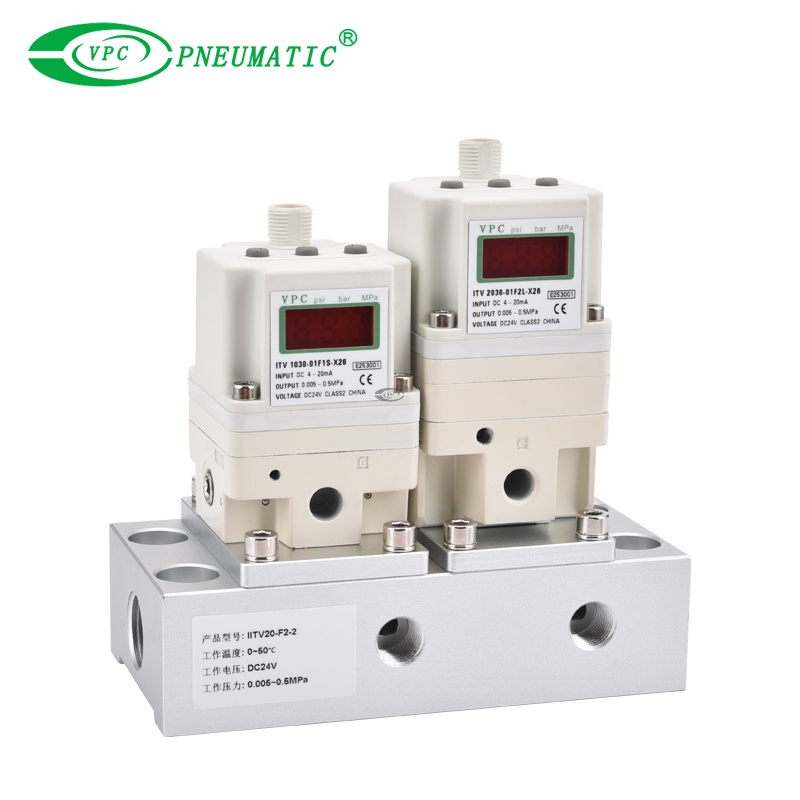

④ Modular design

• Multi-way proportional valve modules can be integrated as needed, reducing wiring complexity.

• Supports DIN rail and panel mounting options. Can be integrated with other pneumatic components as needed.

4. Industry applications and customized solutions

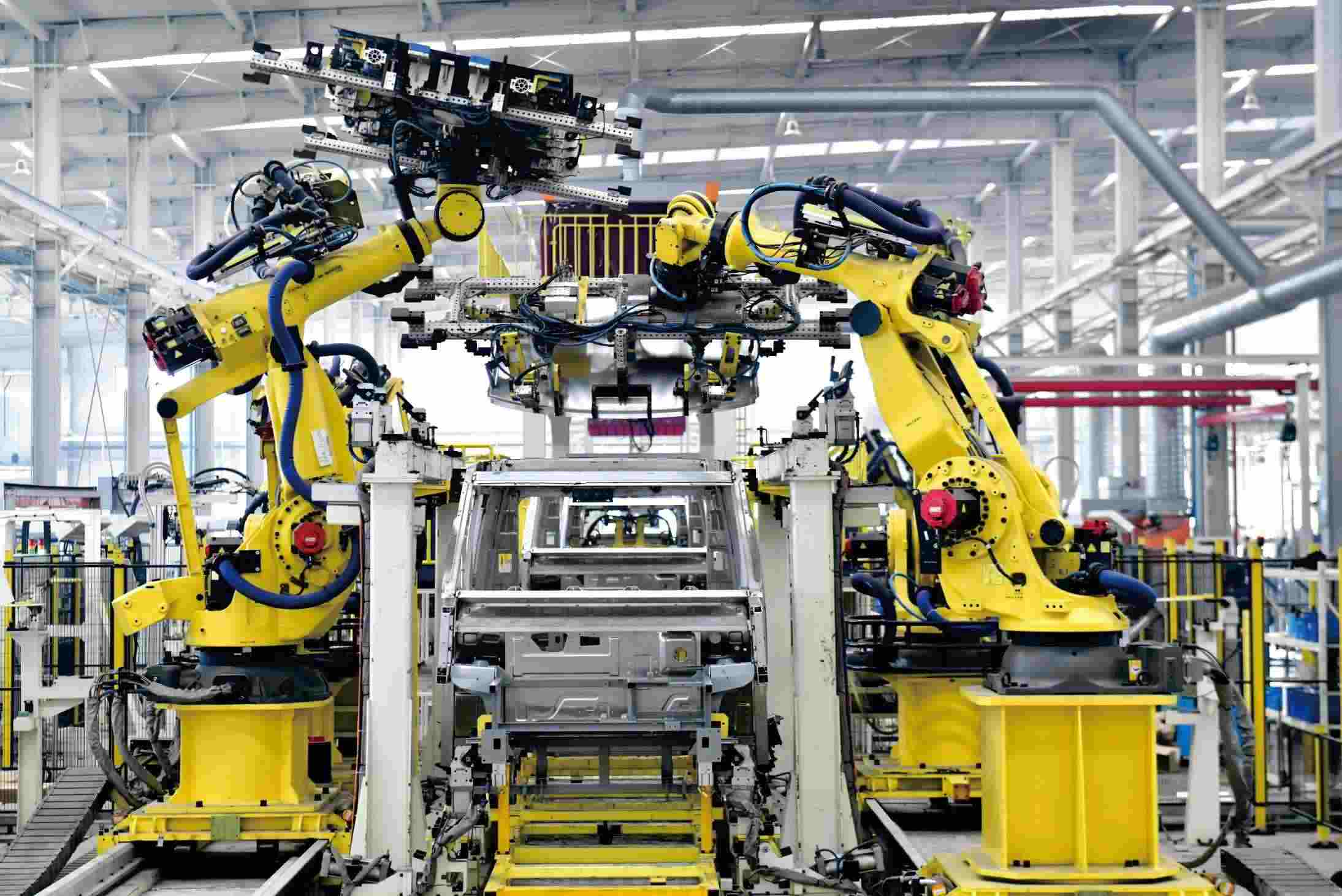

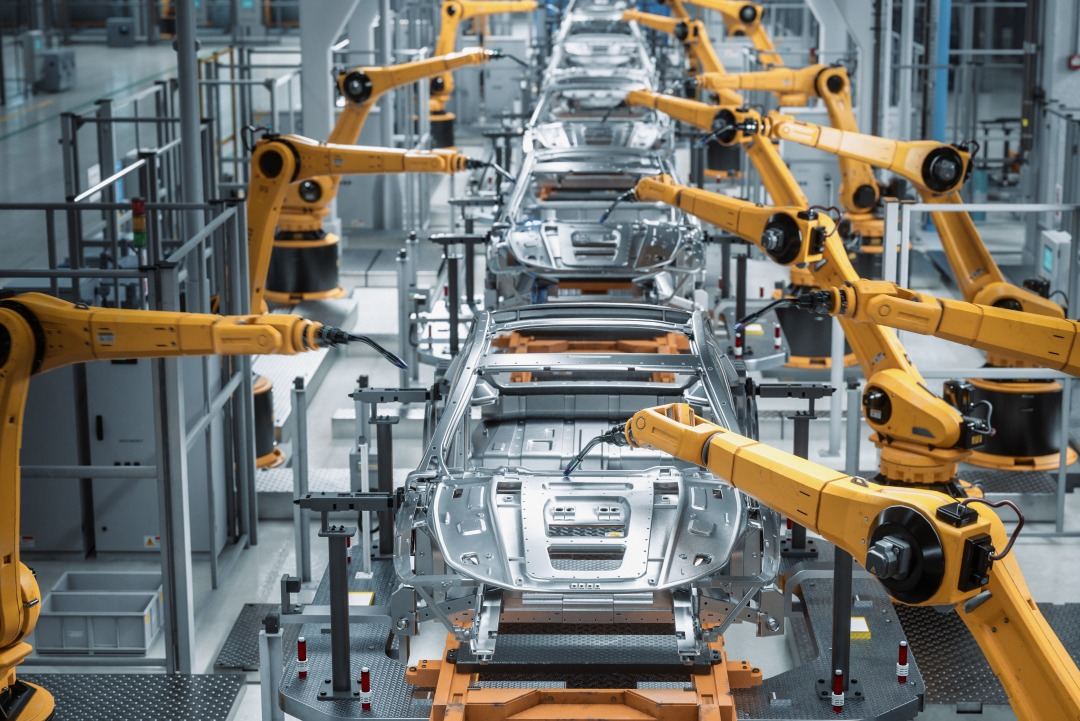

Pressure stability and response speed are crucial in applications such as laser cutting, automated production lines, medical equipment, and robotics. ITV electric proportional valves enable precise and continuous air pressure regulation, providing efficient and reliable power support for these devices.

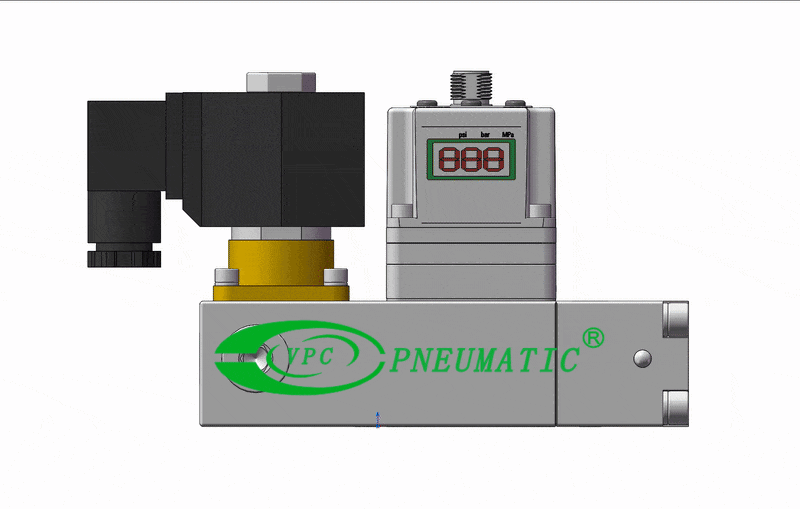

For example, VPC's ITV-JG integrated module electro pneumatic regulator, developed for the laser cutting industry, not only optimizes system integration and ease of operation but also improves cutting accuracy and production efficiency. Contact VPC Pneumatic to discuss your needs and customize products for your industry or equipment.

5. Quality assurance and test report

① Full factory inspection: Each unit undergoes air-tightness, functionality, and aging fatigue tests to guarantee stable performance and reliable quality.

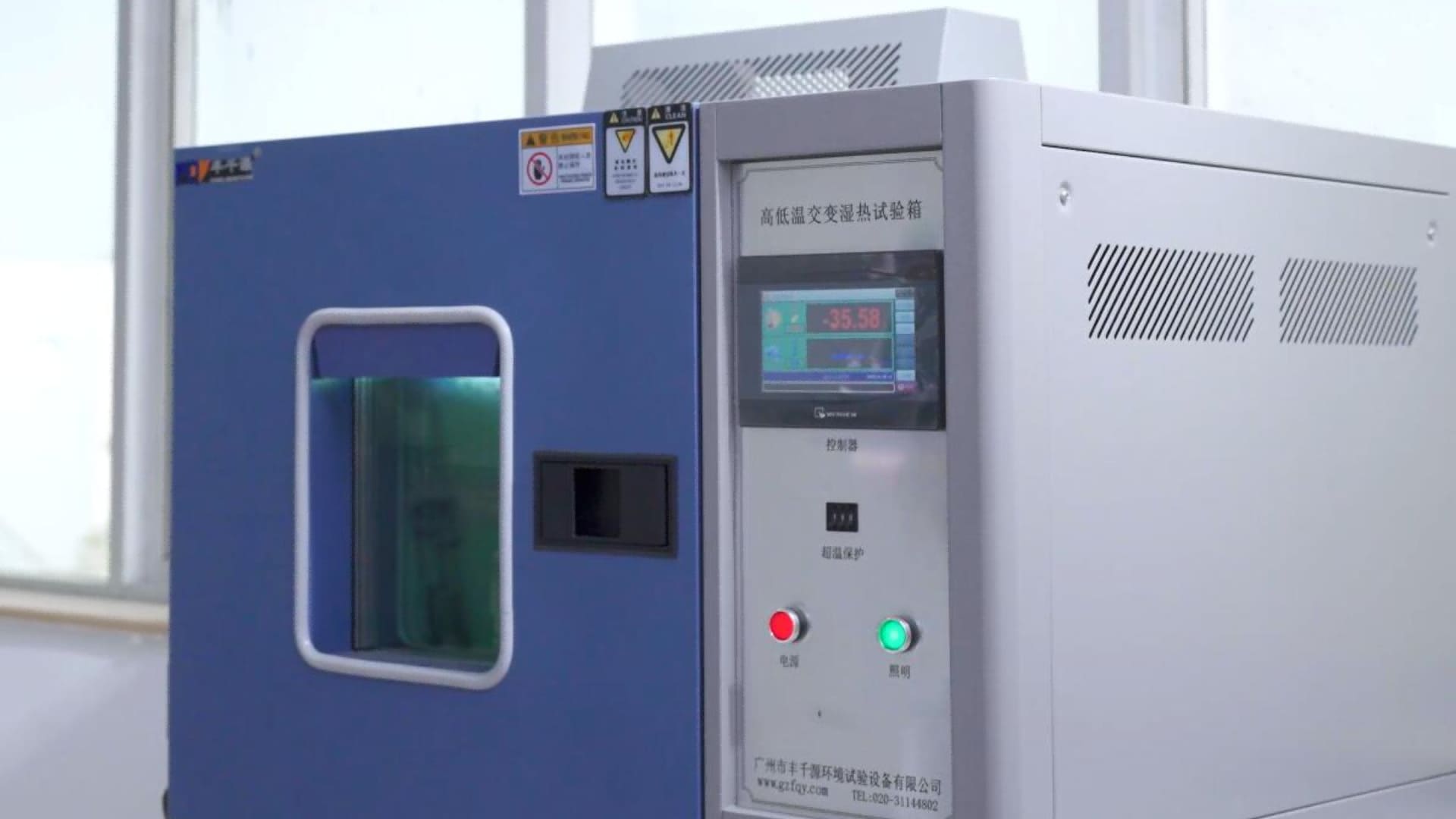

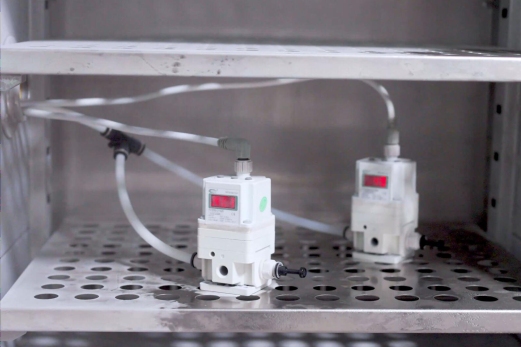

• Product accuracy under extreme temperatures is ±0.2%, ensuring stable monitoring operation of the equipment.

• High stability, sensitivity below 0.2% F.S., far surpassing conventional brands on the market.

② Long-life design: Key components have a service life of ≥50 million cycles.

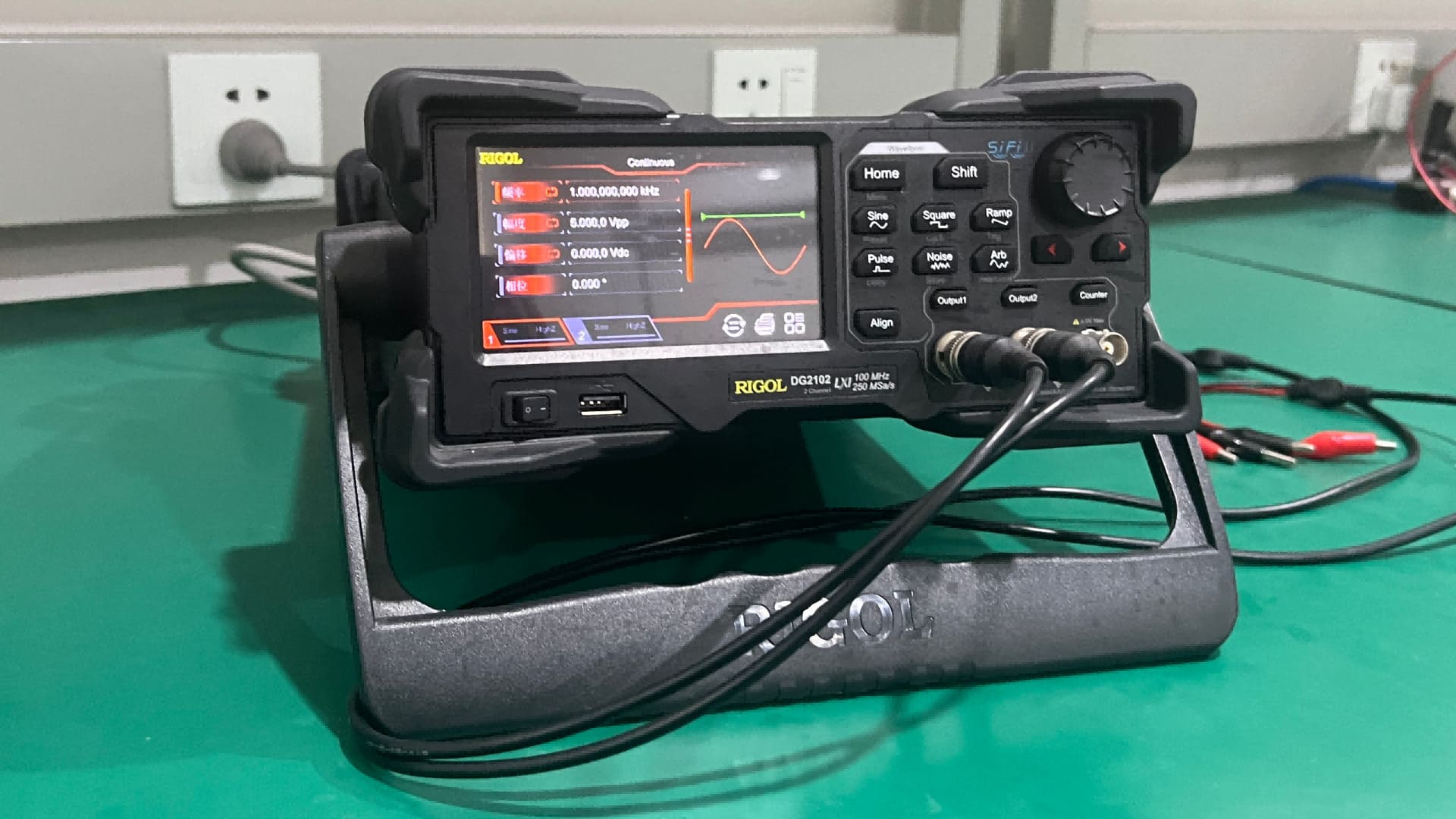

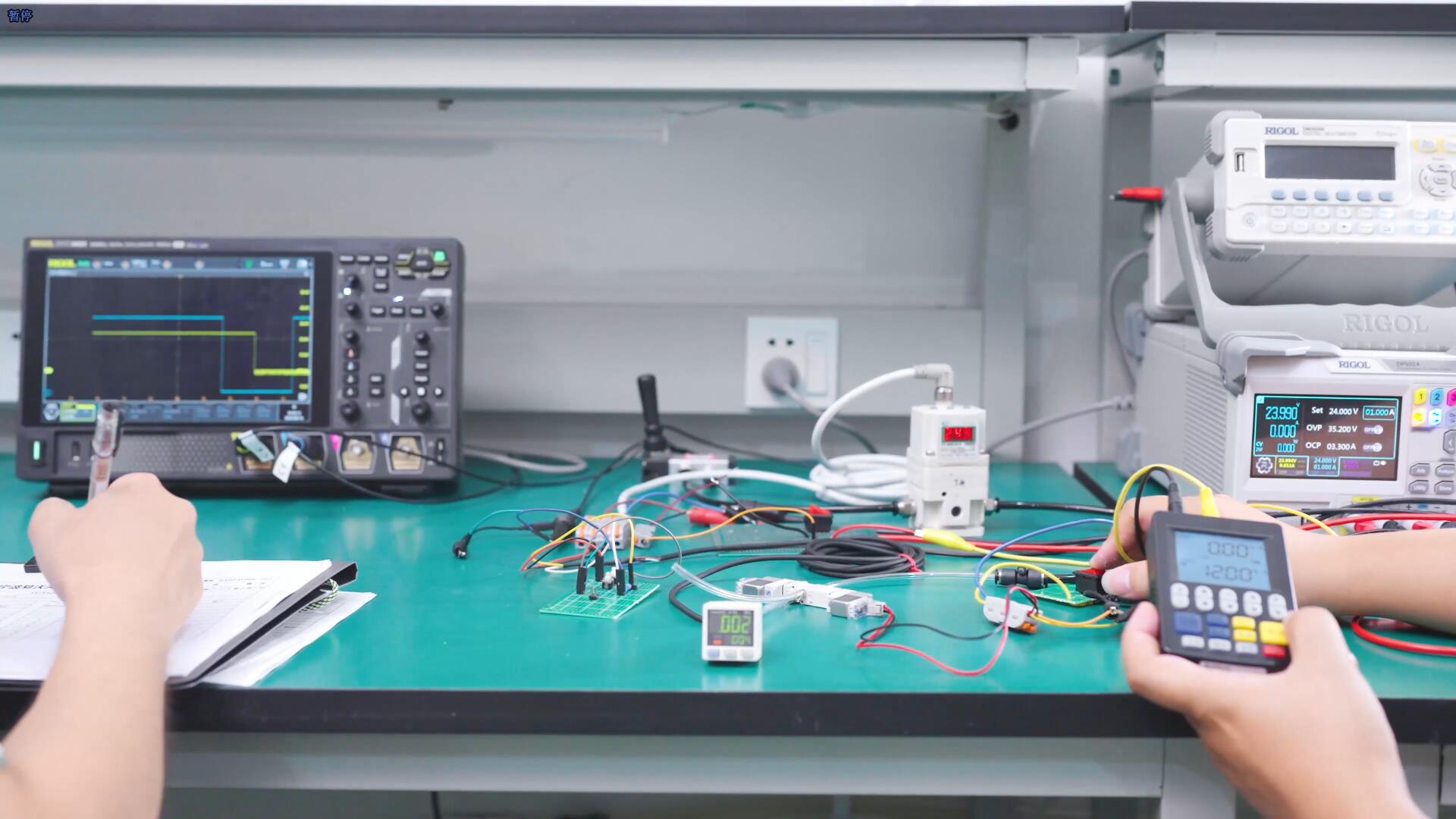

ITV Analysis of load heating

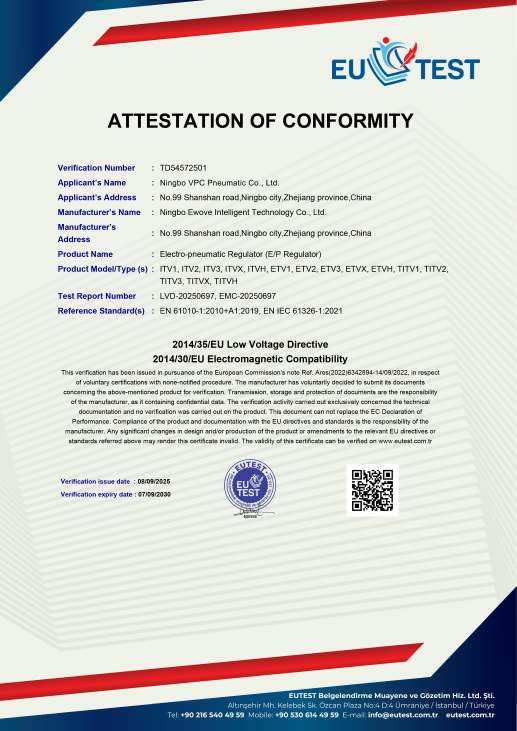

③ International certifications: ITV electro pneumatic regulator complies with international standards such as CE and RoHS, etc.

④ Traceable test report: Each product is accompanied by a test record for easy after-sales traceability and quality management.

⑤ After-sales service: We provide a one-year warranty and rapid technical response to reduce maintenance costs for our customers.

6. Technical information and support services

Professional technical data

• Product Catalog: ITV electro pneumatic regulator detailed technical specifications, installation dimensions, and wiring diagrams.

• Selection Guide: Quickly select the appropriate model based on your application scenario.

• CAD Drawings: 2D/3D drawing files are provided, supporting major CAD software formats. (Contact VPC to obtain drawings)

Video tutorial resources

• Installation Video: Demonstrates the standard installation process to avoid installation errors

• Debugging Video: Guides to parameter settings, troubleshooting, and performance optimization

• Maintenance: Key points for regular maintenance and troubleshooting common problems

Professional technical team

• Our technical team boasts over 10 years of industry experience, providing both remote guidance and on-site support.

• Our expertise covers a wide range of fields, including mechanical, electrical, and automation.

7. Precautions for use

① The air supply pressure must pass through an air filter with a filtration accuracy of 5µm or less.

② When installing the connectors and piping, prevent thread debris and sealing material from entering the pipes and blocking the small valve inlet.

③ Compressed air containing condensed water may cause a malfunction of the product. Please dry the air line accordingly.

④ If the product suddenly loses power during the pressurization phase, the "OUT" output will enter the power-off protection state, and pressure will be temporarily maintained.

⑤ This product has been fully tested at the factory. Any unauthorized disassembly or assembly is strictly prohibited, as it may cause product instability.

⑥ The four-core cable can only be assembled in one direction. After assembly, rotation is strictly prohibited. Forced rotation may damage the connector.

⑦ The product's ventilation and power-on sequence is: power on → ventilation → air off → power off.

⑧ When using this product in areas with strong electric fields, keep wiring as far away as possible to prevent external interference that may affect product operation.

⑨ The solenoid valve may produce operating noise, but this will not affect parameter settings or product operation.

⑩ When the four-core cable is not in use for monitoring output, avoid contact with other cables, as this may cause a malfunction.

8. FAQs

① Can it directly replace the SMC ITV electro pneumatic regulator?

Absolutely. The VPC ITV series electro pneumatic regulator is identical to SMC products in dimensions, mounting interfaces, electrical connections, and technical specifications, making it a 100% direct replacement without requiring system design modifications.

② How about technical support and service?

We offer 24/7 technical support, responding to inquiries within 8 hours. We also provide extensive technical documentation and video tutorials to assist with quick installation and commissioning.

③ Is there a minimum order quantity requirement?

We have no minimum order quantity requirement. We support single-unit purchases, and we also offer large-volume customization services based on customer needs.

④ Do you offer sample testing?

Yes, we offer free sample testing. Customers can verify product performance in a real-world application environment and ensure it meets their requirements before placing a bulk order.

⑤ Why is the price lower than imported products? Does this affect quality?

We independently develop core components and manufacture them in-house, achieving cost advantages and making our prices more competitive.

Our quality is on par with SMC ITV electro pneumatic regulator, and customers can verify performance through test reports and samples, ensuring complete peace of mind.

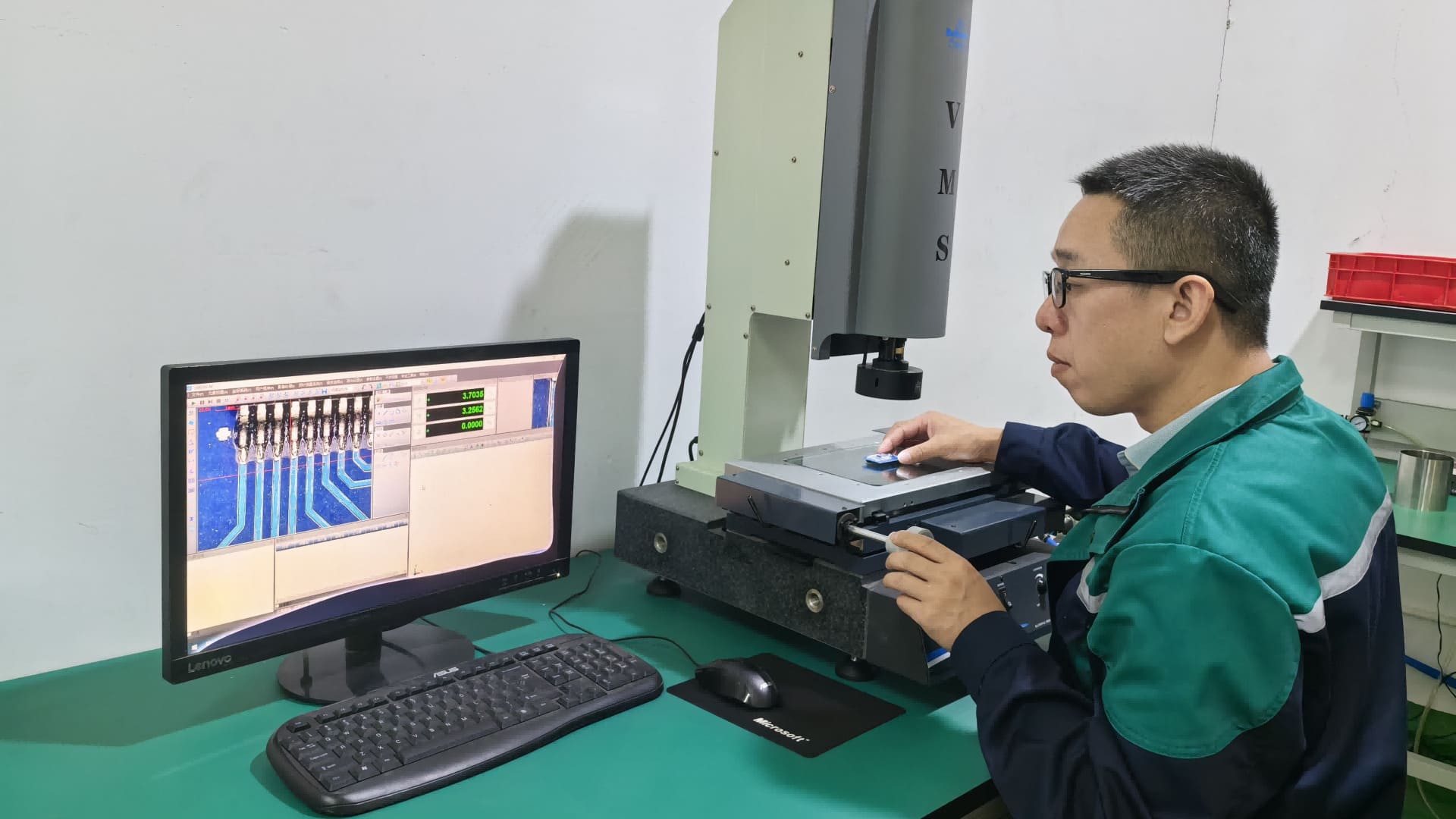

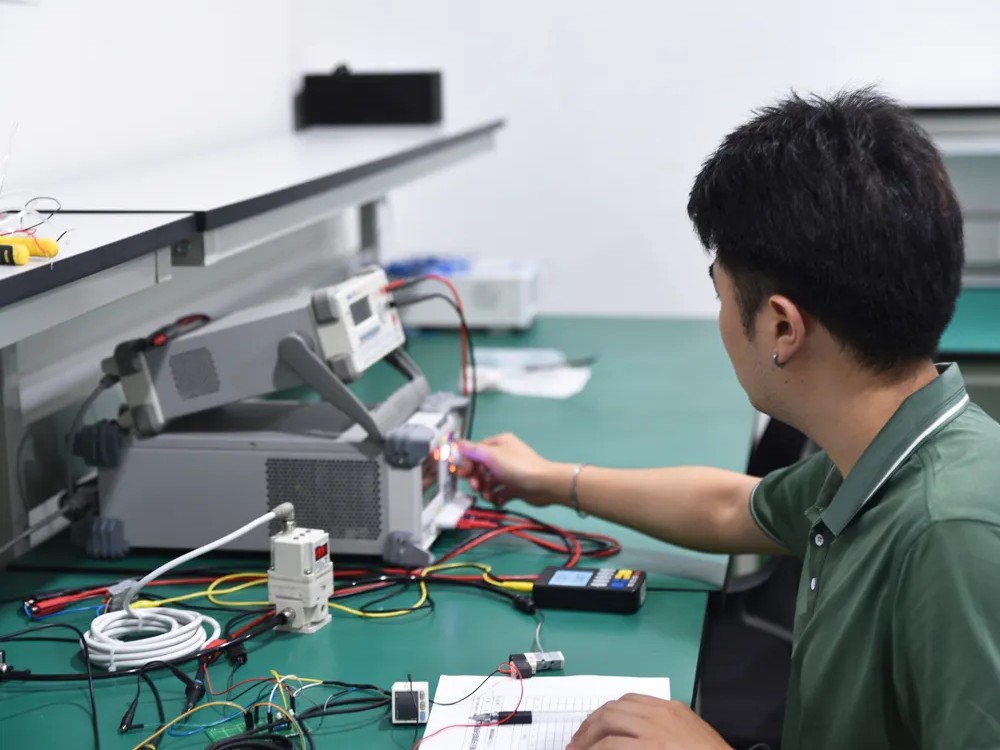

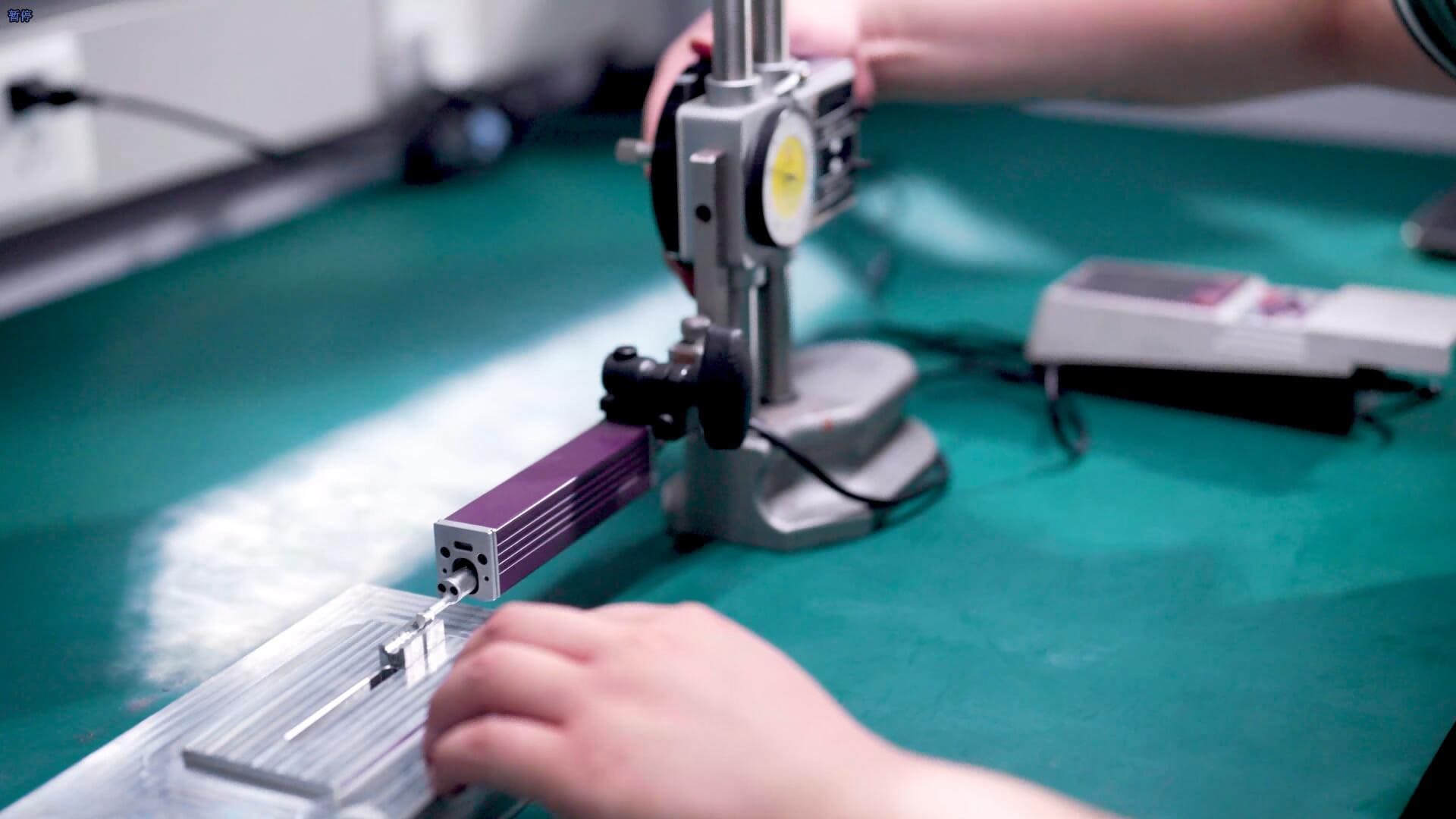

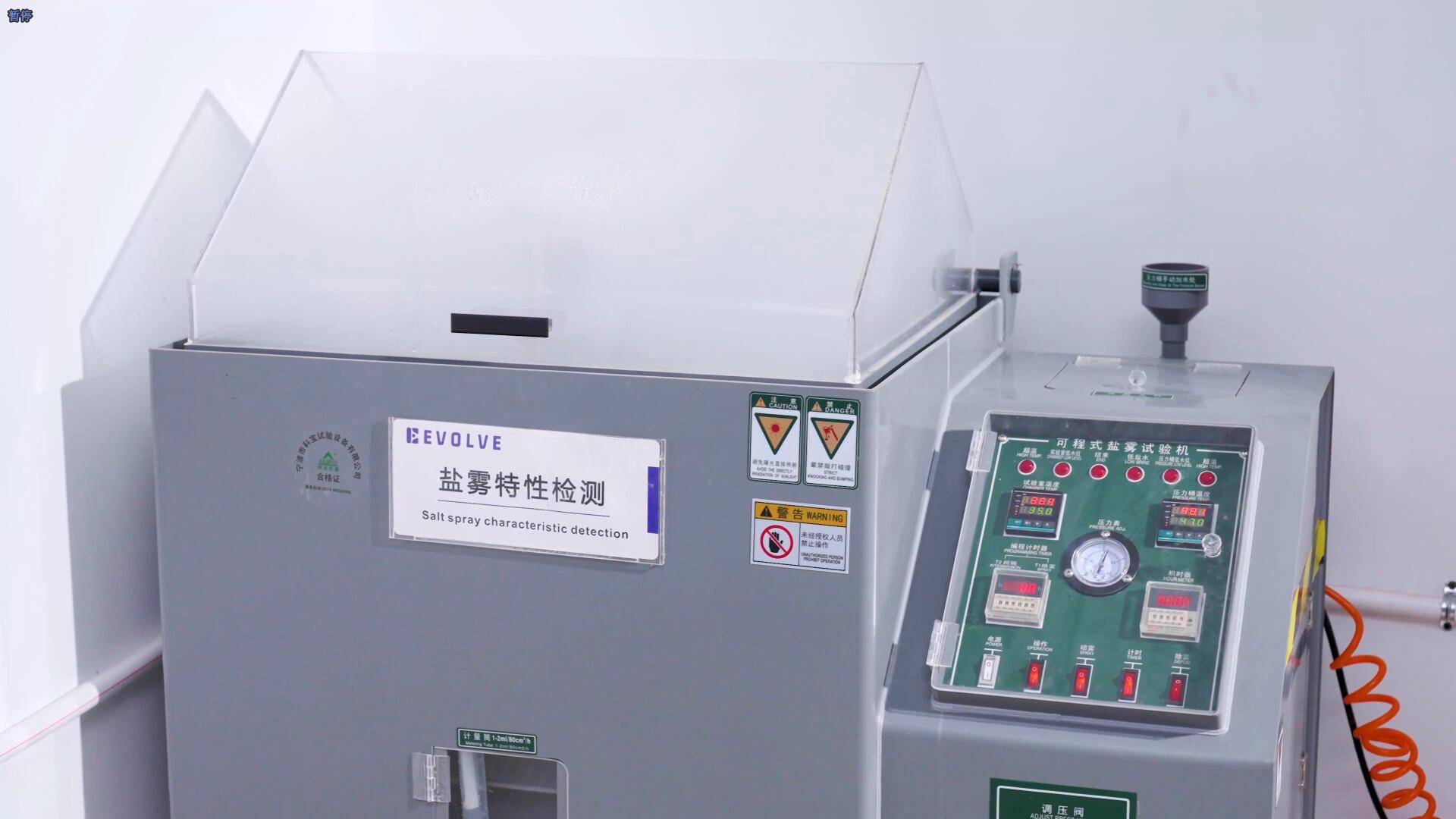

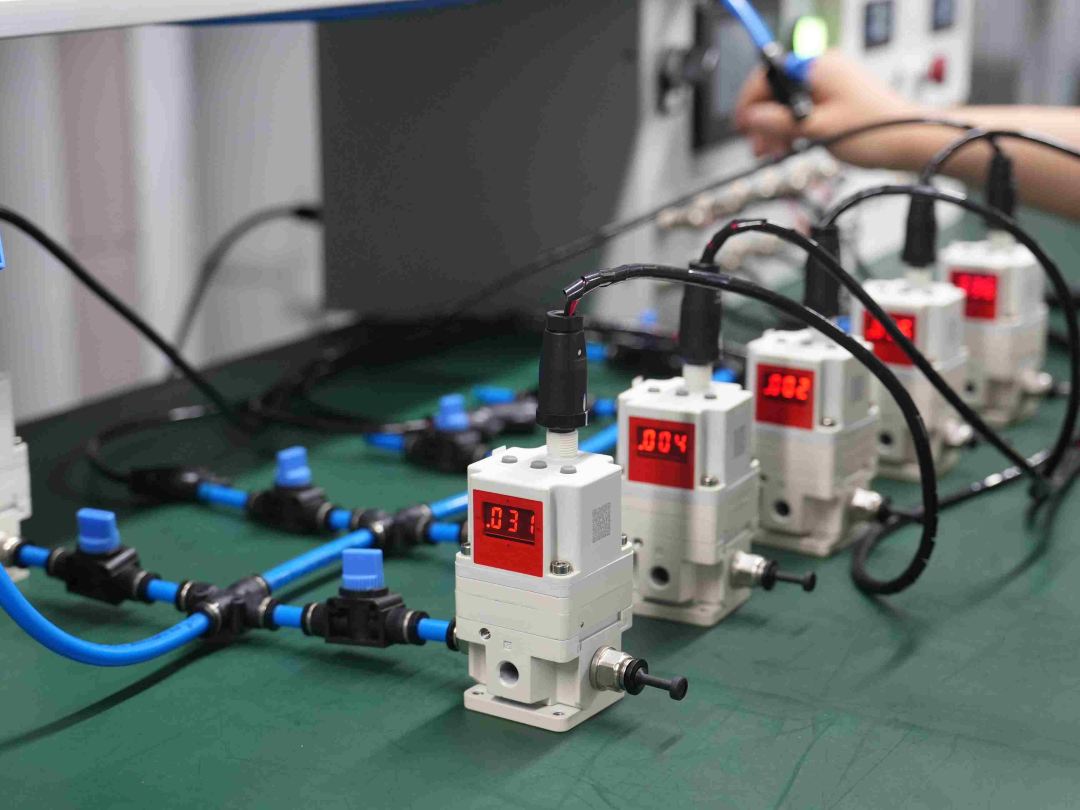

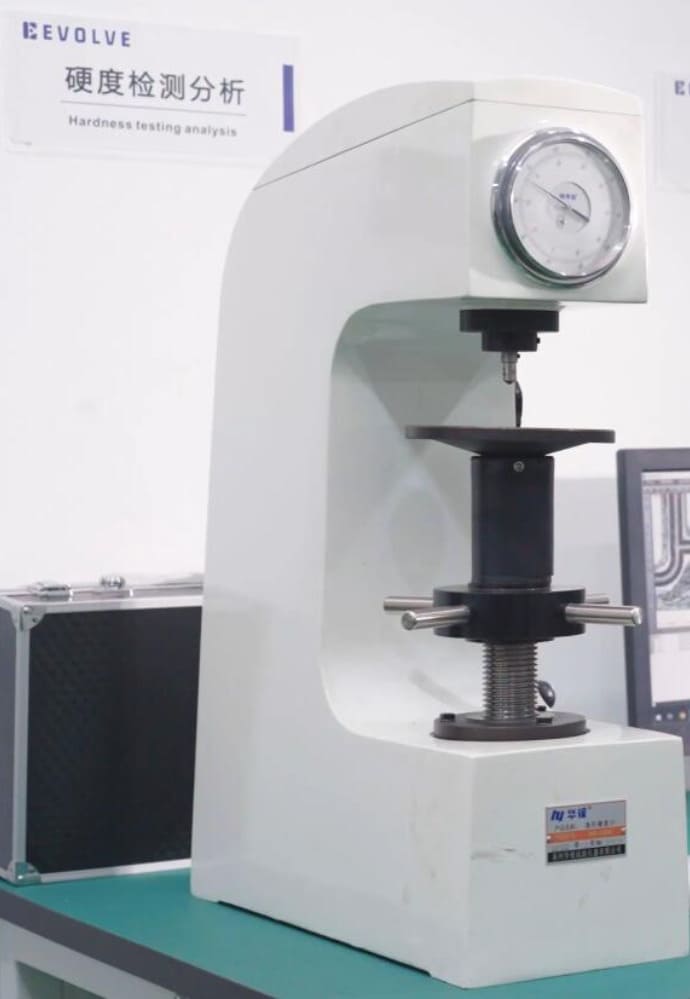

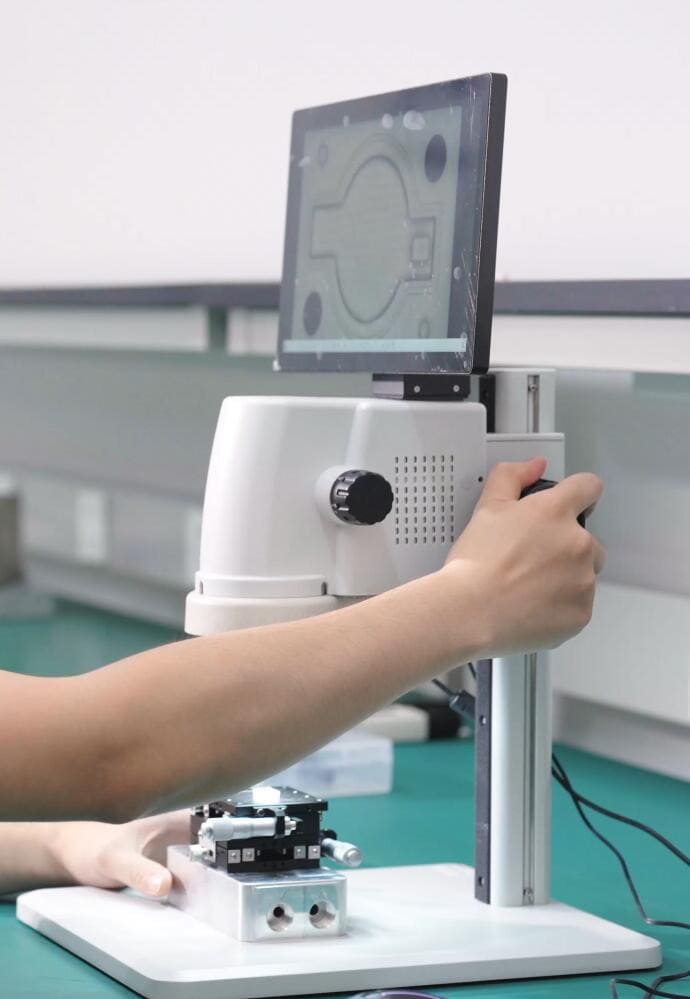

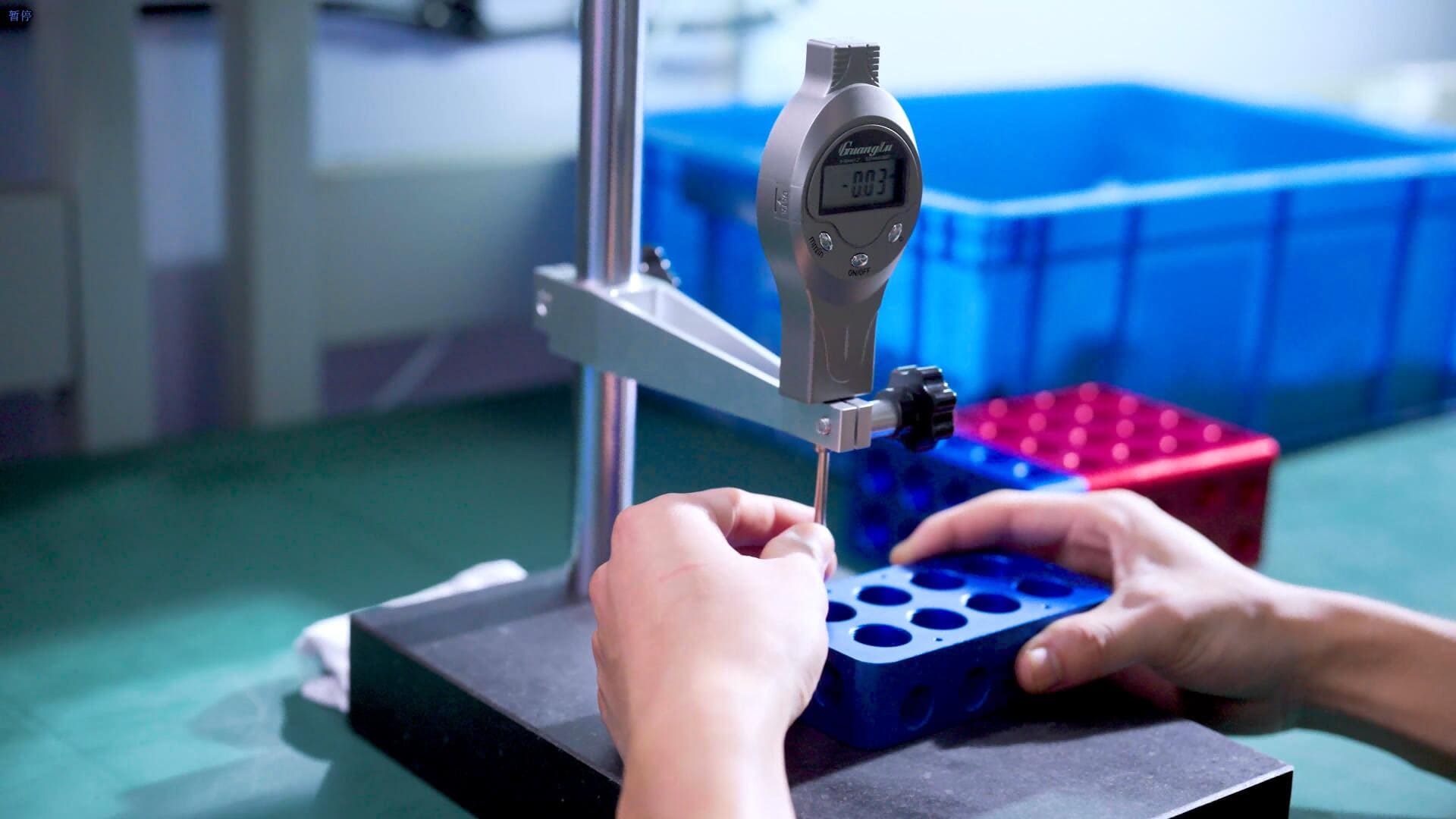

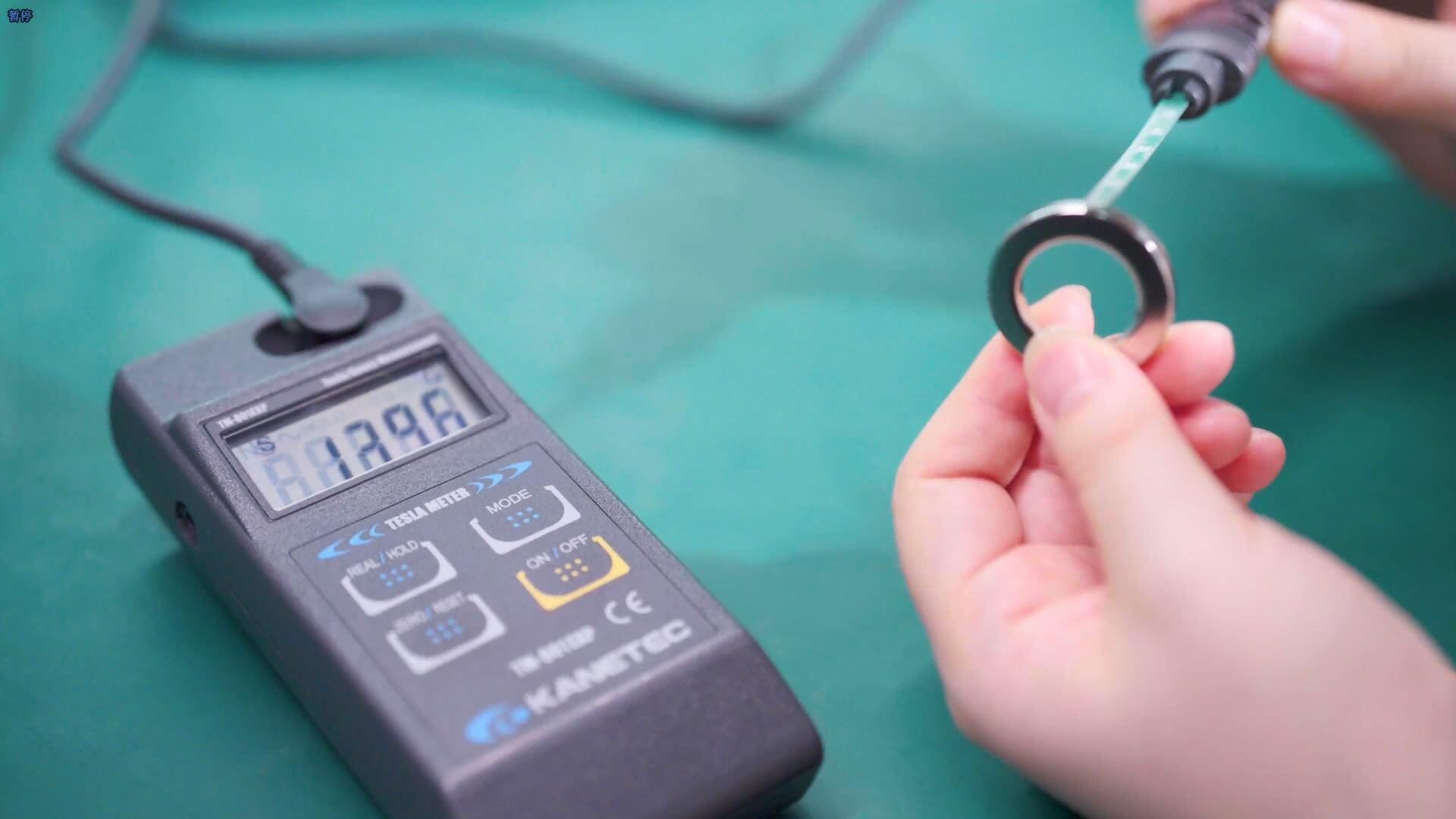

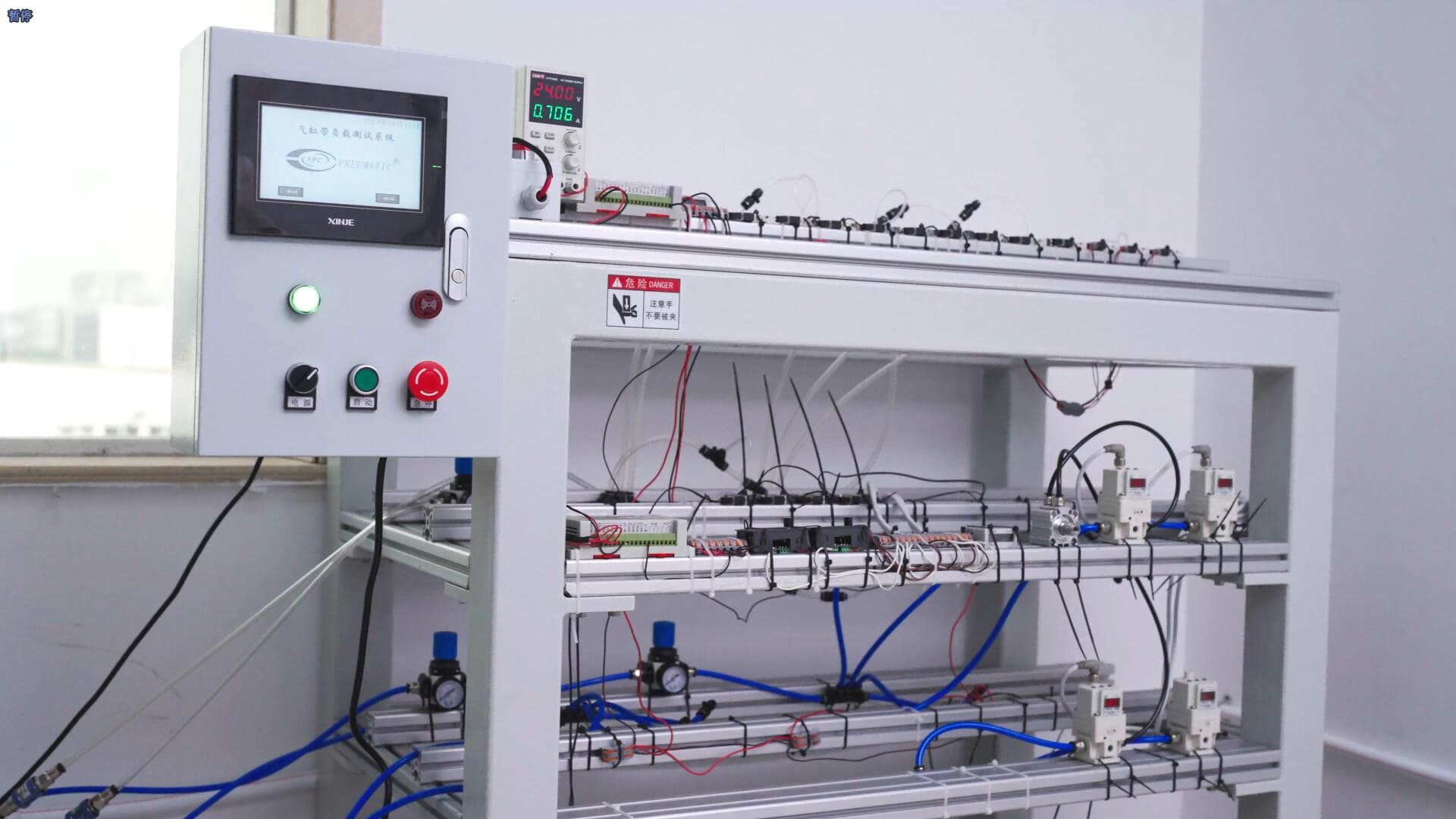

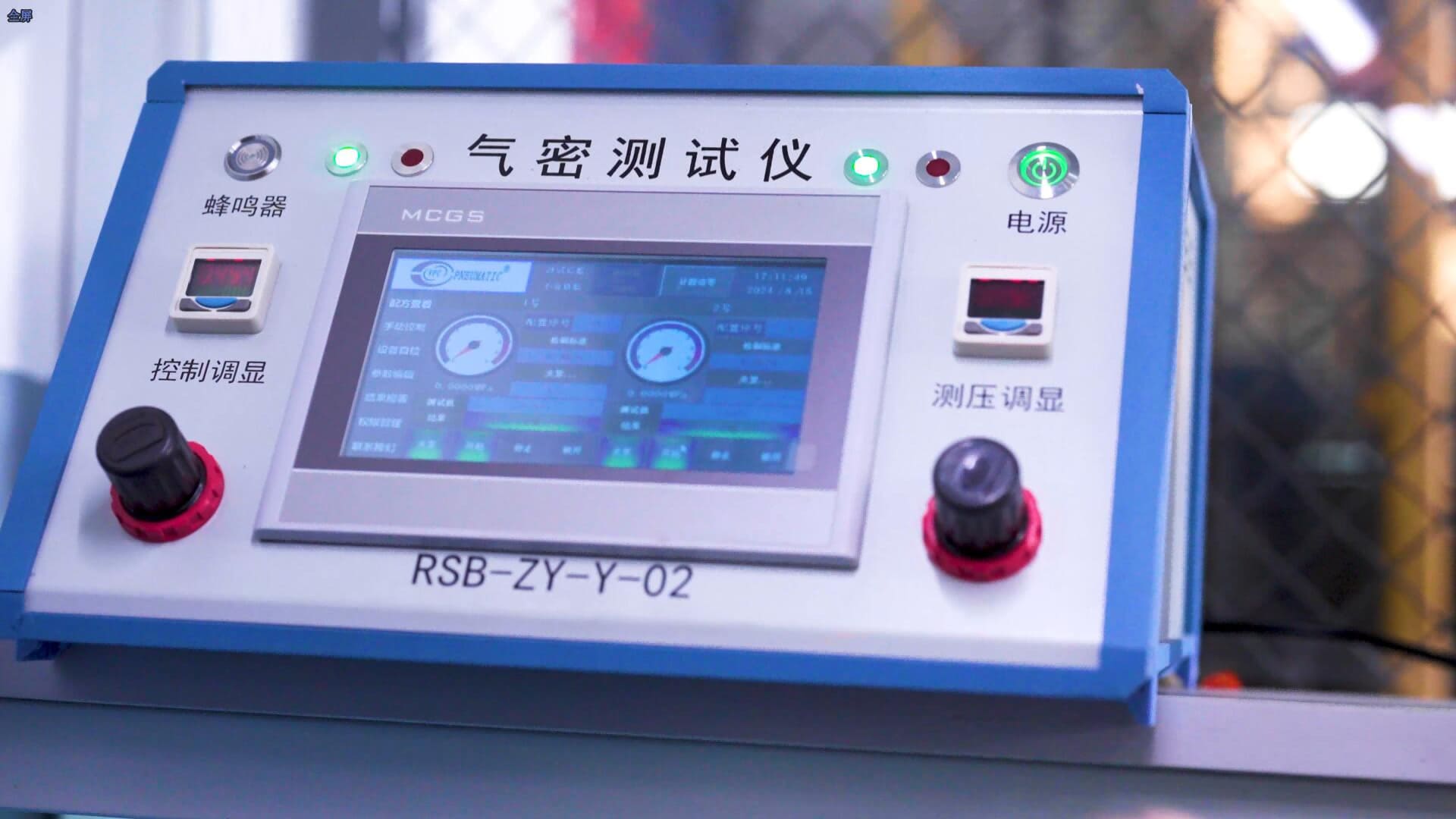

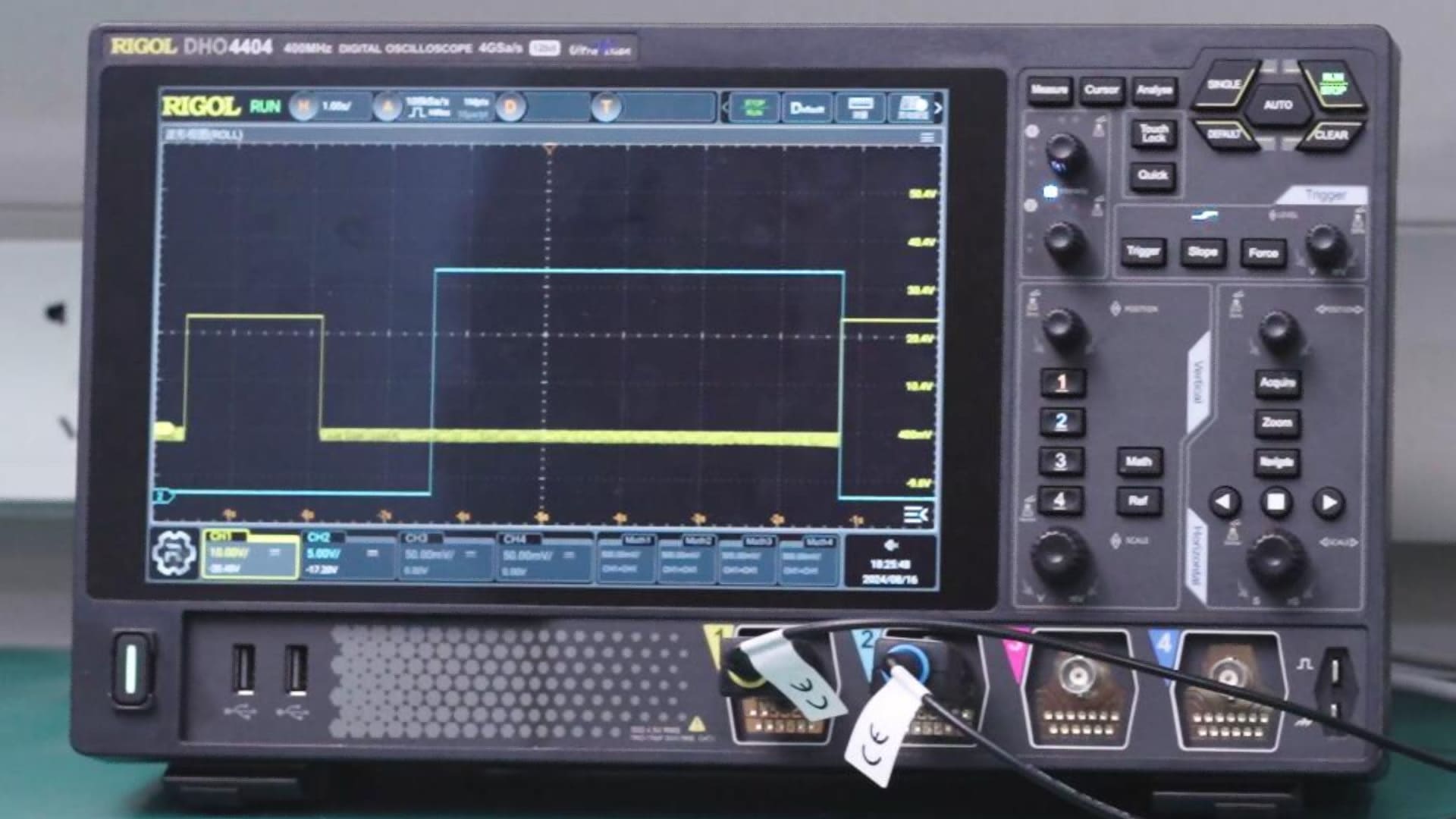

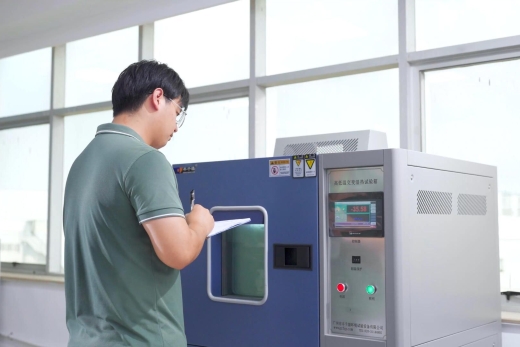

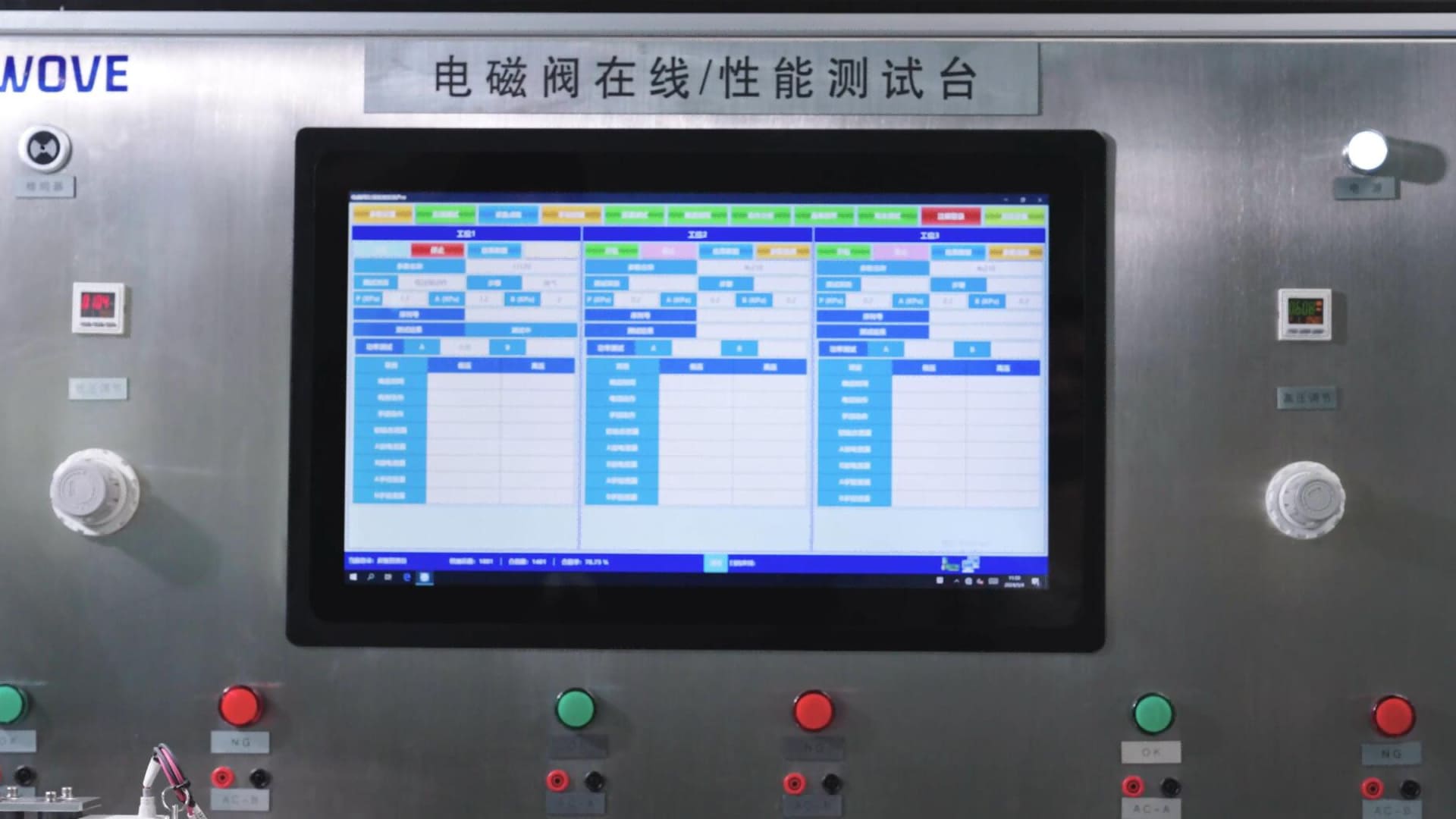

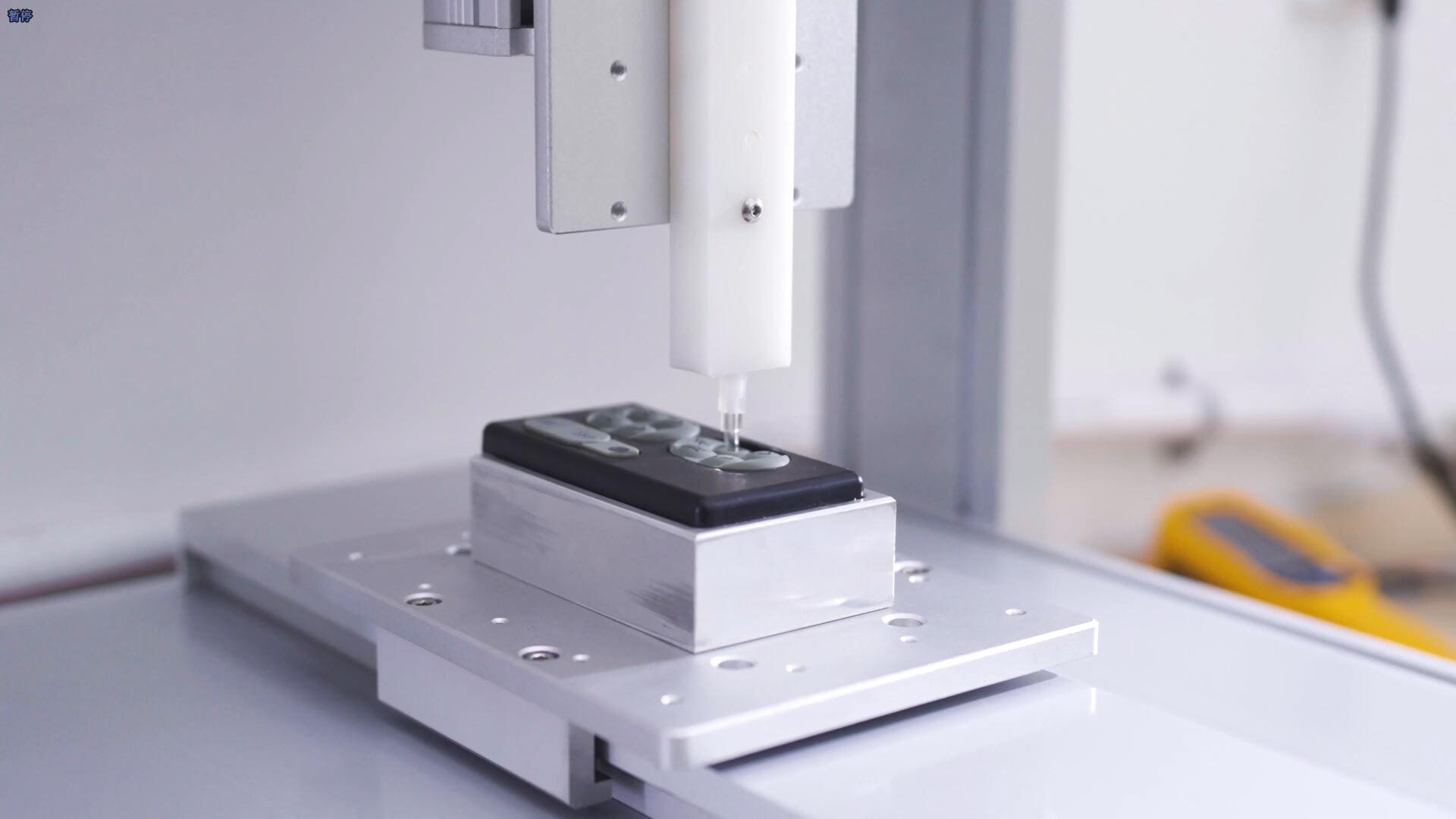

ITV electro pneumatic regulator testing equipment

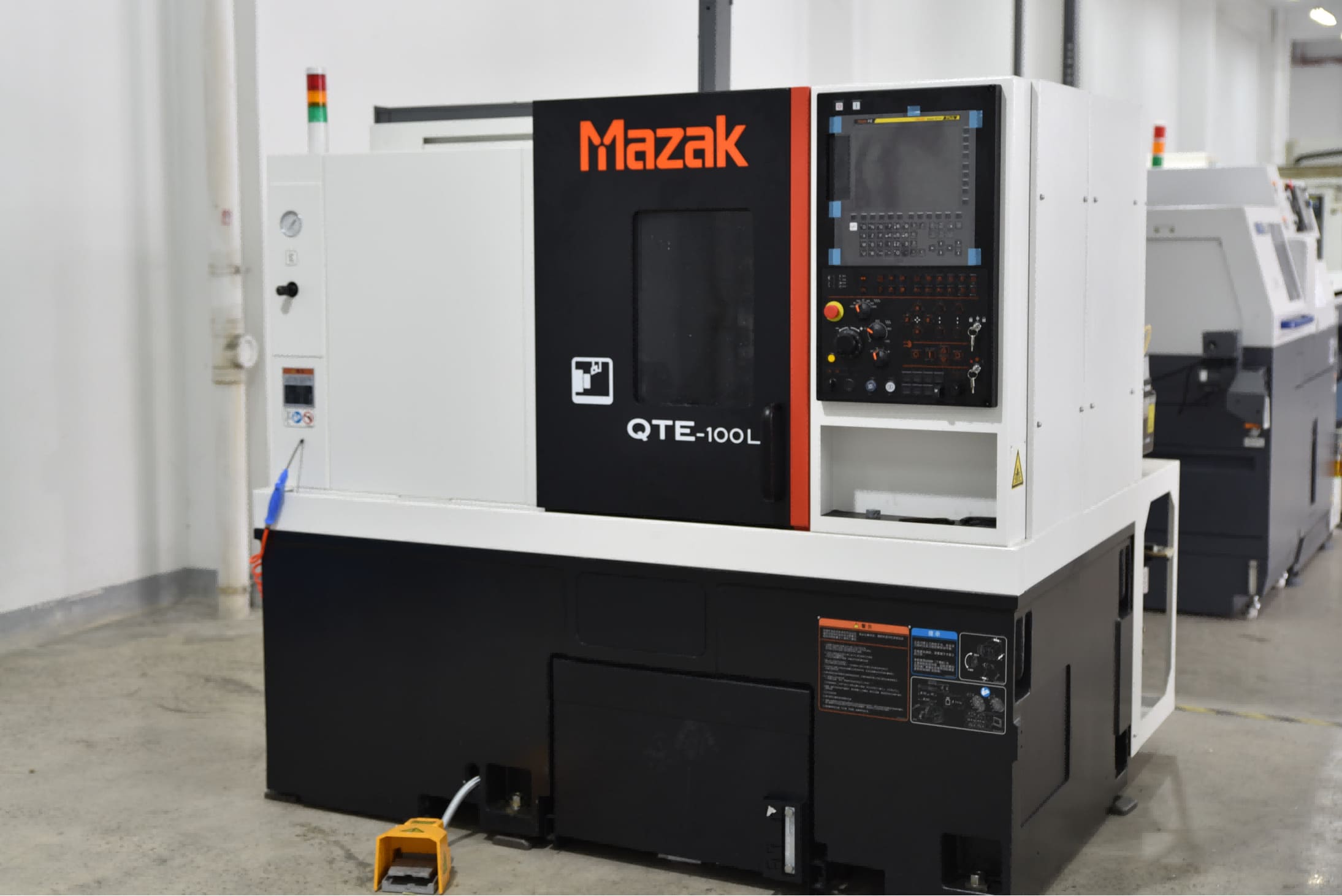

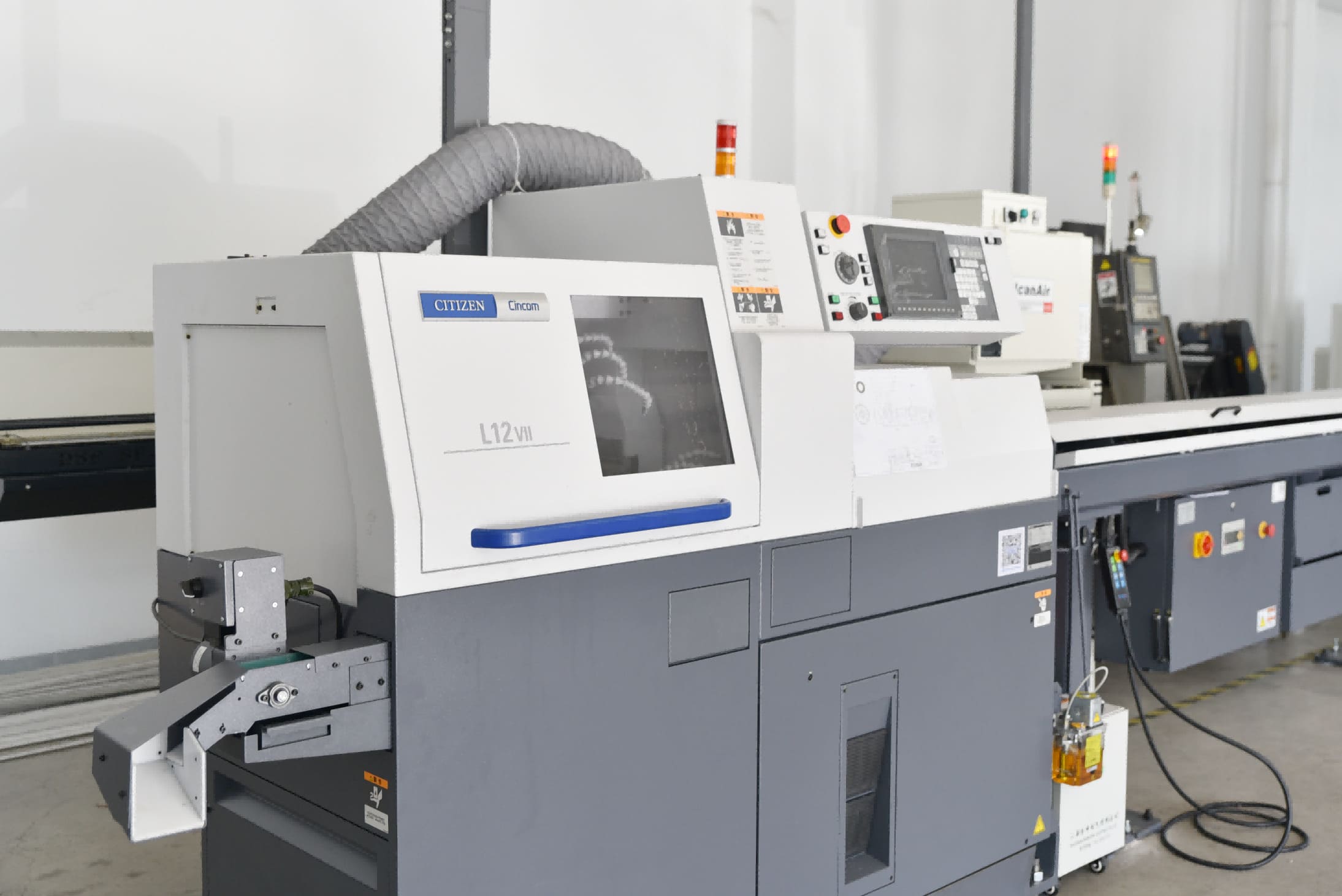

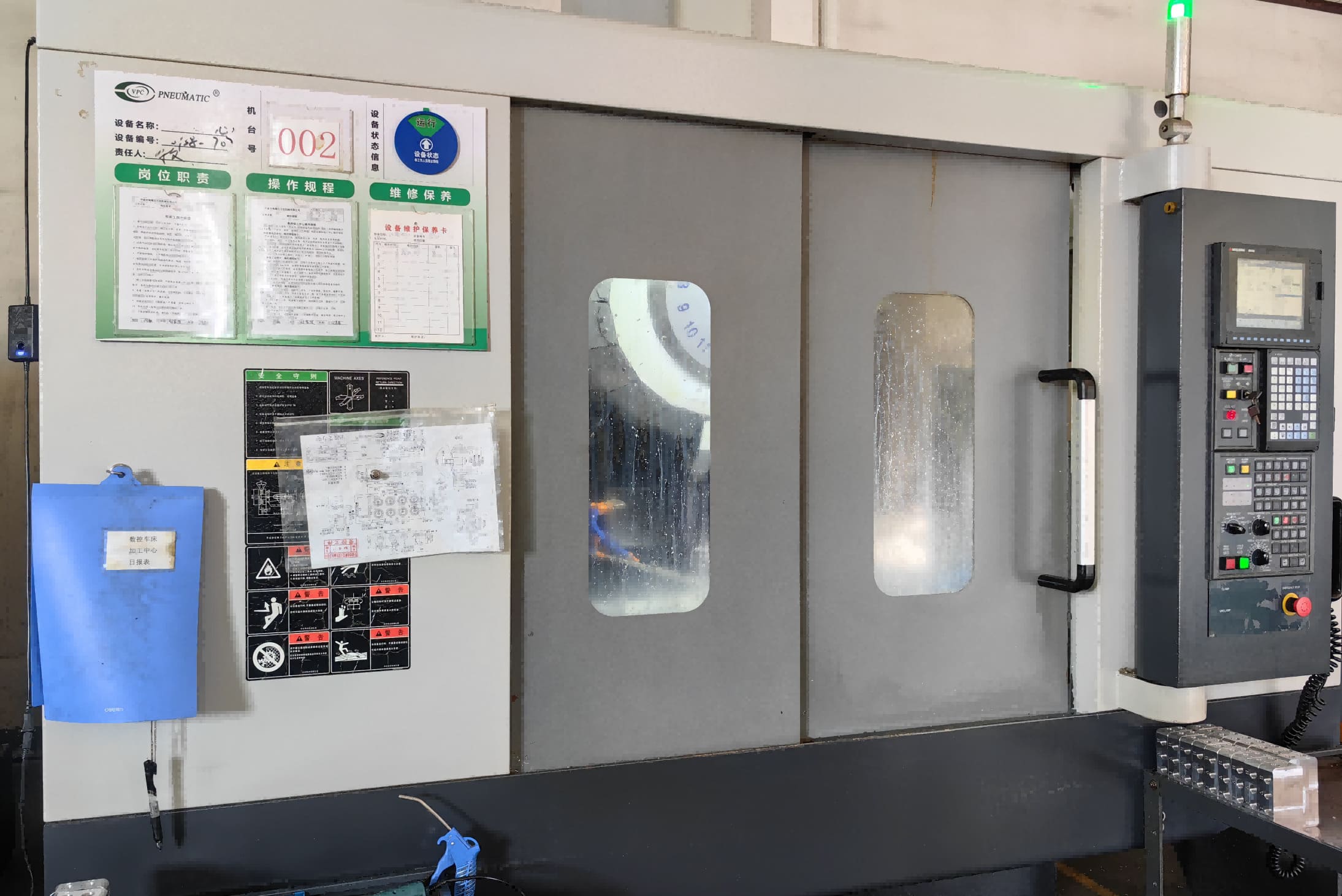

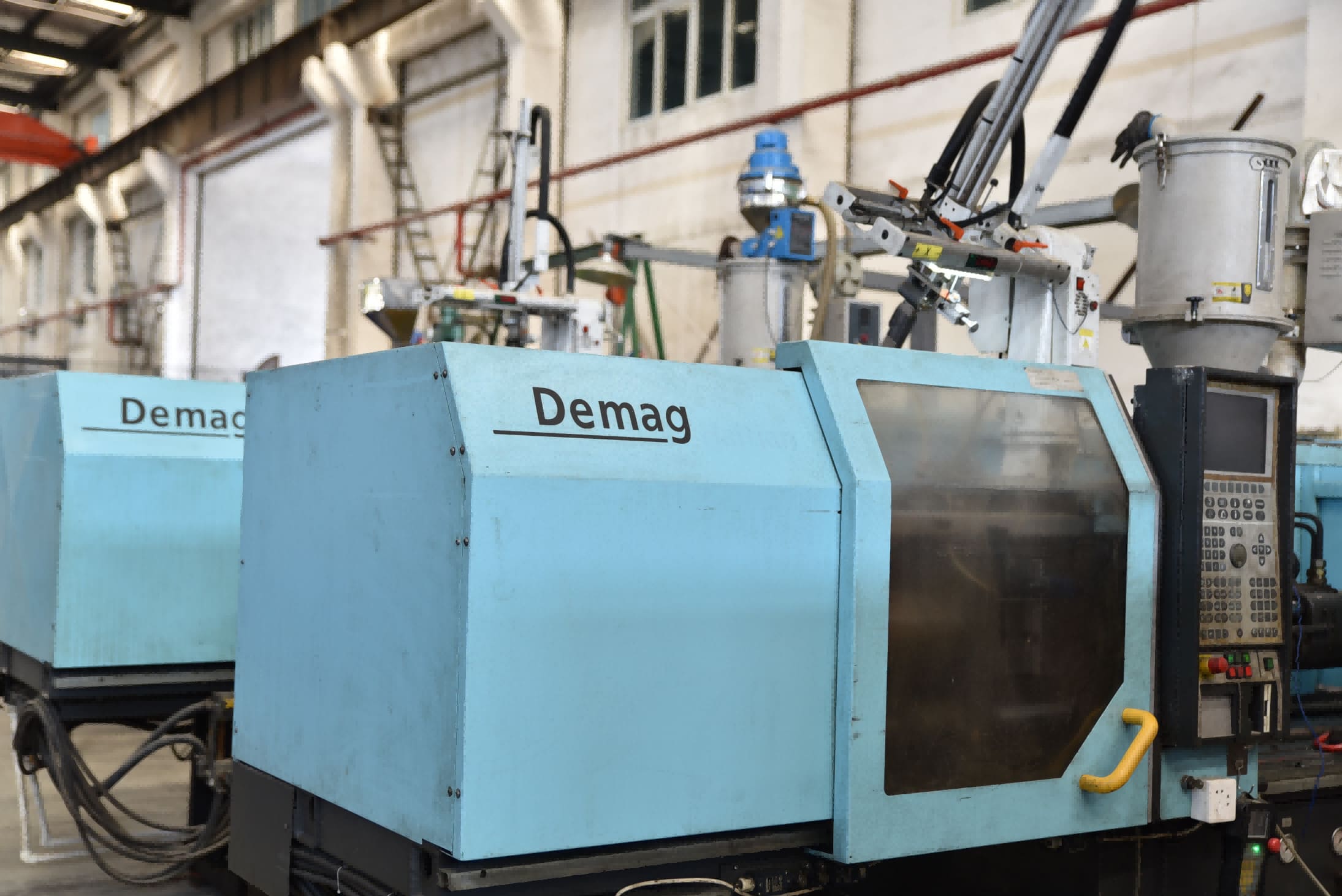

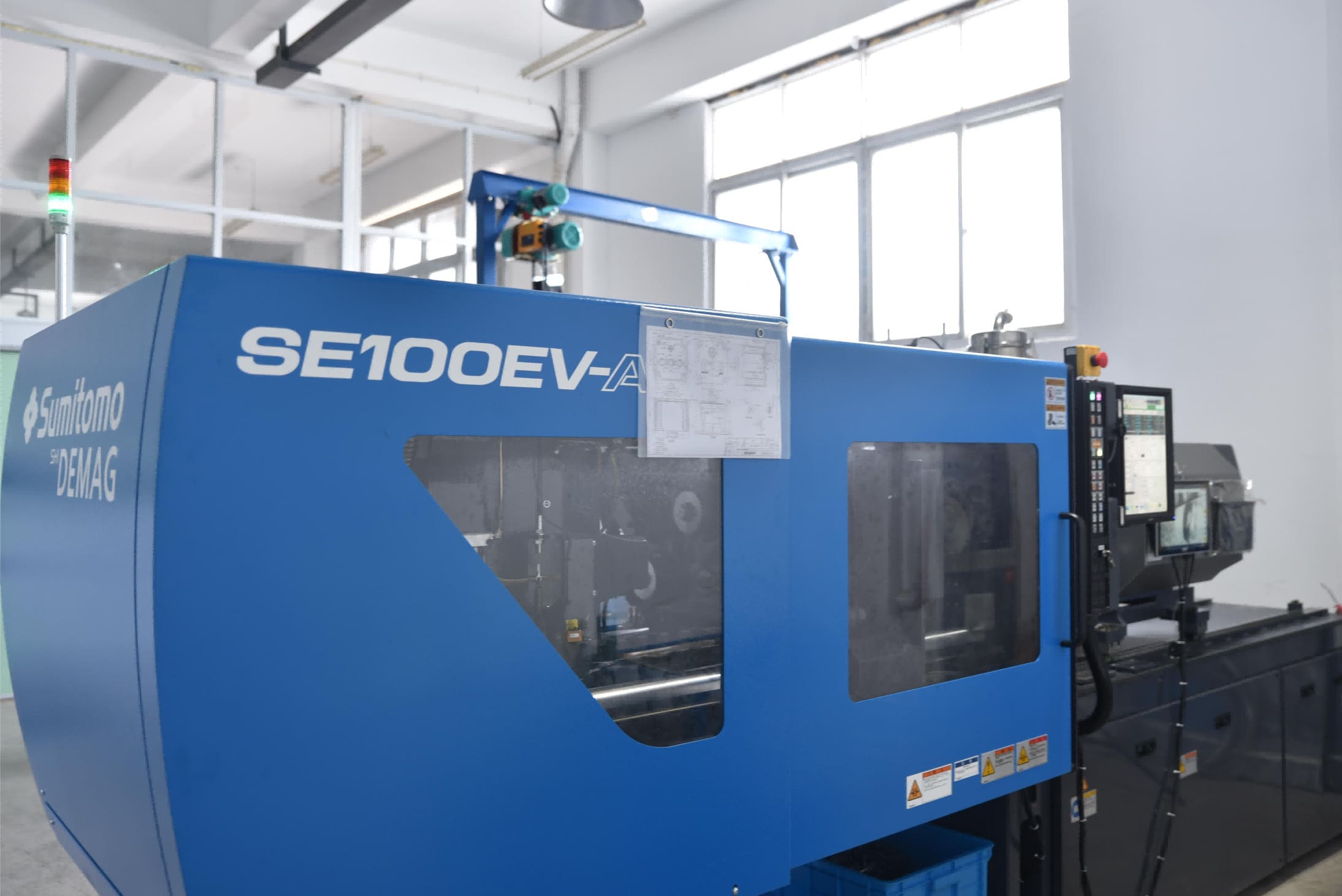

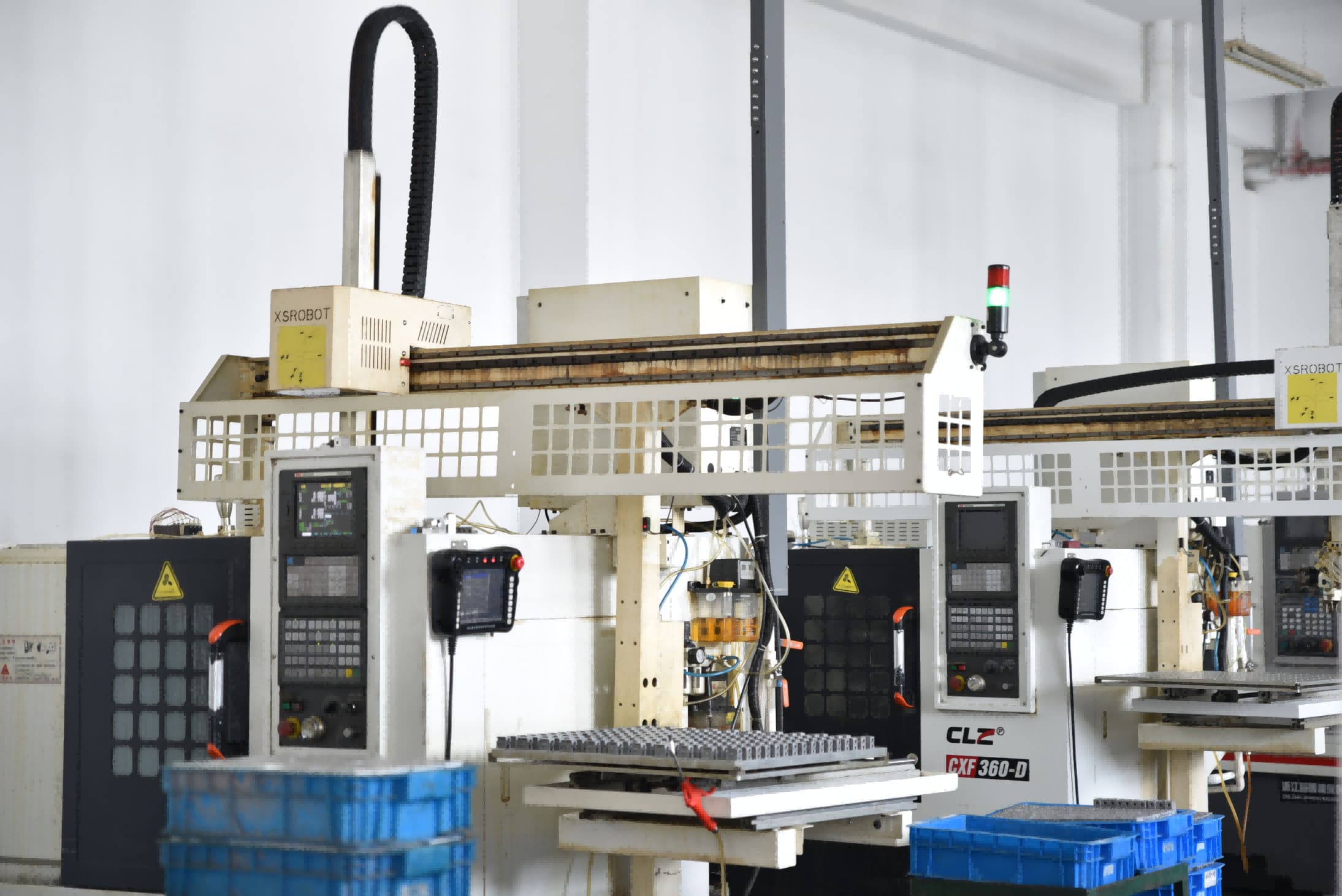

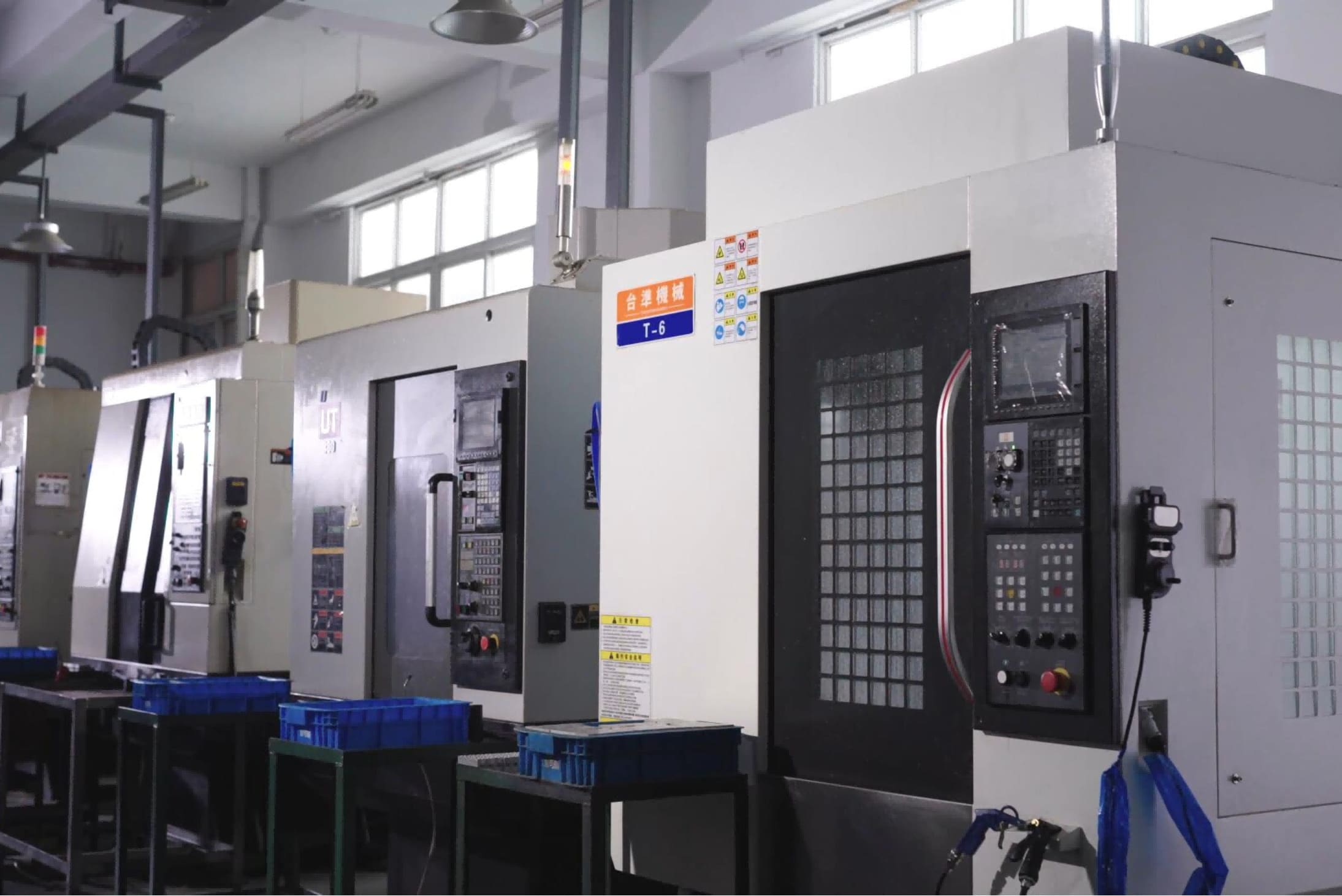

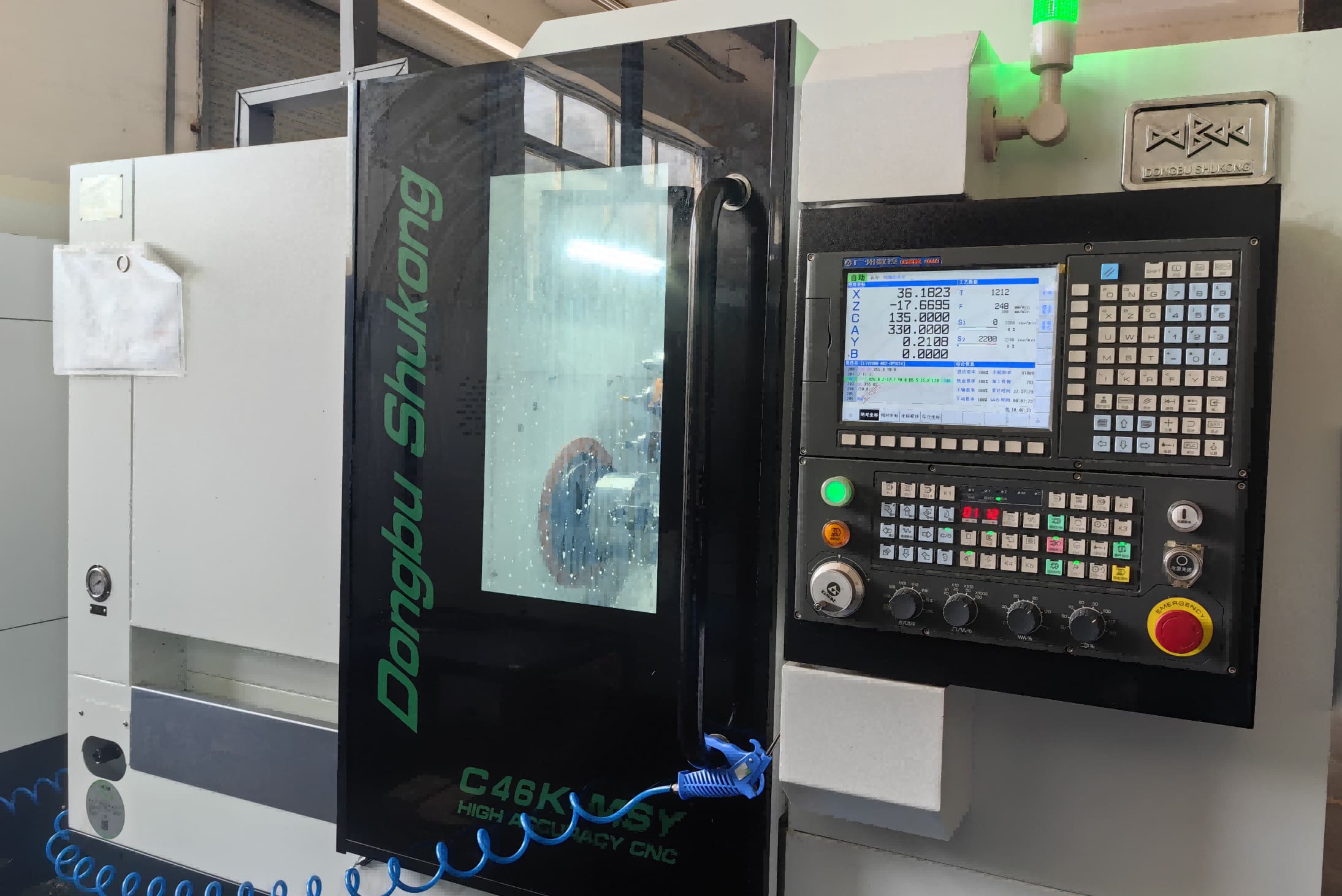

VPC ITV main production equipment

VPC Pneumatic's independently produced ITV electric pressure regulator is one of the few high-end products in China that can fully replace imported SMC proportional valves.

While ensuring high precision, responsiveness, and reliability, we offer customers more competitive pricing, flexible customization services, and shorter delivery cycles.
