ITV Electro-Pneumatic Regulator | 1:1 SMC Alternative, 30% Lower Cost

→ Get the performance you need, at a price that makes sense. VPC's ITV offers 1:1 replacement capability, plus unique advantages, direct from our 19-year factory.

1. Seamless Compatibility

Our ITV electro-pneumatic regulator is engineered to be fully compatible with the SMC ITV series in pressure range, signal interface (0-10V / 4-20mA), dimensions, and mounting methods. This ensures a fast, drop-in replacement without costly equipment modifications.

★ VPC's Unique Advantages

While ensuring compatibility, we've added features designed for real-world industrial use:

•  Wider Voltage Adaptability: Operates reliably across a wider supply voltage range of 10-28V.

•  Multi-Unit Display: Easily switch between pressure units (psi, MPa, bar, etc.) directly on the screen.

•  Overvoltage Protection: Integrated power supply protection (8V-28V) adds an extra layer of security.

•  Communication Ready: Compatible with mainstream protocols like RS-485 for easy system integration.



Type		VPC-ITV	SMC-ITV
Pressure range		0.005-0.9 MPa	0.005-0.9 MPa
Input signal		0-10 V/4-20 mA	0-10 V/4-20 mA
Response time		≤100 ms	≤100 ms
Repeatability		Within ±0.2% F.S.	Within ±0.2% F.S.
Hysteresis		Within 0.5% F.S.	Within 0.5% F.S.
Operating temperature		0-50°C	0-50°C
Sensitivity		Within ±0.2% F.S.	Within ±0.2% F.S.
Linearity		Within ±1% F.S.	Within ±1% F.S.
Dimensions		Completely compatible	Standard Size
Connection method		DIN plug/lead wire	DIN Plug/Lead Wire
Weight	ITV1000	240 g	250 g
	ITV2000	330 g	350 g
	ITV3000	620 g	645 g

         [Download ITV Regulator Manual]

 SMC ITV Replacement?

  Try the VPC electro-pneumatic regulator—Same Function Quality, Free Samples, MOQ 1 pcs, In Stock, Ships Now!



    [Get Quote and Samples Now]

2. Why Trust VPC? The Factory Behind the Product.

• Strict Quality Inspection: Every single ITV unit is 100% factory-tested for linear accuracy, response time, and long-term stability. A QR code on each unit provides instant access to its data.

• 19+ Years of Manufacturing: We are not a trading company. We are a real factory with deep experience in precision manufacturing and quality control.

• In-house R&D and Customization: Our engineering team developed this ITV in-house and can provide integrated modular solutions for your special requirements.

• Global Certification & Warranty: Fully ISO 9001, CE, RoHS certified and backed by a solid 2-Year Warranty.

3. Appearance and structural design advantages

① Compact body and multiple port options

• A variety of thread sizes (PT/RC, G, NPT) is available to accommodate various air flow paths.

• The compact and lightweight body can be directly installed in existing mounting holes without any additional modification.

② High-quality aluminum alloy housing

• The housing is made of high-strength aluminum alloy with an advanced coating process, ensuring outstanding corrosion and wear resistance for reliable performance in demanding industrial environments.

③ Precision internal components

• The internal valve core is made of imported materials, ensuring wear resistance and excellent airtightness.

• The electronic drive module is independently developed, offering fast response and low energy consumption.

• A built-in high-sensitivity pressure sensor enables closed-loop feedback control.

④ Modular design

• Multi-way proportional valve modules can be integrated as needed, reducing wiring complexity.

• Supports DIN rail and panel mounting options. Can be integrated with other pneumatic components as needed.

4. Industry applications and customized solutions

Pressure stability and response speed are crucial in applications such as laser cutting, automated production lines, medical equipment, and robotics. ITV electric proportional valves enable precise and continuous air pressure regulation, providing efficient and reliable power support for these devices.

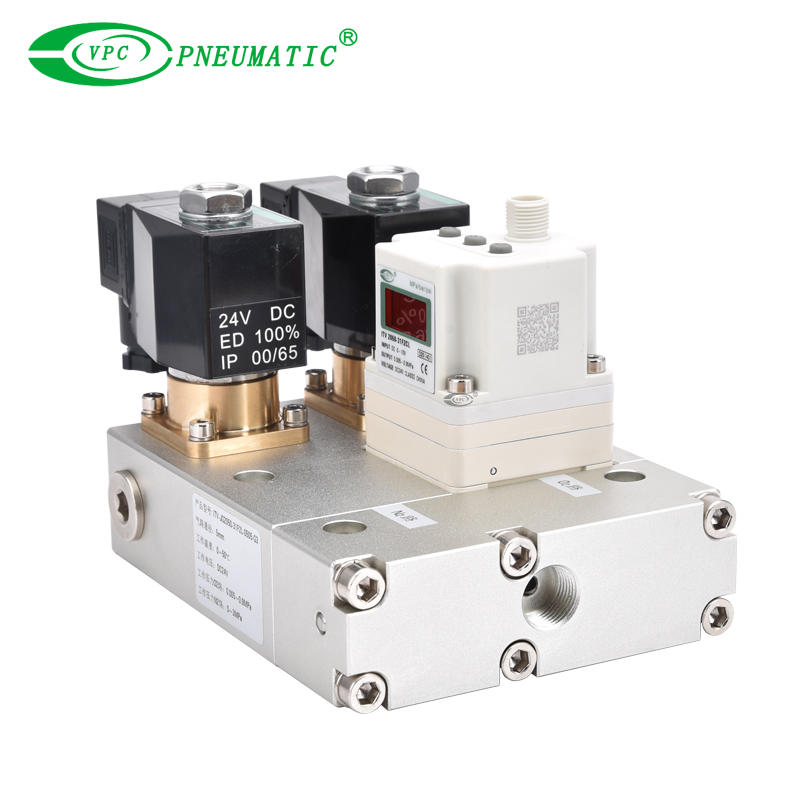

Laser-cut ITV-JG electro pneumatic regulator is shown below. If your industry has its own unique challenges, and you deserve more than a standard part. Don't settle. "Schedule a free, no-obligation consultation" with our application engineers. Let's co-develop the exact solution your equipment needs and provide a factory-direct quote that makes sense for your business.

5. Quality assurance and test report

① Full factory inspection: Each unit undergoes air-tightness, functionality, and aging fatigue tests to guarantee stable performance and reliable quality.

• Product accuracy under extreme temperatures is ±0.2%, ensuring stable monitoring operation of the equipment.

• High stability, sensitivity below 0.2% F.S., far surpassing conventional brands on the market.

② Long-life design: Key components have a service life of ≥50 million cycles.

ITV Analysis of load heating

③ International certifications: ITV electro pneumatic regulator complies with international standards such as CE and RoHS, etc.

④ Traceable test report: Each product is accompanied by a test record for easy after-sales traceability and quality management.

⑤ After-sales service: We provide a one-year warranty and rapid technical response to reduce maintenance costs for our customers.

6. Technical information and support services

Professional technical data

• Product Catalog: ITV electro pneumatic regulator detailed technical specifications, installation dimensions, and wiring diagrams.

• Selection Guide: Quickly select the appropriate model based on your application scenario.

• CAD Drawings: 2D/3D drawing files are provided, supporting major CAD software formats. (Download Drawings)

Video tutorial resources

• Installation Video: Demonstrates the standard installation process to avoid installation errors

• Debugging Video: Guides to parameter settings, troubleshooting, and performance optimization

• Maintenance: Key points for regular maintenance and troubleshooting common problems

Professional technical team

• Our technical team boasts over 15 years of industry experience, providing both remote guidance and on-site support.

• Our expertise covers a wide range of fields, including mechanical, electrical, and automation.

7. Precautions for use

① The air supply pressure must pass through an air filter with a filtration accuracy of 5µm or less.

② When installing the connectors and piping, prevent thread debris and sealing material from entering the pipes and blocking the small valve inlet.

③ Compressed air containing condensed water may cause a malfunction of the product. Please dry the air line accordingly.

④ If the product suddenly loses power during the pressurization phase, the "OUT" output will enter the power-off protection state, and pressure will be temporarily maintained.

⑤ This product has been fully tested at the factory. Any unauthorized disassembly or assembly is strictly prohibited, as it may cause product instability.

⑥ The four-core cable can only be assembled in one direction. After assembly, rotation is strictly prohibited. Forced rotation may damage the connector.

⑦ The product's ventilation and power-on sequence is: power on → ventilation → air off → power off.

⑧ When using this product in areas with strong electric fields, keep wiring as far away as possible to prevent external interference that may affect product operation.

⑨ The solenoid valve may produce operating noise, but this will not affect parameter settings or product operation.

⑩ When the four-core cable is not in use for monitoring output, avoid contact with other cables, as this may cause a malfunction.

8. FAQS

① Can it directly replace the SMC ITV electro pneumatic regulator?

Absolutely. The VPC ITV series electro pneumatic regulator is identical to SMC products in dimensions, mounting interfaces, electrical connections, and technical specifications, making it a 100% direct replacement without requiring system design modifications.

② How about technical support and service?

We offer 24/7 technical support, responding to inquiries within 8 hours. We also provide extensive technical documentation and video tutorials to assist with quick installation and commissioning.

③ Is there a minimum order quantity requirement?

We have no minimum order quantity requirement. We support single-unit purchases, and we also offer large-volume customization services based on customer needs.

④ Do you offer sample testing?

Yes, we offer free sample testing. Customers can verify product performance in a real-world application environment and ensure it meets their requirements before placing a bulk order.

⑤ Why is the price lower than imported products? Does this affect quality?

We independently develop core components and manufacture them in-house, achieving cost advantages and making our prices more competitive.

Our quality is on par with SMC ITV electro pneumatic regulator, and customers can verify performance through test reports and samples, ensuring complete peace of mind.

ITV electro pneumatic regulator testing equipment

VPC Pneumatic's independently produced ITV electric pressure regulator is one of the few high-end products in China that can fully replace imported SMC proportional valves.

While ensuring high precision, responsiveness, and reliability, we offer customers more competitive pricing, flexible customization services, and shorter delivery cycles.

VPC Factory: Production line for ITV electro-pneumatic regulators
