Max current:30A
Max voltage:12V or24V
Max.Working pressure:200PSI

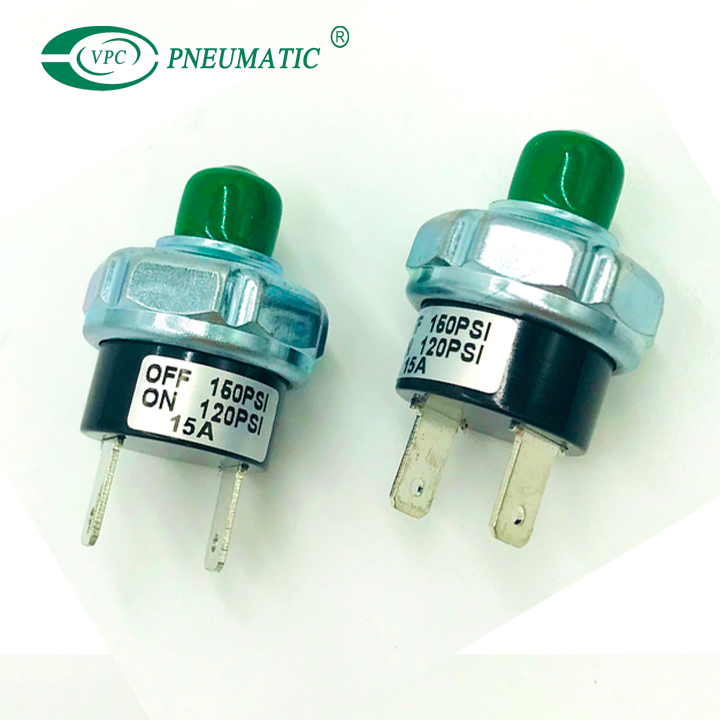

Commodity Name:pressure switch
Type:General/Sealed
Voltage:12V or 24V
Pressure range:85-200psi
Thread size:1/8" 1/4"NPT
Accuracy:±5PSI
Applicance:Automotive parts&accessories
Certificates:UL,CE
Product Description
Specification:
| Part No. | 11145S | Part No | 16520S |
| Description | Sealed pressure switch 110-145PSI(30A) | Description | Sealed pressure switch 165-200PSI(30A) |
| Part No. | 14175S | Part No | 90120 |
| Description | Sealed pressure switch 10-175PSI(20A) | Description | Sealed pressure switch 90-120PSI(20A) |
| Part No. | 14175SH | Part No | 85105 |
| Description | Sealed pressure switch 140-175PSI(30A) | Description | Sealed pressure switch 85-105PSI(20A) |
| Part No. | 90120S | Part No | 11145 |
| Description | Sealed pressure switch 90-120PSI(30A) | Description | Sealed pressure switch 110-145PSI(20A) |
Applied in fields of off-road automobiles, industrial and agricultural machinery, widely used for air horns, air seats, pneumatic doors, brake-assisting systems, medical devices, cleaning equipment, etc.
