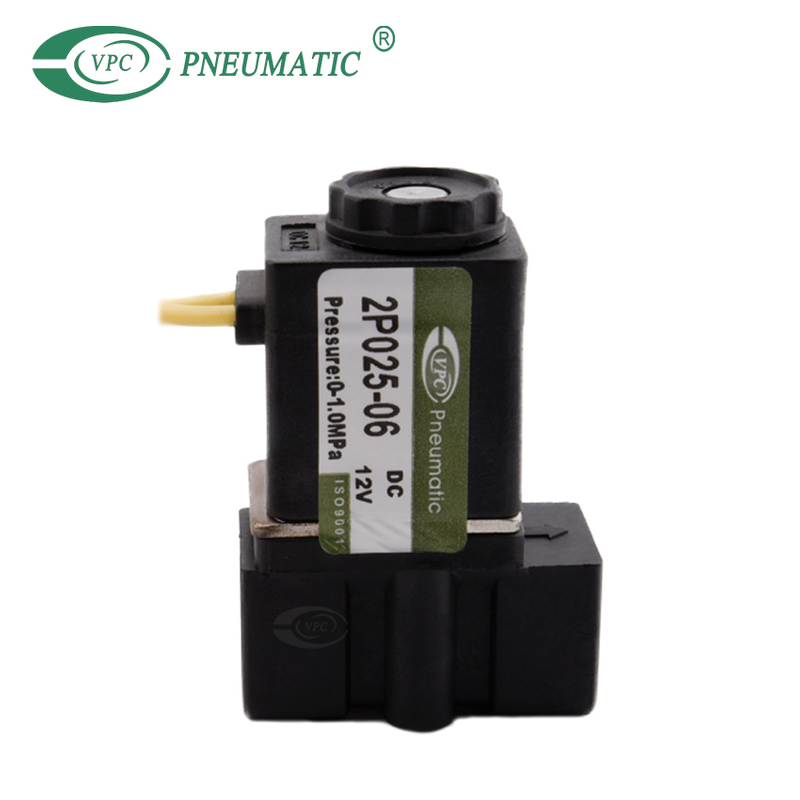

2P Series 2/2 Way Solenoid Valve
2P Series 2/2 Way Solenoid Valve 2P Series 2/2 Way Solenoid Valve
2P Series 2/2 Way Solenoid Valve 2P Series 2/2 Way Solenoid Valve

loading

2P Series 2/2 Way Solenoid Valve

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • 2P series is direct acting type normally closed (NC) 2/2 way solenoid valve;
  • Wide size rnage from 1/8" to 1/4" connection,available body:brass,plastic;
  • Multiple seals are available for different medium;
  • Availability of fluid type:steam,oil,water,gas;
  • To reduce the power consumpiton of 80% energy-saving.

  • 2L170-10

  • VPC Pneumatic

  • 8481804090

Working medium:
Air/Water/Oil
Type:
Normal close
Working temperature:
-5 to 80℃
Working pressure:
0.1 to 0.7Mpa
Body Material:
Brass,plastic
Availability:
Inquire Add to Basket

Product Description

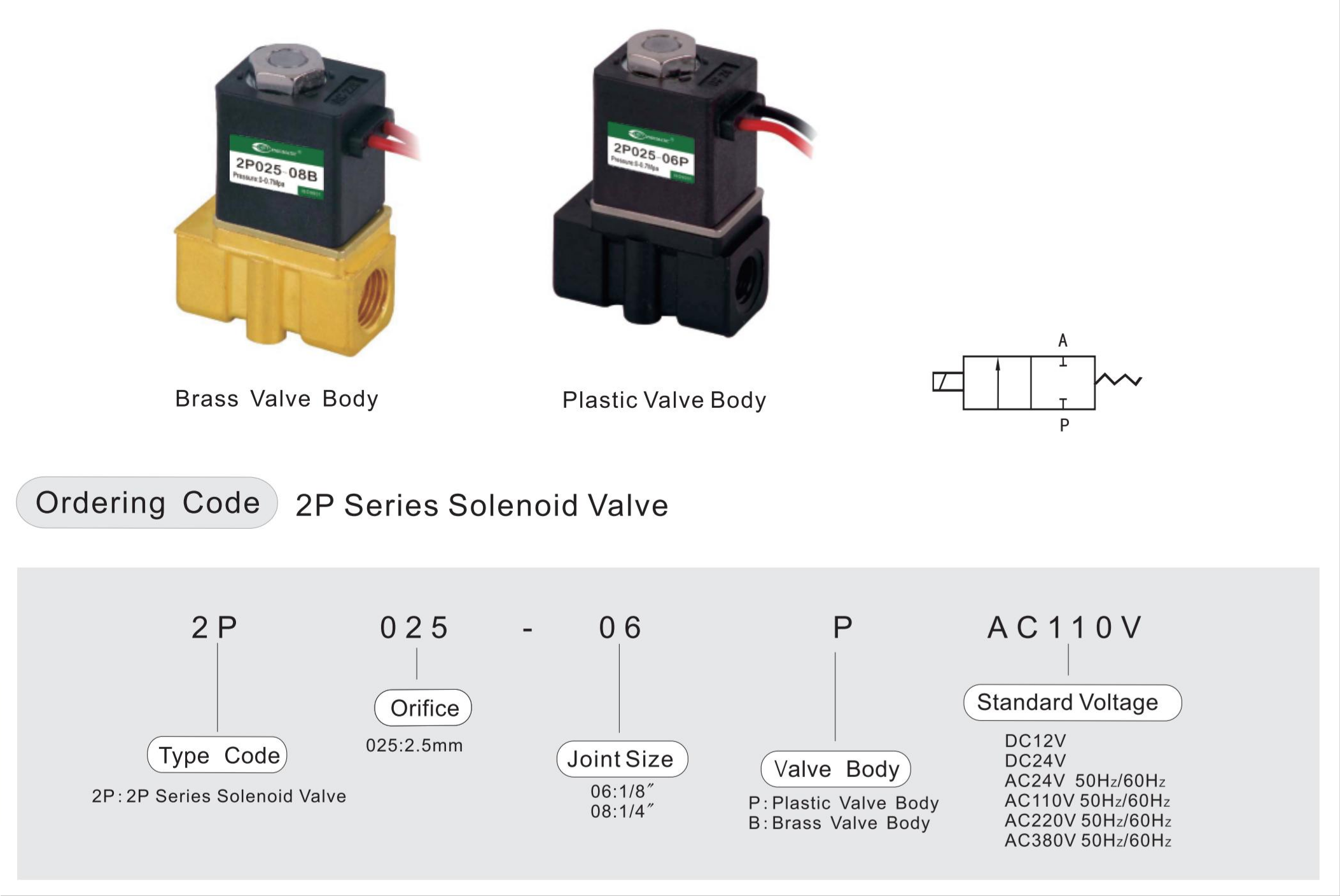

2P-order coder

Product Specifications

Model
2P025-06P
2P05-08P
2P025-06B
2P05-08B
Working Medium
Air、Water、Oil、Gas
Acting Type
Direct Acting Type
Control Style
Normal Close
Orifice
2.5mm
CV Value
0.23
Joint Size
G1/8''
G1/4''
Medium Viscidity
≤20CST
Working Pressure
0~0.7Mpa
MAX.Pressure
1.0Mpa
Working Temperature
-5°C to 80°C
Voltage Range
±10%
Valve Body
Engineering Plastic、Brass
Seal Material
NBR、EPDM

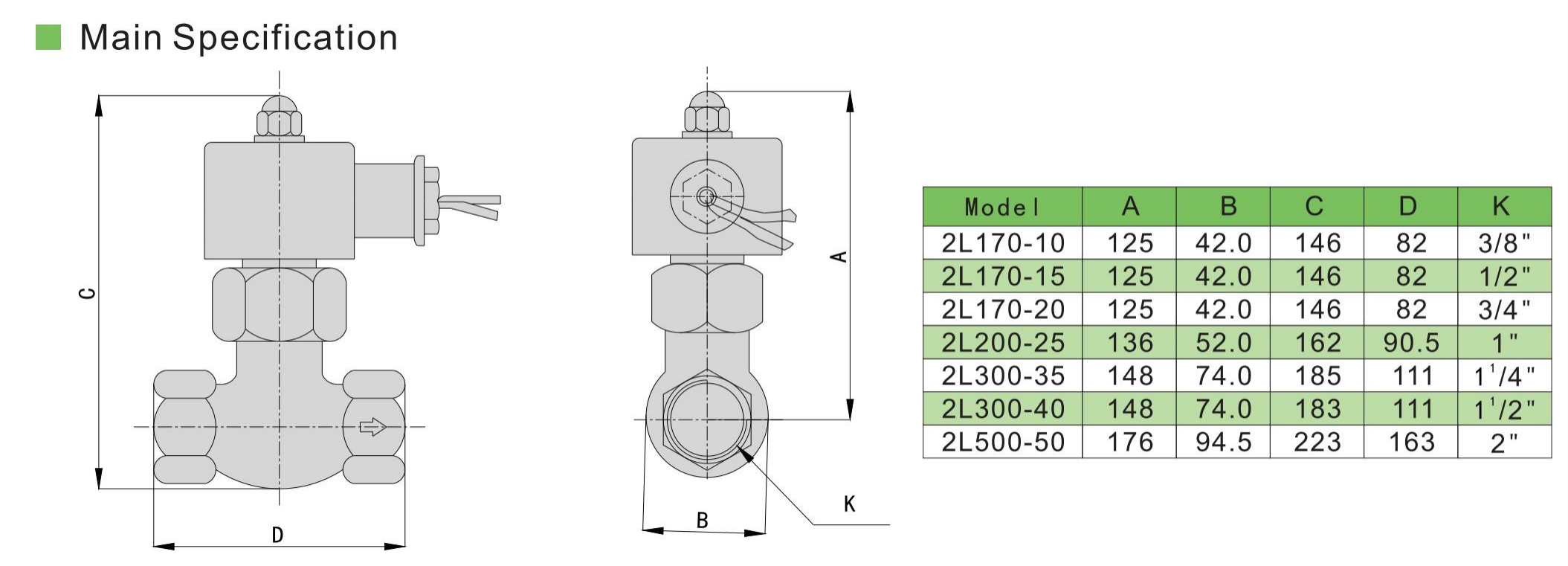

Main Dimensions

2L-specification
