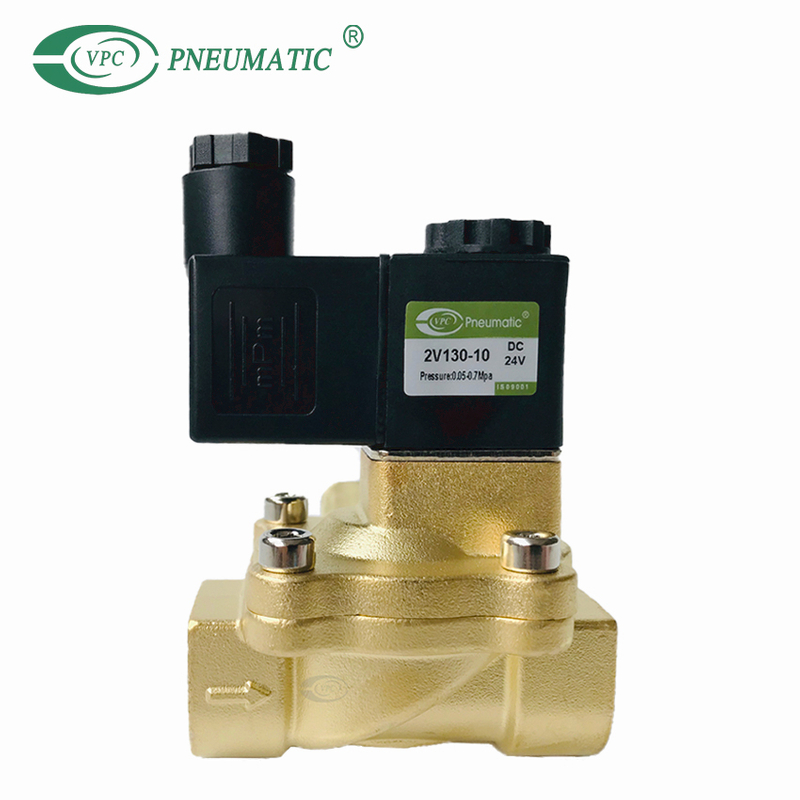

2V Series 2/2 Way Solenoid Valve (Pilot Type)

  • 2V series is direct acting or pilot type normally closed (NC) 2/2 way solenoid valve;
  • Wide size rnage from 1/8" to 1" connection,available body:brass;
  • Multiple seals are available for different medium;
  • Availability of fluid type:steam,oil,water,gas;
  • To reduce the power consumpiton of 80% energy-saving.
Working medium:
Type:
Working temperature:
Working pressure:
Body Material:
Acting type:
Availability:
  • 2V130-10
  • VPC Pneumatic
  • 8481804090

Product Description

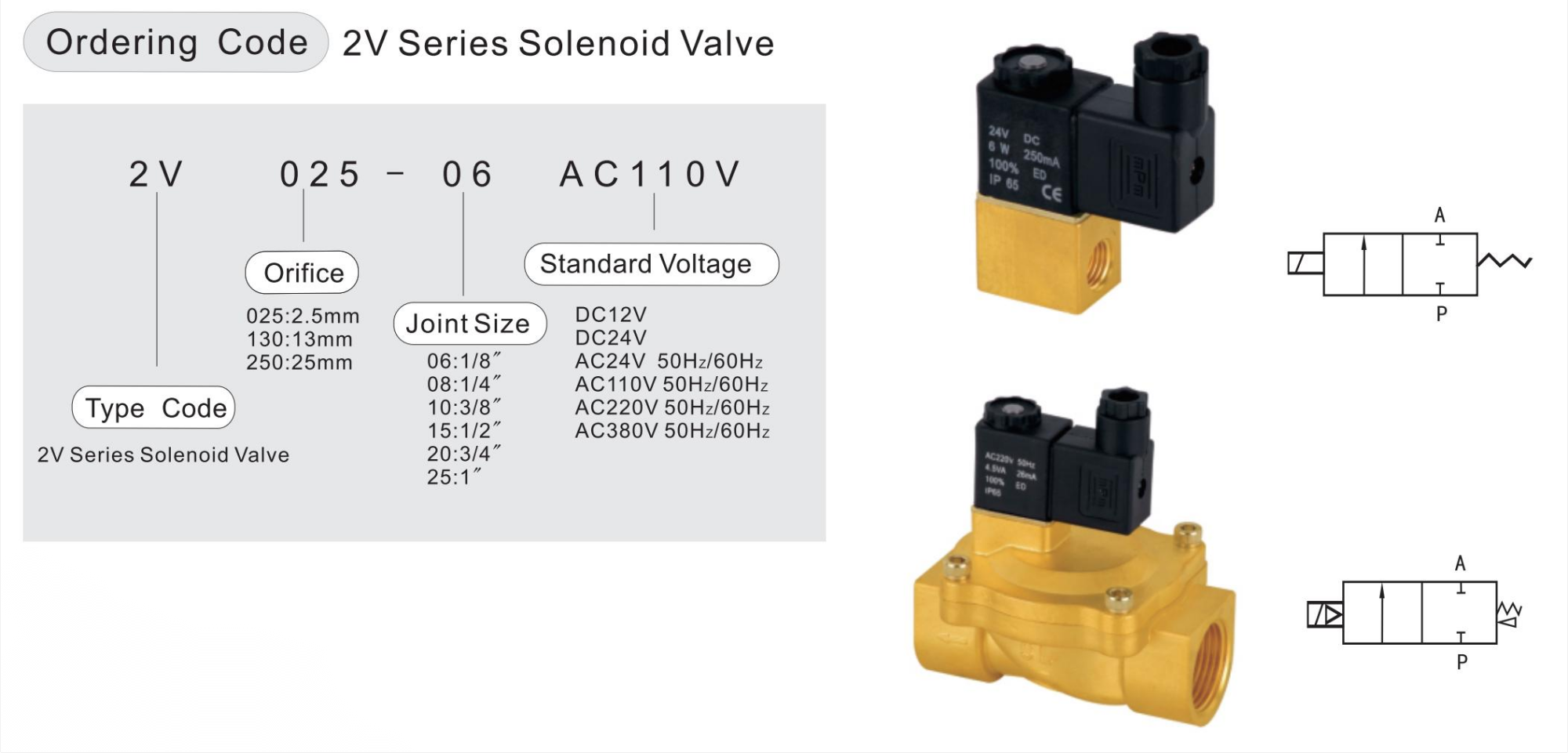

2V-order code

Product Specifications

Model
2V025-08
2V130-15
2V250-25
Working Medium
Air、Water、Oil、Gas
Acting Type
Direct Acting Type
Pilot Type
Control Style
Normal Close
Orifice
2.5mm13mm25mm
CV Value
0.23
6.2
23
Joint Size
G1/4"
G1/2''
G1''
Medium Viscidity
≤20CST
Working Pressure
0~0.8Mpa
0.05~0.7Mpa
MAX.Pressure
1.2Mpa
1.05Mpa
Working Temperature
-5°C to 80°C
Voltage Range
±10%
Valve Body
Brass
Seal MaterialNBR、VITONNBR
Shortest Activate Time0.05S

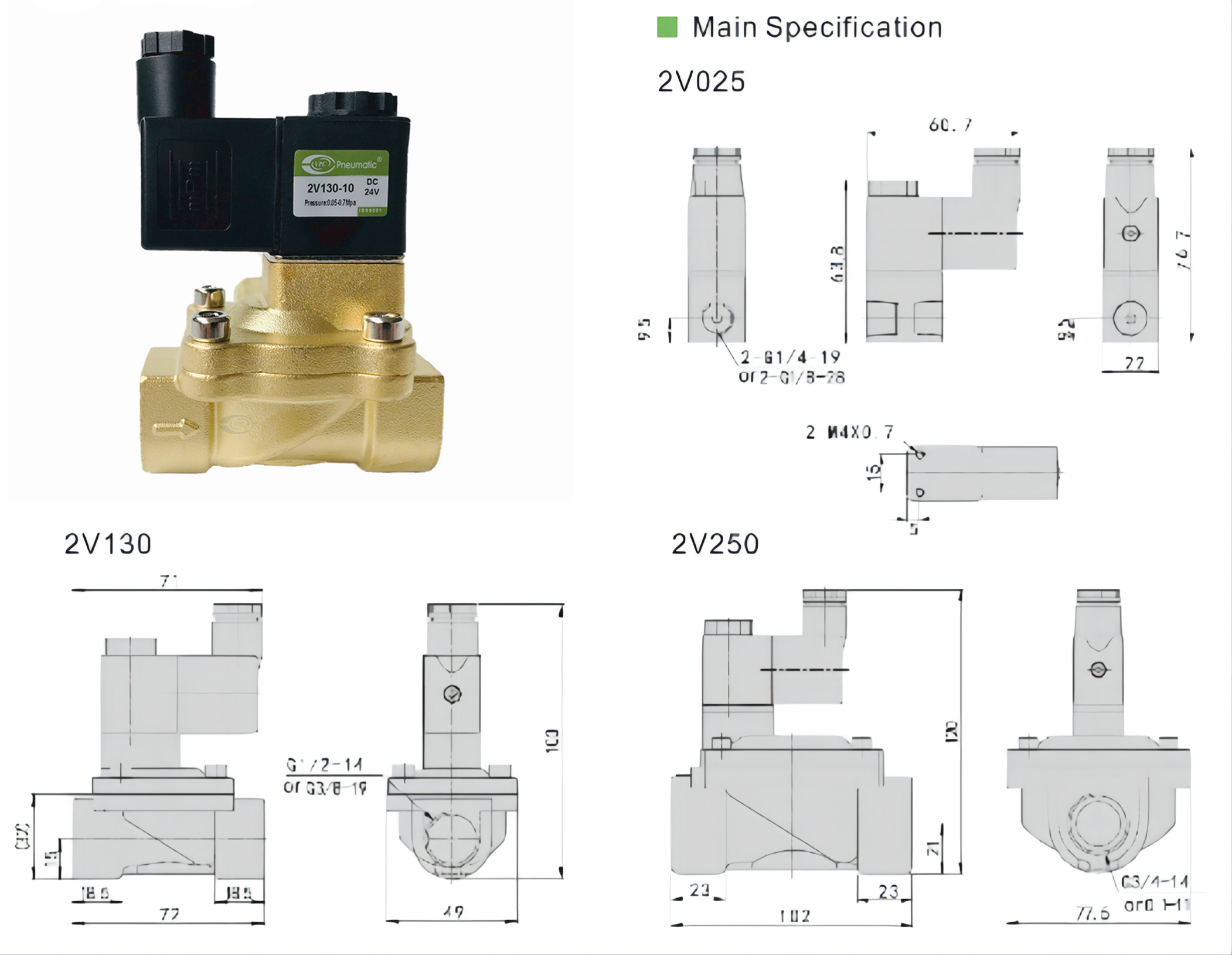

Main Dimensions
