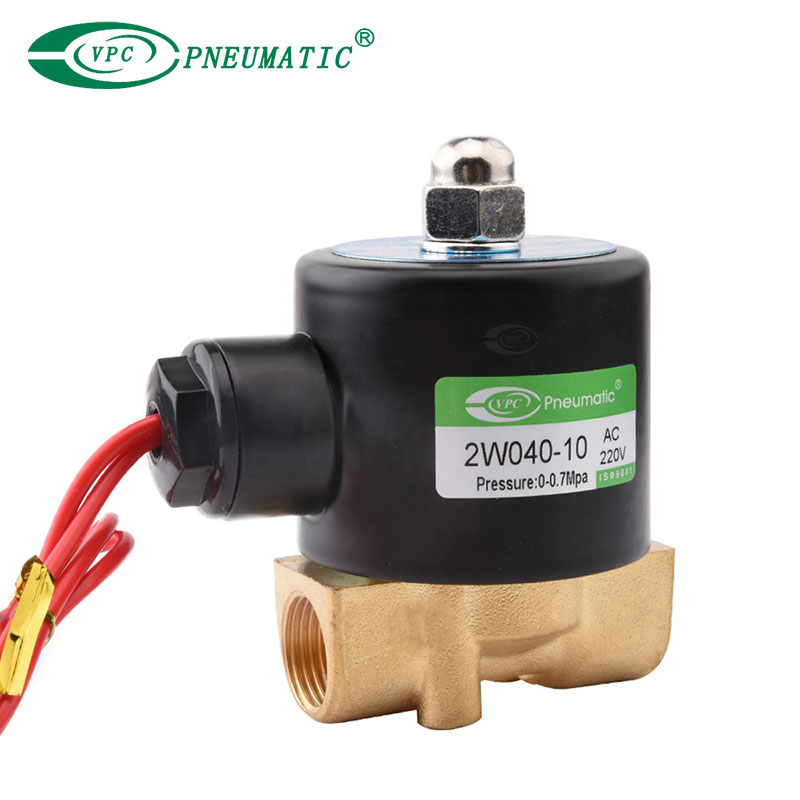

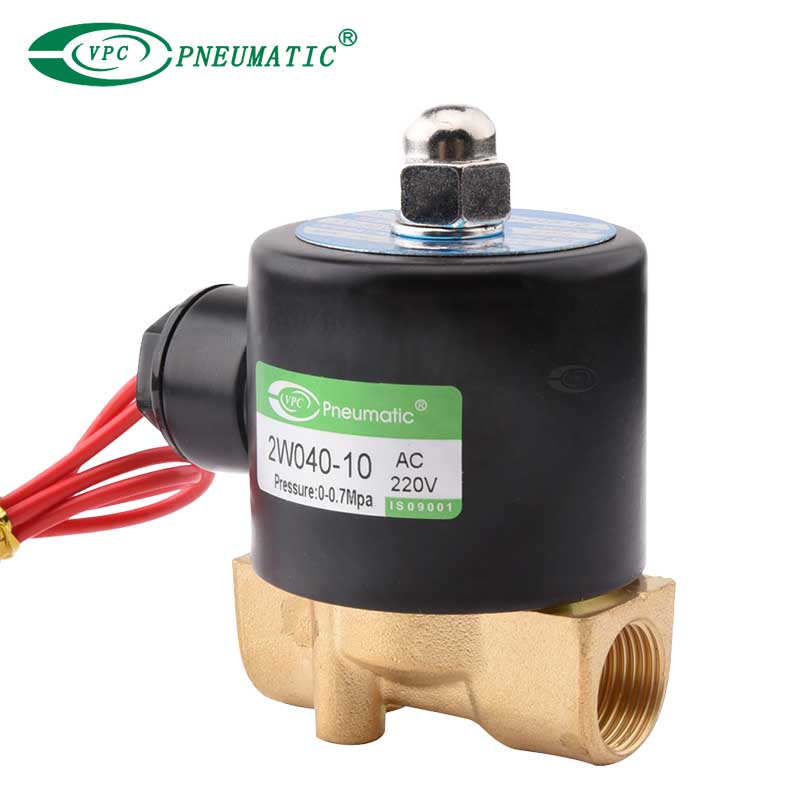

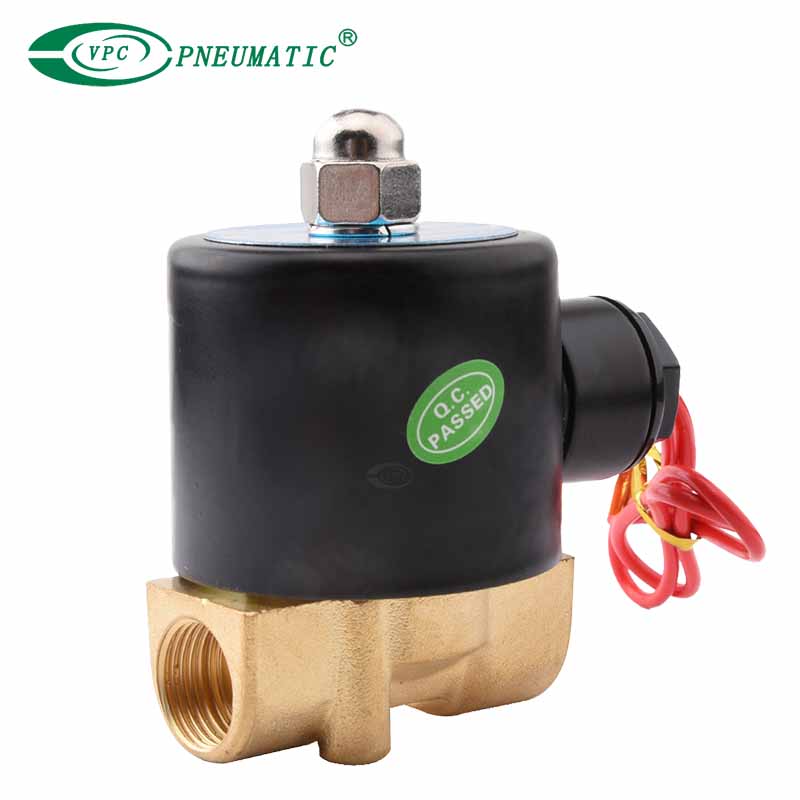

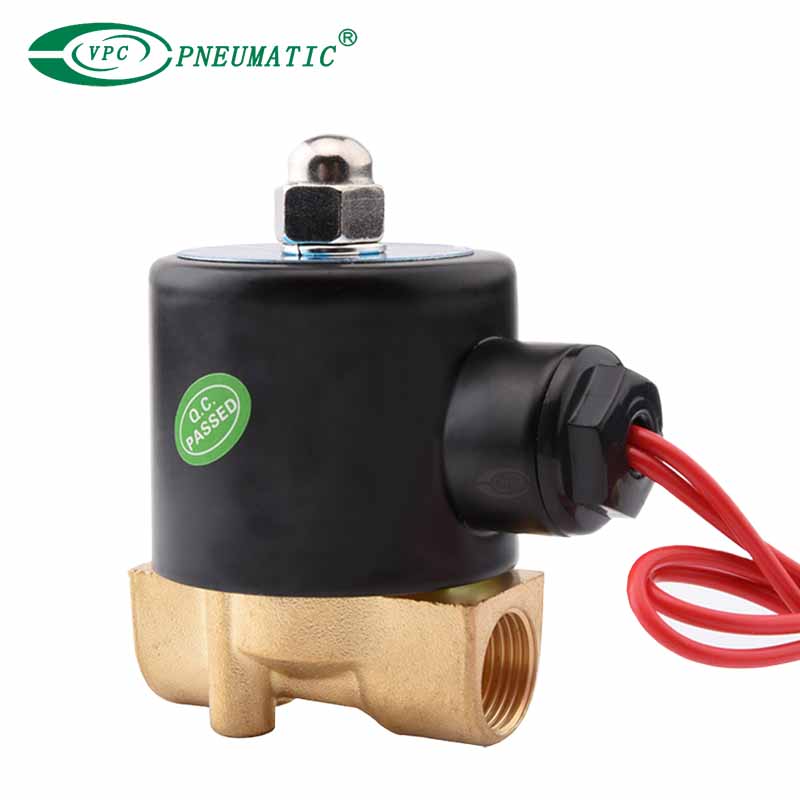

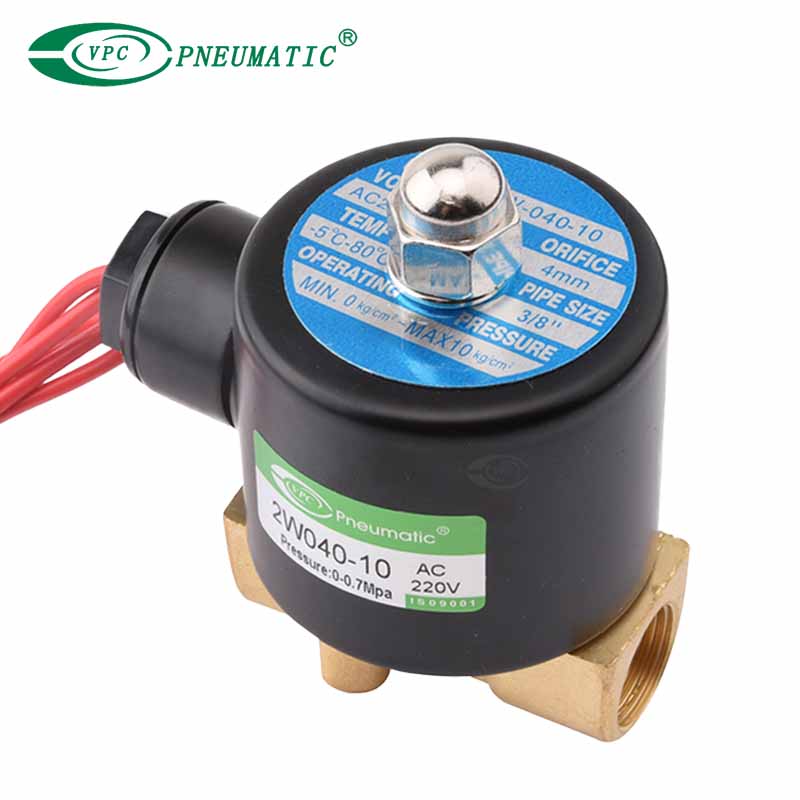

2W Series 2/2 Way Direct Acting Solenoid Valve(small orifice)

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • Normal open, available body:Brass;
  • Multiple seals are available for different medium;
  • Wide size range from1/8" to 3/8",with both thread and flange connection;
  • Diaphragm pilot solenoid valve ,with lower working pressure.

  • 2W040-10

  • VPC Pneumatic

  • 8481804090

Working medium:
Air/Gas/Water/Oil
Type:
Normal open
Working temperature:
-5 to 80℃
Working pressure:
0 to 2.0Mpa
Body Material:
Brass
Availability:
Inquire Add to Basket

Product Description

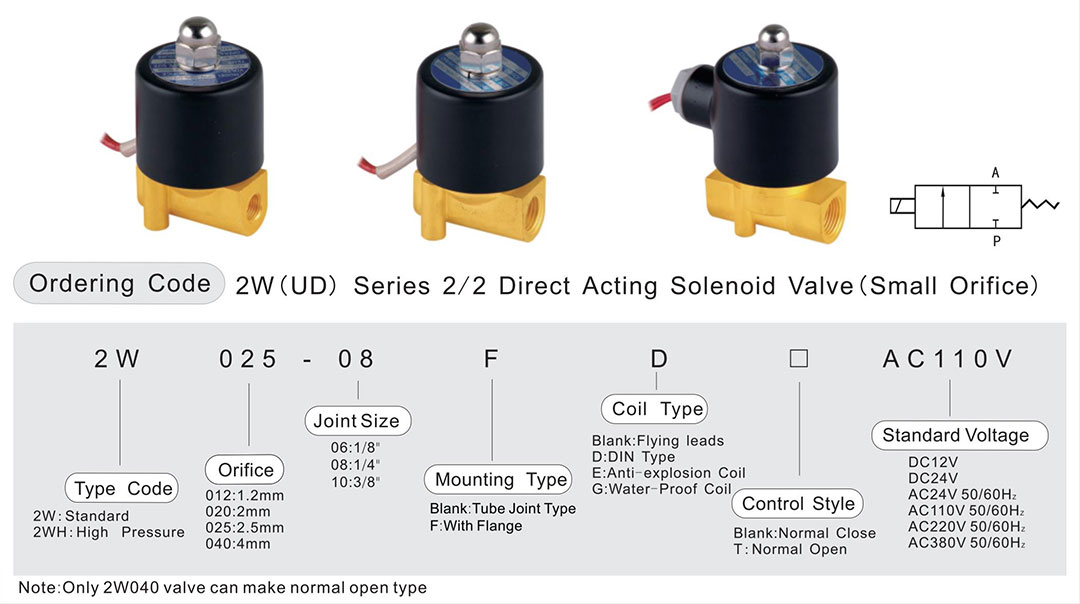

2W small orifice-order code

Product Specifications

Model
2W025-06
2W025-08
2W040-10
2WH012-06
2WH012-08
2WH012-10
Working Medium
Air、Water、Oil、Gas
Acting Type
Direc Acting Type
Control Style
Normal Close
Orifice
2.5mm
4mm
1.2mm
2mm
CV Value
0.23
0.6
0.05
0.15
Joint Size
G1/8"
G1/4"
G3/8"
G1/8"
G1/4"
G3/8"
Working Pressure
Air/Water/Oil/Gas:0~0.7Mpa
Air/Water/Oil/Gas:0~2.0Mpa
Max.Pressure
1.0Mpa
3.5Mpa
Working Temperature
-5~80℃（The temperature can reach -5~150℃ if change the seal）
Valve Body
Brass
Seal material
NBR、EPDM、VITON

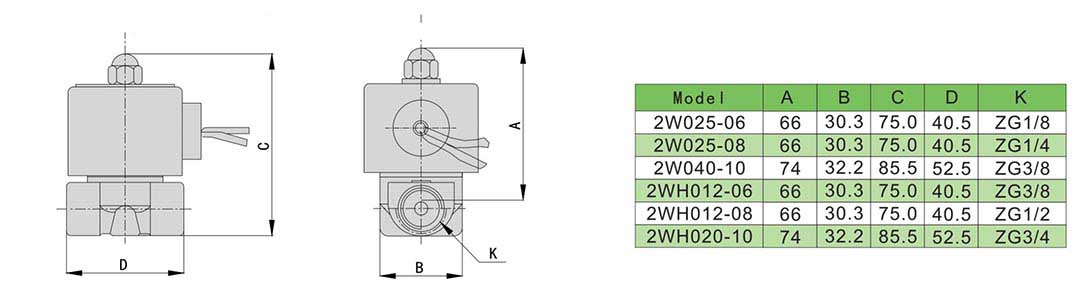

Main Dimensions

2W small orifice-order coder
