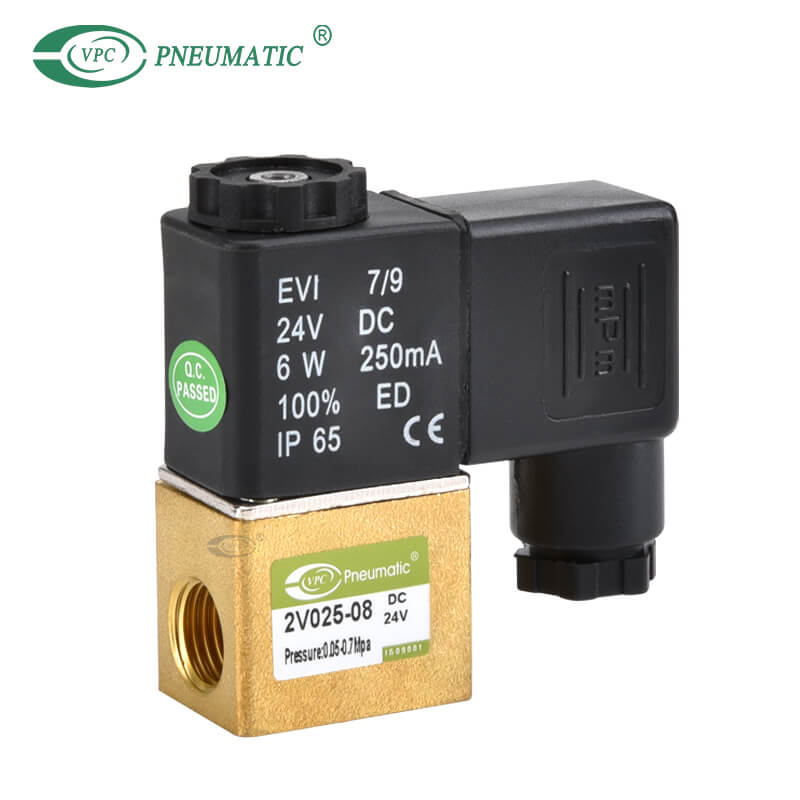

2v 02508 Series Normal Close Brass Pneumatic Solenoid Valve

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
1)Working medium:clean air,polluted water,oil or others 2)Temperature of medium:0~180℃ for optional 3)Working temperature:normal temperature 4)Working pressure:0~5.0Mpa for optional 5)Orifice:0.5mm~50mm for optional 6)Thread size:1/8''~2''Flange 7)Body valve material:Brass,SS304,SS316,Plastic for optional

  • 2V02508

  • VPC

  • 8481802190

Availability:
Inquire Add to Basket

Product Description

Model2V025-082V130-152V250-25
Orifice2.5mm13mm25mm
CV Value0.236.223
Joint sizeG1/4G1/2G1
Acting typeDirect ActingPilot type
Working pressure0-0.8Mpa0.05-0.7Mpa
Max pressure1.2Mpa1.05Mpa
Seal materialNBR/VITONNBR
