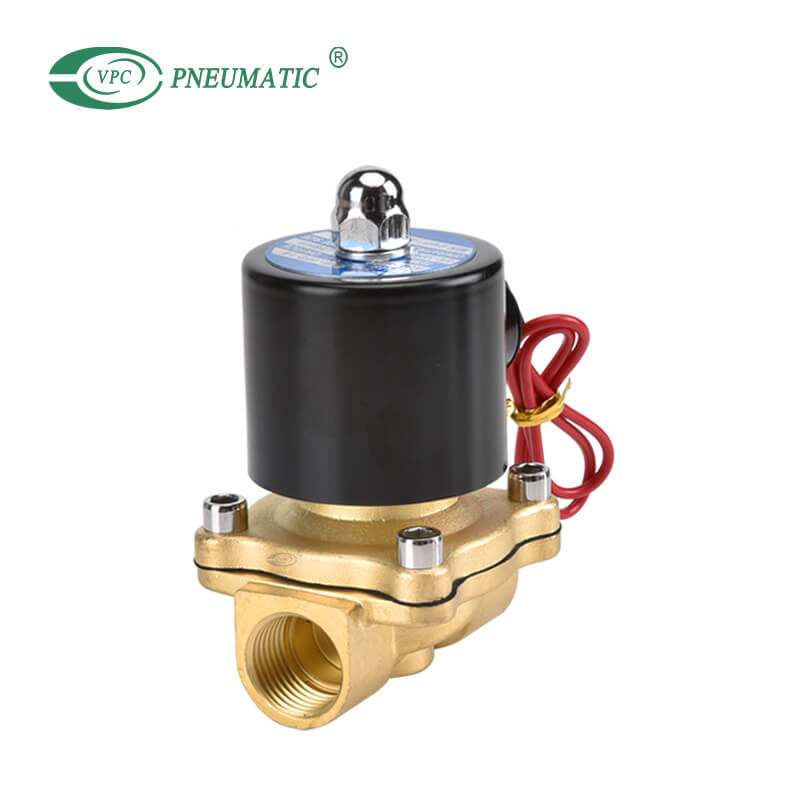

2W160-15
VPC Pneumatic
8481804090
Type: | |
---|---|
Mounting type: | |
Coil Type: | |
Standard voltage: | |
Availability: | |
Product Description
1. Characteristics
① Normally open, open when de-energized,Closed when energized.
② 2W Solenoid valves are capable of operating at zero differential pressure.
2. Applicable Fluids
① Air, Oil, Gas, Water and Low-viscosity liquids.
② EPDM/VITON material seal ring is also available for low corrosive liquid or gas media.
3. Inapplicable Fluids
① Fluids that will turn to liquid after being heated and become solid after being cooled.
② Strong corrosive fluids.
③ Fluids that have kinematic viscosity over 50CST.
Note:
* Make sure the pipe is clean before installing.
* Pls fix a Y frame filter in front of the solenoid valve, for longer life-span.
Note:Only 2W160, 2W200, 2W250 valve can make normal open type.
Product Specifications

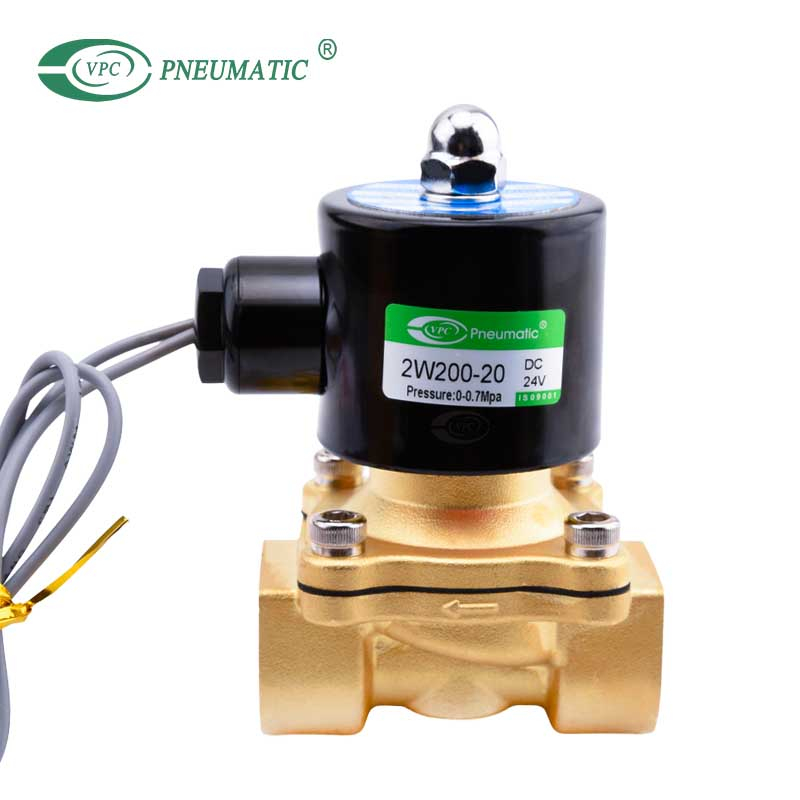

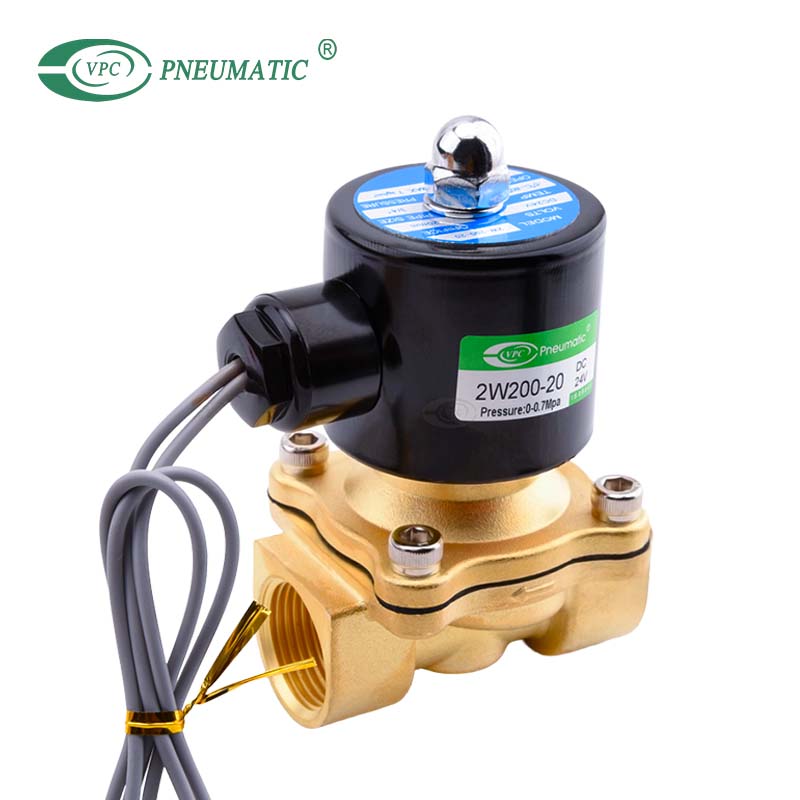

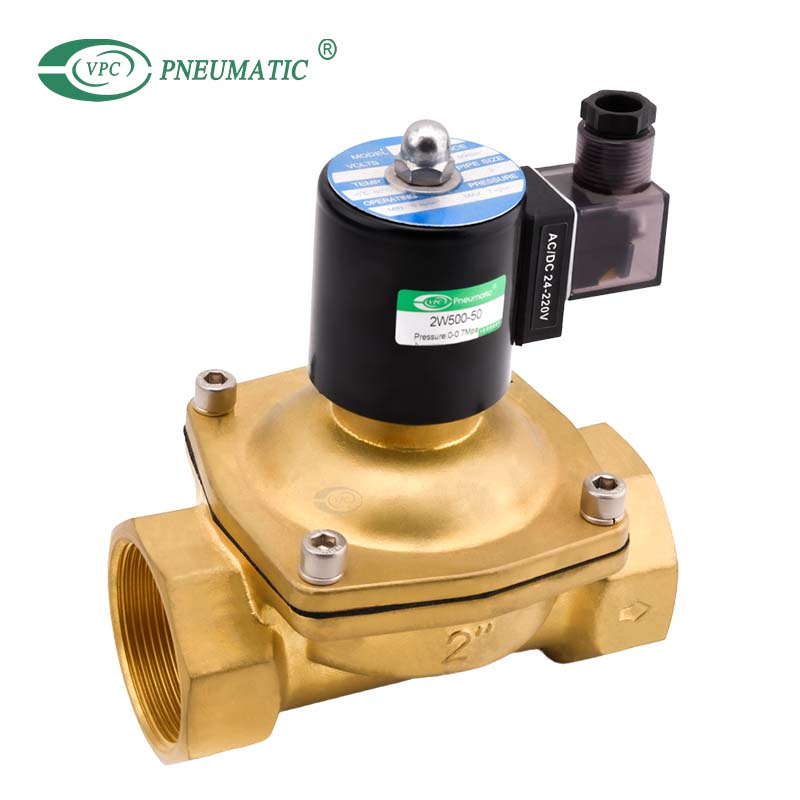

Model | 2W160-10 | 2W160-15 | 2W200-20 | 2W250-25 | 2W350-35 | 2W400-40 | 2W500-50 |
Working medium | Air, Water, Oil, Gas | ||||||
Acting type | Direc acting type | ||||||
Control style | Normal close / Normal open | ||||||
Orifice | 16mm | 20mm | 25mm | 35mm | 40mm | 50mm | |
CV value | 4.8 | 7.6 | 12 | 24 | 29 | 48 | |
Joint size | G3/8" | G1/2" | G3/4" | G1" | G11/4" | G11/2" | G2" |
Working pressure | Air: 0~0.7Mpa Water: 0~0.5Mpa Oil: 0~0.5Mpa Gas: 0~0.7Mpa | ||||||
Max. pressure | 1.05MPa | ||||||
Working temperature | -5~80℃ (The temperature can reach -5~150℃ if change the seal) | ||||||
Valve body | Brass | ||||||
Seal material | NBR, VITON |
Main Dimensions
Model | A (mm) | B (mm) | C (mm) | D (mm) | K (mm) |
2W160-10 | 101.5 | 57 | 117 | 69 | 3/8" |
2W160-15 | 101.5 | 57 | 117 | 69 | 1/2" |
2W200-20 | 107 | 57 | 117 | 69 | 3/4" |
2W250-25 | 111.5 | 73.5 | 134.5 | 99 | 1" |
2W350-35 | 142 | 95 | 172 | 123 | 11/4" |
2W400-40 | 142 | 95 | 172 | 123 | 11/2 |
2W500-50 | 172 | 123 | 209 | 168 | 2" |
Product FAQ
Q1. What is solenoid valve
Solenoid valves are control units which, when electrically energized or de-energized, either shut off or allow fluid flow. The actuator takes the form of an electromagnet. When energized, a magnetic field builds up which pulls a plunger or pivoted armature against the action of a spring.
Q2. How does a solonoid valve work?
Solenoid valves consist of a coil, plunger and sleeve assembly. In normally closed valves, a plunger return spring holds the plunger against the orifice and prevents flow. Once the solenoid coil is energized, the resultant magnetic field raises the plunger, enabling flow.
Q3. How are two way solenoid valves used?
A 2-way solenoid valve has two ports, an inlet and an outlet. Flow direction is critical to ensure proper operation, so there is typically an arrow indicating the flow direction. They are used to start/stop the flow of gas/liquid and are most commonly normally closed. If power fails the valve will close.
Q4. What causes solenoid failure?
Solenoid coil failure can be caused by a number of factors. Applying an incorrect voltage to the coil will cause it to fail and may cause the coil to burn out. Electrical surges or spikes may also damage the coil. Burnt out coils cannot be repaired and will need to be replaced. Check if flow direction matches with the indicators on the valve body or matches within limits as specified in the valve manual.
Contact us for solenoid valve datasheet and price lists!
