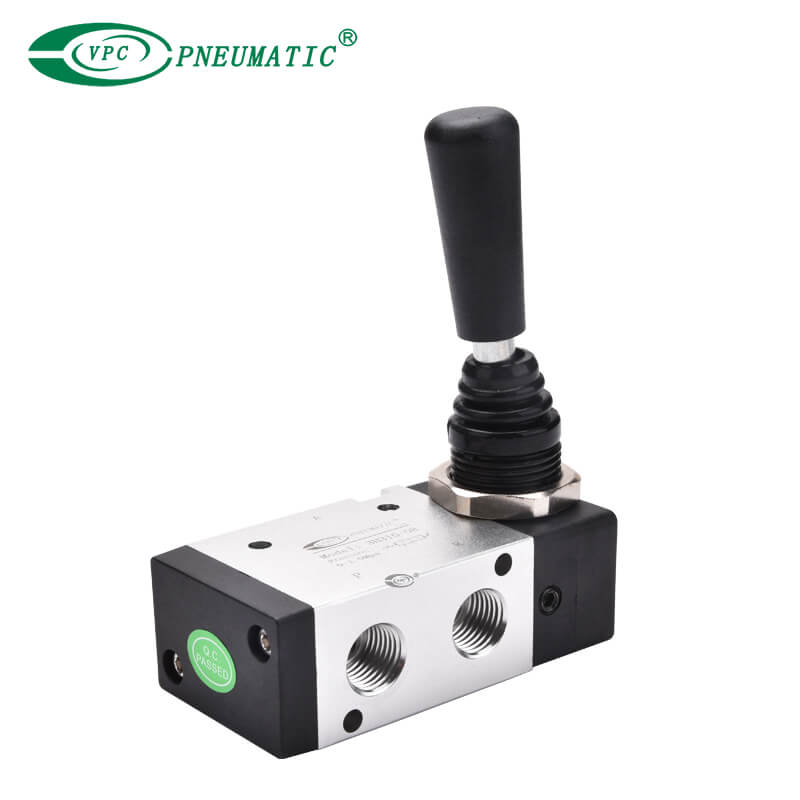

3H Series 2 Position 3 Port Hand Push Valve

  • Manual operation, smooth actuation, and exact and reliable orientation;
  • Siliding column structure has good tightness and light weight and is easy to install and dismount;
  • Internal hole adopts special processing technology which has lttle attrition friction, long service life;
  • No need to add oil for lubrication;
  • Panel-mounting makes it convenient to install and apply.
Working medium:
Working pressure:
Working temperature:
Body Material:
Quality Warranty:
  • 3H210
  • VPC Pneumatic
  • 8412909000

Product Description

hand valve 参数-1

Product Specifications

ModleJoint SizeSectional AreaWorking MediumWorking Pressure

Max.

Pressure

Working TemperatureBody MaterialLubrication
3H110-06G1/8"

12mm2

(CV=0.67)

Clean air0~1.0 Mpa1.5 Mpa-10~60℃Aluminum NO
3H210-06G1/8"

14mm2

(CV=0.78)

3H210-08G1/4"

16mm2

(CV=0.89)

3H310-08G1/4"

25mm2

(CV=1.39)

3H310-10G3/8"

30mm2

(CV=1.67)

3H410-10G3/8"

40mm2

(CV=2.23)

3H410-15G1/2"

50mm2

(CV=2.79)

4H110-06G1/8"

12mm2

(CV=0.67)

4H210-06G1/8"

14mm2

(CV=0.78)

4H210-08G1/4"

16mm2

(CV=0.89)

4H310-08G1/4"

25mm2

(CV=1.39)

4H310-10G3/8"

30mm2

(CV=1.67)

4H310-10G3/8"

40mm2

(CV=2.23)

4H410-15G1/2"

50mm2

(CV=2.79)

4H130C-06G1/8"

9mm2

(CV=0.5)

4H230C-08G1/4"

12mm2

(CV=0.67)

4H330C-10G3/8"

18mm2

(CV=1.00)

4H430C-10G1/2"

30mm2

(CV=1.67)


Main Dimensions

hand valve 参数-2
