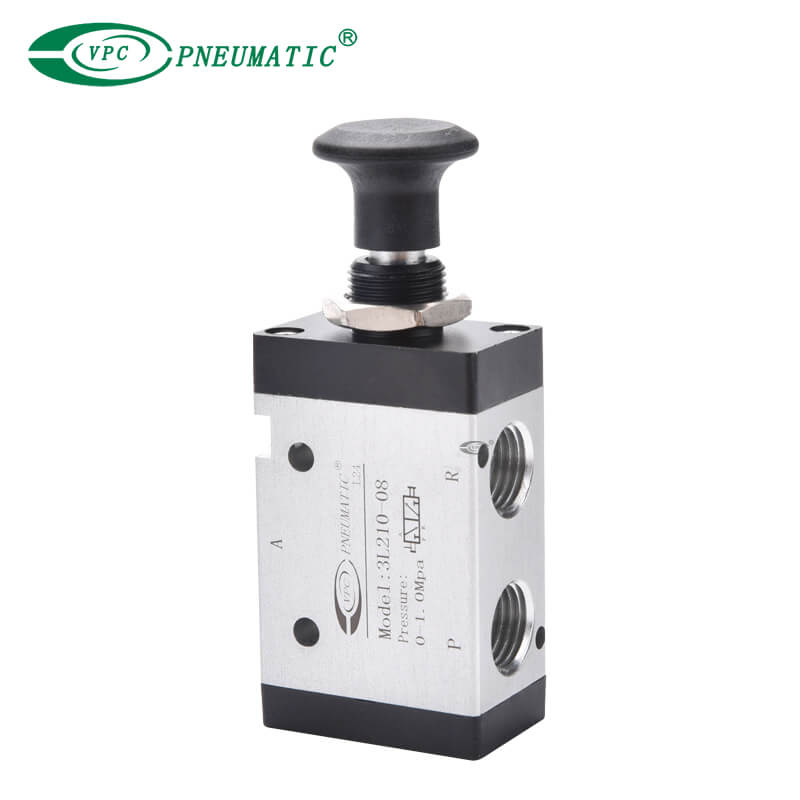

3L Series 2 Position 3 Port Hand Pull Valve

Share to:
  • Manual control valve, same direction with the spool. Easy control, precise and reliability;
  • Spool type design, excellent sealing performance, compact size, lighter weight, easy repairing;
  • Special surface finishing in inner surface. Low friction, low pressure starting, durable;
  • Lubrication is not necessary;
  • Multi mounting position, easy to fix.
  • 3L 210
  • VPC Pneumatic
  • 8412909000
Acting type:
Working pressure:
Working temperature:
Body Material:
Availability:

Product Description

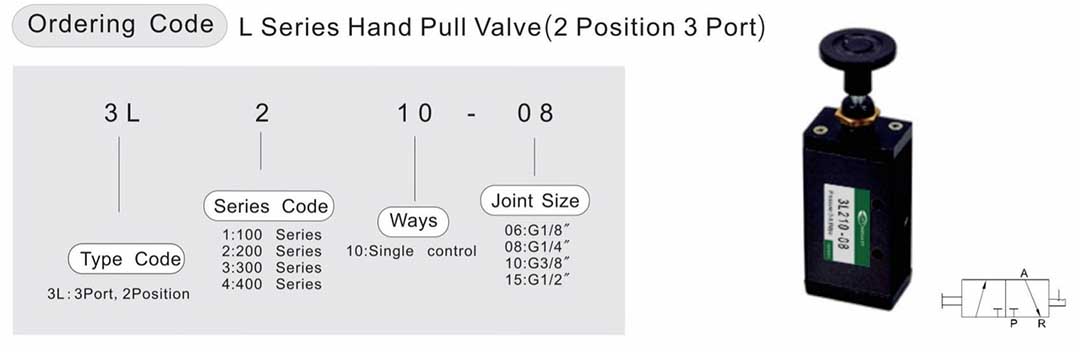

3L 参数-1

Product Specifications

Model3L110-063L210-063L210-083L310-083L310-103L410-103L410-15
Working mediumClean air
Acting typeDirect acting
Joint sizeG1/8"G1/4"
G3/8"
G1/2"
Ways
2 Position 3 Port
LubricationNo
Working pressure0 to 0.8Mpa
Max. pressure1.5Mpa
Working temperature-20 to 70℃
Body materialAluminum
Seal materialNBR

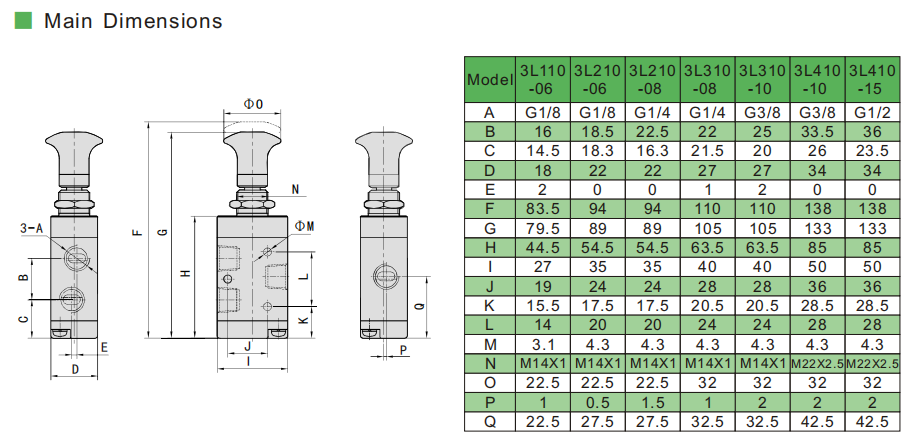

Main Dimensions

3L hand valve
