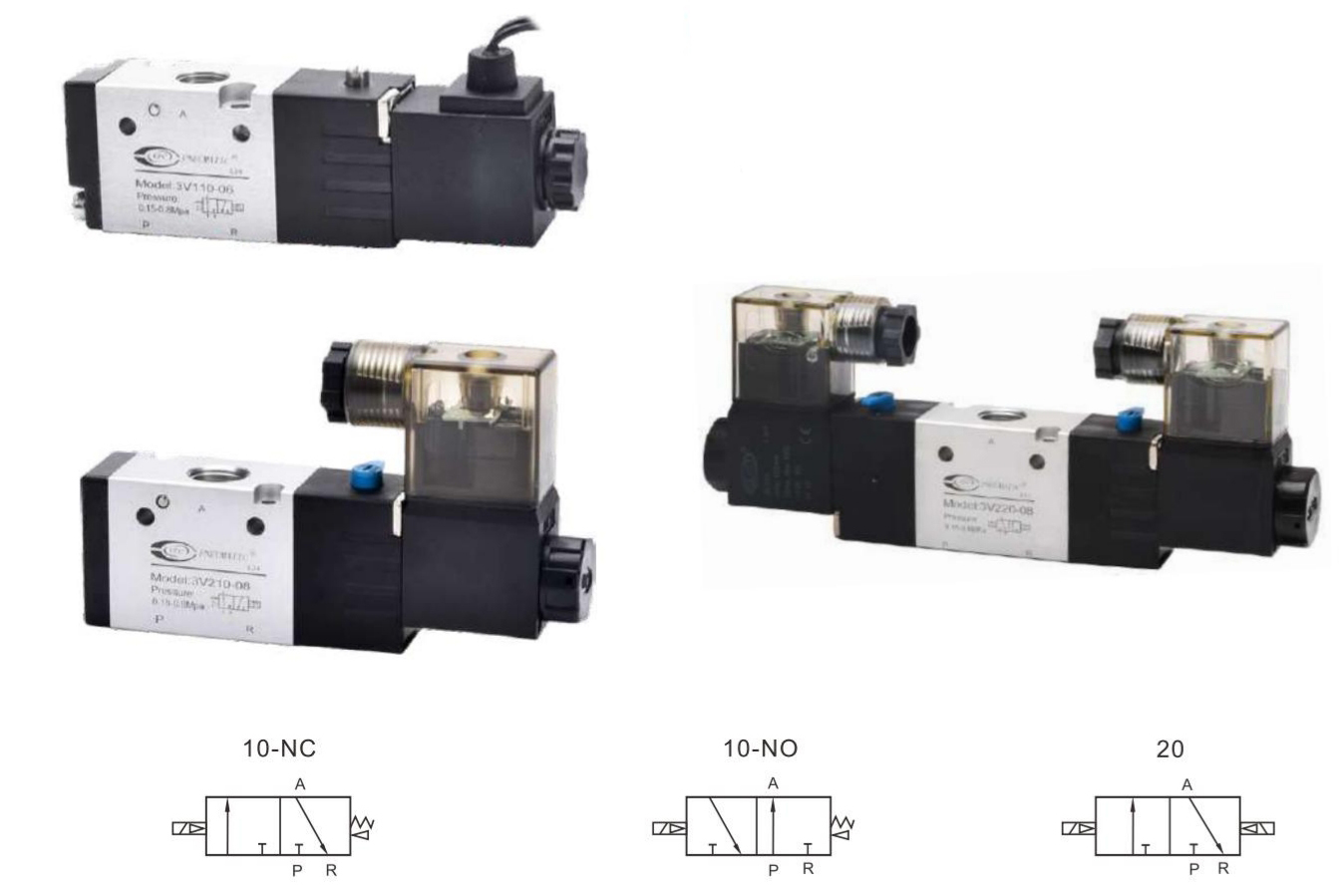

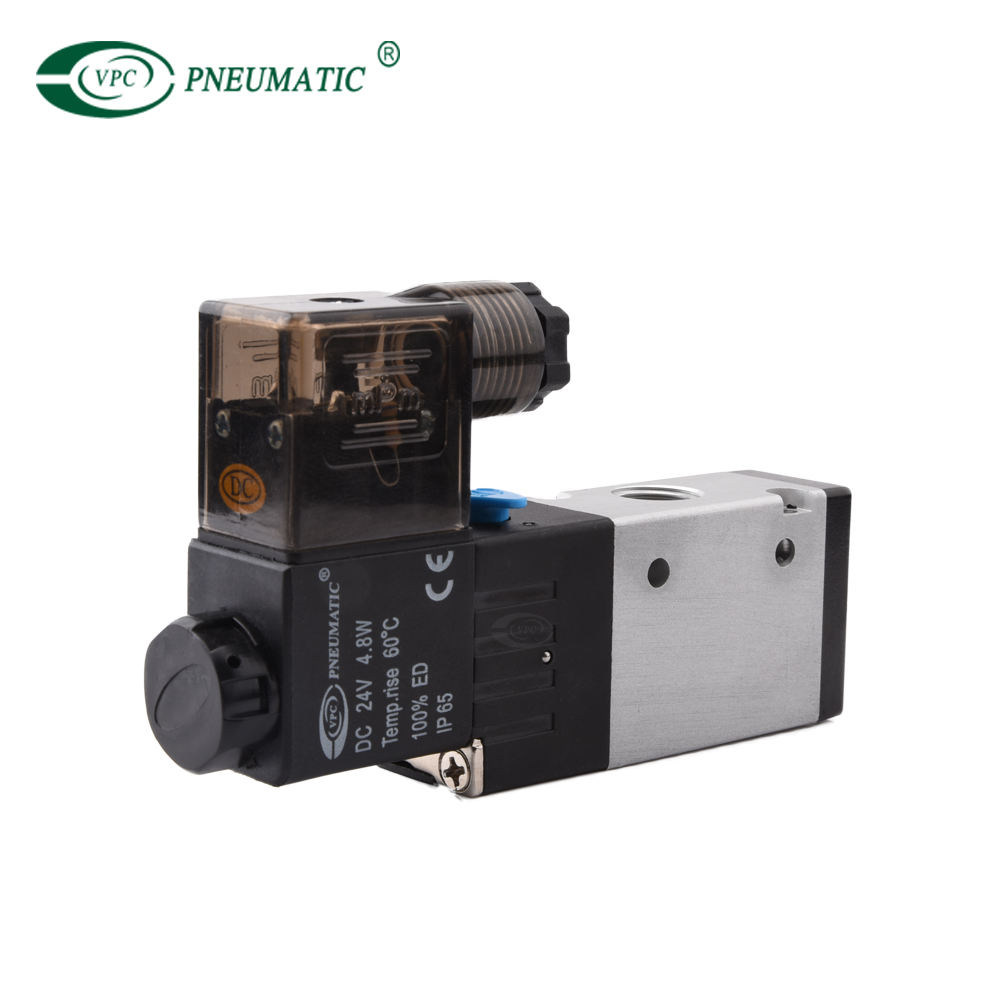

3V Series 2 Position 3 Port Single Control Solenoid Valve

1. Pilot-oriented mode:Internal pilot or external pilot.
2. Structure in sliding column mode: good tightness and sensitive reaction.
3. Double control solenoid valves have memory function.
4. Internal hole adopts special processing technology which has lttle attrition friction, low start
pressure and long service life.
5. No need to add oil for lubrication.
6. Affiliated manual devices are equipped to facilitate installation and debugging.
7. Several standard voltage grades are optional.
8. Integrate with the manifold to save installation space.
Working medium:
Acting type:
Working temperature:
Working pressure:
Quality Warranty:
  • 3v110
  • VPC Pneumatic
  • 8412909000

Product Description

3V 参数-100

Product Specifications

Model3V110-M53V110-063V210-063V210-083V310-083V310-103V410-15
Working mediumClean air
Acting typeInternal Guide
Joint sizeImport=M5
Export=M5
Import=1/8
Export=1/8
Import=1/8
Export=1/8
Import=1/4
Export=1/4
Import=1/4
Export=1/4
Import=3/8
Export=3/8
Import=1/2
Export=1/2
Sectional area
5.5mm²
(CV=0.31)
12mm²
(CV=0.67)
14mm²
(CV=0.78)
16mm²
(CV=0.89)
25mm²
(CV=1.39)
30mm²
(CV=1.67)
    50mm²
(CV=2.79)
Working pressure0.15 to 0.9Mpa
Max.Working pressure1.2Mpa
Working temperature-5 to 60℃
Valtage tolerance-15% to 10%
Heat resistant gradeB
Protective classIP65(DIN40050)
Coil typeDin type   Flying leads
Max acting frequency5 times/s4 times/s


Main Dimensions

3V 参数2-100
