3M Series 2 Position 3 Port Solenoid Valve

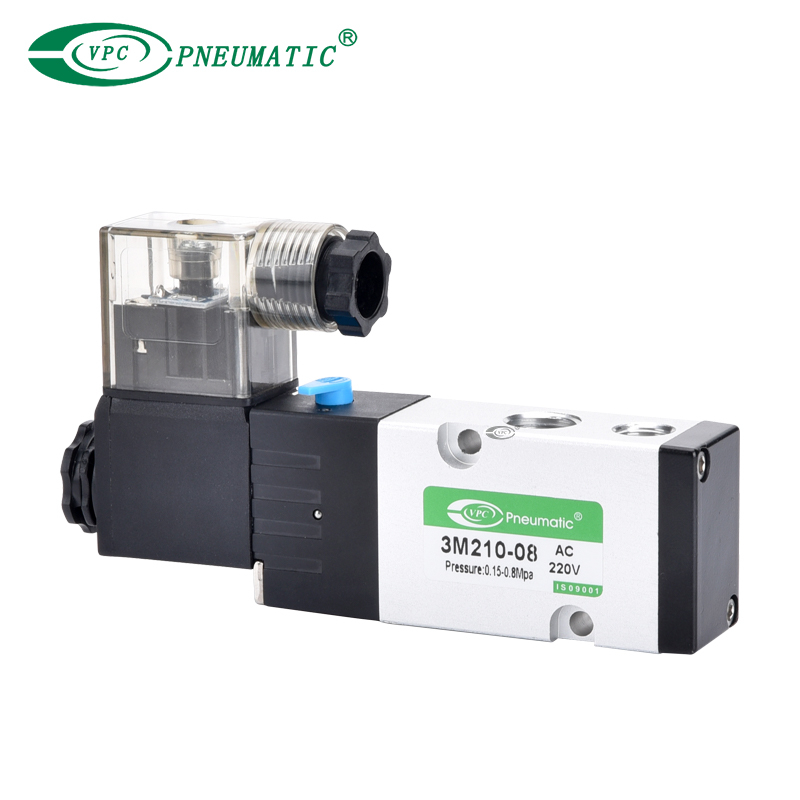

3M Series 2 Position 3 Port Namur Valve

The function of a NAMUR solenoid valve is to control media flow: the valve itself is controlled by an electric solenoid, which opens or closes the valve, by controlling the amount of air--via a pilot--to the pneumatic actuator. A pneumatic actuator converts energy--compressed air--into motion. The solenoid and actuator work in tandem to control flow speed, flow amount, and flow direction. Likewise, the valve is operated in either the normally closed, or normally open position.

Model:
3M210-08
Brand:
VPC Pneumatic
Code:
8412909000

Acting type:	Internal guide
Working pressure:	0.15 to 0.9Mpa
Working temperature:	-5 to 60℃
Coil Type:	Din type Flying leads
Max.Acting Frequency:	4 times/s
Availability:



Inquire Add to Basket

Product Description

■ Symbol

namur solenoid valves

Product Specifications

Model	3M110-M5	3M110-06	3M210-06	3M210-08	3M310-08	3M310-10	3M410-10	3M410-15
	3M120-M5	3M120-06	3M220-06	3M220-08	3M320-08	3M320-10	3M420-10	3M420-15
Working medium	Clean air
Acting type	Internal guide
Joint size	Import=M5	Import=1/8	Import=1/8	Import=1/4	Import=1/4	Import=3/8	Import=3/8	Import=1/2
	Export=M5	Export=1/8	Export=1/8	Export=1/4	Export=1/4	Export=3/8	Export=3/8	Export=1/2
Sectional area	5.5mm² (CV=0.31)	12mm² (CV=0.67)	14mm² (CV=0.78)	16mm² (CV=0.89)	25mm² (CV=1.4)	30mm² (CV=1.68)	30mm² (CV=1.68)	50mm² (CV=2.79)
Working pressure	0.15 to 0.9Mpa
Max. pressure	1.2Mpa
Working temperature	-5 to 60℃
Voltage range	-15% to 10%
Heat resistant grade	B
Protective class	IP65(DIN40050)
Coil Type	Din type, Flying leads
Max. Acting Frequency	4 times/s
