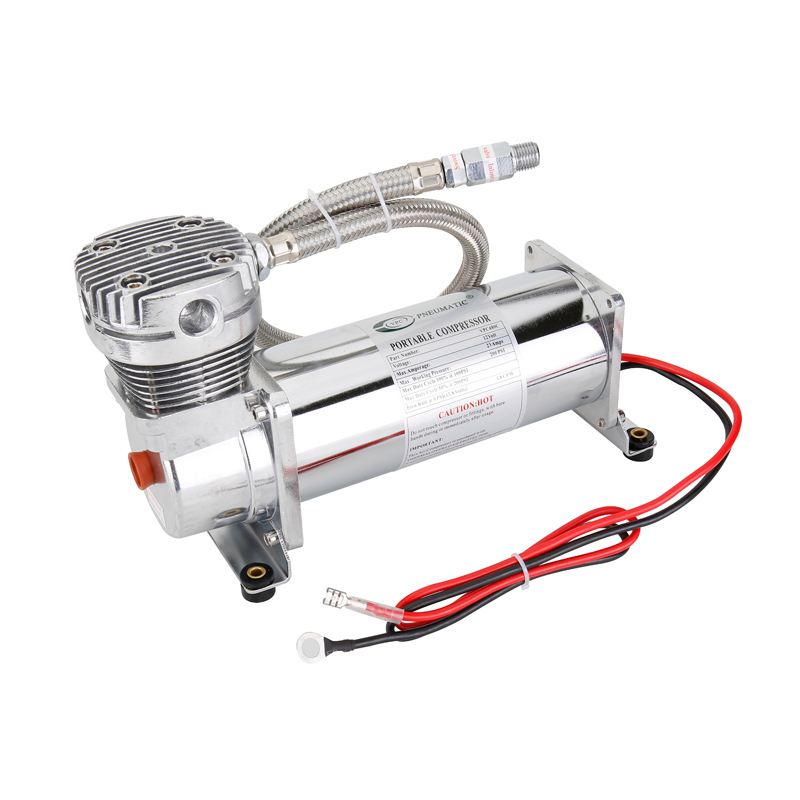

480C Air Compressor

Name: 480C Air Compressor
Brand: VPC Pneumatic
Rating: 5.0 (83 reviews)

Product Name: 480C air compressor Flow Rate: 1.8 CFM@0PSI, 3.5 CFM@200PSI Voltage: 12 Volt Duty Cycle:100% @ 100PSI Duty Cycle:50% @ 200PSI Max Working Pressure :200PSI Max Amp Draw: 42Amps Check Valve Thread: 1/4”, 3/8" Metal Hose dimension: 17mm*0.5m Net Weight:5.5kgs/pc Dimension(L x W x H ): 325 x 145 x 225mm

Model:
480C
Brand:
VPC Pneumatic

Availability:



Inquire Add to Basket

Product Description

Product Description

480c air ride compressor

■ Product Specifications

Product Name	480C Portable Air Compressor
Voltage	DC 12V
Motor Type	Permanent Magnetic Motor
Max. Amperage	23A
Max. Working Pressure	200PSI (1.37Mpa)
Max. 12V Amp Draw	23Amps
Duty Cycle	100% @ 100PSI (50% @ 200 PSI)
Ingress Protection Rating	IP67
Max. Air Tank Size	5.0 Gallon
Metal Hose	Ø14mm x 0.5m
Check Valve Threads	1/4"G, 1/4''NPT, 3/8''G, 3/8''NPT
Air Tank	2.5 Gallon Tank	5 Gallon Tank
Main Dimension(LWH)	10.87" L x 4.2" W x 6.75" H
Net Weight(Kgs)	6.0kgs
