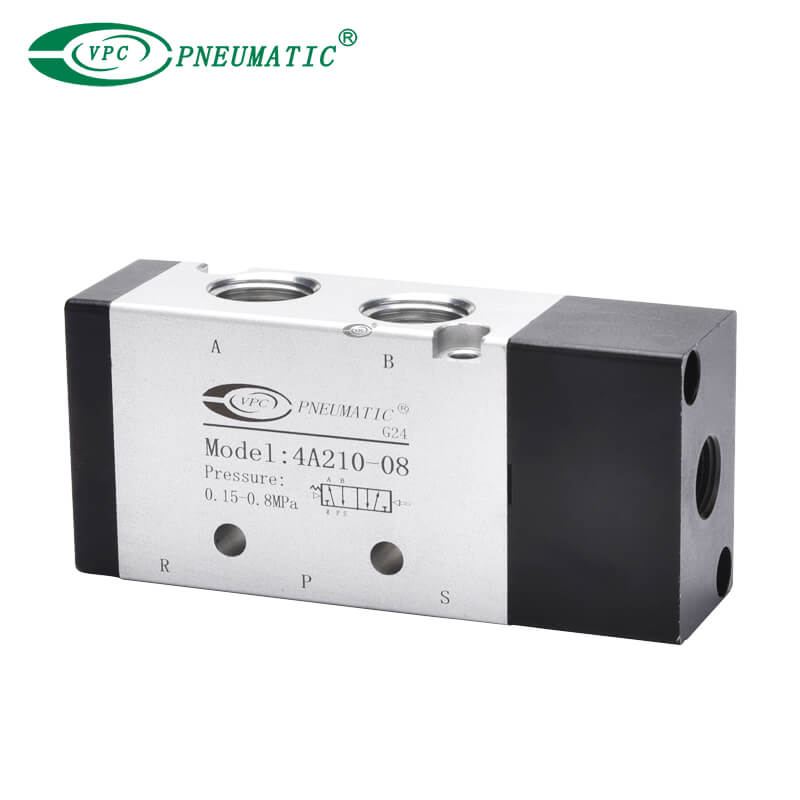

4A Series 2 Position 5 Port Double Acting Air Control Valve

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • Stable life cycle,guaranteed 10,000,0000 times;
  • Various voltage and working style are available;
  • Different surface treatment,thread types(G、NPT、PT、BSPP、BSPT)are available.

  • 4A120

  • VPC Pneumatic

  • 8412909000

Acting type:
Internal guide
Working pressure:
0.15 to 0.8Mpa
Working temperature:
-5 to 60℃
Max.Acting Frequency:
3 to 5times/s
Body Material:
Aluminum
Availability:
Inquire Add to Basket

Product Description

4A 参数-1

Product Specifications

Model

4A120-M5
4A120-064A220-064A220-084A320-084A320-104A420-104A420-15
Working mediumClean air
Acting typeInternal guide


Joint size

Import=M5Import=1/8Import=1/8Import=1/4Import=1/4Import=3/8Import=3/8Import=1/2
Export=M5Export=1/8Export=1/8Export=1/4Export=1/4Export=3/8Export=3/8Export=1/2
Exhaust=M5
Exhaust=1/8Exhaust=1/8Exhaust=1/8Exhaust=1/4Exhaust=1/4Exhaust=3/8Exhaust=1/2
Sectional area
5.5mm²

(CV=0.31)

12mm²

(CV=0.67)

14mm²

(CV=0.78)

16mm²

(CV=0.89)

25mm²

(CV=1.4)

30mm²

(CV=1.68)

30mm²

(CV=1.68)

50mm²

(CV=2.79)

Working pressure0.15 to 0.8Mpa
Max. pressure1.2Mpa
Working temperature-5 to 60℃
Ways
2 Position 5 Port
Body MaterialAluminum
LubricationNo
Max.Acting Frequency5 times/s4 times/s3 times/s



Main Dimensions

4A 参数-3
