Home / Products / Directional Valve / F Series Foot Valve / 4F Series 4 Port 2 Position Foot Pedal Valve

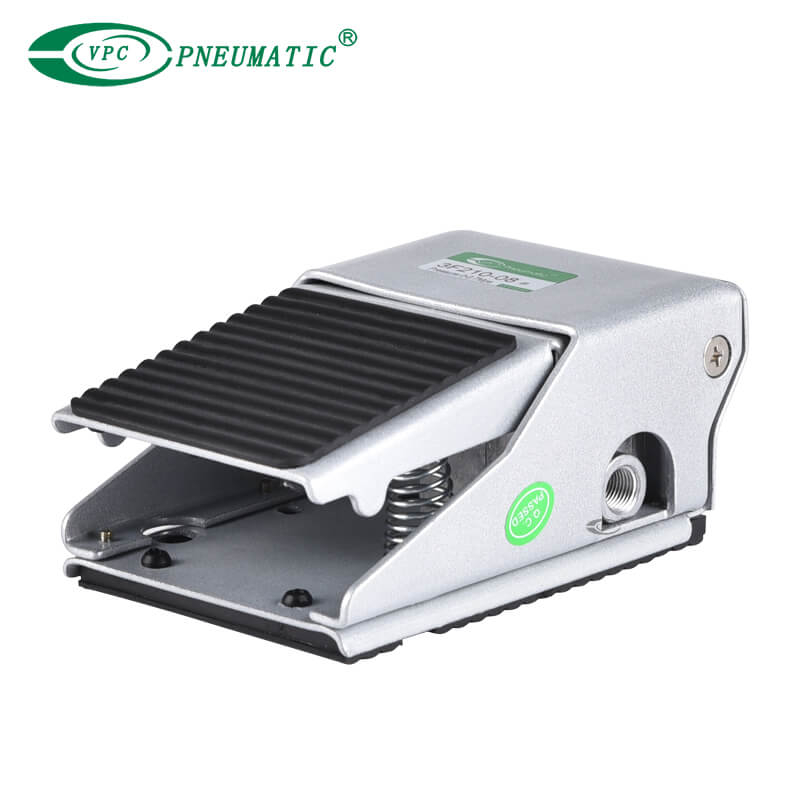

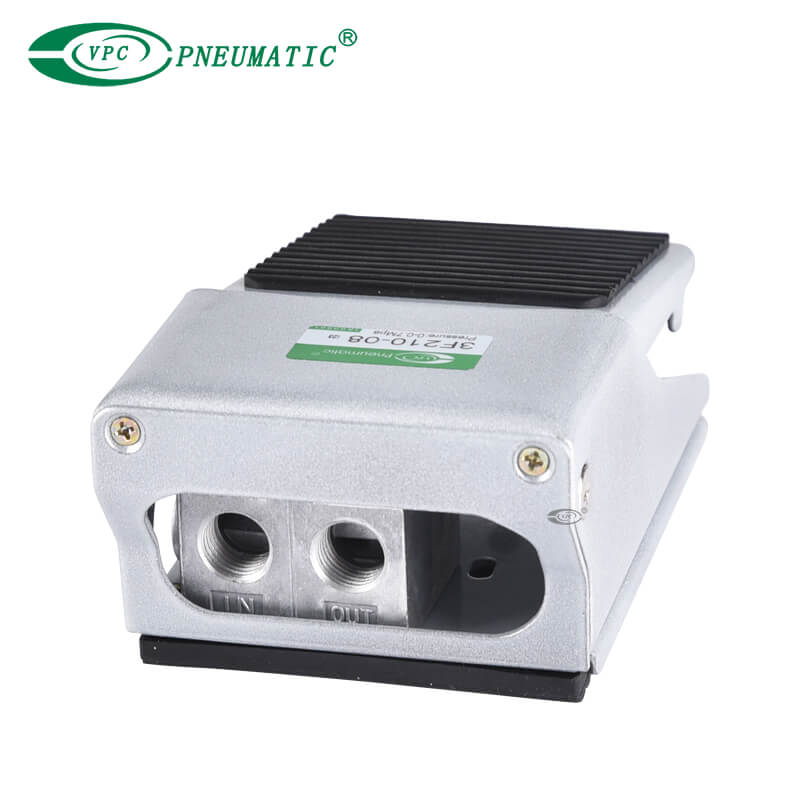

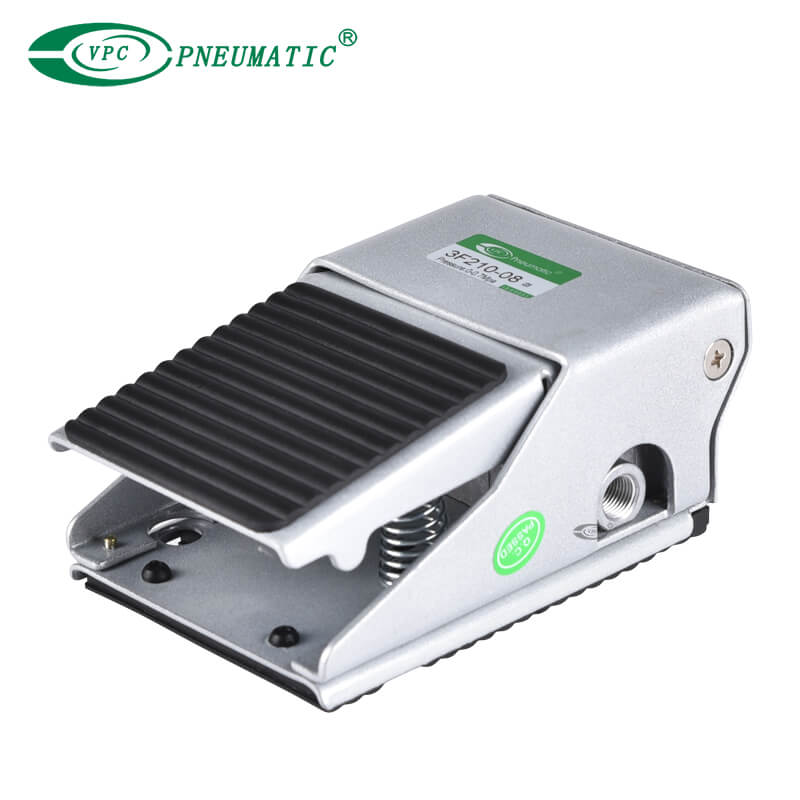

4F Series 4 Port 2 Position Foot Pedal Valve

  • The aluminum foot pedal is designed with direct acting, which is steady and reliable.
  • If the duration of direction-change is long, the valves with lock may be ed.
  • The clamping framework is steady and reliable that it is easy and quick to unlock. However,with the limitation of the dimension of structure, it can not bear frequent strong impact.
  • Plastic guard with high strength may be ed.
Working medium:
Acting type:
Working pressure:
Working temperature:
Joint size:
  • 4F210-08M
  • VPC Pneumatic
  • 8412909000

Product Description

4F 参数

Main Dimensions

Model3F210-084F210-08M4F210-084F210-08L4F210-08C4F210-08LC
Working MediumClean Air
Acting TypeExternal Control
Ways3 Port 2 Position4 Port 2 Position5 Port 2 Position
Working Pressure

0 to 0.7Mpa

Max.pressure1.2Mpa
Working Temperature-5 to 60℃
Joint SizeG1/4"


Main Dimensions

4F脚踏阀参数-1
