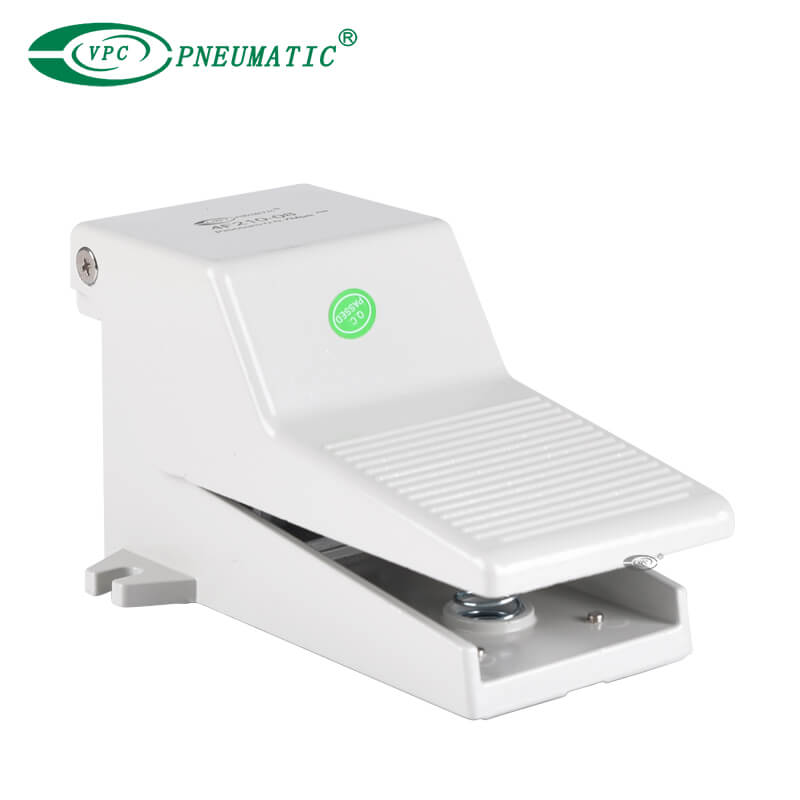

4F Series 5 Port 2 Position Foot Pedal Valve,Standard

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • The aluminum foot pedal is designed with direct acting, which is steady and reliable.
  • If the duration of direction-change is long, the valves with lock may be ed.
  • The clamping framework is steady and reliable that it is easy and quick to unlock. However,with the limitation of the dimension of structure, it can not bear frequent strong impact.
  • Plastic guard with high strength may be ed.

  • 4F210-08

  • VPC Pneumatic

  • 8412909000

Working medium:
Clean air
Acting type:
External Control
Working pressure:
0 to 0.7Mpa
Working temperature:
-5 to 60℃
Joint size:
G1/4"
Availability:
Inquire Add to Basket

Product Description

4F 参数

Main Dimensions

Model3F210-084F210-08M4F210-084F210-08L4F210-08C4F210-08LC
Working MediumClean Air
Acting TypeExternal Control
Ways3 Port 2 Position4 Port 2 Position5 Port 2 Position
Working Pressure

0 to 0.7Mpa

Max.pressure1.2Mpa
Working Temperature-5 to 60℃
Joint SizeG1/4"


Main Dimensions

4F脚踏阀参数-1

4F脚踏阀参数-2
