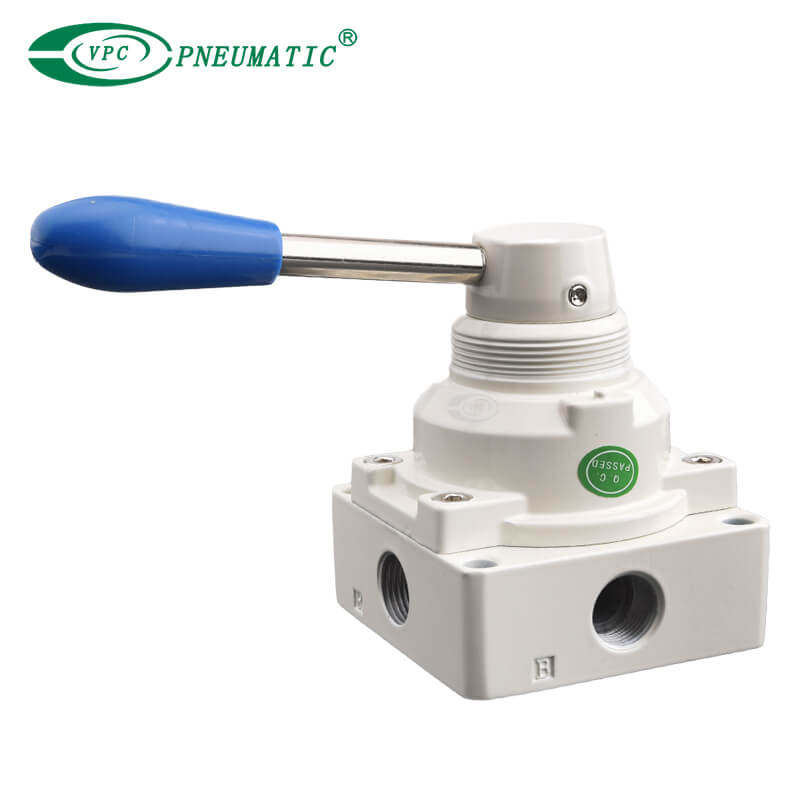

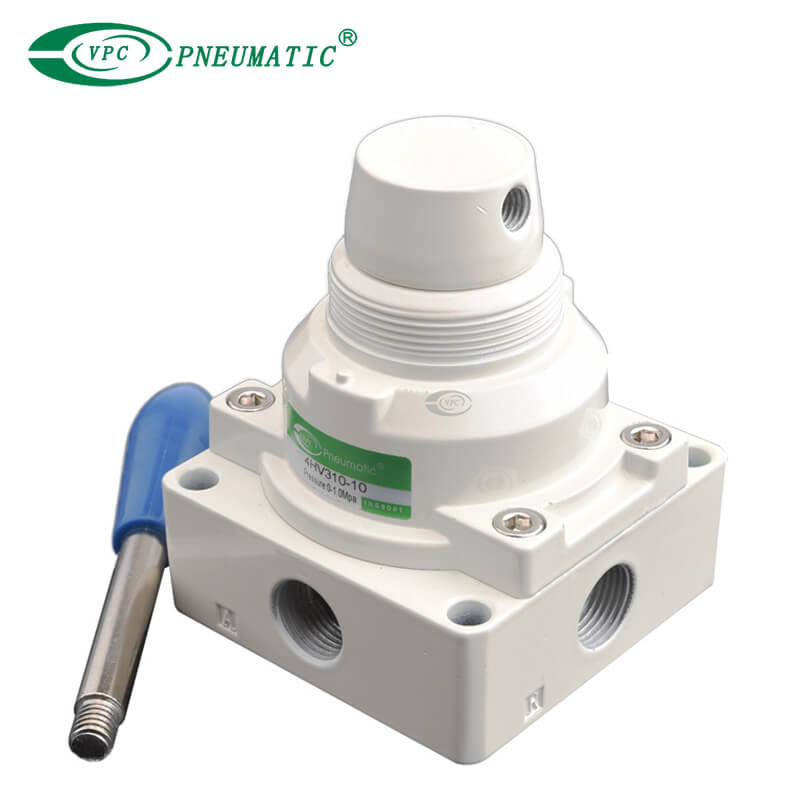

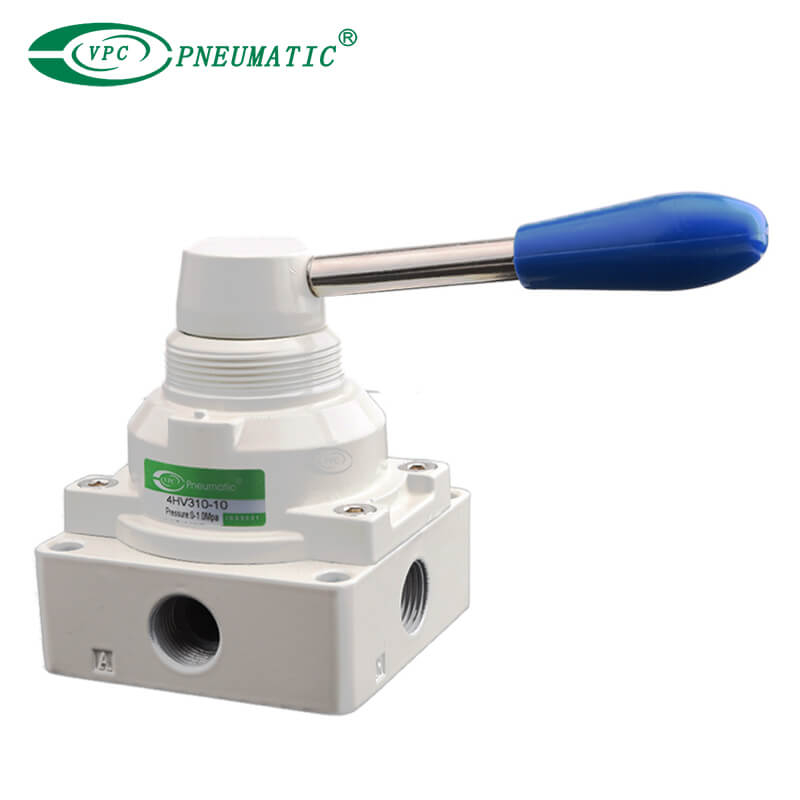

4HV Series Rotary Valve

Share to:
  • The direction-change turns lightly with good hand feeling and exact orientation;
  • Large effective circulating area leads to little pressure loss;

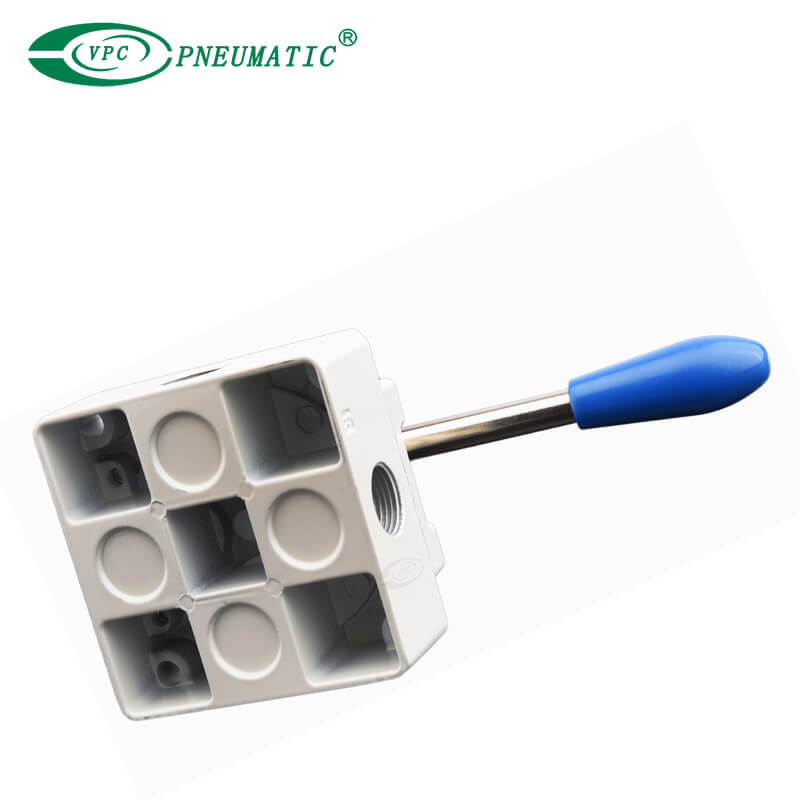

  • Panel and body installation are optional. The panel installation can be attached with installing nut.
  • 4HV
  • VPC Pneumatic
  • 8412909000
Working medium:
Working pressure:
Working temperature:
Working angle:
Ways:
Availability:

Product Description

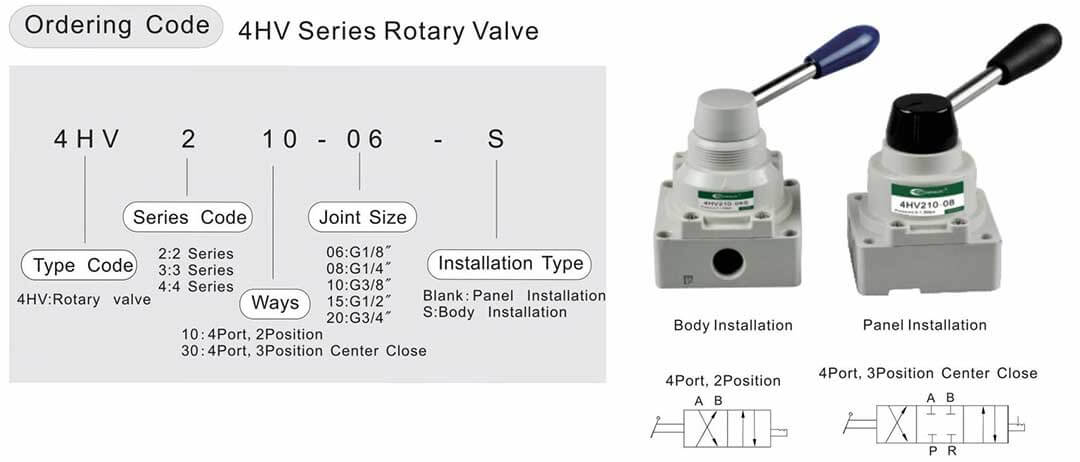

4HV 参数-1

Product Specifications

Model4HV2□□-064HV2□□-084HV3□□-084HV3□□-104HV4□□-154HV4□□-20
Working MediumClean Air
Acting TypeExternal Control
Ways4 Port 2 Position,4 Port 3 Position
Joint SizeG1/8"G1/4"G3/8"G1/2"G3/4"
Sectional Area

14mm

(CV=0.78)

16mm

(CV=0.89)

30mm

(CV=1.67)

33mm

(CV=1.83)

88mm

(CV=4.89)

95mm

(CV=5.27)

Working Pressure0 to 1.0Mpa
Guarantee Pressure1.5Mpa
Working Temperature-20 to 70℃
Working Angle90°

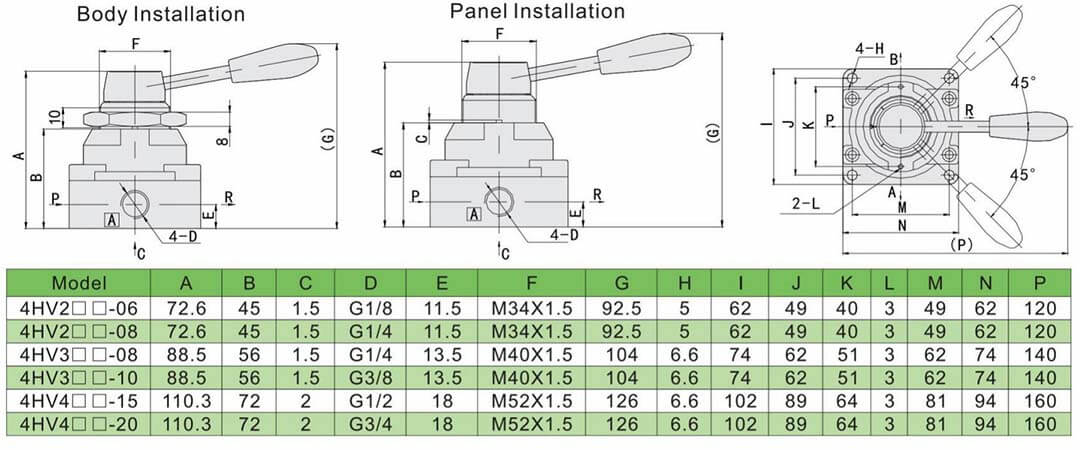

Main Dimensions

4HV 参数-2
