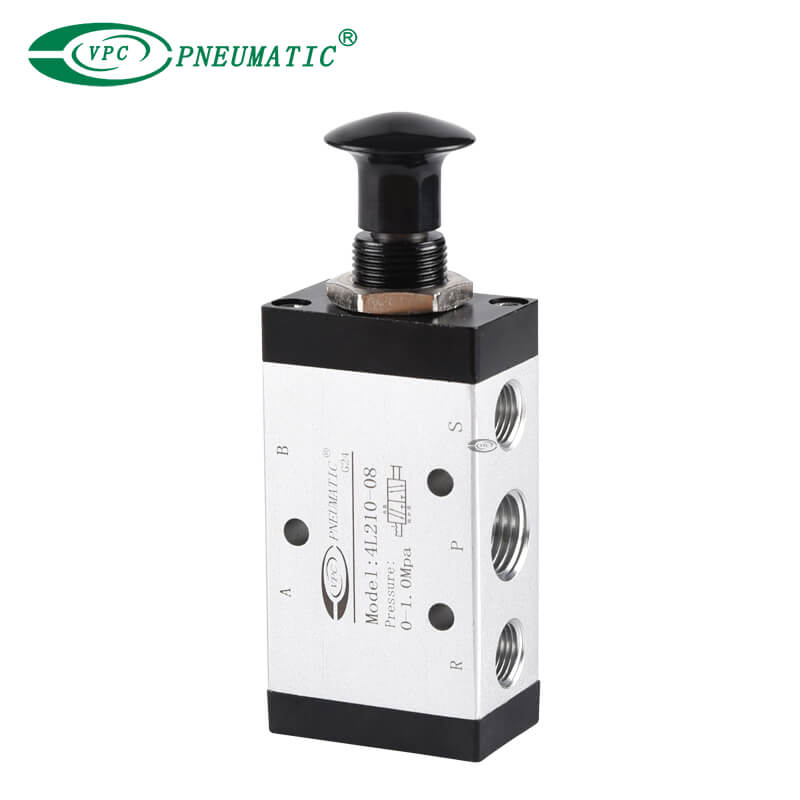

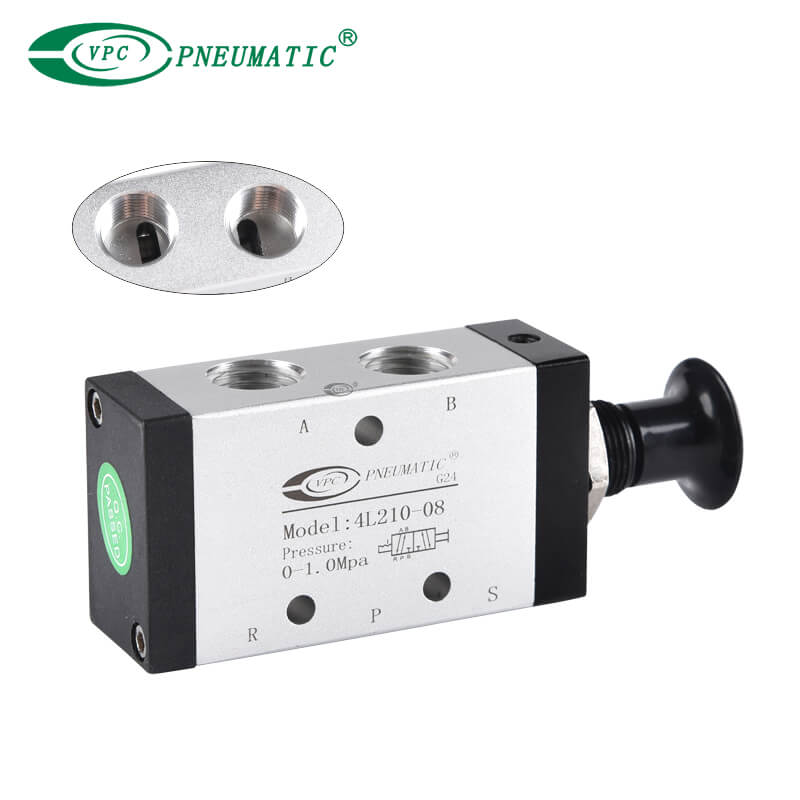

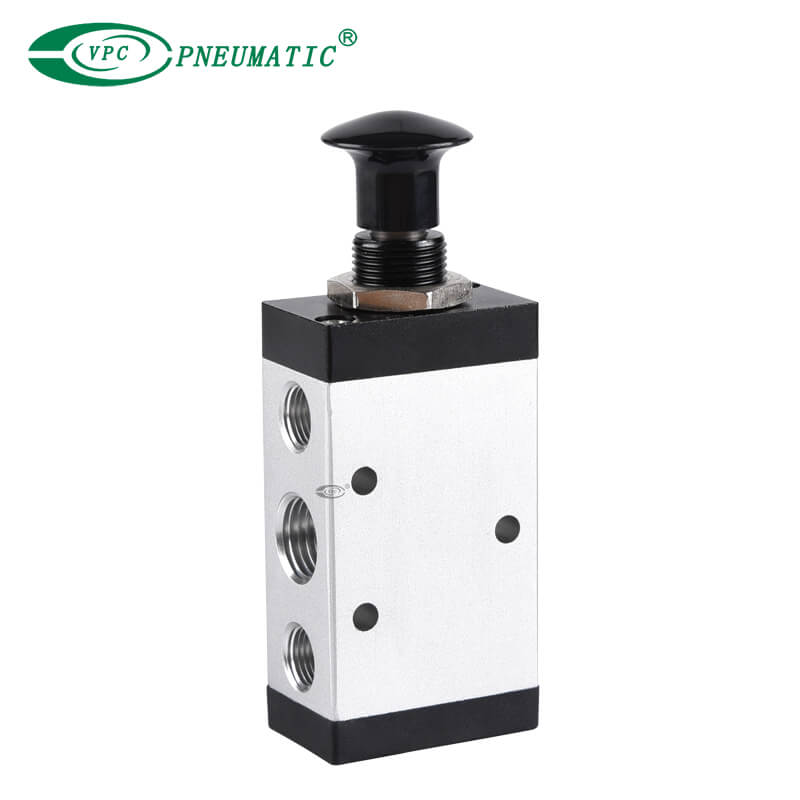

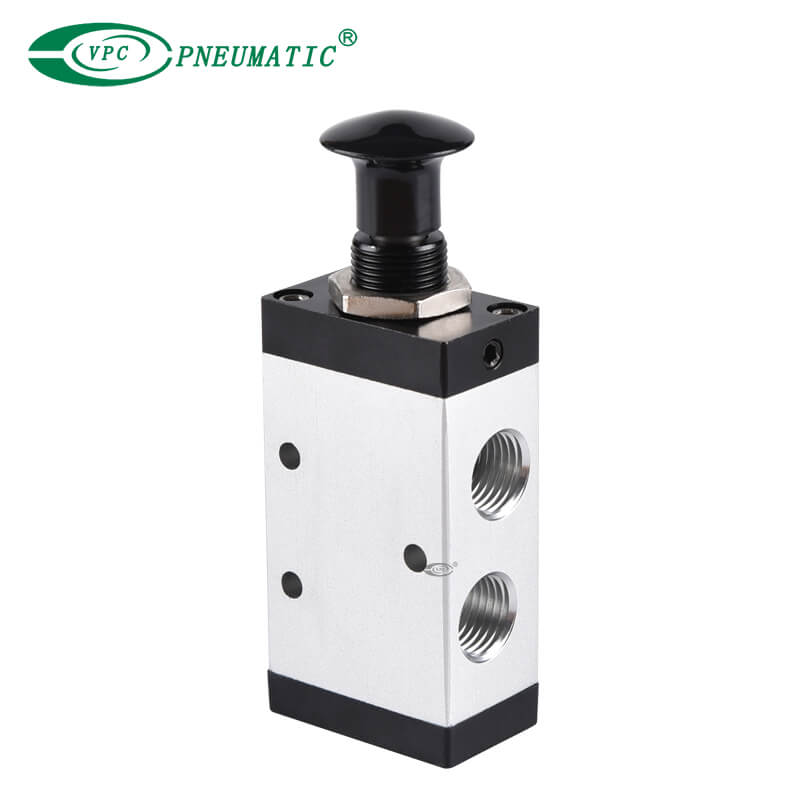

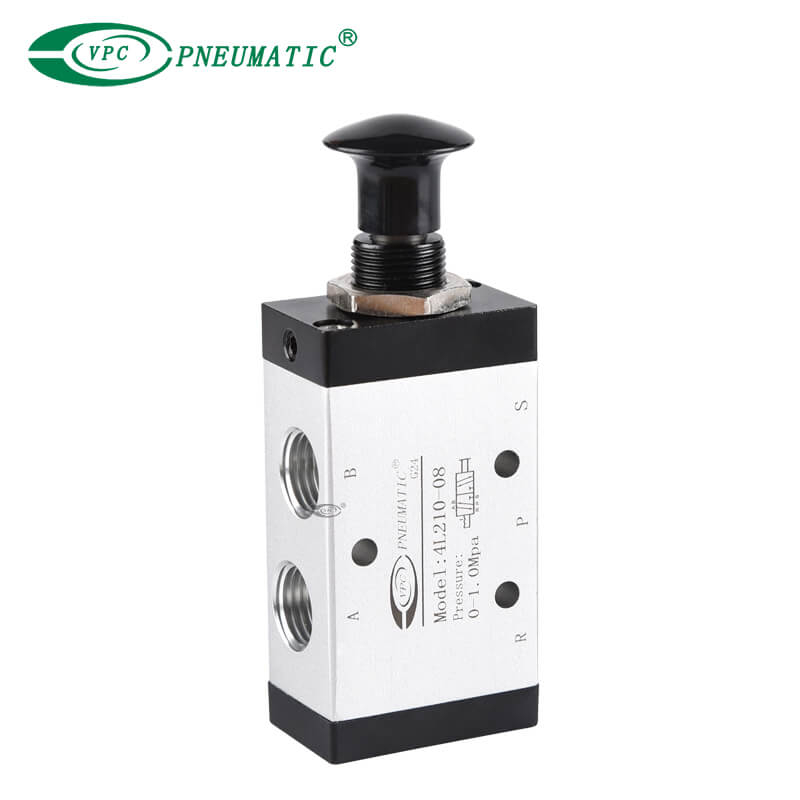

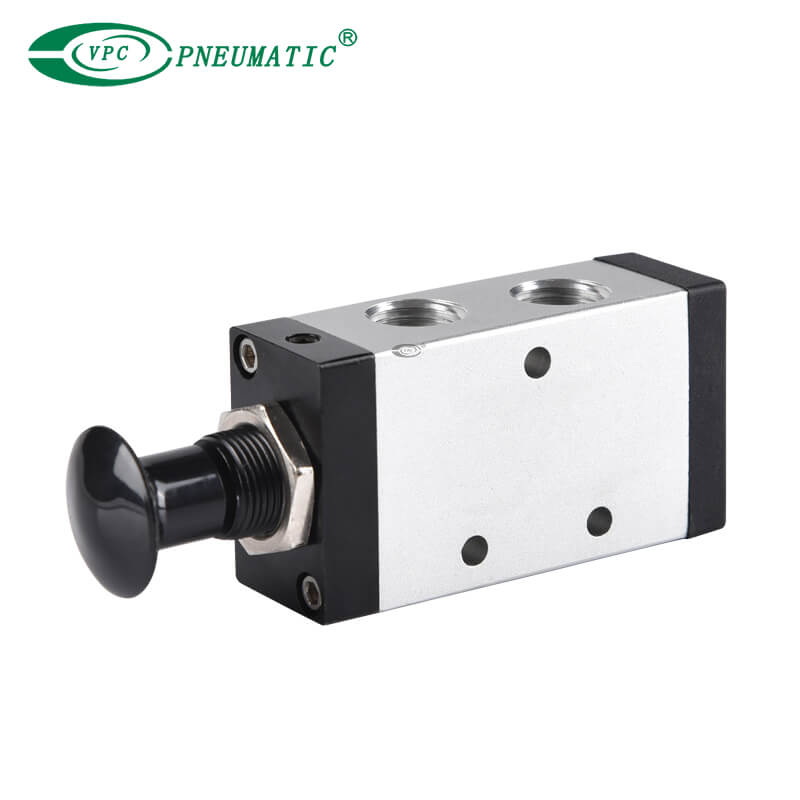

4L Series 2 Position 5 Port Hand Pull Valve

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • Manual control valve, same direction with the spool. Easy control, precise and reliability;
  • Spool type design, excellent sealing performance, compact size, lighter weight, easy repairing;
  • Special surface finishing in inner surface. Low friction, low pressure starting, durable;
  • Lubrication is not necessary;
  • Multi mounting position, easy to fix.

  • 4L210-08

  • VPC Pneumatic

  • 8412909000

Acting type:
Direct acting
Working pressure:
0 to 0.8Mpa
Working temperature:
-20 to 70℃
Body Material:
Aluminum
Availability:
Inquire Add to Basket

Product Description

5 3 way hand air valve

Product Specifications

Model4L110-064L210-064L210-084L310-084L310-104L410-104L410-15
Working mediumClean air
Acting typeDirect acting
Joint sizeG1/8"G1/4"
G3/8"
G1/2"
Ways
2 Position 5 Port
LubricationNo
Working pressure0 to 0.8Mpa
Max. pressure1.5Mpa
Working temperature-20 to 70℃
Body materialAluminum
Seal materialNBR

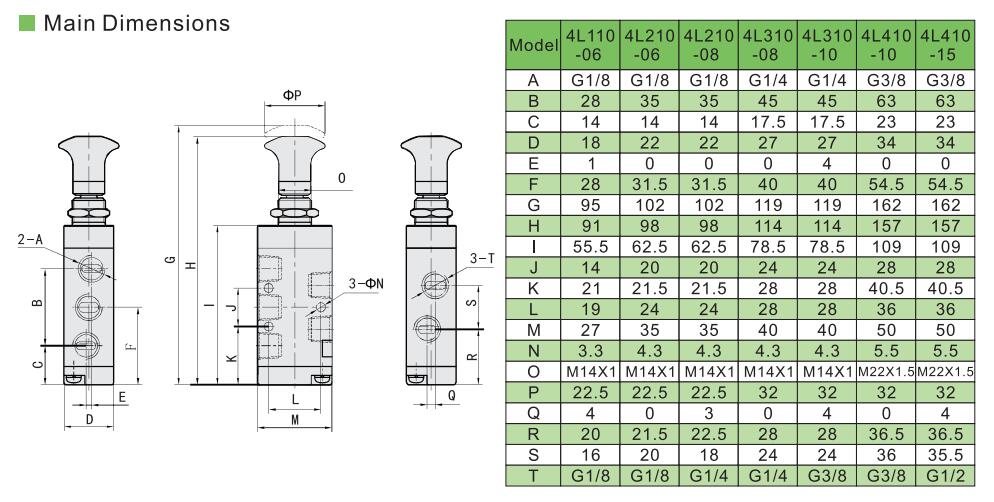

Main Dimensions

5 3 solenoid valve
