| Acting type: | |
|---|---|
| Working pressure: | |
| Working temperature: | |
| Coil Type: | |
| Max.Acting Frequency: | |
Product Description
Product Specifications

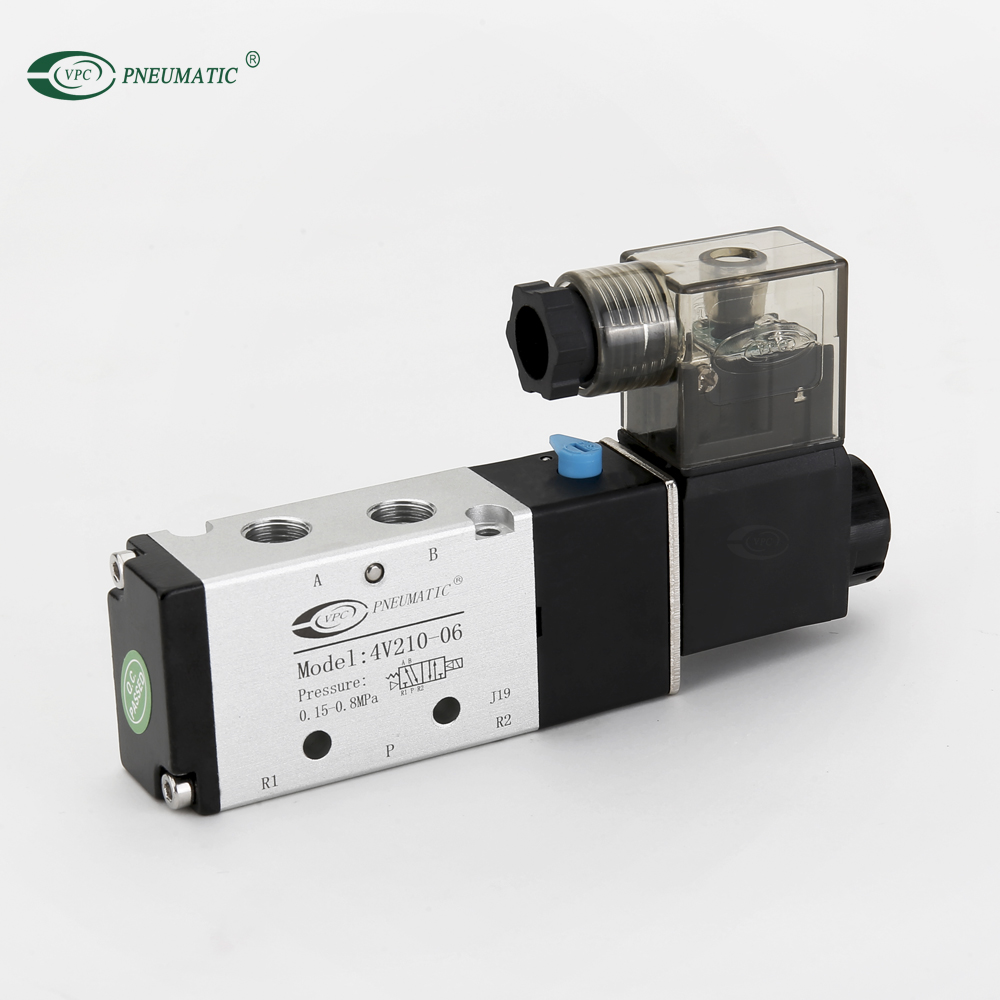

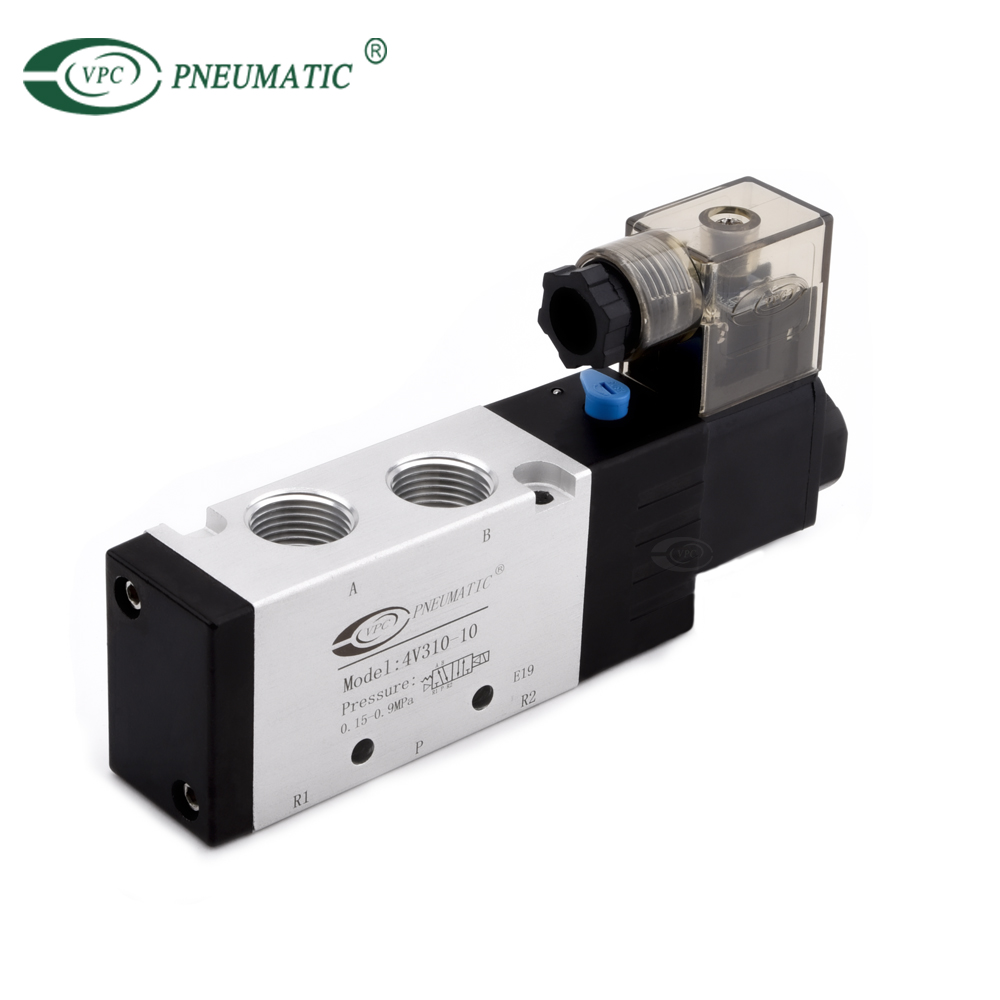

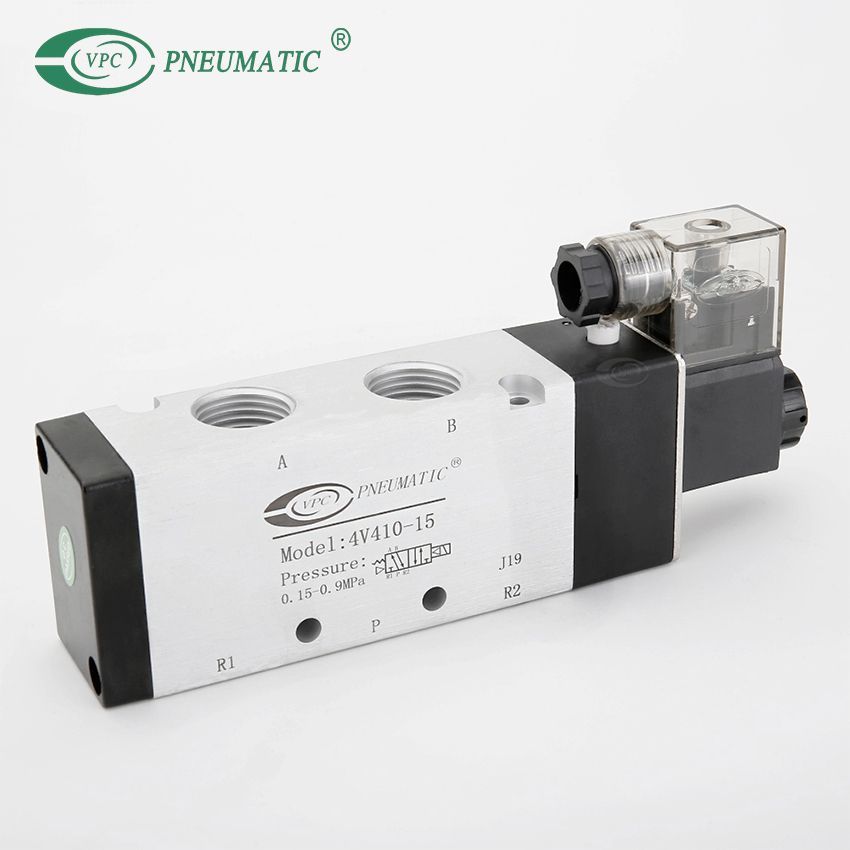

| Model | 4V110-M5 | 4V110-06 | 4V210-06 | 4V210-08 | 4V310-08 | 4V310-10 | 4V410-15 | |
| Working medium | Clean air | |||||||
| Acting type | Internal guide | |||||||
| Working pressure | 0.15 to 0.9Mpa | |||||||
| Max pressure | 1.2Mpa | |||||||
| Working temperature | -5 to 60℃ | |||||||
| Voltage range | -15% to 10% | |||||||
| Heat Resistant Grade | B | |||||||
| Protective class | IP65(DIN40050) | |||||||
| Coil type | Din type/Flying leads | |||||||
| Joint size | Import=M5 | Import=1/8 | Import=1/8 | Import=1/4 | Import=1/4 | Import=3/8 | Import=1/2 | |
| Export=M5 | Export=1/8 | Export=1/8 | Export=1/4 | Export=1/4 | Export=3/8 | Export=1/2 | ||
| Exhaust=M5 | Exhaust=1/8 | Exhaust=1/8 | Exhaust=1/4 | Exhaust=1/8 | Exhaust=1/4 | Exhaust=1/2 | ||
| Sectional Area | 5.5mm² (cv=0.31) | 12mm² (cv=0.67) | 14mm² (cv=0.78) | 16mm² (cv=0.89) | 25mm² (cv=1.39) | 30mm² (cv=1.67) | 50mm² (cv=2.79) | |
| Max acting frequency | 5Times/s | 4Times/s | 3Times/s | |||||
Main Dimensions
