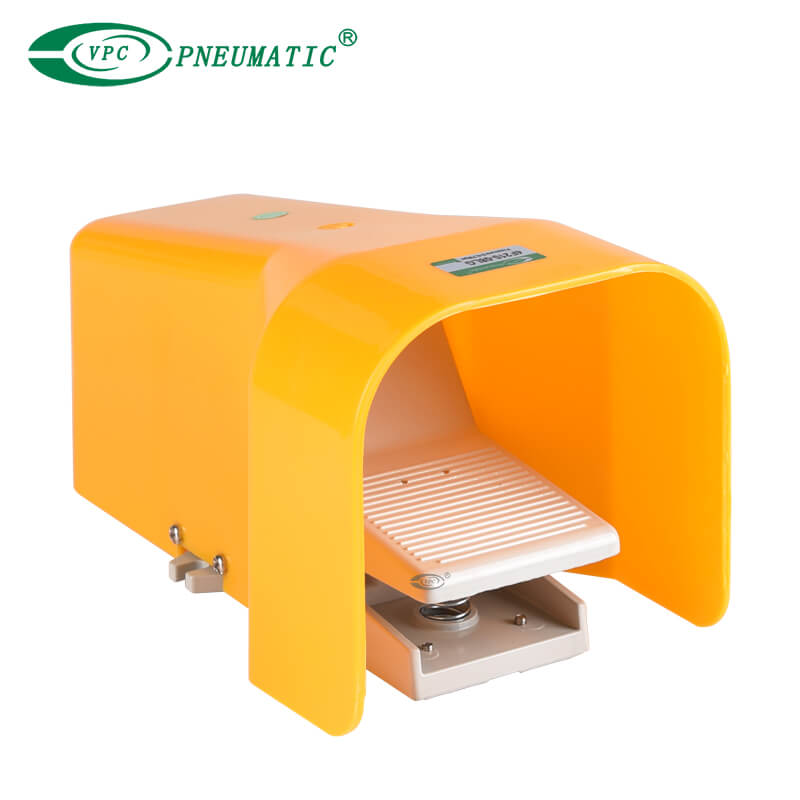

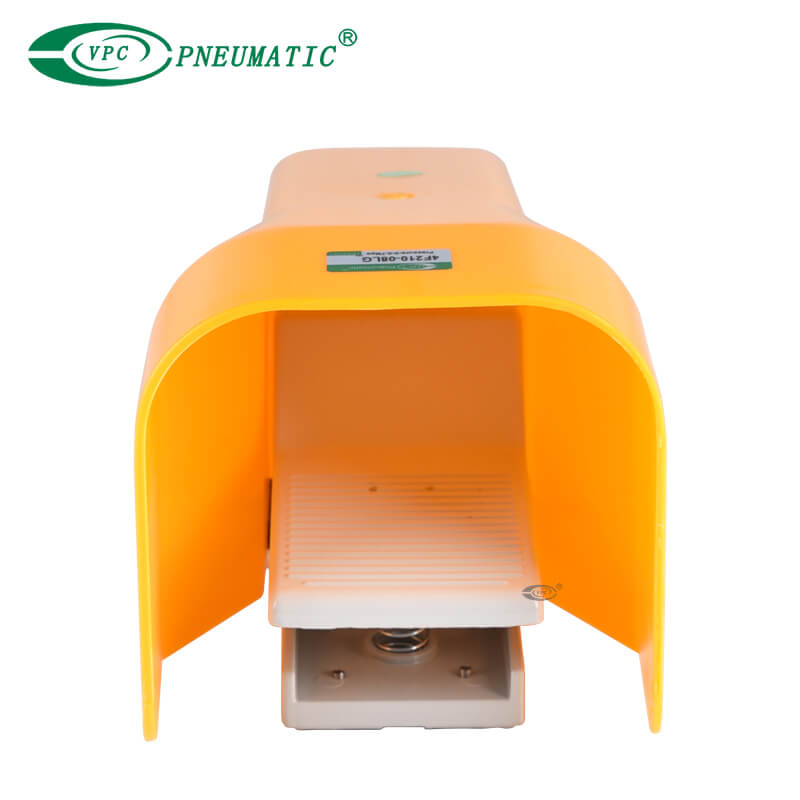

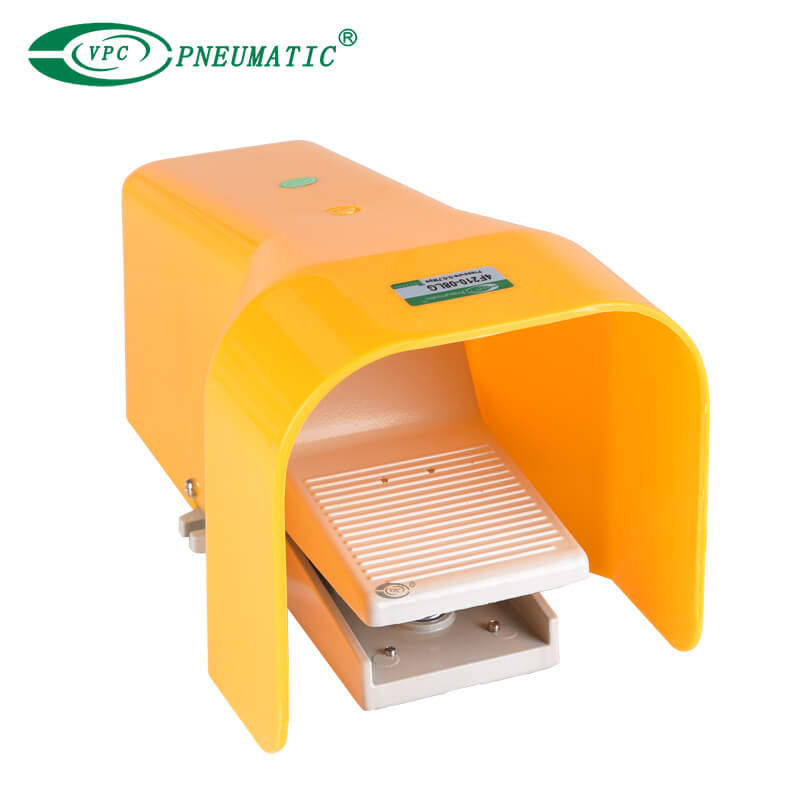

4F Series 5 Port 2 Position Foot Pedal Valve, with Cover
4F Series 5 Port 2 Position Foot Pedal Valve, with Cover 4F Series 5 Port 2 Position Foot Pedal Valve, with Cover
4F Series 5 Port 2 Position Foot Pedal Valve, with Cover 4F Series 5 Port 2 Position Foot Pedal Valve, with Cover
4F Series 5 Port 2 Position Foot Pedal Valve, with Cover 4F Series 5 Port 2 Position Foot Pedal Valve, with Cover
4F Series 5 Port 2 Position Foot Pedal Valve, with Cover 4F Series 5 Port 2 Position Foot Pedal Valve, with Cover

loading

4F Series 5 Port 2 Position Foot Pedal Valve, with Cover

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • The aluminum foot pedal is designed with direct acting, which is steady and reliable.
  • If the duration of direction-change is long, the valves with lock may be ed.
  • The clamping framework is steady and reliable that it is easy and quick to unlock. However,with the limitation of the dimension of structure, it can not bear frequent strong impact.
  • Plastic guard with high strength may be ed.

  • 4F210-08C

  • VPC Pneumatic

  • 8412909000

Working medium:
Clean air
Acting type:
External Control
Working pressure:
0 to 0.7Mpa
Working temperature:
-5 to 60℃
Joint size:
G1/4"
Availability:
Inquire Add to Basket

Product Description

pneumatic foot pedal valve

Product Specifications

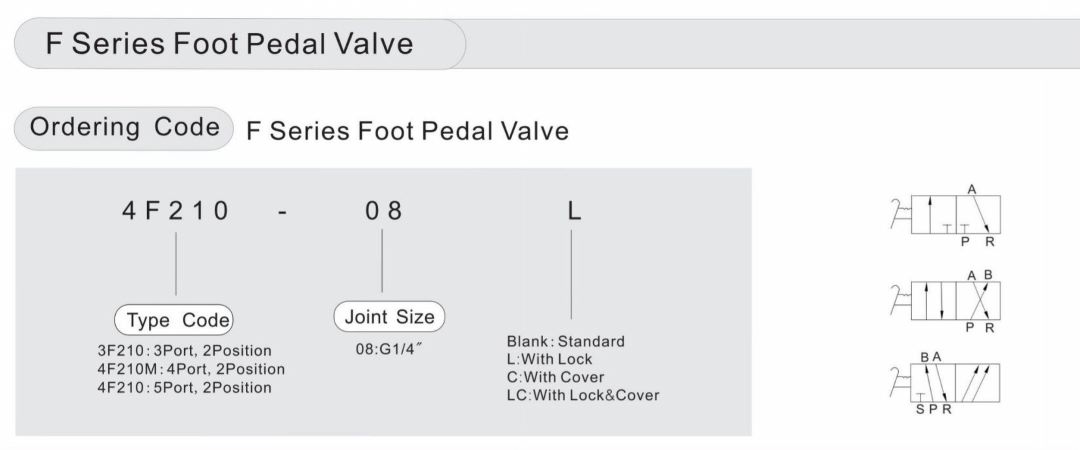

Model

3F210-08

4F210-08M

4F210-08

4F210-08L

4F210-08C

4F210-08LC

Working medium

Clean Air

Acting type

External Control

Ways

3 Port 2 Position

4 Port 2 Position

5 Port 2 Position

Working pressure

0 to 0.7Mpa

Max. pressure

1.2Mpa

Working temperature

-5 to 60℃

Joint size

G1/4"

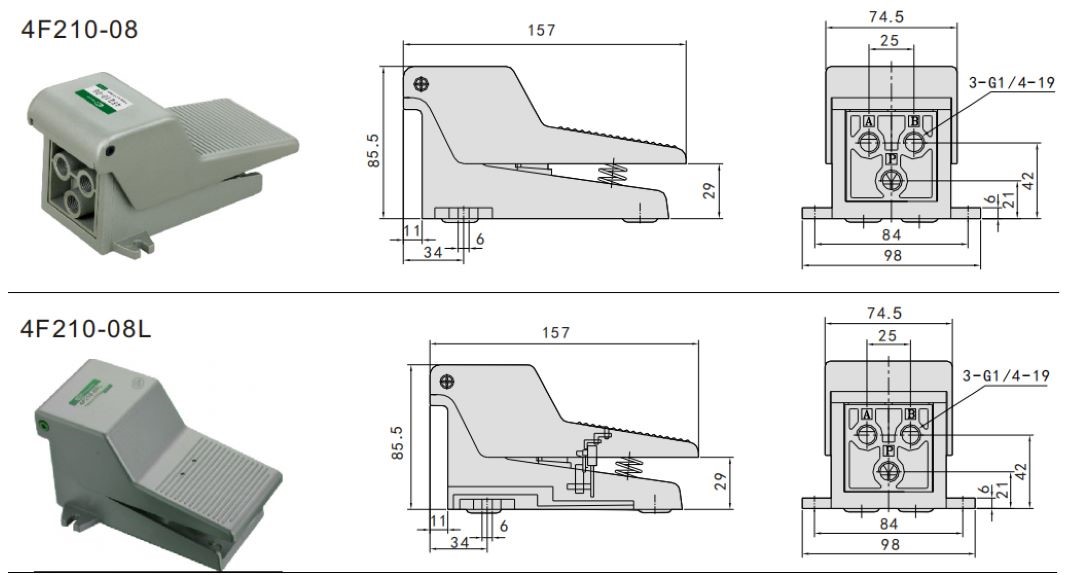

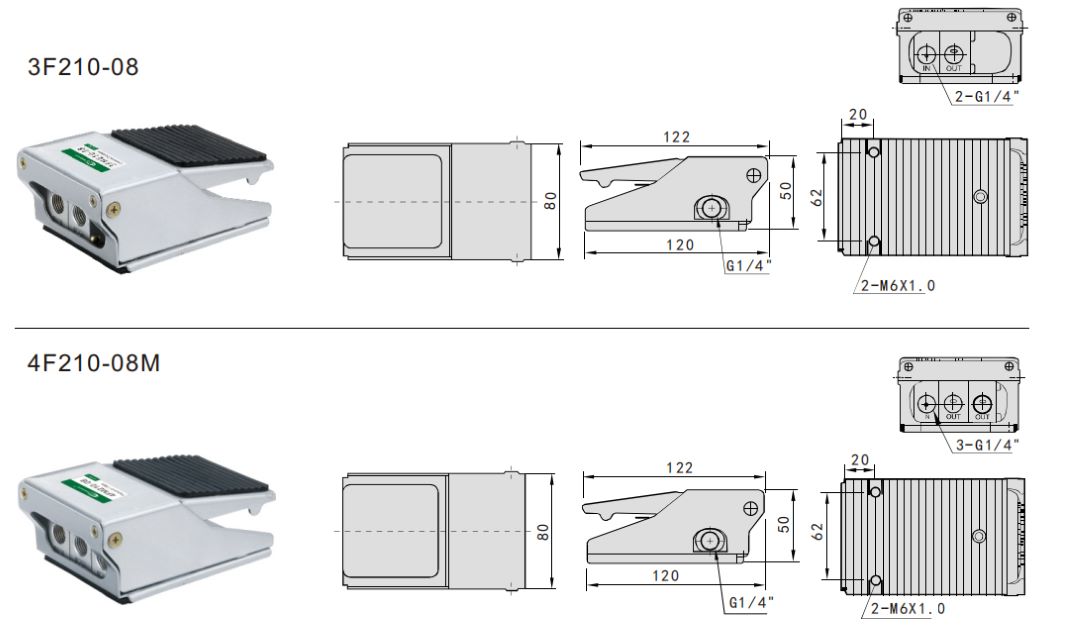

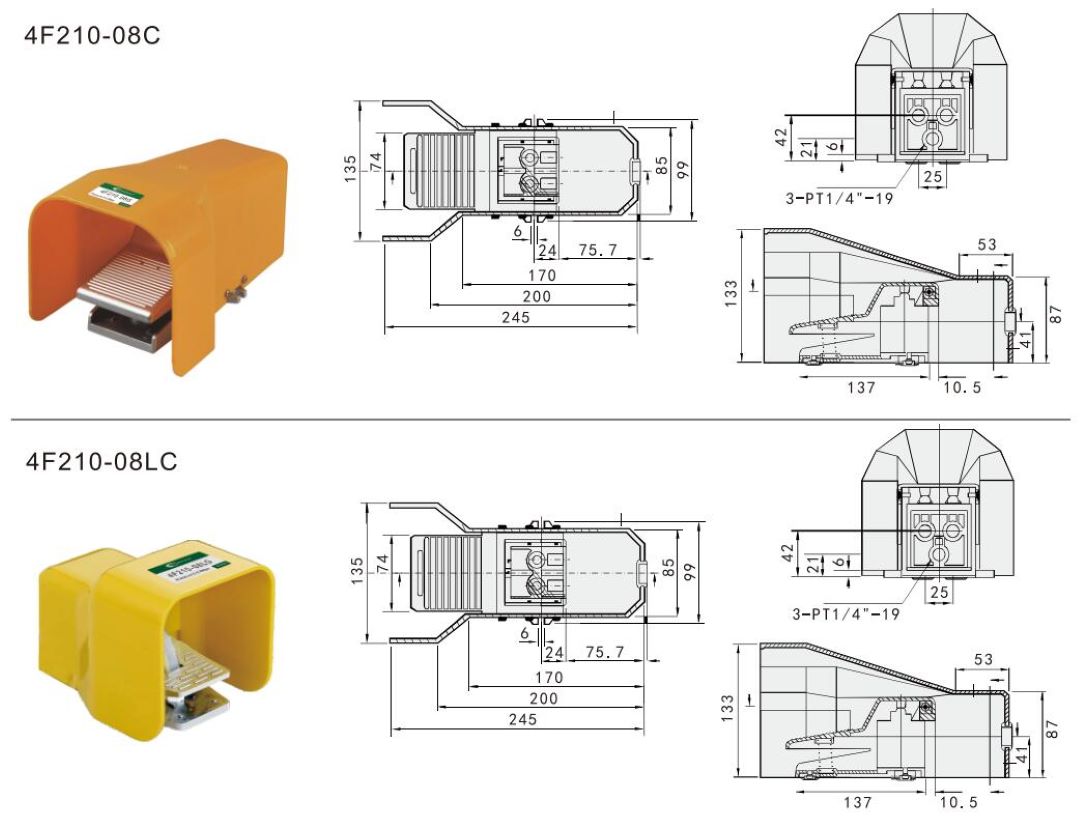

Main Dimensions

■ Product Feature

foot pedal air valvepneumatic foot pedal air switchair operated foot pedal
