4v210-08 Pneumatic Solenoid Valve Manifold

Multi-Station Design: 1–12 valve positions for flexible system integration.
High Flow Efficiency: Optimized passages with Cv up to 2.5 for rapid response.
Durable Construction: Anodized aluminum alloy body, corrosion-resistant, long service life.
Compact Layout: Centralized piping reduces leakage points and saves installation space.
Easy Maintenance: Standardized interfaces for quick valve replacement.
Thread Options: PT, NPT, G ports available in 1/8", 1/4", 3/8", 1/2" sizes.

Product Description

■ Product Feature

1. Centralized piping reduces leakage and maintenance time.

2. Modular expansion to support system upgrades.

3. High-quality surface treatment enhances durability in industrial environments.

4. Compatible with ISO-standard pneumatic solenoid valves.

5. Suitable for high-cycle applications in automation lines.

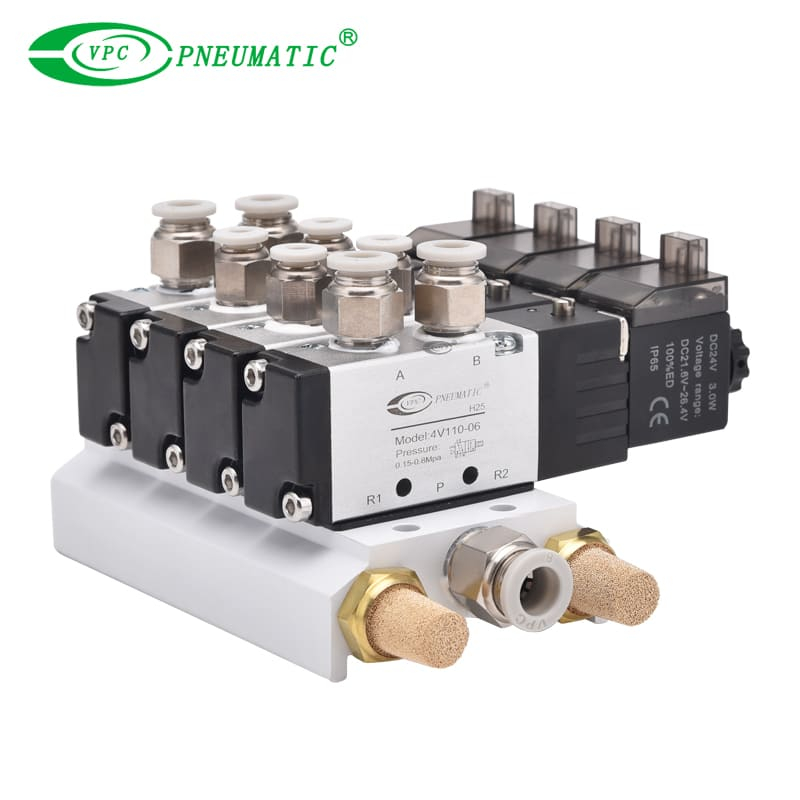

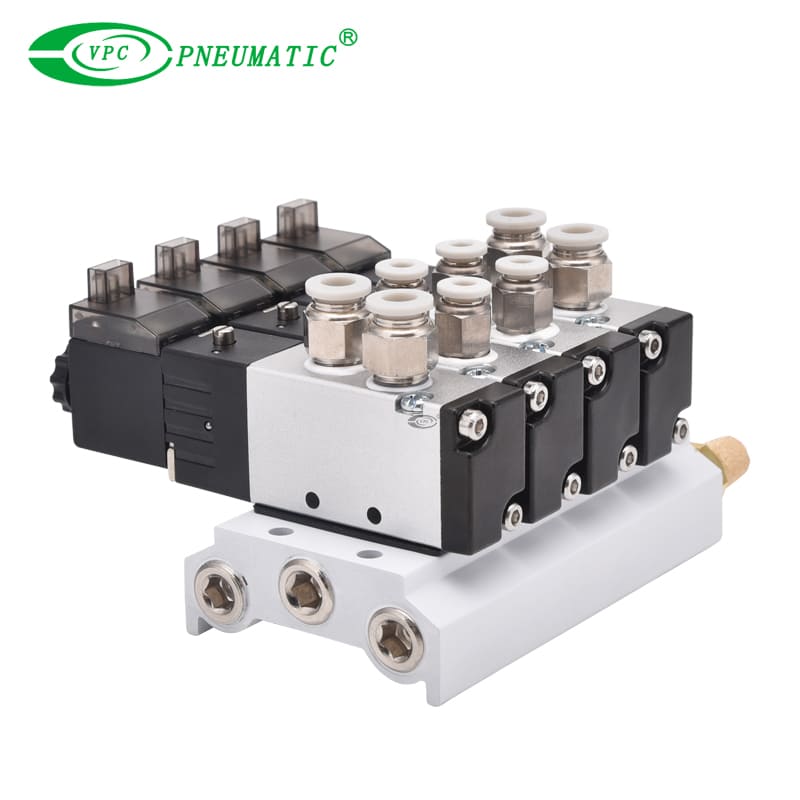

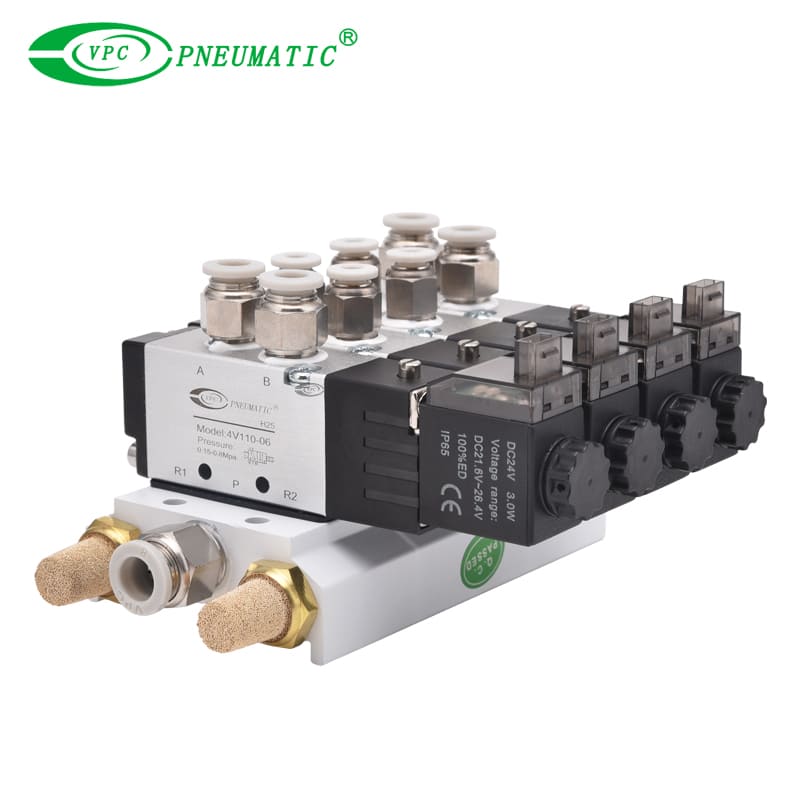

pneumatic valve manifold

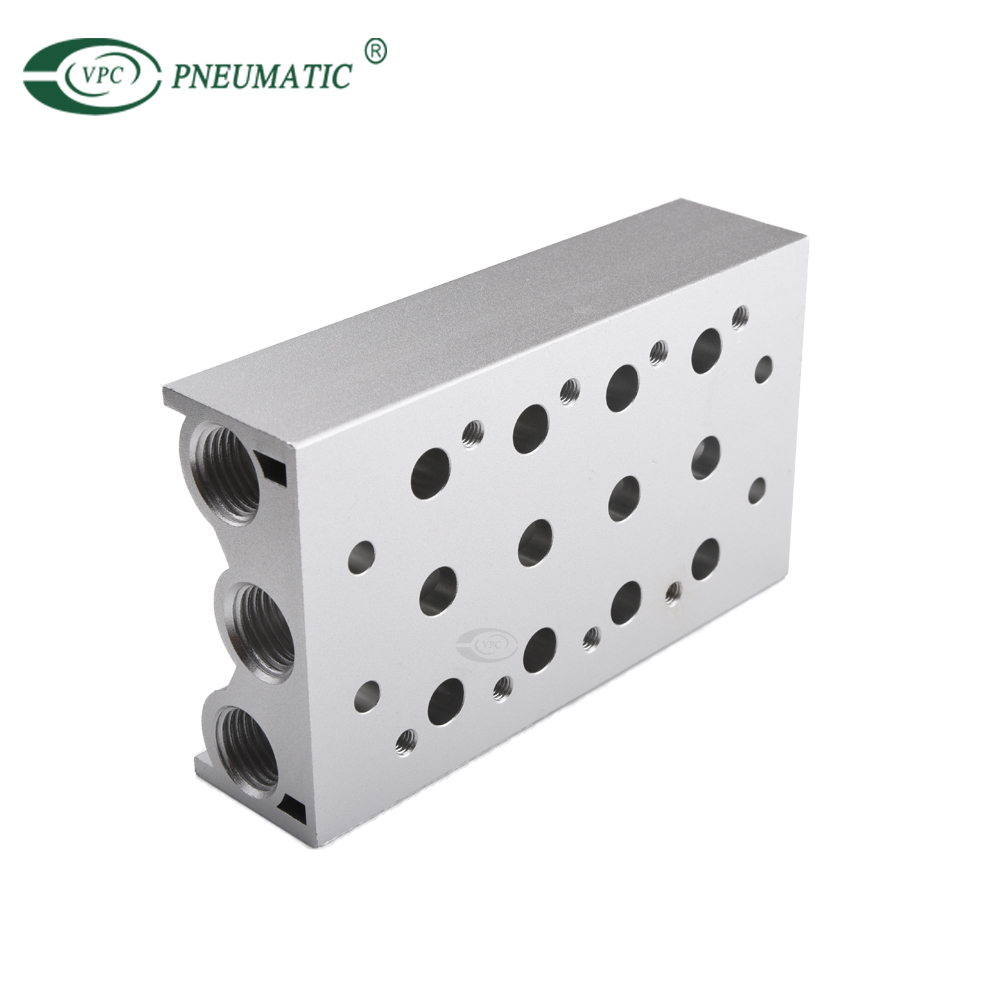

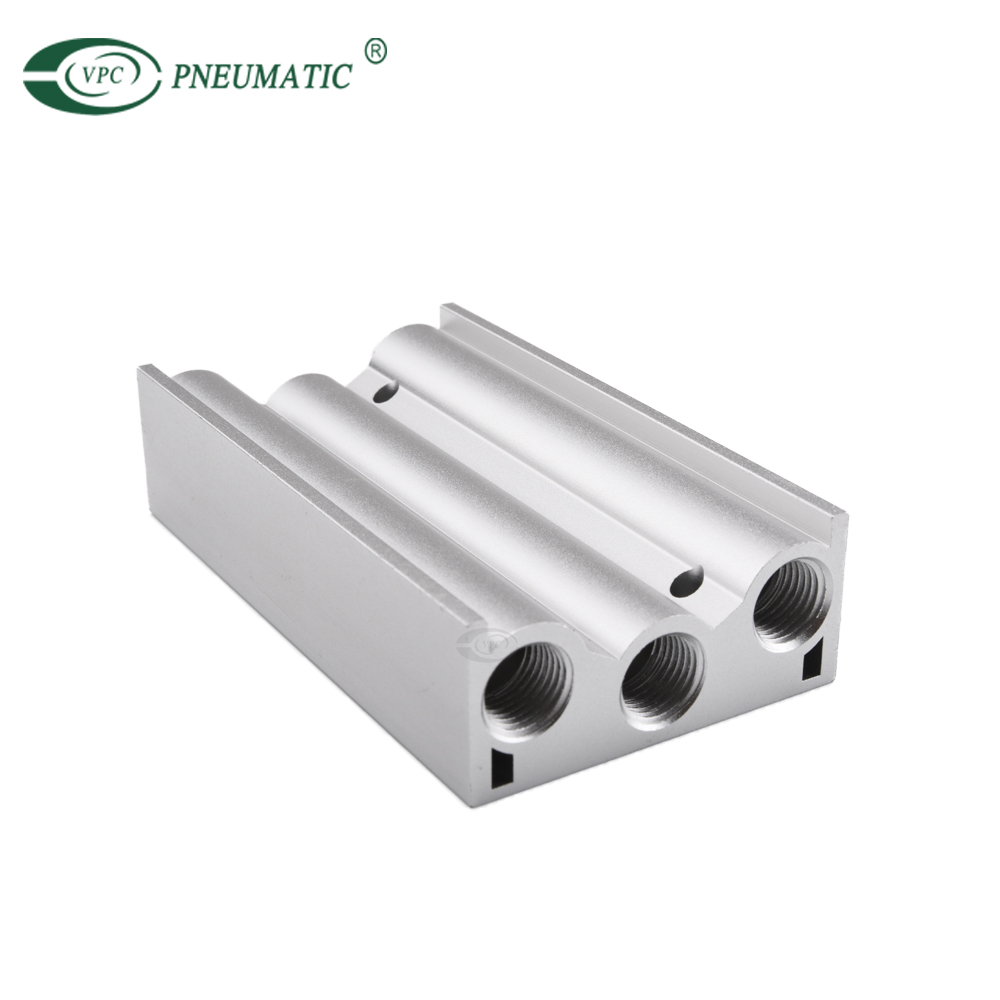

valve manifold block

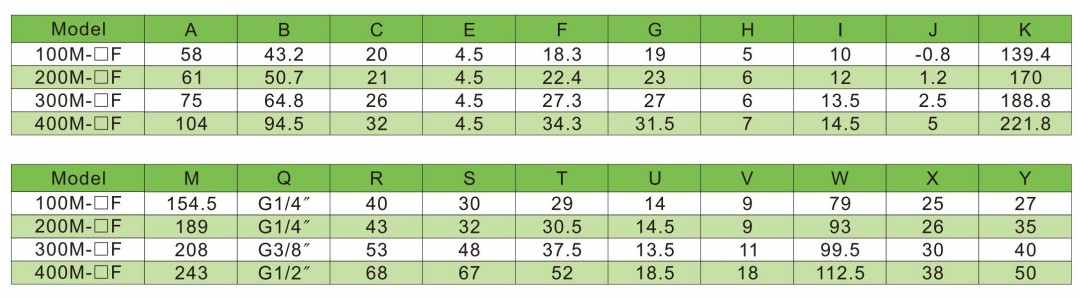

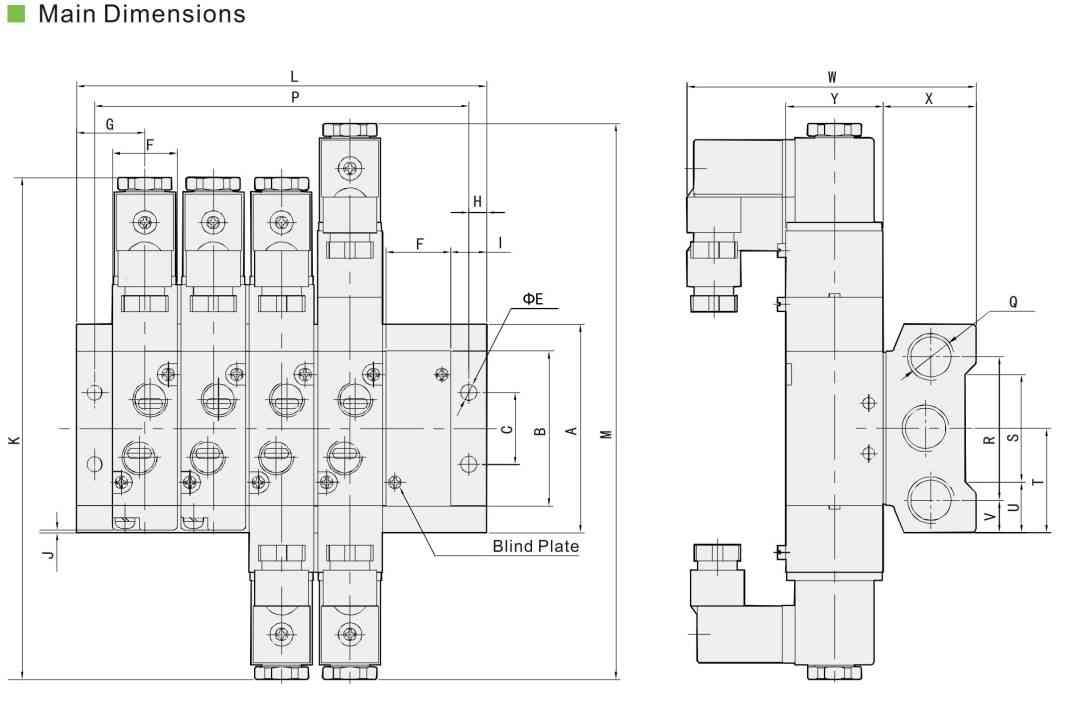

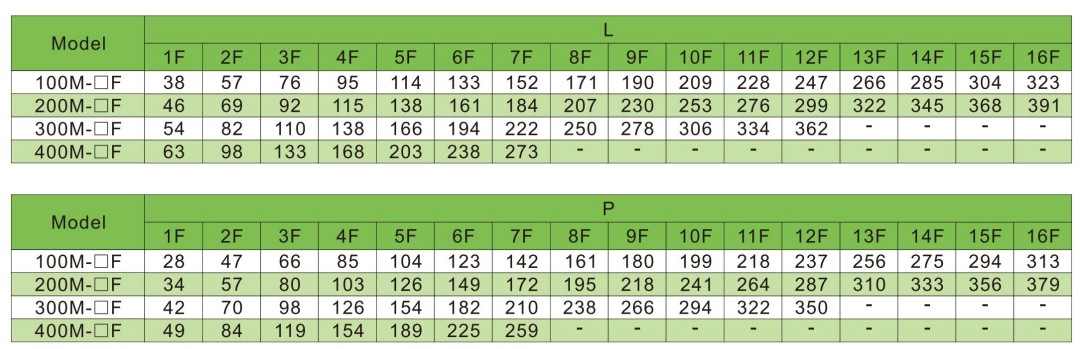

Product Specification

Valve model	4V110/4V120/4V130 4A110/4A120/4A130	4V210/4V220/4V230 4A210/4A220/4A230	4V310/4V320/4V330 4A310/4A320/4A330	4V410/4V420/4V430 4A410/4A420/4A430
Manifold model	100M-NF(N≤16)	200M-NF(N≤16)	300M-NF(N≤12)	400M-NF(N≤7)
