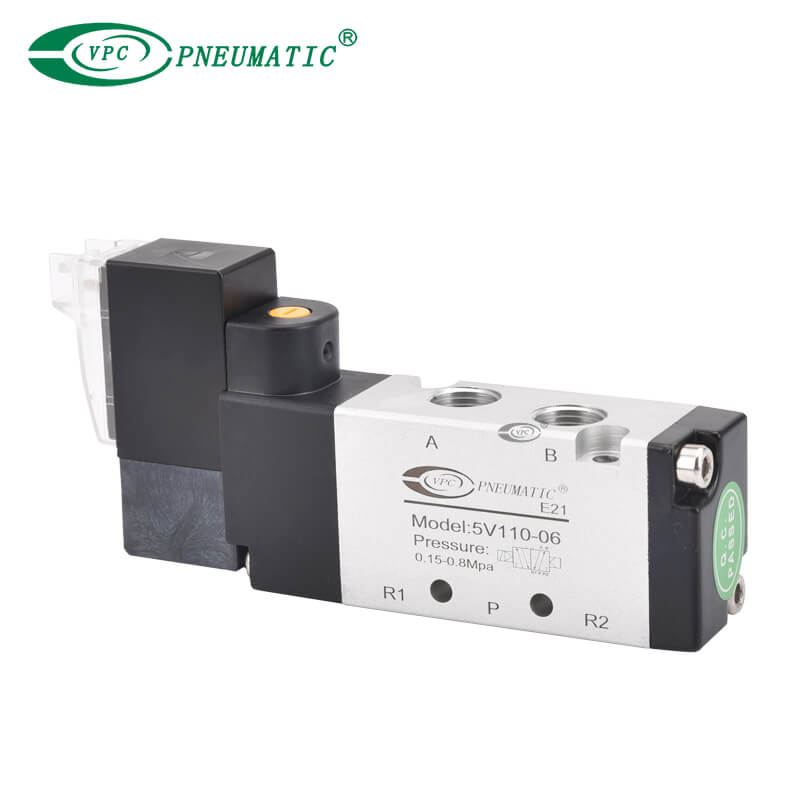

5V100 Series 2 Position 5 Port Single Control Solenoid Valve 5V100 Series 2 Position 5 Port Single Control Solenoid Valve
5V100 Series 2 Position 5 Port Single Control Solenoid Valve 5V100 Series 2 Position 5 Port Single Control Solenoid Valve
5V100 Series 2 Position 5 Port Single Control Solenoid Valve 5V100 Series 2 Position 5 Port Single Control Solenoid Valve
5V100 Series 2 Position 5 Port Single Control Solenoid Valve
5V100 Series 2 Position 5 Port Single Control Solenoid Valve
5V100 Series 2 Position 5 Port Single Control Solenoid Valve

5V100 Series 2 Position 5 Port Single Control Solenoid Valve

Share to:
  1. Pilot-oriented mode:Internal pilot or external pilot;
  2. Special customized Mitsubishi seals ,zero leakage and sensitive reaction;
  3. Internal hole adopts special processing technology which has little atrition friction,service life 100 million times;
  4. It is available to form integrated valve group with the base to save installation space;
  5. Several standard voltage grades are optional;
  6. DIN connector coil and flying lead type coil are optional.
  • 5V110-06
  • VPC
  • 8481804090
Working medium:
Clean air
Working temperature:
-10℃ to 60℃
Working pressure:
0.15 to 0.7 MPa
Quality Warranty:
1 year
Availability:
Inquire Add to Basket

Product Description

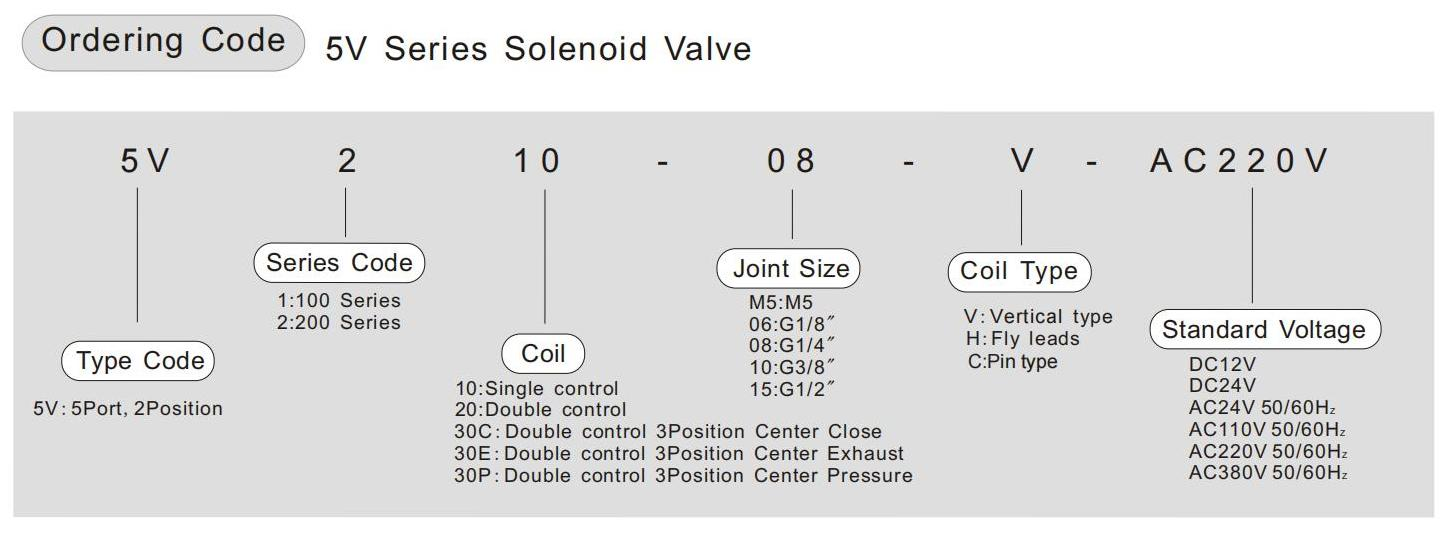

5V valve-order code

Product Specifications

■100 Series

Model110120130C130E130P
Working mediumAir
Acting typeInternal guide
Port sizeG1/8"
Valve type2Position 5 port3Position 5 port
CV value0.780.69
Max acting frequency(Hz)
12
6
Response time(ms/0.5Mpa）15
Working pressure0.15 to 0.7Mpa
Working temperature-10 to 60℃
Voltage rangeAC:±15%    DC:±10%
Protective ClassIP65(DIN40050)
Heat resistant grade
B

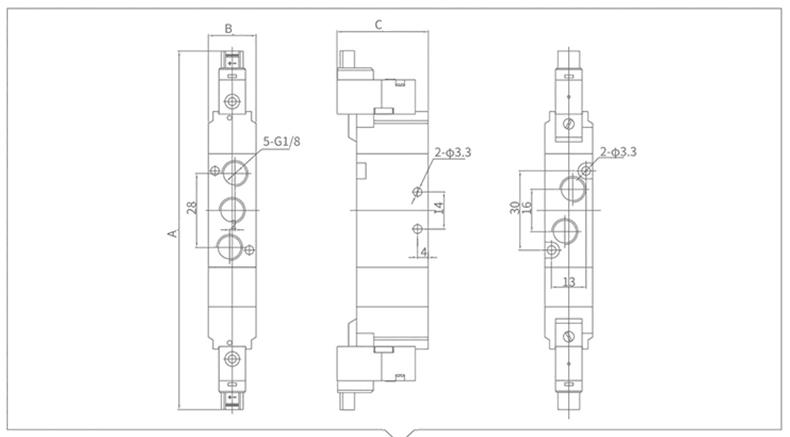

Main Dimensions

5V110

Model A

 B

 C
V type H type C type
110 86.4 87.7 93 18 34.35
120 108 110.4 121 18 34.35
130C 123 125.4 136 18 34.35
130E 123 125.4 136 18 34.35
130P 123 125.4 136 18 34.35
