5V200 Series 2 Position 5 Port Single Control Solenoid Valve

Share to:
  1. Pilot-oriented mode:Internal pilot or external pilot;
  2. Special customized Mitsubishi seals ,zero leakage and sensitive reaction;
  3. Internal hole adopts special processing technology which has little atrition friction,service life 100 million times;
  4. It is available to form integrated valve group with the base to save installation space;
  5. Several standard voltage grades are optional;
  6. DIN connector coil and flying lead type coil are optional.
  • 5V210-06
  • VPC
  • 8481804090
Working medium:
Working temperature:
Working pressure:
Quality Warranty:
Availability:

Product Description

5V valve-order code

Product Specifications

200 Series

Model210220230C230E230P
Working mediumAir
Acting typeInternal guide
Port sizeG1/4"
Valve type2Position 5 port3Position 5 port
CV value0.670.58
Max acting frequency(Hz)
12
6
Response time(ms/0.5Mpa)15
Working pressure0.15 to 0.7Mpa
Working temperature-10 to 60℃
Voltage rangeAC:±15%    DC:±10%
Protective ClassIP65(DIN40050)
Heat resistant grade
B

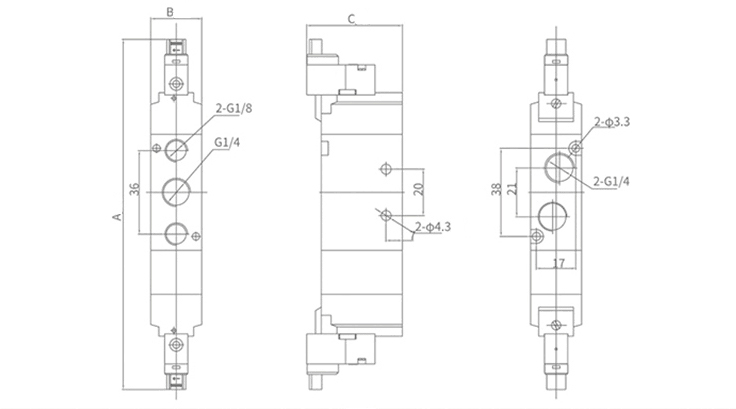

Main Dimensions

5V220

Model A

 B

C
V type H type C type
210 96 97.2 102.5 22 41.3
220 119 121.4 132 22 41.3
230C 138 140.4 151 22 41.3
230E 138 140.4 151 22 41.3
230P 138 140.4 151 22 41.3
