AC Series Filter Regulator Lubricator Combination

Share to:
VPC's AC series of modular type F.R.L. unit is available in five sizes and is interchangeable with the existing modular AC line. The pressure drop across the regulator has been reduced creating a more efficient unit with a maximum set pressure of 145 psi. The element and bowl on the AW and AF series is now one-piece, making element replacement easier. Required maintenance space has been reduced by as much as 46% on the AF series, depending on the body size. Bowls on the size 10 and 20 are now covered with a transparent bowl guard, completely protecting them from the environment, and making the interior contents visible from 360 degrees.
  • AC3000-02
  • VPC Pneumatic
  • 8421399000
Working medium:
Working temperature:
Pressure adjusting range:
Filter precision:
Valve type:
Availability:

Product Description

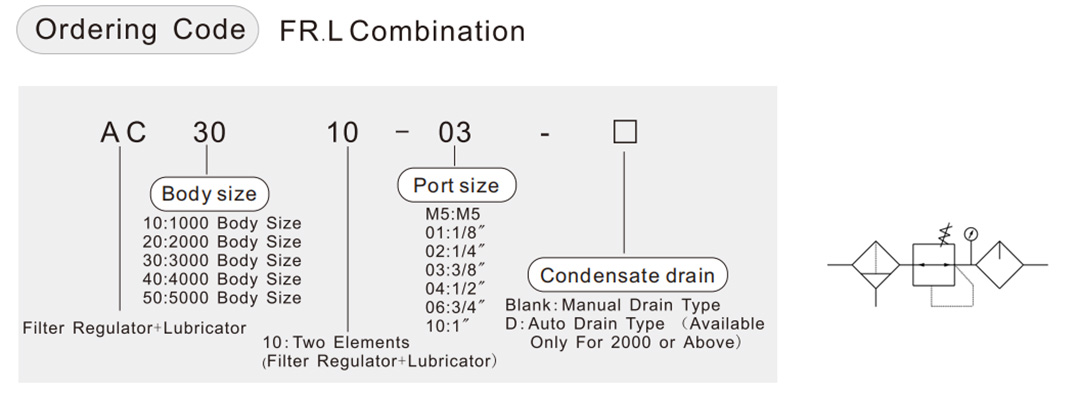

AC2-order code .png

Product Specifications

Guaranteed pressure resistance
1.5MPa
Max.Working Pressure
1.0MPa
Working Temperature
5~60℃
Filter Precision
25 μm(5 μm is optional )
Recommended Oil
Turbine No1 Oil ISOVG32
Bowl Material
Polycarbonate
Bowl Guard
AC1000~2000(None) AC2500~5000(Available)
Pressure Adjusting Range
AC1000:0.05~0.7MPa AC2000~5000:0.05~0.85MPa
Valve Type
With overflow

Note: NPT, PT Port size is optional


Model
                                                             Specifications
Accessories
Assembly
Rated Flow (L/min)
Port Size (G)
Pressure Gauge Thread Size(G)
Weight (Kg)
Bracket(2Pcs)
Pressure Gauge
Filter    Regulator
Lubricator
AC1010-M5
AW1000
AL1000
90
M5
1/16
0.22
Y10L
G27-10-R1
AC2010-01
AW2000
AL2000
500
G1/8"
1/8
0.66
Y20L
G36-10-01
AC2010-02
G1/4"
AC3010-02
AW3000
AL3000
1700
G1/4"
0.98
Y30L
AC3010-03
G3/8"
AC4010-03
AW4000
AL4000
3000
G3/8"
1/4
1.93
Y30L
G46-10-02
AC4010-04
G1/2"
AC4010-06
AW4000-06
AL4000-06
3000
G3/4"
1.99
Y40L
AC5010-06
AW5000
AL5000
4000
G3/4"
3.20
Y50L
AC5010-10
G1"
Note:The above information is based on 0.7Mpa(7. 1kgf/cm2) supply pressure and 0.5Mpa(5. 1kgf/cm2) setted pressure


Main Dimensions

AC2-Main dimensions
