Product Description

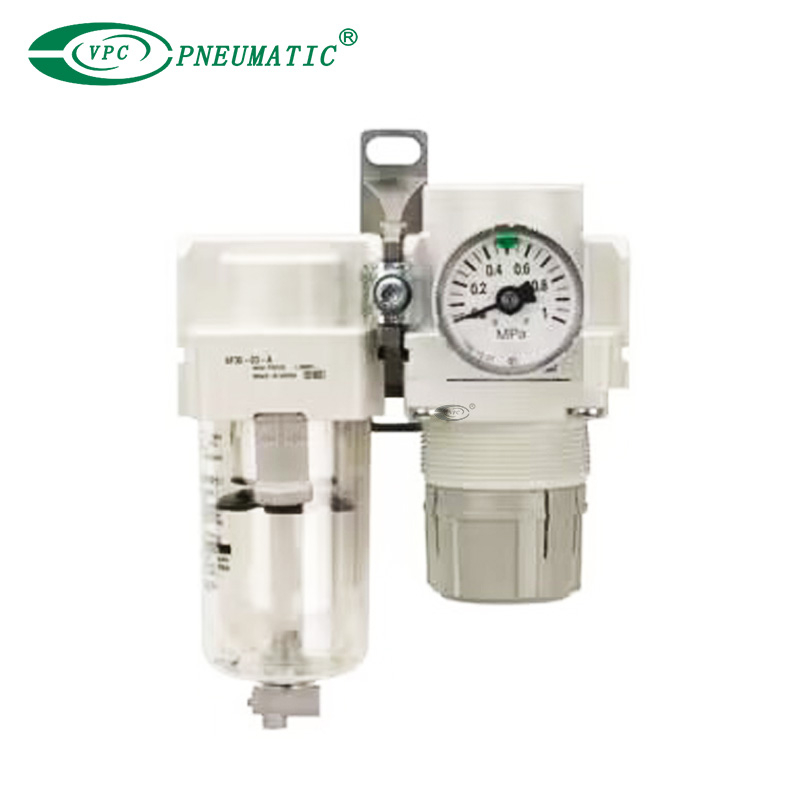

Most of the AC-A and AC-B features have been incorporated into the AC-D clear bowl shroud for complete visibility; embedded gauges and pressure switches; reduced maintenance space and simplified element replacement for the AF-D series filters.
1. Modular design with uniform body style. Mounting interchangeable with existing product
2. Extended range of pipe adapters, interfaces and modular pressure switches.
3. Easy element replacement. Element and bowl are one piece. Replacement can be done manually.
4. Energy saving regulator. Pressure drop: Max. 50% improvement
5. Reduced maintenance space: Max. 46% reduction
6. Rc, NPT or G threads available.

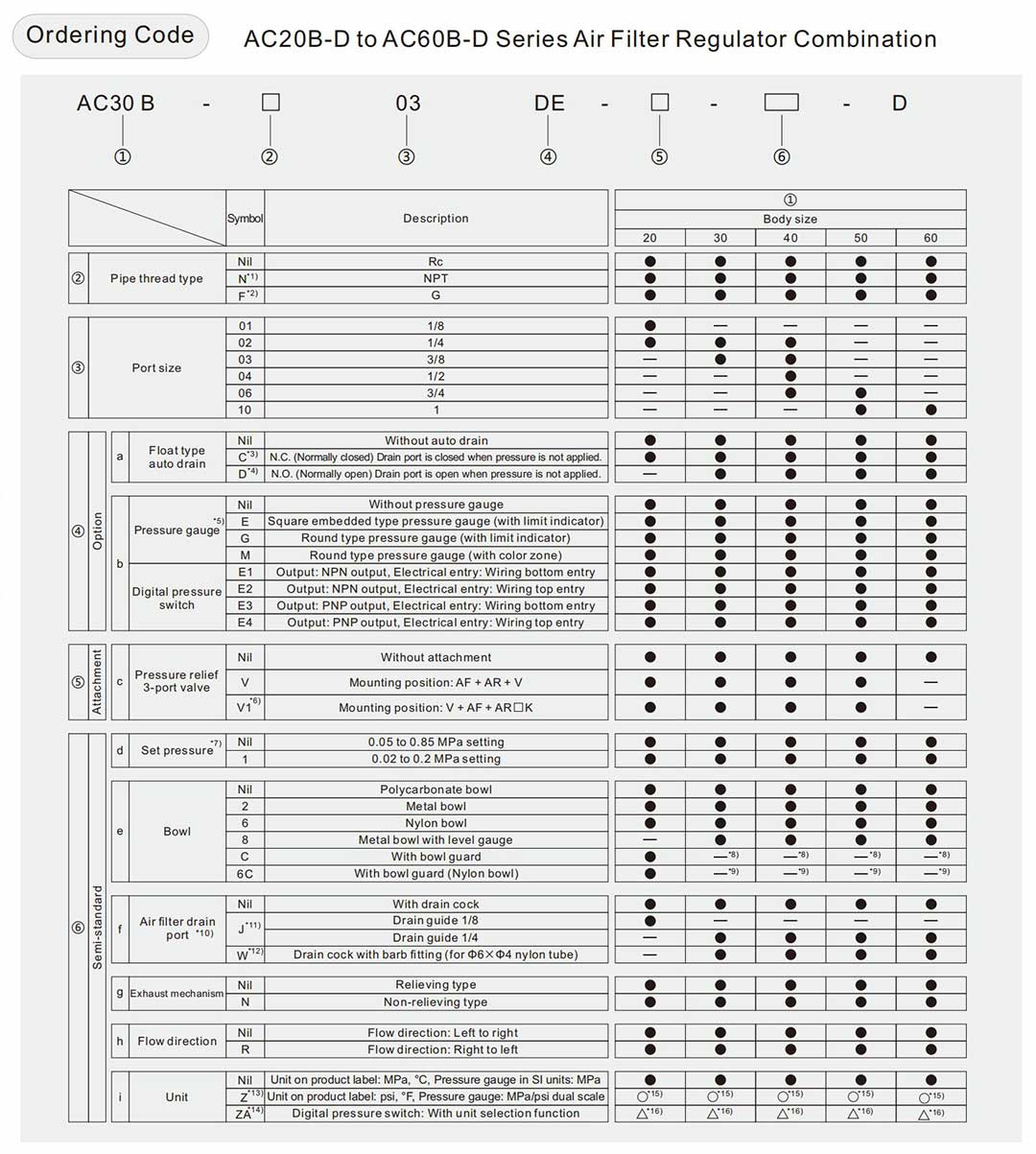

Order Example:
Option/Semi-standard: Select one each for a to i.
Option/Semi-standard symbol: When more than one specification is required, indicate in alphanumeric order.
Model: AC30B-F03DE1-16NR-D
*1) Drain guide is NPT1/8 (applicable to the AC20B-D) and NPT1/4 (applicable to the AC30B-D to AC60B-D). The auto drain port comes with a Φ3/8". One-touch fitting (applicable to the AC30B-D to AC60B-D).
*2) Drain guide is G1/8 (applicable to the AC20B-D) and G1/4 (applicable to the AC30B-D to AC60B-D).
*3) When pressure is not applied, condensate which does not start the auto drain mechanism will be left in the bowl. Releasing the residual condensate before ending operations for the day is recommended.
*4) If the compressor is small [0.75 kW, discharge flow is less than 100 L/min (ANR)], air leakage from the drain cock may occur during the start of operations. N.C. type is recommended.
*5) When the pressure gauge is attached, a 1.0 MPa pressure gauge will be fitted for standard (0.85 MPa) type. 0.4 MPa pressure gauge for 0.2 MPa type.
*6) Pressure can be set higher than the specification pressure in some cases, but use pressure within the specification range.
*7) A bowl guard is provided as standard equipment (polycarbonate).
*8) A bowl guard is provided as standard equipment (nylon).
*9) The combination of float type auto drain C and D is not available.
*10) Without a valve function.
*11) The combination of metal bowl 2 and 8 is not available.
*12) When choosing with W: Filter regulator drain port, the drain cock of a lubricator will be with barb fittings.
*13) For the pipe thread type: NPT
Cannot be used with M: Round type pressure gauge (with color zone). Available by request for special.The digital pressure switch will be equipped with the unit selection function, setting to psi initially.
*14) For options: E1, E2, E3, E4
*15) : For the pipe thread type: NPT only.
*16) △: Select with options: E1, E2, E3, E4.
Product Specifications
| Model | AC20B-D | AC30B-D | AC40B-D | AC40B-06-D | AC50B-D | AC60B-D | |
| Component | Air Filter [AF] | AF20-D | AF30-D | AF40-D | AF40-06-D | AF50-D | AF60-D |
| Regulator[AR] | AR20-D | AR30-D | AR40-D | AR40-06-D | AR50-D | AR60-D | |
| Port size | 1/8, 1/4 | 1/4, 3/8 | 1/4, 3/8, 1/2 | 3/4 | 3/4, 1 | 1 | |
| Pressure gauge port size *1) [AR] | 1/8 | ||||||
| Working medium | Clean Air | ||||||
| Working temperature*2) | -5 to 60°C (No freezing) | ||||||
| Proof pressure | 1.5Mpa | ||||||
| Max. Operating pressure | 1.0Mpa | ||||||
| Auto drain minimum operating pressure | N.C. [AF] | 0.1MPa | 0.15MPa | ||||
| N.O. [AF] | — | 0.1MPa | |||||
| Set pressure range [AR] | 0.05 to 0.85Mpa | ||||||
| Nominal filtration rating [AF] | 5 µm | ||||||
| Compressed air purity class*3) | ISO 8573-1:2010 [ 6 : 4 : 4 ]*4) | ||||||
| Drain capacity [AF] | 8 cm³ | 25 cm³ | 45 cm³ | ||||
| Bowl material [AF] | Polycarbonate | ||||||
| Bowl guard [AF] | Semi-standard (Steel) | Standard (Polycarbonate) | |||||
| Construction [AR] | Relieving type | ||||||
*1) Pressure gauge connection threads are not available for F.R.L. unit with a square embedded type pressure gauge or with a digital pressure switch.
*2) -5 to 50°C for the products with the digital pressure switch.
*3) The compressed air purity class is indicated based on ISO 8573-1:2010 Compressed air – Part 1: Contaminants and purity classes.
*4) The compressed air quality class on the inlet side is [ 7 : 4 : 4 ].

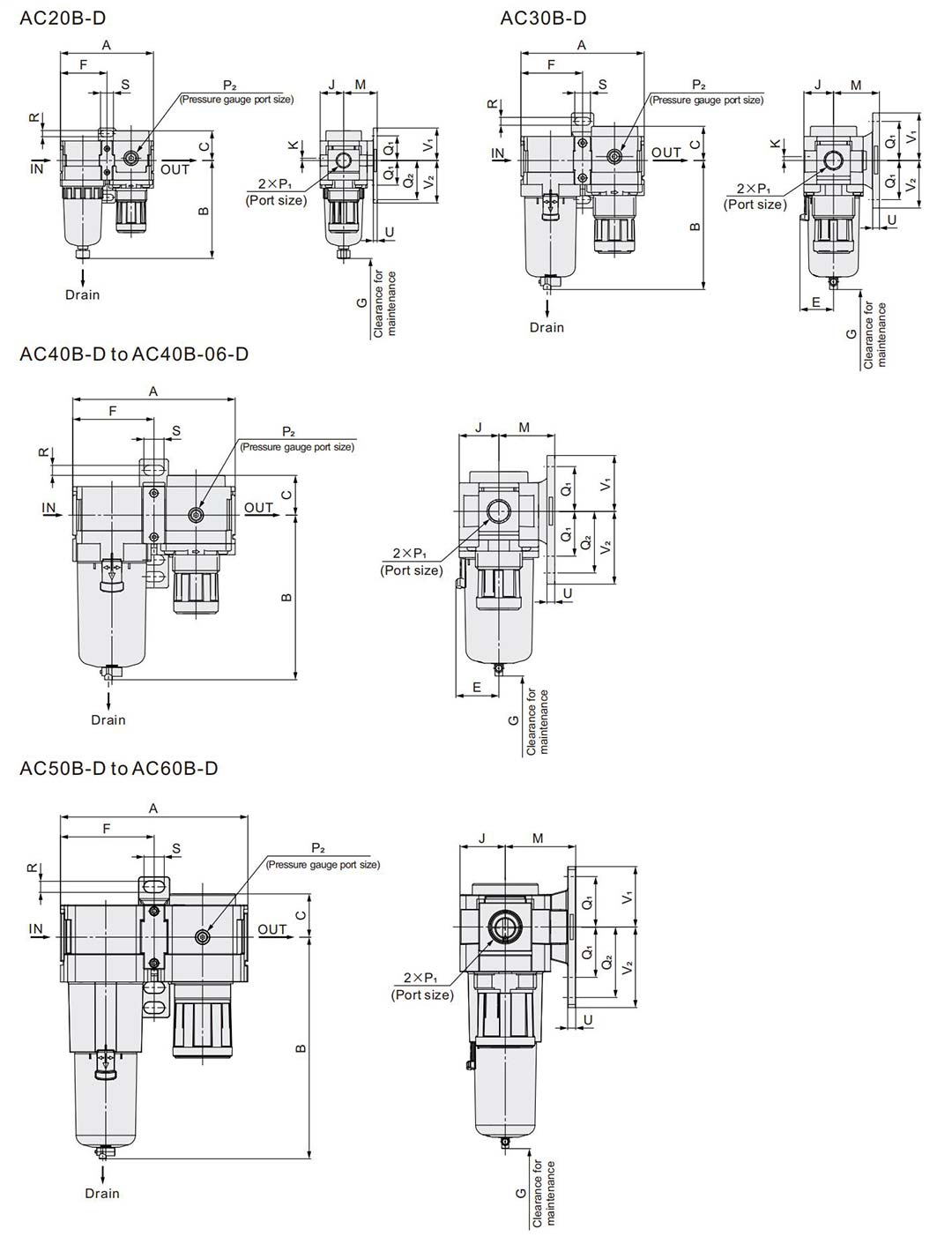

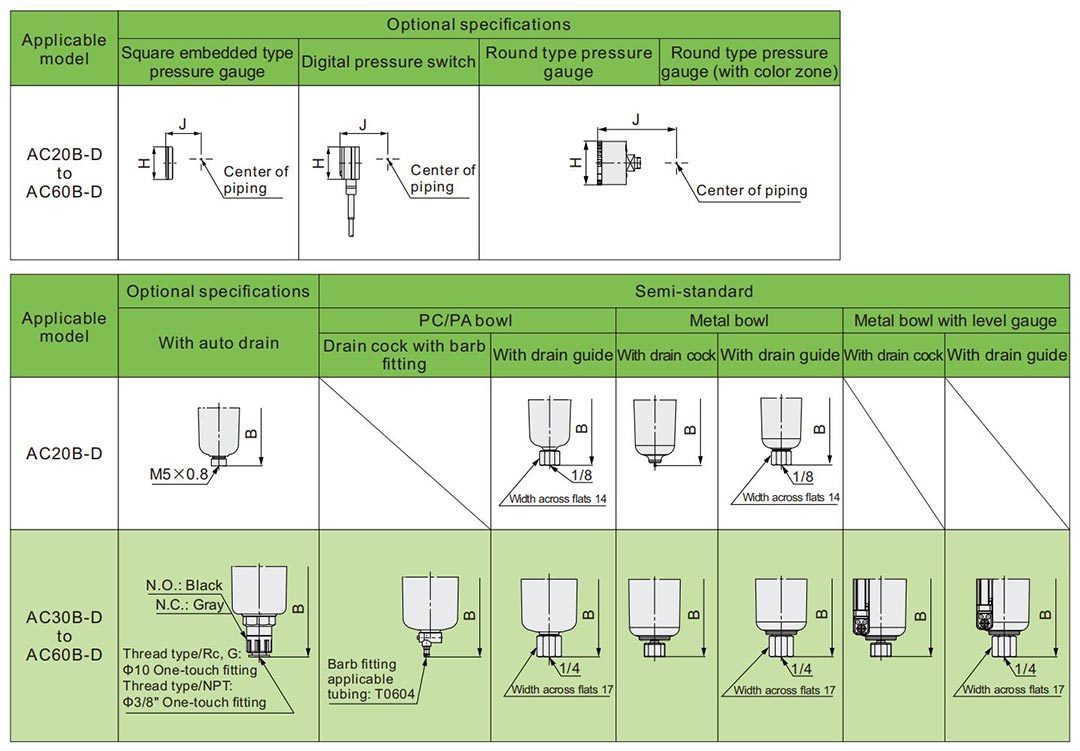

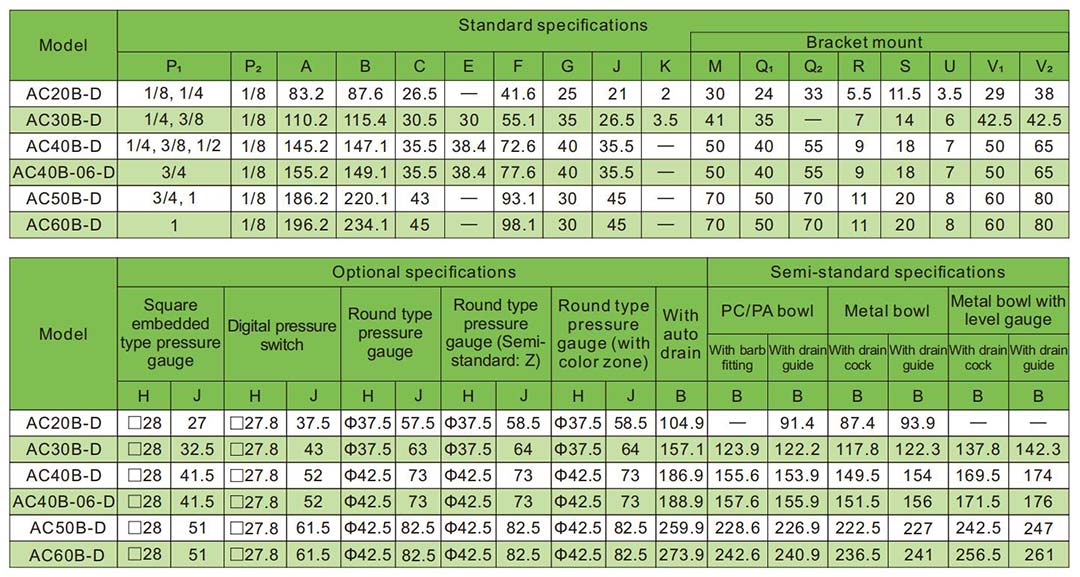

Main Dimensions

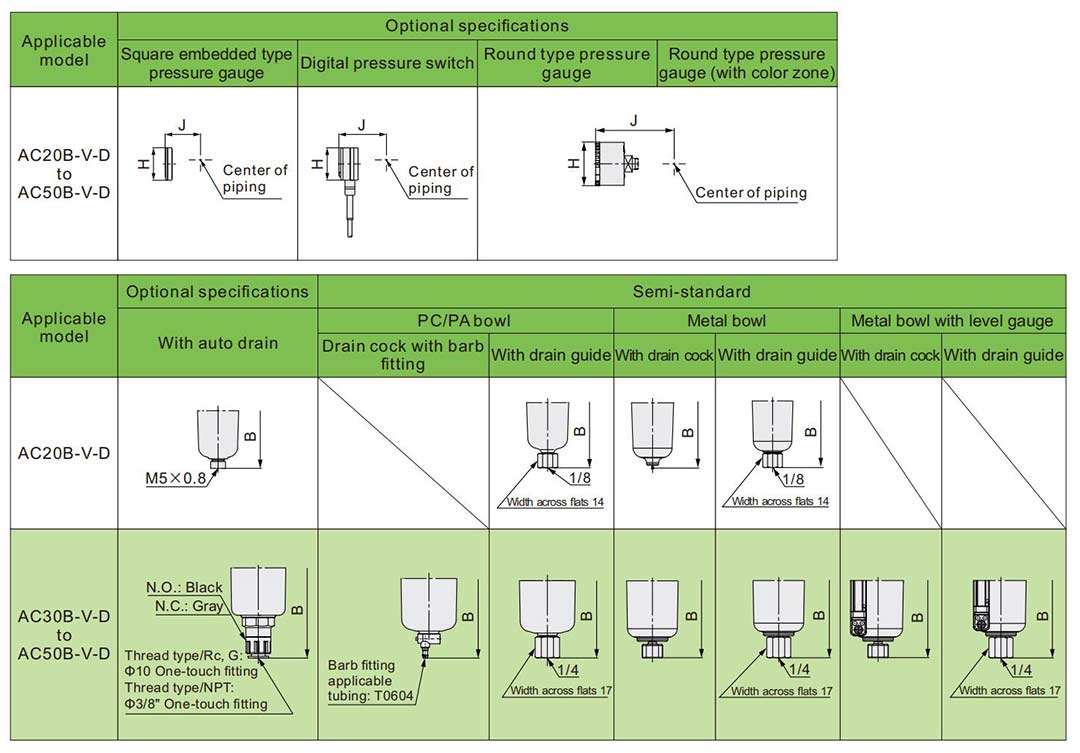

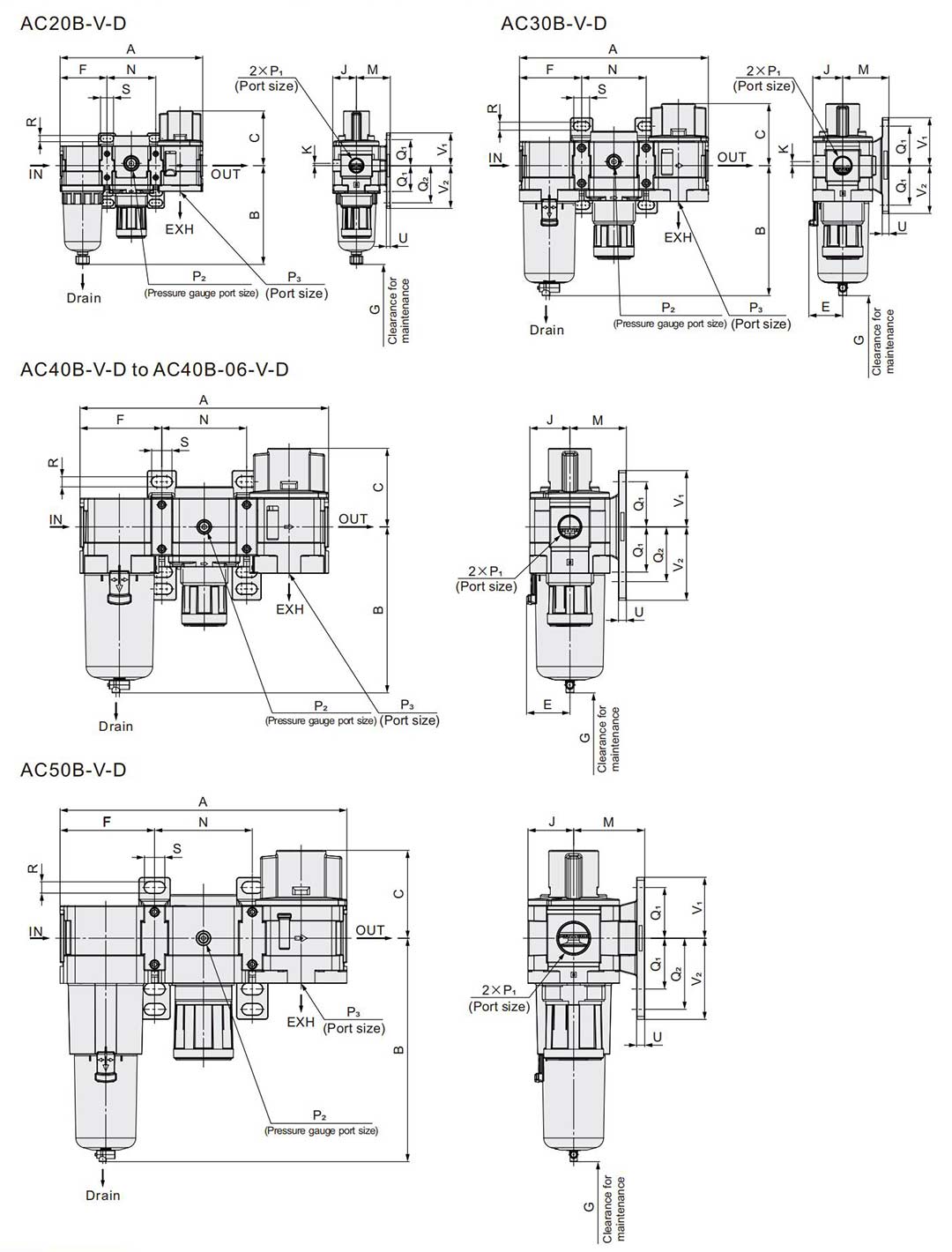

With Pressure Relief 3-Port Valve (V)

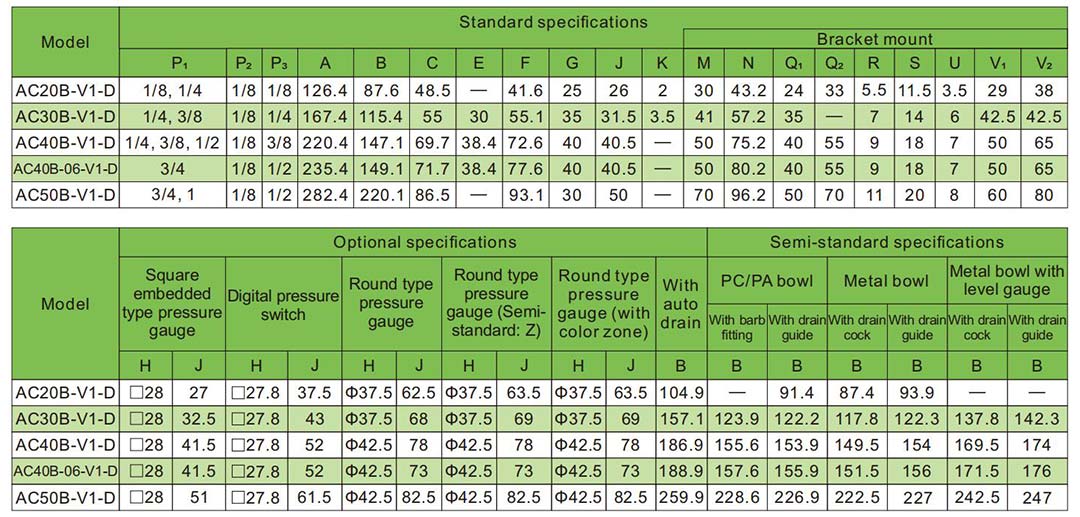

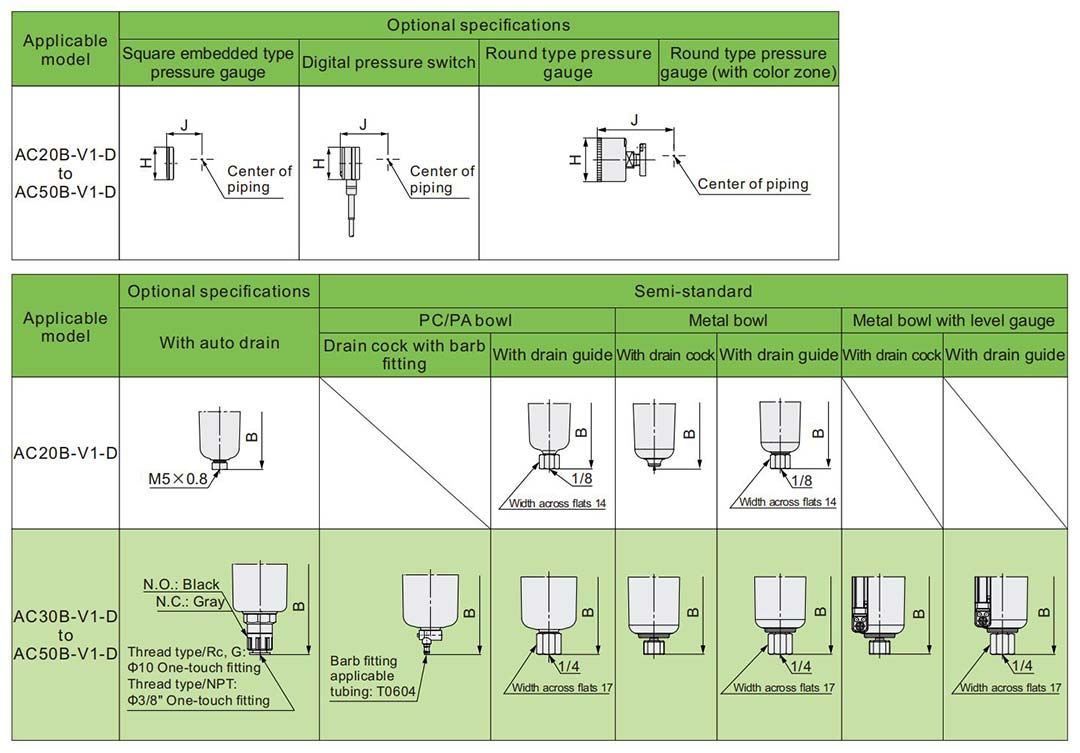

With Pressure Relief 3-Port Valve (V1)
