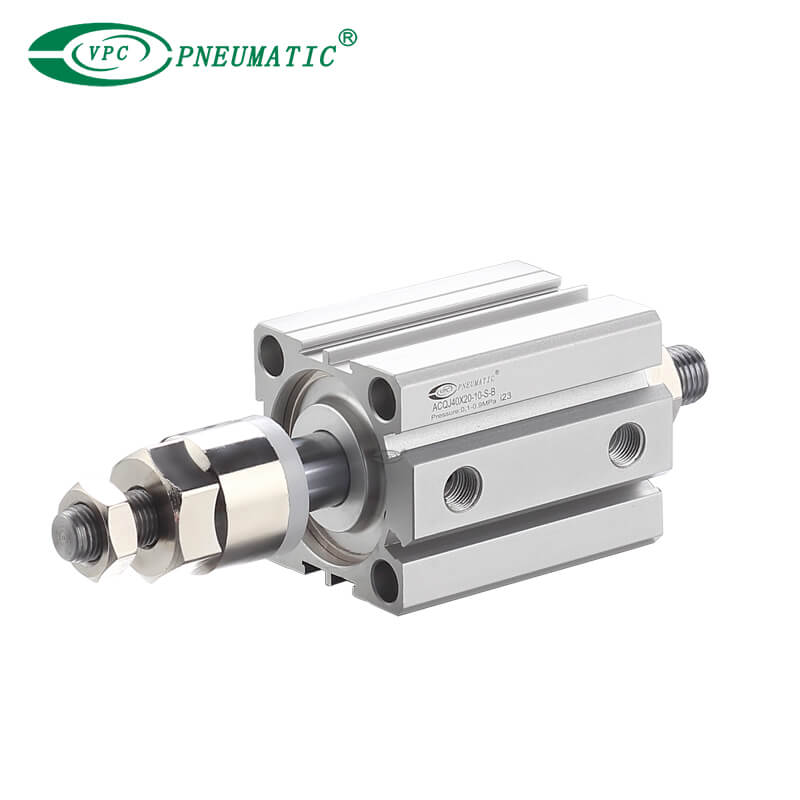

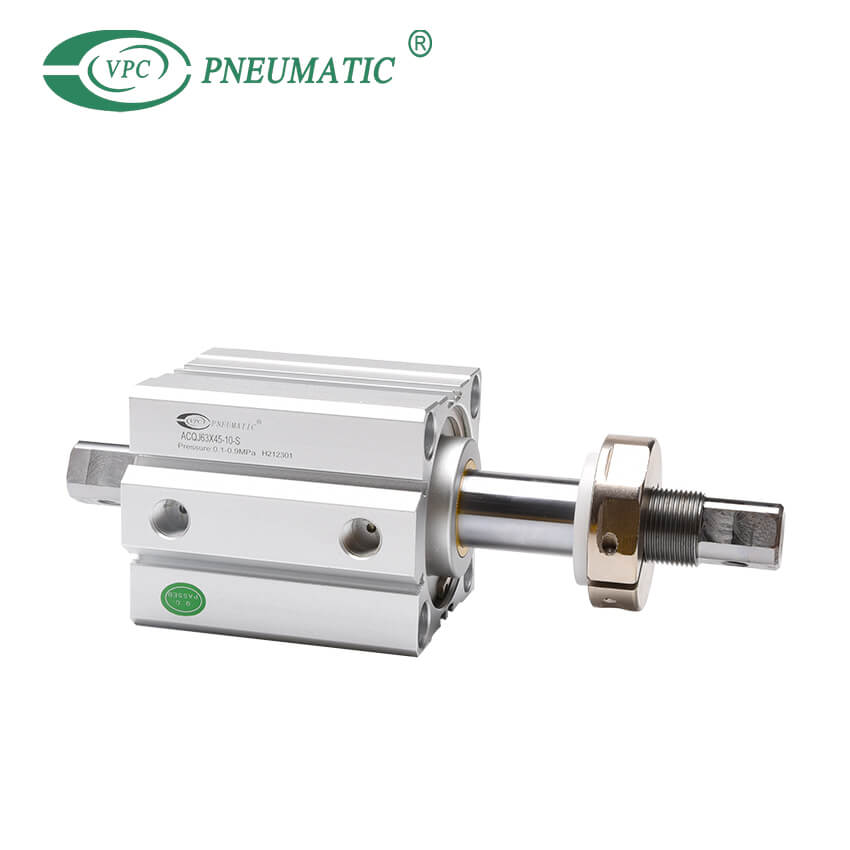

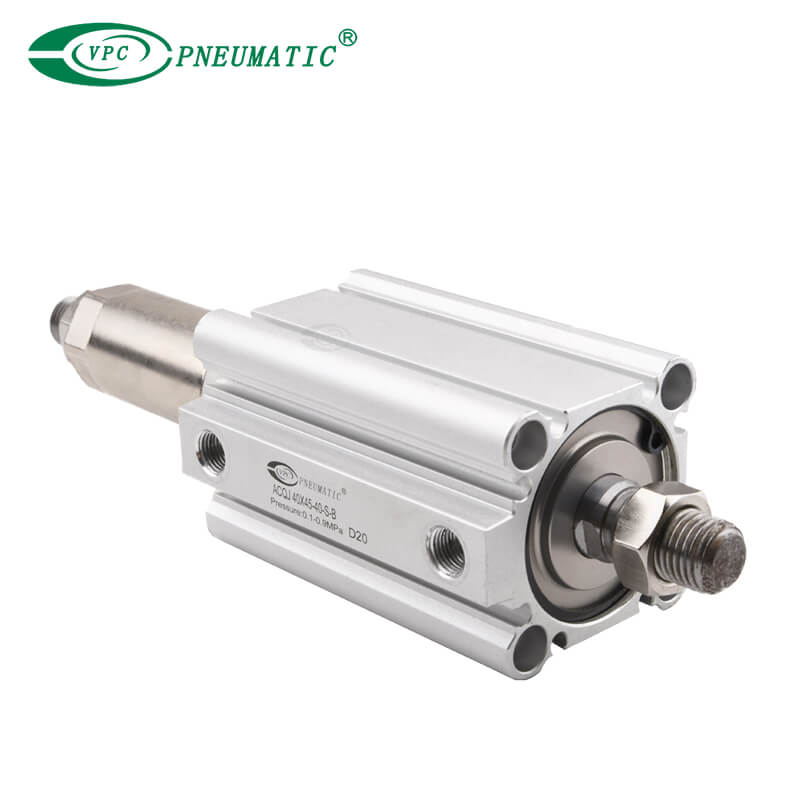

ACQJ Series Compact Cylinder Double Rod with Adjustable Stroke
ACQJ Series Compact Cylinder Double Rod with Adjustable Stroke ACQJ Series Compact Cylinder Double Rod with Adjustable Stroke
ACQJ Series Compact Cylinder Double Rod with Adjustable Stroke ACQJ Series Compact Cylinder Double Rod with Adjustable Stroke
ACQJ Series Compact Cylinder Double Rod with Adjustable Stroke ACQJ Series Compact Cylinder Double Rod with Adjustable Stroke
ACQJ Series Compact Cylinder Double Rod with Adjustable Stroke ACQJ Series Compact Cylinder Double Rod with Adjustable Stroke

loading

ACQJ Series Compact Cylinder Double Rod with Adjustable Stroke

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
ACQ compact cylinders conform to JIS standards, using a C clip to connect the cylinder body and back cover or front cover, adopting a riveted structure to connect the piston and piston rod, making it compact and reliable.

  • ACQ

  • VPC Pneumatic

Bore size:
Stroke:
Bore Ranges:
Availability:

Product Description

 Product Feature

1. The compact structure effectively saves installation space.

2. Various mounting brackets are available FA FB CB LB etc.

3. Magnetic switch slots around the cylinder body make it convenient to install inductive switches.

Product Specifications

Bore size (mm)121620253240506380100
Acting typeDouble acting
Single acting spring extend, Single acting spring return-
Working mediumClean air
Working pressureDouble acting0.15 to 1.0MPa
Single acting0.2 to 1.0MPa
Max. working pressure1.5MPa
Working temperature﹣20 to 70 ℃
Speed rangeDouble acting : 30 to 500mm /s  Single acting : 50 to 500mm /s
Stroke toleranceStroke≤100+10  Stroke>100+15
Cushion typeRubber cushion
Port sizeM5x0.81/8"1/4"3/8"

※ Detailed drawings and parameters of ACQ series cylinders can be obtained by contacting VPC.
