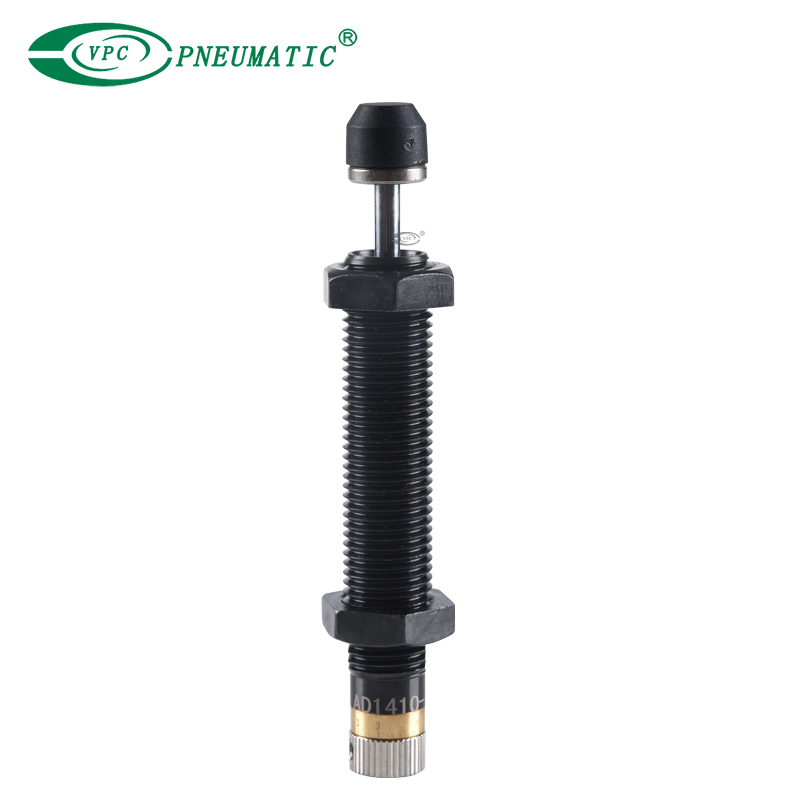

AD Series Adjustable Shock Absorber

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
AD series is adjustable structure. When facing different loads and impact speeds, the shock absorber knob can be adjusted to the most appropriate scale to perfectly absorb the energy generated by the object. Compared with the AC series, the AD series has higher energy absorption and a wider range of applications.
  • AD 1410

  • VPC Pneumatic

Speed range:
Ambient temperature:
Impact speed:
Stroke range:
Availability:

Product Description

 Product Feature

1. Integral structure, the outer tube is made of AISI 1215, STKM11A black oxidation, nickel plating, nitriding and sandblasting treatment to enhance the rust resistance. Some models are made of SUS303 stainless steel, which has stronger anti-rust performance.

2. Fully threaded profile, easy to install and adjust, with good heat dissipation performance.

3. High hardness stainless steel core, so that the buffer impact resistance, anti-corrosion performance is better, to ensure that the normal use of harsh conditions.

4. Special oil injection process makes the shock absorbing performance of the buffer more stable.

5. Special lubricating oil is used as buffer medium, which has a wide range of applicable temperature and stable buffer performance.



 Symbol


shock absorber

Product Specifications

ModelStroke
(mm)
Max. absorbed
energy [N·m (E1)]
Max.energy absorbed
/hour[(N·m/h) (Etc)]
Max. effective
mass [(kg) (Me)]
Max. impact speed
(m/s) (V)
Temperature
(℃)
Weight
(g)
AD1410102025000403-10 to 8084
AD1412122025000403-10 to 8084
AD1416162225000453-10 to 8090
AD1425252225000453-10 to 8090
AD20161625300001503.5-10 to 80230
AD20202025300001503.5-10 to 80230
AD20252539300001603.5-10 to 80240
AD25252585540002003.5-10 to 80350
AD25303095600002303.5-10 to 80365
AD254040100800003003.5-10 to 80455
AD25505098900003004-10 to 80455
AD2580801501200003504-10 to 80585
AD362525150810006503-10 to 80955
AD3650503001000007503-10 to 801100
AD4225252601250009003.5-10 to 801280
AD42505050015000010004.5-10 to 801490
AD42757575018000012004.5-10 to 801710
AD6405050120015000020001.5-10 to 804115
AD64100100240020000030001.5-10 to 805280
AD64150150360025000040001.5-10 to 806785

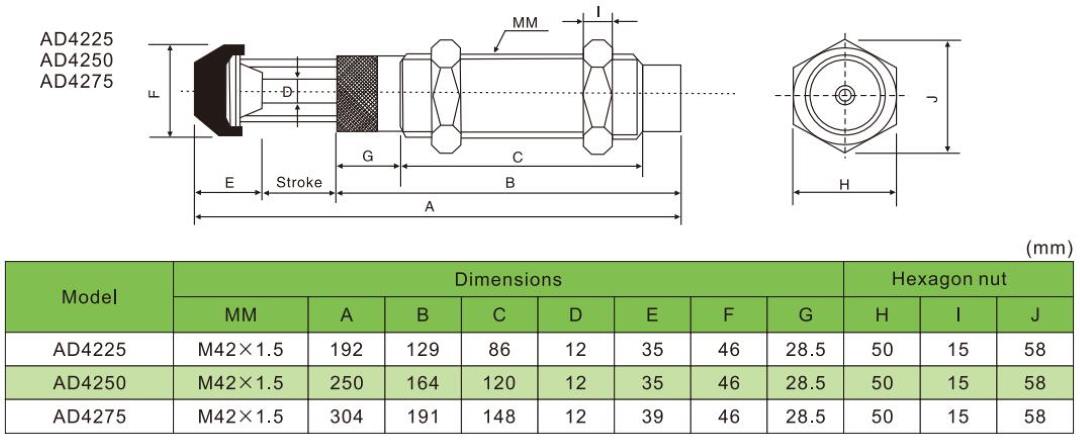

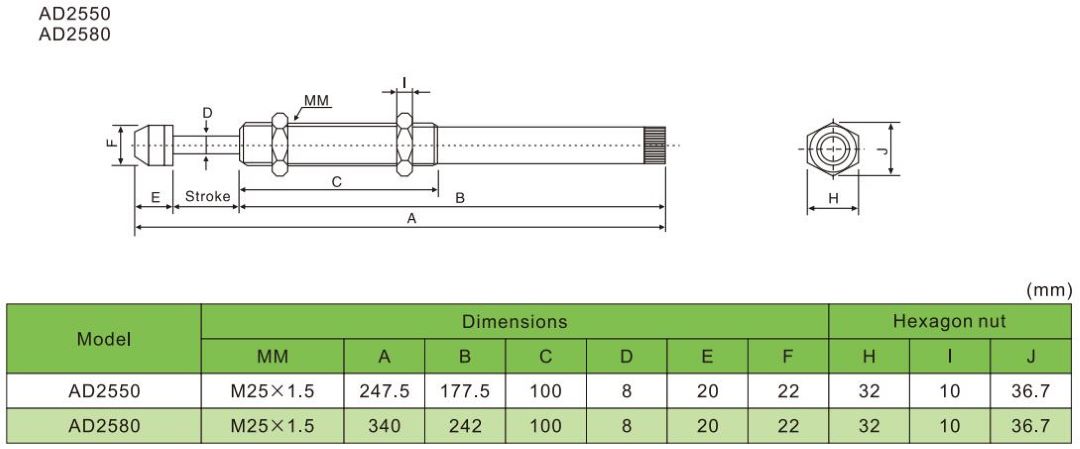

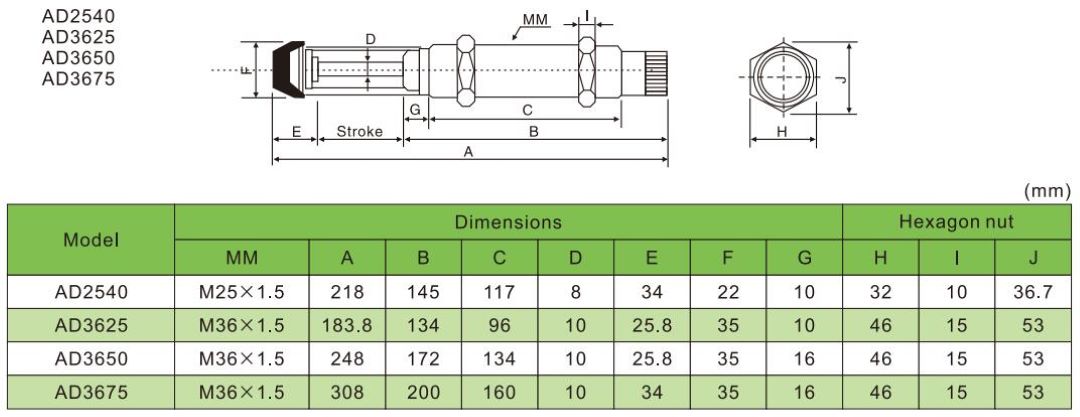

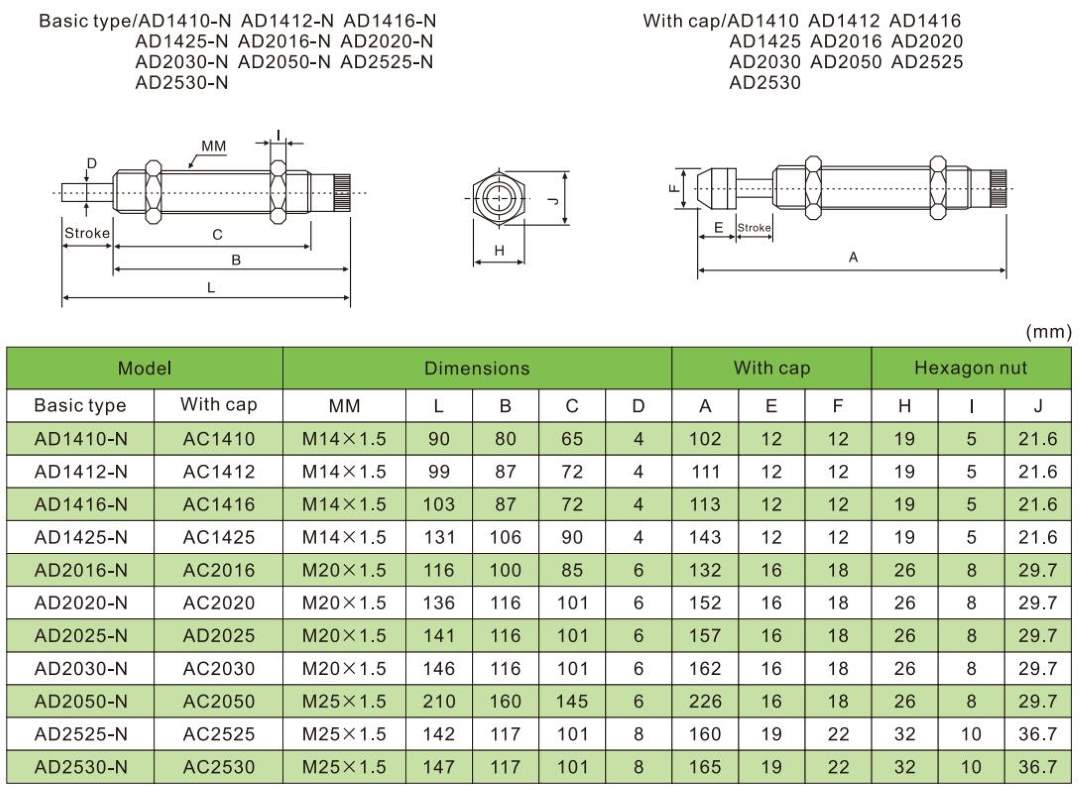

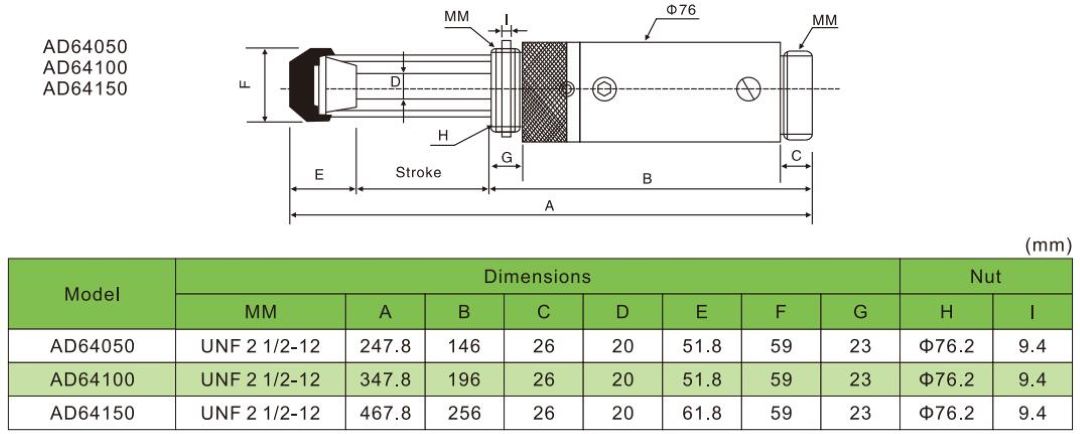

Main ​Dimensions

 Main Dimensions
