Product Description

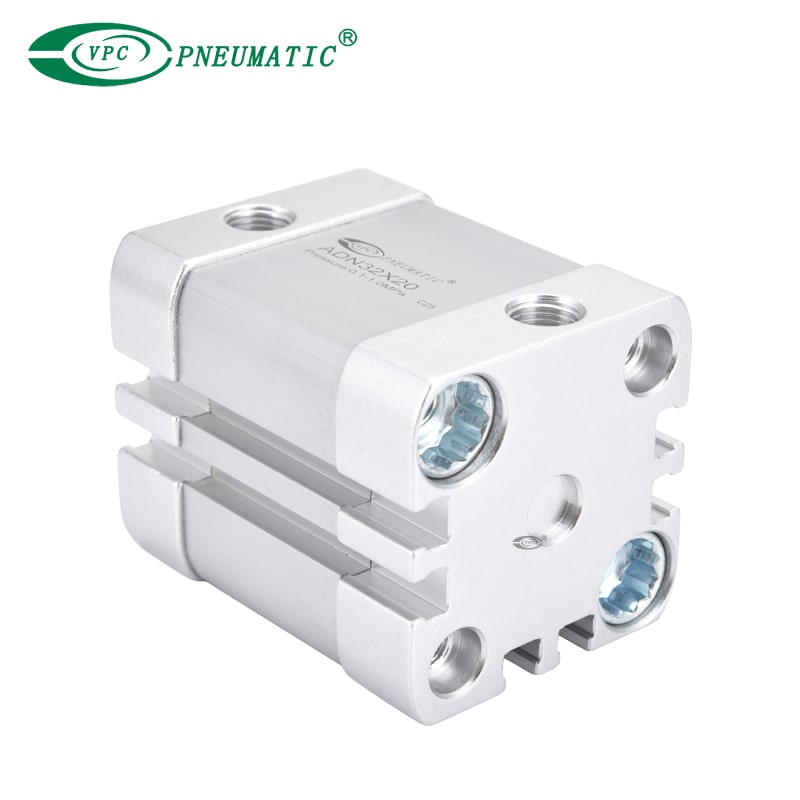

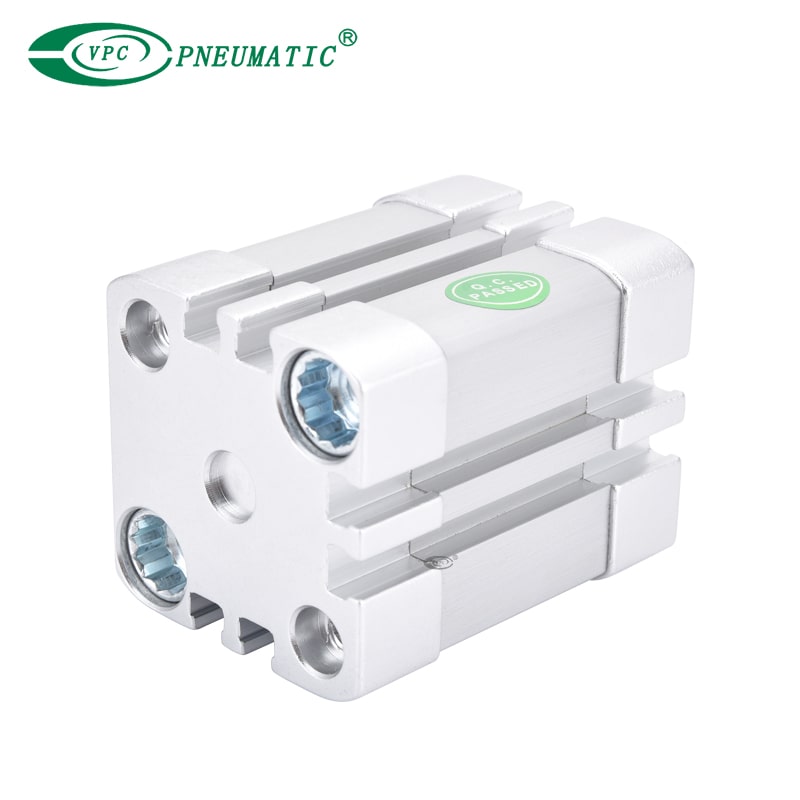

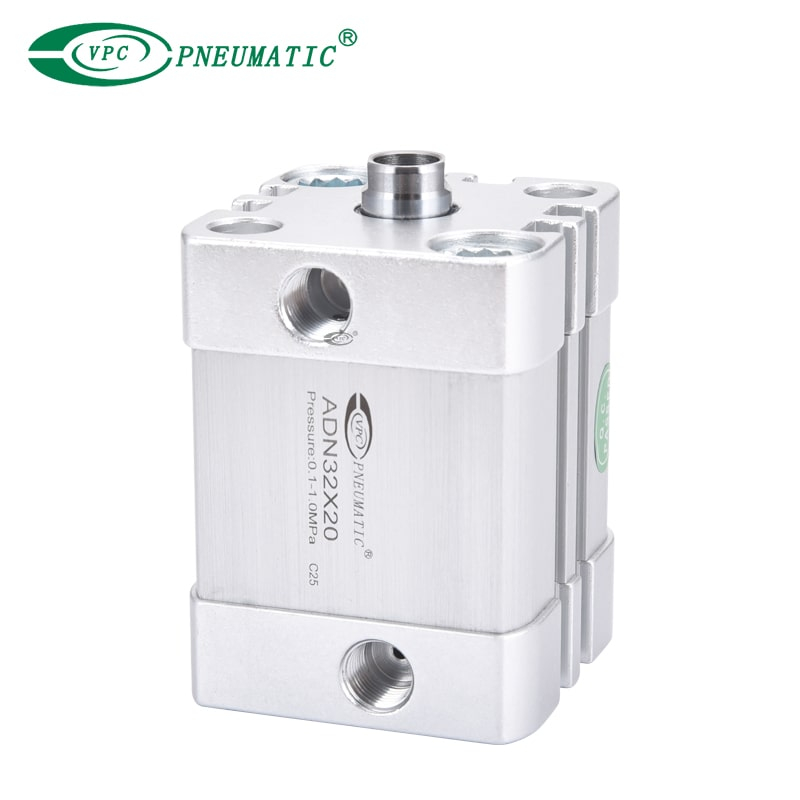

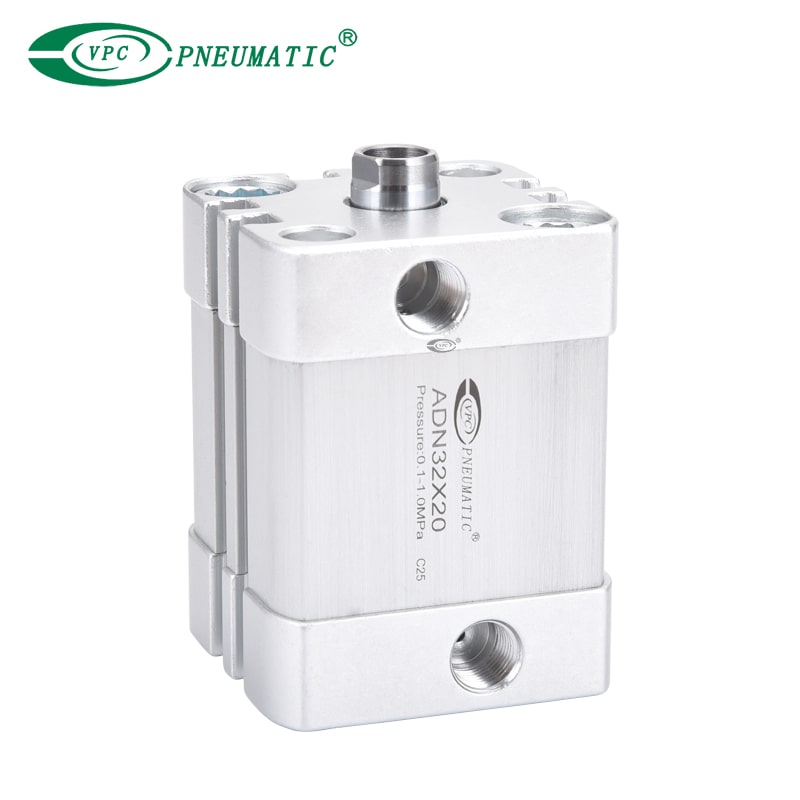

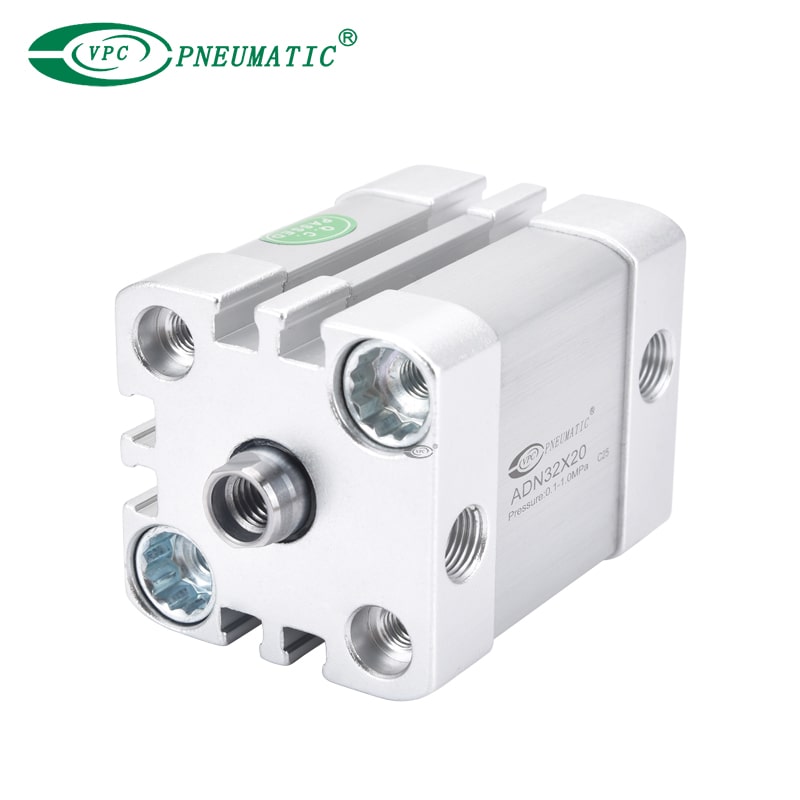

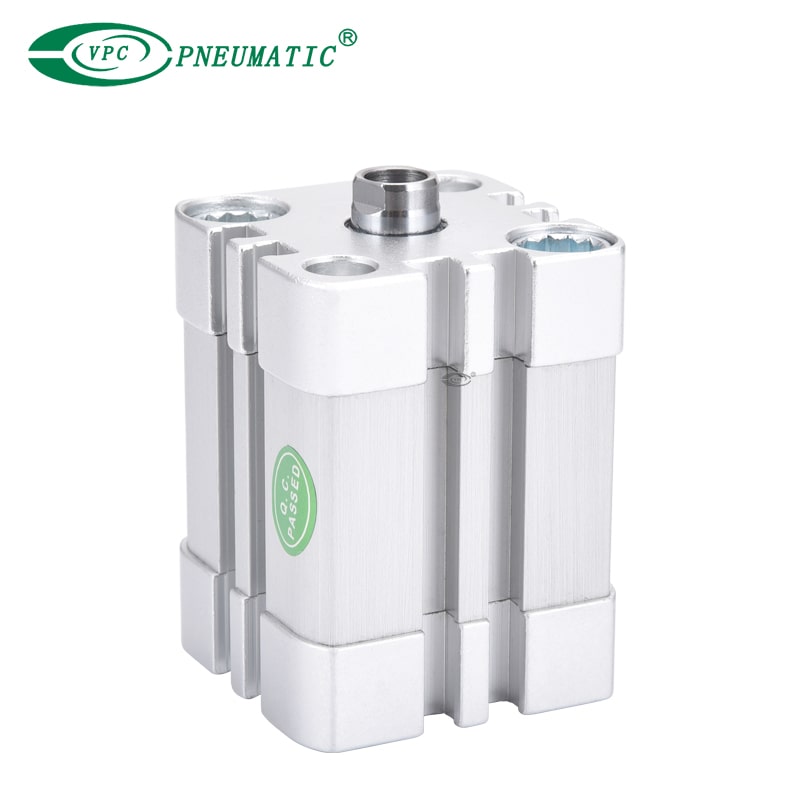

VPC Pneumatic ISO 21287 standard cylinder, designed for fixed or self-adjusting cushioning with high variability.
1. Saves up to 50% installation space compared to ISO 15552 cylinders
2. Wide range of variants for customized applications
3. Magnetic piston for contactless position sensing
4. Sensor slots on three sides for flush mounting of proximity switches
5. Piston rod with male or female thread options
6. Integrated cushioning for absorbing residual energy
7. Highly flexible modular product system
8. Easy to mount with a comprehensive range of accessories
9. Recommended for lithium-ion battery production facilities
10. Extended lifecycle due to simplified repairability, promoting sustainability
Product Specifications
| Bore (mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | 125 |
| Working medium | Clean air (40 um Filteration) | ||||||||||
| Acting type | Double acting | ||||||||||
| Single acting-Push type, Single acting-Pull type | - | ||||||||||
| Pressure | Double acting: 0.1 to 1.0 Mpa (14 to 145 psi) | ||||||||||
| Single acting: 0.2 to 1.0 Mpa (28 to 145 psi) | |||||||||||
| Working pressure | 5 to 80 ℃ | ||||||||||
| Guaranteed pressure | 1.5 Mpa (215psi) | ||||||||||
| Speed range | Double acting: 30 to 500 mm/s Single acting: 50 to 500 mm/s | ||||||||||
| Tolerance of stroke | Stroke≤100+1.0 Stroke>100+1.5 | ||||||||||
| Cushion type | Bumper | ||||||||||
| Port size | M5X0.8 | G1/8 | G1/4 | ||||||||

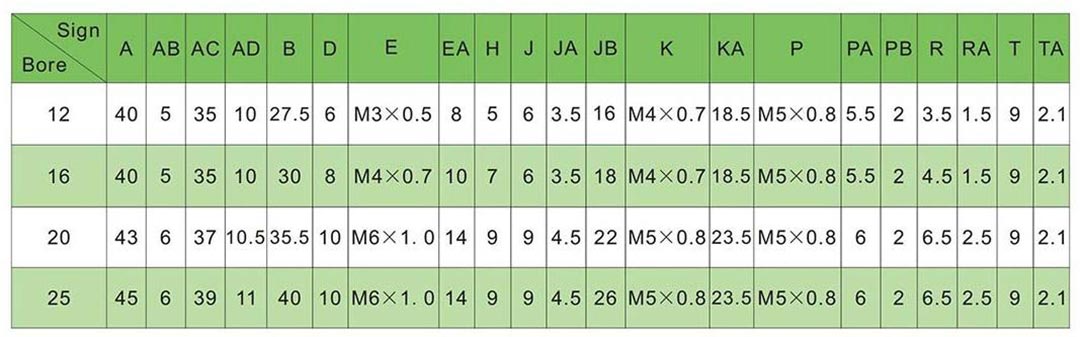

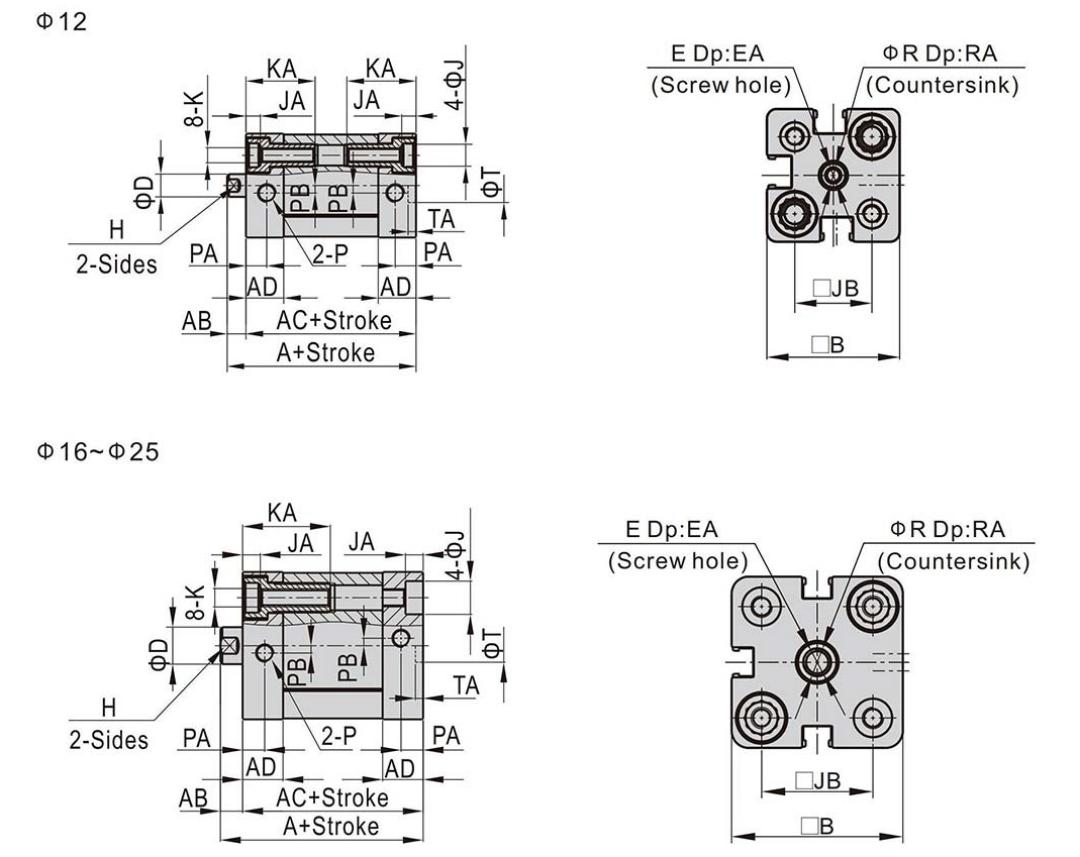

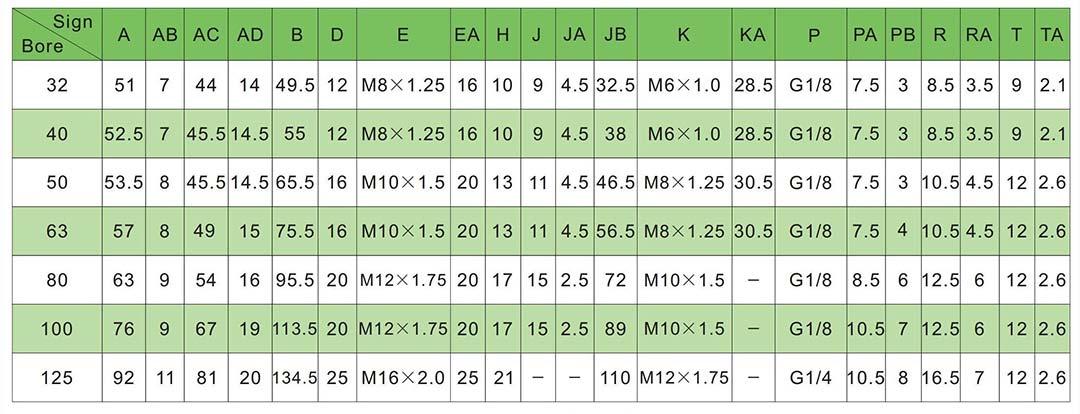

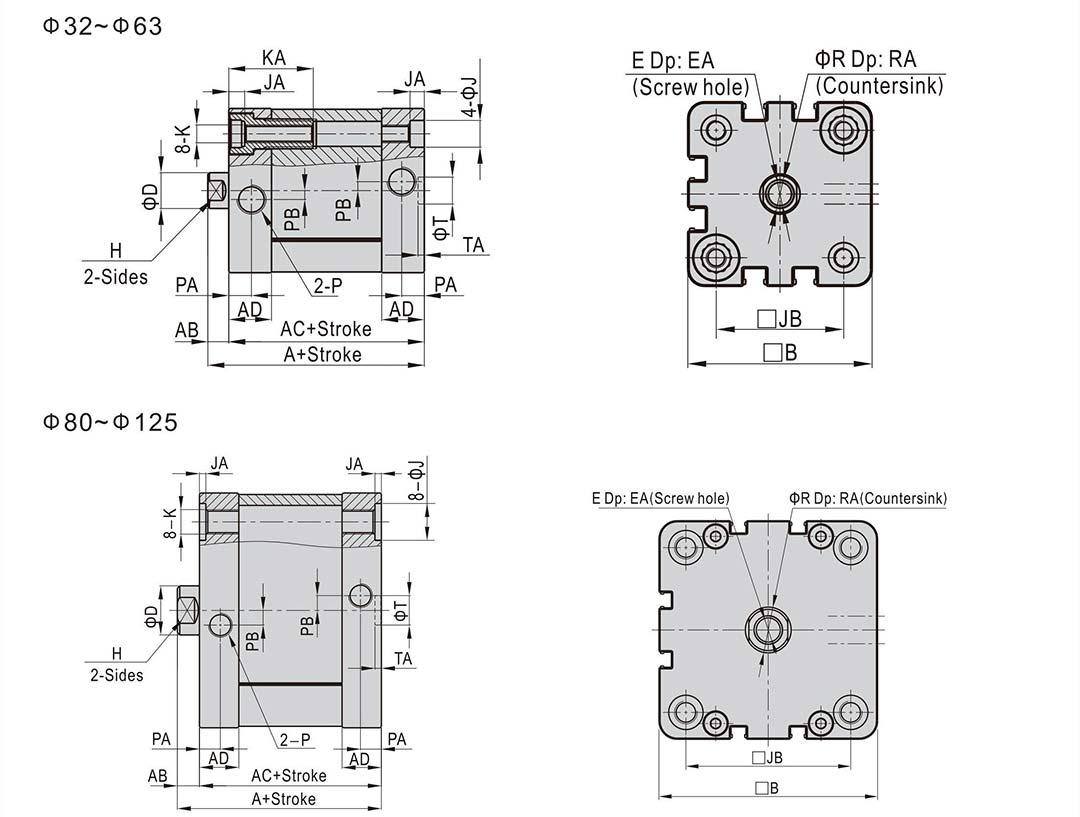

Main Dimensions
