AF Series Air Filter

Share to:

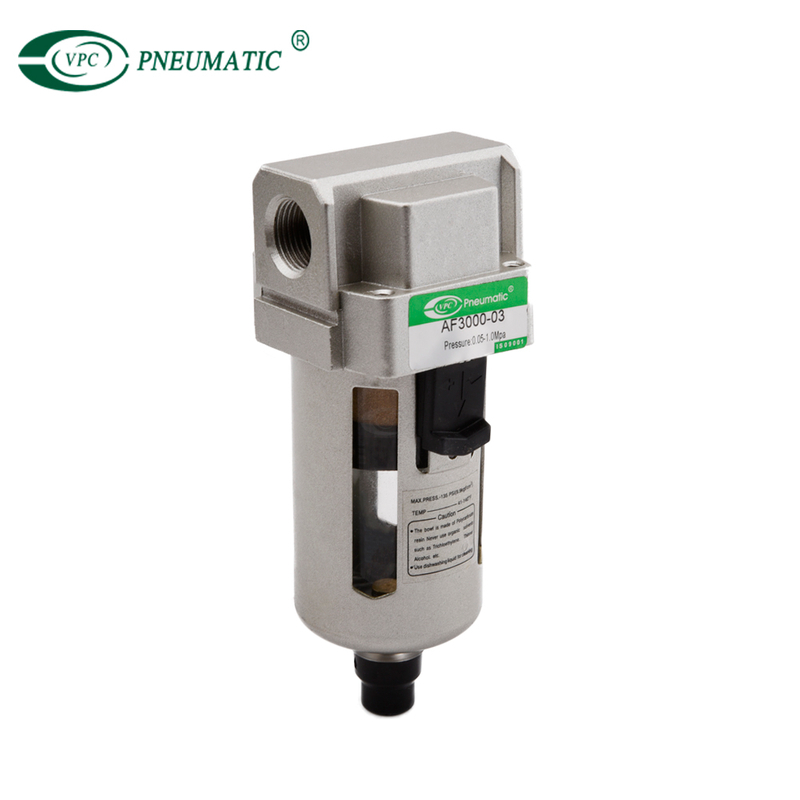

VPC's AF modular style air filter combines the element and bowl in one piece, making element replacement easy. There is a maximum 46% reduction in size, reducing required maintenance space. The AF bowl (size 10 and 20) is covered with a transparent bowl guard, allowing 360° monitoring. The modular design of the AF allows connection with other VPC air preparation equipment. The series is available in body size 10,20,30,40 and 50.
  • AF3000-02
  • VPC Pneumatic
  • 8421399000
Working medium:
Working temperature:
Pressure adjusting range:
Filter precision:
Bowl material:
Core material:
Availability:

Product Description

AF-order code

Product Specifications

Guaranteed Pressure Resistance1.5Mpa
Max Working Pressure1.0Mpa
Working Temperature5 to 60℃
Filter Precision25um(5um is optional)
Bowl MaterialAluminum
Bowl GuardAF1000 to 2000(None) / AF3000 to 5000(Avaiable)
Pressure Range0.05 to 0.8Mpa
Water CupPolycarbonate
Core MaterialBrass

Note: NPT, PT Port size is optional.


Model                                           SpecificationAccessoriesDrian FunctionAuto Drain Model
Rated Flow(L/min)Port Size(G)Bowl Capacity (cm³)Weight(kg)Bracket (2pcs)
AF1000-M5110M540.07/Manual rain/
AF2000-01750G1/8"150.19B240Manual drainAW2000-01D
AF2000-02G1/4"AW2000-02D
AF3000-021500G1/4"200.29B340

A.Zero pressure drain

 B.Manual drain

AW3000-02D
AF3000-03G3/8"AW3000-03D
AF4000-034000G3/8"450.55B440AW4000-03D
AF4000-04G1/2"AW4000-04D
AF4000-066000G3/4"450.58B540AW4000-06D
AF5000-067000G3/4"1301.08B640AW5000-06D
AF5000-10G1"AW5000-10D

Note:The above information is based on 0.7Mpa(7. 1kgf/cm2) supply pressure and 0.5Mpa(5. 1kgf/cm2) setted pressure.


Main Dimensions

AF参数-1
