| Working medium: | |
|---|---|
| Working temperature: | |
| Pressure adjusting range: | |
| Filter precision: | |
| Bowl material: | |
| Core material: | |
Product Description
Product Specifications
| Guaranteed pressure resistance | 1.5Mpa |
| Max. working pressure | 1.0Mpa |
| Working temperature | 5 to 60℃ |
| Filter precision | 25um (5um is optional) |
| Bowl material | Aluminum |
| Bowl guard | AF1000 to 2000 (None) / AF3000 to 5000 (Avaiable) |
| Pressure range | 0.05 to 0.8MPa |
| Water cup | Polycarbonate |
| Core material | Brass |
Note: NPT, PT Port size is optional.

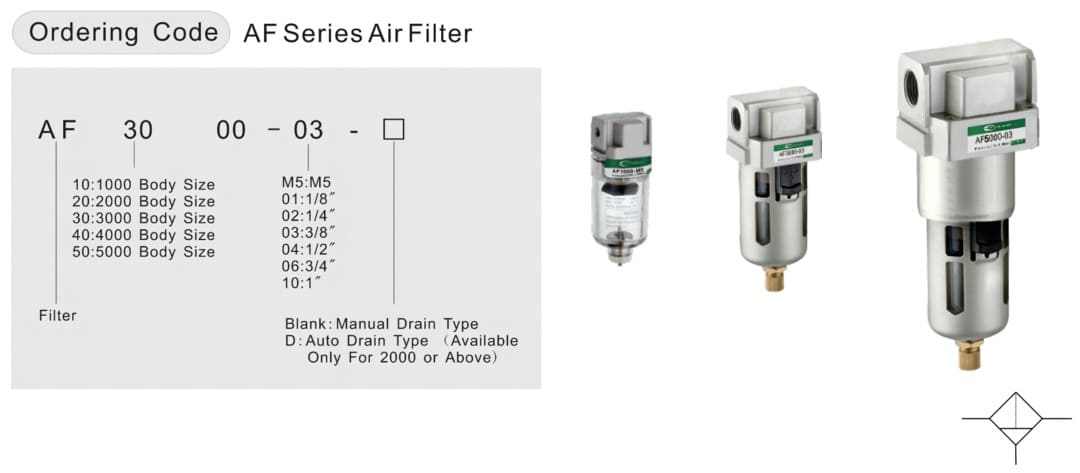

| Model | Specification | Accessories | Drain function | Auto drain model | |||
| Rated flow (L/min) | Port size (G) | Bowl capacity (cm³) | Weight (kg) | Bracket | |||
| AF1000-M5 | 110 | M5 | 4 | 0.07 | - | Manual rain | - |
| AF2000-01 | 750 | G1/8" | 15 | 0.19 | B240 | Manual drain | AW2000-01D |
| AF2000-02 | G1/4" | AW2000-02D | |||||
| AF3000-02 | 1500 | G1/4" | 20 | 0.29 | B340 | A. Zero pressure drain B. Manual drain | AW3000-02D |
| AF3000-03 | G3/8" | AW3000-03D | |||||
| AF4000-03 | 4000 | G3/8" | 45 | 0.55 | B440 | AW4000-03D | |
| AF4000-04 | G1/2" | AW4000-04D | |||||
| AF4000-06 | 6000 | G3/4" | 45 | 0.58 | B540 | AW4000-06D | |
| AF5000-06 | 7000 | G3/4" | 130 | 1.08 | B640 | AW5000-06D | |
| AF5000-10 | G1" | AW5000-10D | |||||
Note:The above information is based on 0.7Mpa (7.1kgf/cm²) supply pressure and 0.5Mpa (5.1kgf/cm²) setted pressure.

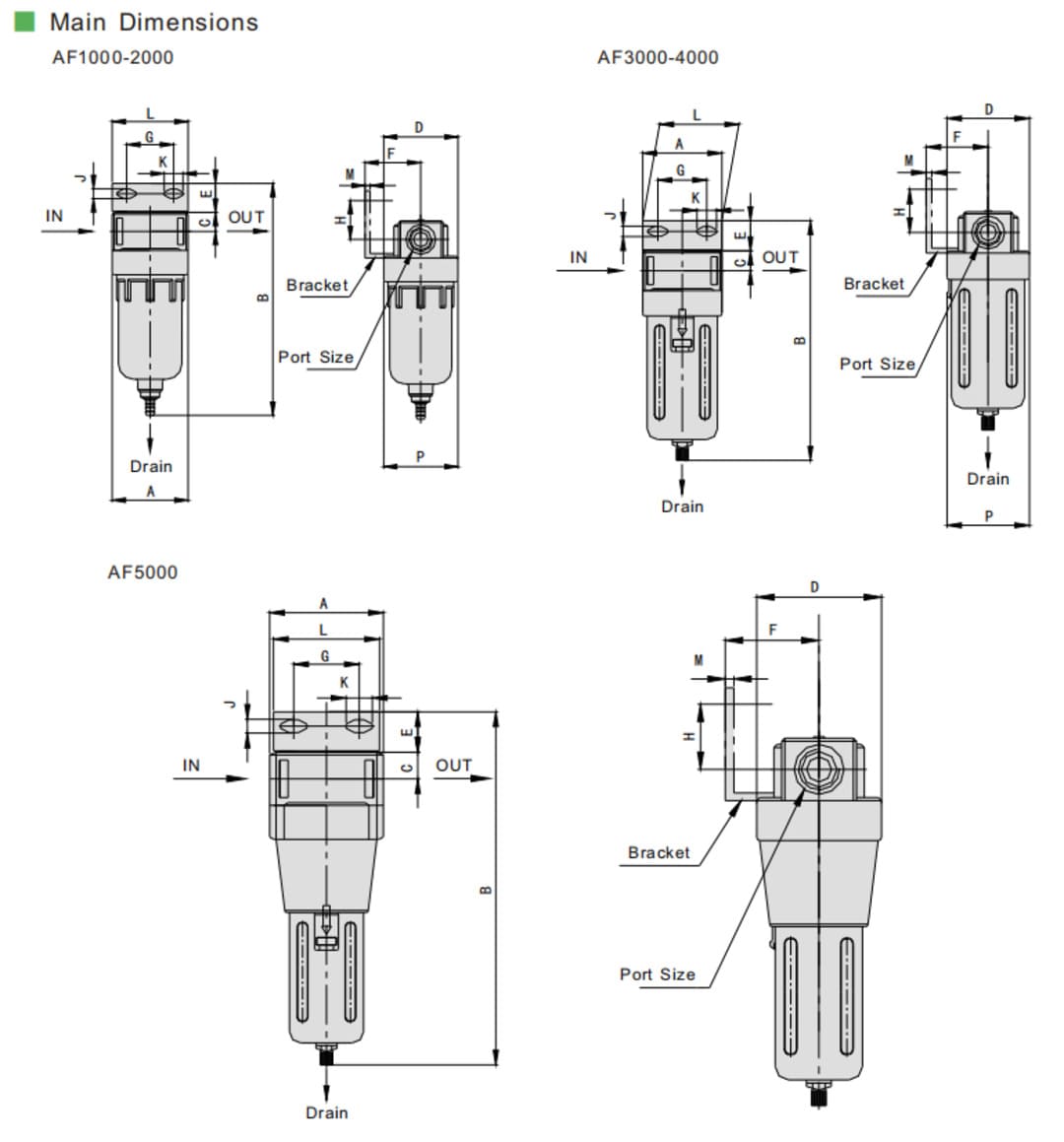

Main Dimensions
